Brake Products   |  Cutler-Hammer   |  Eldro   |  Renold Ajax   |  Reuland   |  Scan-Pac   |  Superbolt   |  Wagner   |  Westinghouse

Wagner
No. Part Number Description Price Stock Qty
1 WAG-02-400-058 Repair Kit for a Master Cylinder
For Master Cylinder 20-100-124
73.11 C/F
2 WAG-105051 1.75 Inch Bore
2 Piece Piston
No Check Valve
Dot 3 Brake Fluid
3/14
817.34 C/F
3 WAG-106035 Wagner 560.00 C/F
4 WAG-1099FE Wagner Master Cylinder Casting Number
Need to know
Uses DOT 3 Brake Fluid?
Have the Solid Piston Design?
Have a Check Valve
See F1701, AF840, A3077, F33262, F89086, F99549 & F2981
Call C/F
5 WAG-11196 Wagner Master Cylinder
5/14
121.30 C/F
6 WAG-2107 Wagner Casting #
For Wheel Cylinder F36939
Call C/F

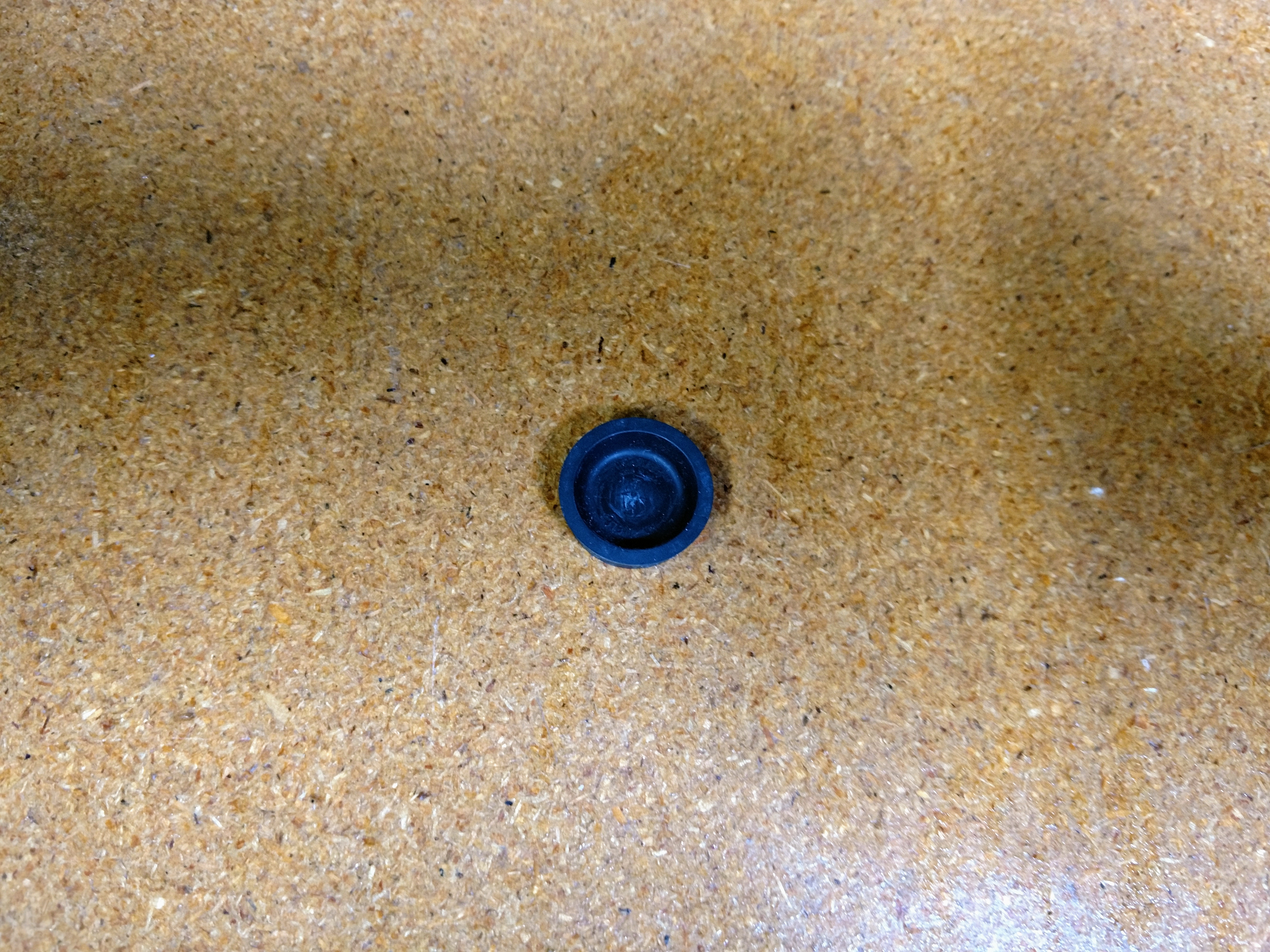

7 WAG-3023 Wagner Cup
7/8 / 0.875 Inch Diameter
11/32 High
EIS R31 / R37 120 USA
aka FD-118163 F3023 8/14
(1LB) H 4.00" L 5.00" W 4.00" Box
[Amazon]
12.50 35
8 WAG-31818 Wagner Gemco Pressure Cluster
1 X 8 Pressure Ratio
Air / Hydraulic
New updated / changed unit
Same fit, form & function
aka AF31818 (30LBS)
Call C/F
9 WAG-5343 Wagner Hose
Bleeder Hose
13.33 2
10 WAG-610 Wagner Grease Fitting
1/8 Inch Large Straight Pipe Thread
With a Ball Check Valve
Plated Finish
0.95 40
11 WAG-70494KIT Wagner Repair Kit 260.00 C/F
12 WAG-A075422 Wagner Repair Kit
For a J98275 Disc Brake Power Cluster
1 X 8 Pressure Ratio
5 Inch Diameter Pneumatic Bore Side
1.75 Inch Diameter Hydraulic Bore
10 Parts Included
Air Piston Cup AD-2955 1x3 & Felt Washer A2836 for the Pneumatic Side
Secondary Seals, Main Piston, Secondary Piston, Compensating Check Valve, Back-Up Washer, Primary Cup, Spring Clip & a Zero Residual Check Valve for the Hydraulic Side
SAE 1703 / DOT 3 Brake Fluid Only
618.95 5
13 WAG-A075431 Wagner Repair Kit
For a J98274 Disc Brake Power Cluster
1 X 15 Ratio Pressure Ratio
7 Inch Diameter Pneumatic Bore
1.75 Inch Diameter Hydraulic Bore
Includes 10 Parts
Air Piston Cup AD-2918 & Felt Washer on the Pneumatic Side
Secondary Seals, Main Piston, Secondary Piston, Compensating Check Valve, Back-Up Washer, Primary Cup FC-89534, Zero Residual Check Valve on the Hydraulic Side
Boot AC-2034 & a Spring Clip
SAE 1703 Brake Fluid Only, Dot 3 (1LB)
583.17 2
14 WAG-A105050 Wagner Pressure Cluster Assembly
A Repair Kit for this part is A75431
12/15
2042.43 C/F
15 WAG-A131023 Wagner Repair Kit
For Pressure Cluster A131023
Parts included to repair both the pneumatic & hydraulic sides
166.00 C/F
16 WAG-A2003 Wagner Boot
Used with AD833 Pneumatic Cylinder and others
1/16
15.44 C/F
17 WAG-A2196 Wagner O'Ring
2.75 Inch O.D.
2.375 Inch I.D.
0.25 Thick
Master cylinder before it installs into the casting, AF840
3/14
14.60 1
18 WAG-A2836 Wagner Felt Packing
Used with AD833 Pneumatic Cylinder and others
1/16
8.21 C/F
19 WAG-A2838 Wagner Felt Packing Felt
Used with AD2918 Seal
3/16
8.26 C/F
20 WAG-A3074 Wagner Repair Kit
For a Power Cluster A837
Repairs Master Cylinder F4572 & AAF833 / A833
1.25 Inch Diameter
Casting FD4570
10/14
83.14 C/F
21 WAG-A3075 Wagner Repair Kit
For A838 Pressure Cluster
Casting FD2704
11/12
109.77 1
22 WAG-A3076 Wagner Repair Kit
For a AF839 Pressure Cluster
8 to 1 Ratio
Includes 74-425 Piston Part 418-81, 73-627 Screw Part 419-81, 306-96 Packing Part
3/16
156.00 C/F
23 WAG-A3077 Wagner Repair Kit
For a AF840 Power Cluster
10 Parts Included:
AD2918 Pneumatic Seal Ring, FC-6433 Hydraulic Piston, AC-2034 Boot
FD-951 Cup 1 & 3/4 Inch Dia., Neoprene Ring 1 & 9/16 Dia 9/16 I.D
"Top Hat" Style Check Valve, Packing by 22 Inches
Fibre Gasket @ 1 & 7/8 Dia., Snap Ring & Wire Fastener
Master Cylinder Casting FE1099
(2LBS) H 4" L 5" W 4" Box
9/16
180.13 C/F
24 WAG-A3261W49 Wagner Master Cylinder
FD6145 5/11
74.00 C/F
25 WAG-A37050 Wagner Tubing
Copper Tubing 1/4 Inch
50 Feet Long 1/13
102.00 C/F
26 WAG-A37055 Wagner Tubing
Copper Tubing 3/8 Inch
50 Feet Long
For Hydraulic Brakes 1/13
116.00 C/F
27 WAG-A37470 Wagner RF Air Valve 176.00 1
28 WAG-A39211 Wagner Repair Kit
For a A46284 Power Cluster
Uses Mineral Oil Only, NOT Brake Fluid
7 Inch Diameter Air Chamber 7/15
276.75 C/F
29 WAG-A39219 Wagner Part 23.10 3
30 WAG-A39248 Wagner Repair Kit
For a AF70494 Power Cluster
7/14
286.33 C/F

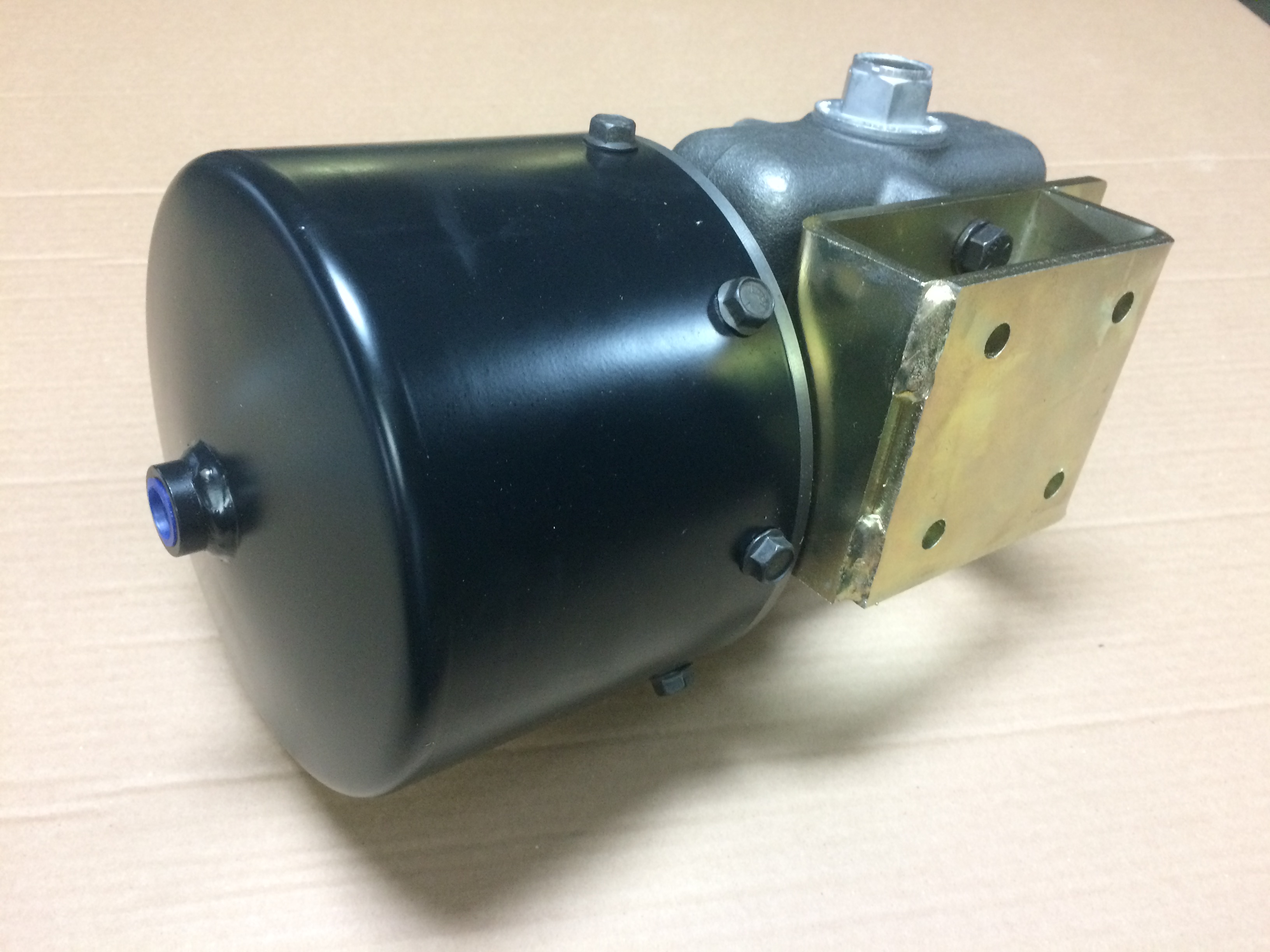

31 WAG-A46284 Wagner Power Cluster
For use with MINERAL OIL ONLY
For DOT 3 Brake Fluid use part AF840
1/16
1418.75 C/F
32 WAG-A55565 Wagner PowerMaster
From Casting # AF31452
Has 8 Bottom holes
2 Main Ports without Threads?
Limited Availability
8/16
1012.36 C/F
33 WAG-A55568 Wagner Piston 11/15 53.64 C/F
34 WAG-A75422 Wagner Repair Kit
For Pressure Cluster J98275
10 Parts Included
2 Piece Piston
5 Inch Bore
AD-2955 5 Inch Seal Ring with Internal Spring, "montee" Check Valve
Master Clinder Casting FE1099
5/12
494.83 1
35 WAG-A75431 Wagner Repair Kit
For Master Cylinder A105050
12/15
466.38 C/F
36 WAG-A834 Wagner Air Cylinder
For an A838 Pressure Cluster
10/11
438.00 C/F
37 WAG-A837 Wagner Pressure Cluster. Pneumatic to Hydraulic Power Cluster, 1.25 Inch Hydraulic Master Cylinder Bore, a 5 Inch Pneumatic Bore 9/14 814.57 C/F
38 WAG-A838 Wagner Power Cluster
Pressure Line off the Side
6 Inch Pneumatic Diameter
Master Cylinder F661
Master Cylinder Casting FD2704
Repair Kit for above A3075 5/15
726.65 C/F
39 WAG-A839 Wagner Power Cluster
7 Inch Pneumatic Cylinder
8 to 1 Ratio
Same as AF839
Repair Kit Part # A3076 3/16
893.16 C/F
40 WAG-A88740 Valve. Push Valve, Push to Release, Normally Closed, Parking Bleed Valve, Midland, Pintle Hook 124A1A Call 3
41 WAG-A89647 Wagner Air Cylinder
11/16
780.81 C/F
42 WAG-A99544 Wagner Air Cylinder 5/14 1587.30 C/F
43 WAG-AC2034 Wagner Rubber Boot
Only available in repair kits?
4/15
36.70 C/F
44 WAG-AC-67929 Wagner Valve
Solenoid Air Valve 3/16
(1LB) H 4" L 6" W 4" Box
99.26 C/F
45 WAG-AD2918 Wagner Seal
Pneumatic Seal
7 Inches in Diameter
Part of Repair Kit A075431
For Disc Brake Power Cluster J098274 & AF840
(1LB) H 2" L 7" W 7" Box
32.00 C/F
46 WAG-AD2955 Wagner Seal
Pneumatic Seal 5 Inch O.D
Ushed with AD833 Pneumatic Cylinder & others
aka AD-2955 Wagner Lockheed USA 1/16
32.20 C/F
47 WAG-AD2957 Wagner Seal
About 6 Inches in Diameter
For a Pneumatic Cylinder 3/16
42.14 C/F
48 WAG-AD3017 Wagner Midland Reservoir
Pneumatic Air Reservoir 41 Inches Long
8 & 3/16 Inch in Diameter
Single Compartment 5/13
478.00 C/F
49 WAG-AD833 Wagner Pneumatic Cylinder
Cup AD2955
Boot A2003
Felt Packing A2836
Call C/F
50 WAG-AE837 Wagner Power Cluster
1.25 Inch Master Cylinder
Casting FD4570
Repair Kit A3074 9/14
814.57 C/F
51 WAG-AF31452 Wagner Casting Number
For a PowerMaster
Only 2 Type PowerMasters are available for a lilited time
AF31452 with 4 Bottom Holes and 2 Treaded Main Ports
A39661 with 8 Bottom holes and 2 Main Ports, Un-Treaded?
Repair Kit F102010 for either
Call C/F
52 WAG-AF70494 Wagner Power Cluster
With Master Cylinder Part WAG-F34074
Normally a Stock Item
7/14
1097.58 1
53 WAG-AF839 Wagner Pressure Cluster
SEE WAG-A839
Call C/F
54 WAG-AF840 Wagner Pressure Cluster
Pneumatic to Hydraulic Power Cluster
1.75 Inch Part F1701 Hydraulic Master Cylinder
7 Inch Pneumatic Bore
For use with Dot 3 Brake Fluid Only
aka A840
The Repair Kit is Part WAG-A3077
(35LBS)
846.66 1
55 WAG-AF88860 Wagner Power Cylinder
10/15
1096.14 C/F
56 WAG-AF88862 Wagner Power Cluster
Solid Piston in the Master Cylinder
7 Inch Diameter Pneumatic Cylinder
8/14
1169.21 C/F

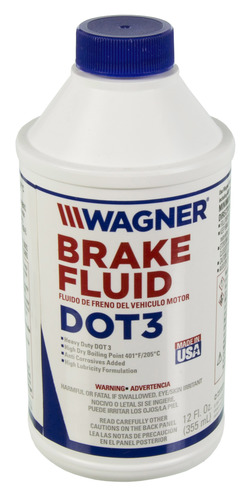

57 WAG-F009313 Wagner Brake Fluid 21B
Super Heavy Duty DOT 3
Anti Corrosives Added
High Lubricity Formulation
401 F / 205 C Dry Boiling Point
SAEJ1703, Fed Spec VV-B-680
Conforms to FMVSS 116
Case of Quarts
Qty. 12 Pieces per Case
(32LBS)
96.00 7
58 WAG-F009314 Wagner Brake Fluid 21B
Super Heavy Duty DOT 3
Anti Corrosives Added
High Lubricity Formulation
401 F / 205 C Dry Boiling Point
SAEJ1703, Fed Spec VV-B-680
Conforms to FMVSS 116
Case of Gallons
Qty. 6 Pieces per Case
(60LBS)
174.00 C/F
59 WAG-F1012 Wagner Wheel Cylinder
1.75 Inch Bore
For use with DOT 3 Brake Fluid only
Casting # FD682 3/15
53.50 C/F
60 WAG-F102010 Wagner Repair Kit
For a Power Head
Casting # AF31452
Power side only 8/16
85.70 C/F
61 WAG-F105051 Wagner Master Cylinder, 1.75 Inch Bore, 2 Piece Piston, to be used with Brake Fluid, without a check valve. Repair Kit F89086 but do not use check valve provided in the kit 3/14 817.34 C/F
62 WAG-F105156 Wagner Master Cylinder, 2 Piece Piston 314.00 C/F
63 WAG-F105157 Wagner Master Cylinder
1.5 Inch Bore
2 Piece Piston
Casting #s FE105168, FD1387 FC31545 & FE3419
Repair Kit Part F89149 5/15
334.88 C/F
64 WAG-F106354 Wagner Repair Kit for a F36764 Clutch Master Cylinder. Casting # FE23482. Includes Gasket, Spring, Piston, Cup, Boot & O'Ring 5/15 44.93 C/F

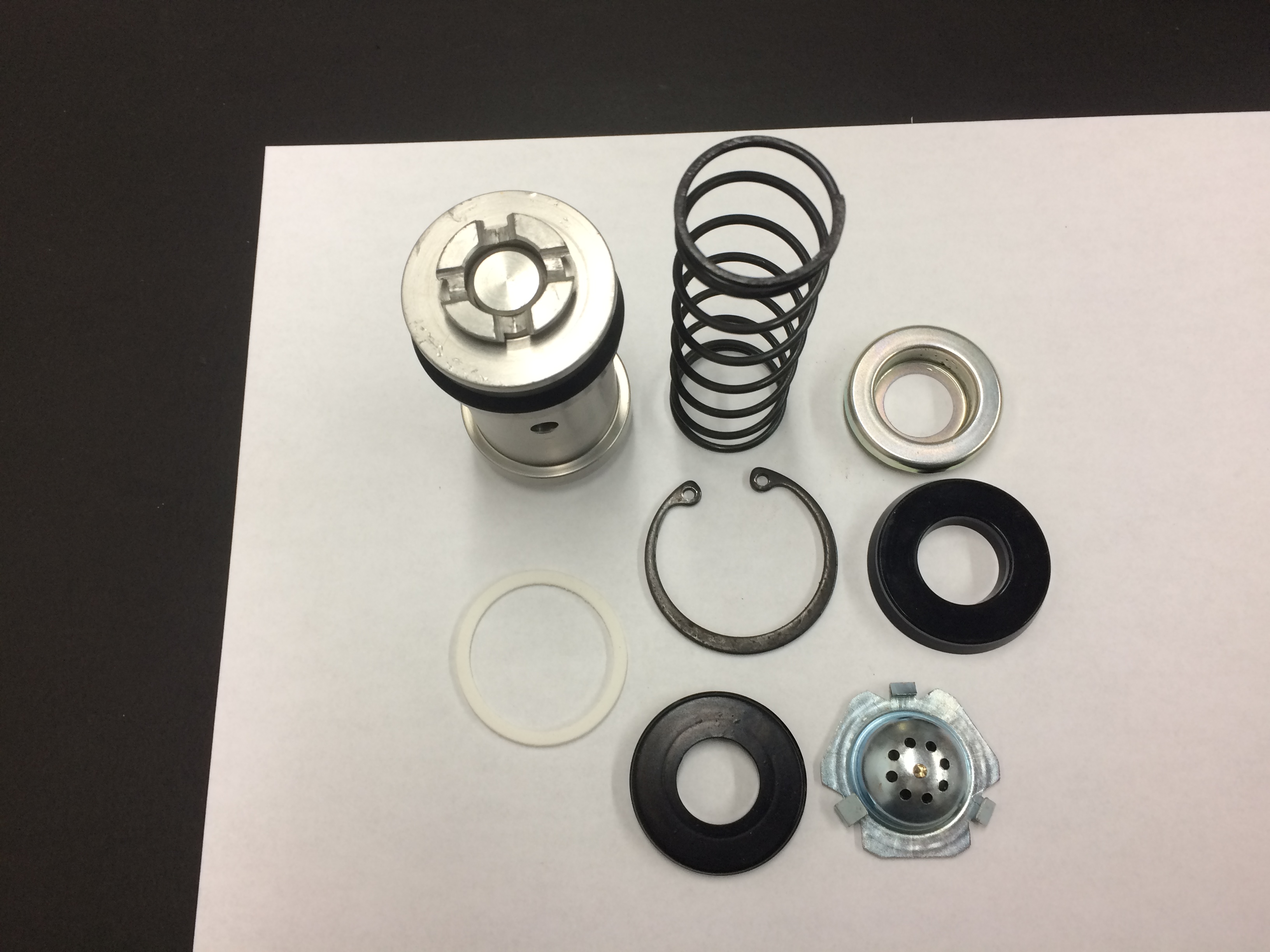

65 WAG-F120277 Wagner Repair Kit
Master Cylinder Repair Kit
For Master Cylinder F72483
Casting # FD2704
Includes 5 Items:
Piston, Return Spring, Check Valve, Snap Ring, Neoprene Cup, Neoprene Ring, Plastic Ring & Stamped Steel Ring
(1LBS) H 4.00" L 4.00" W 4.00"
[Amazon]
169.67 C/F
66 WAG-F12103 Wagner Cap
OBSOLETE AS OF 8/16
Metal Filler Cap
SEE WAG-F122168 Plastic Cap
12.48 1
67 WAG-F12210 Wagner Repair Kit
For Master Cylinder F13066
Casting FE105168
With a Single Piece Piston
For use with DOT 3 Brake Fluid Only
1/16
101.91 1

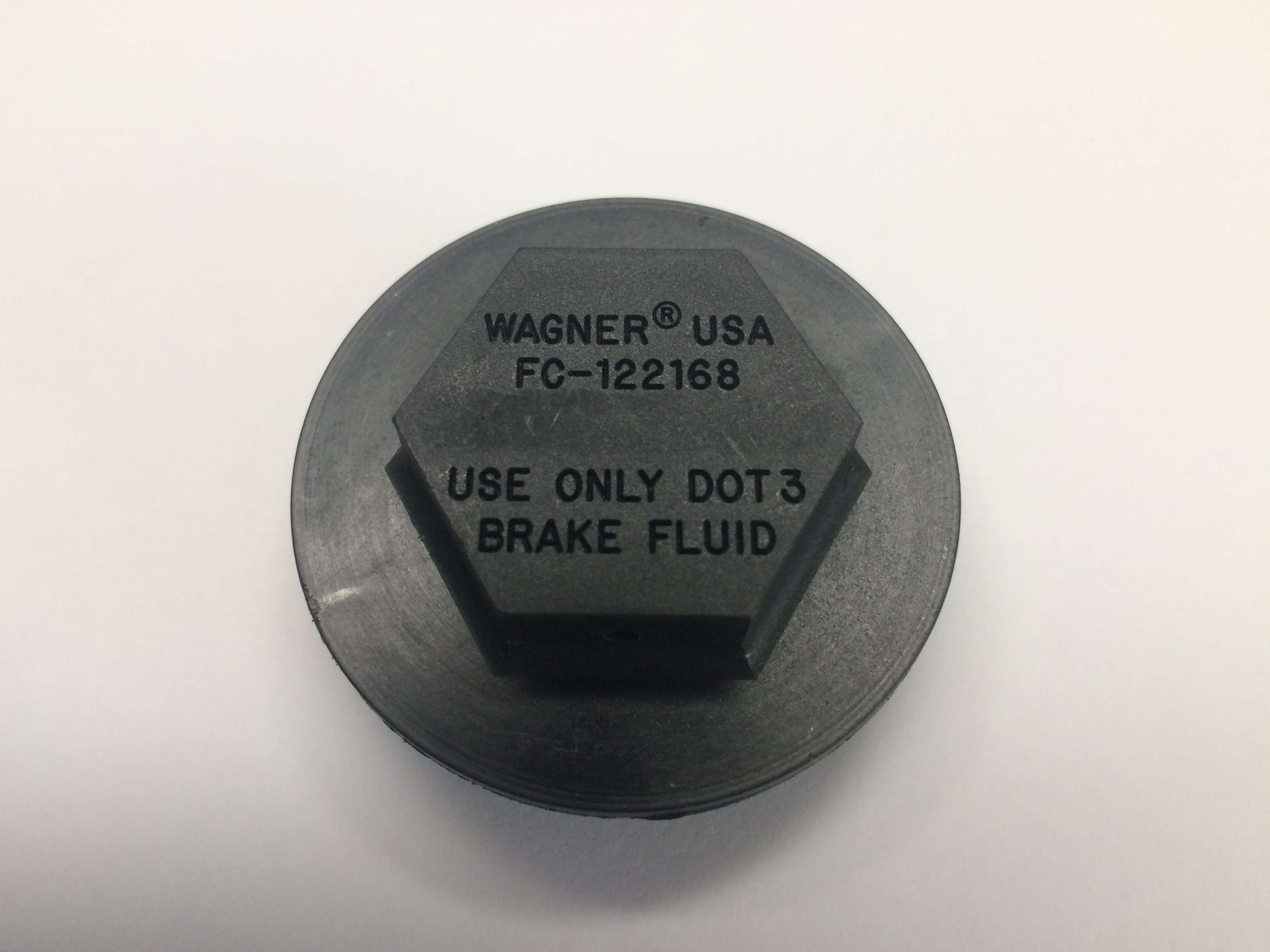

68 WAG-F122168 Wagner Cap
Plastic Cap
Replaces WAG-F12103
for Master Cylinder WAG-F2796 Casting WAG-FE2693
(1LB) H 4" L 5" W 4" Box
[Amazon]
16.07 4
69 WAG-F1242 Wagner Gasket 1.24 35
70 WAG-F1243 Wagner Gasket. Copper Gasket 0.75 26
71 WAG-F13066 Wagner Master Cylinder
1 & 1/2 Inch Diameter
Solid Piston Design
For use with DOT 3 Brake Fluid
Casting F105168 10/15
361.44 1
72 WAG-F131067 Wagner Master Cylinder used with Power Cluster A131023 4/13 308.00 C/F
73 WAG-F132005 Wagner Lubricant. Disc Brake Lube 3 oz 9.98 C/F
74 WAG-F1387 Wagner Cup 6.74 C/F
75 WAG-F14199 Wagner Boot
Mushroom Boot
At the end of F1701 to Pneumatic Cylinder 6/16
18.16 C/F
76 WAG-F1461 Wagner Master Cylinder
With a 1.125 Inch Bore
From Casting FE2539
Repair Kit is Part F3631
5/16
181.63 C/F
77 WAG-F1476 Wagner Part 143.76 C/F
78 WAG-F16500 Wagner Cap. Filler Cap 10/14 15.87 C/F
79 WAG-F17 Wagner Copper Gasket
(1LBS) H 4.00" L 4.00" W 3.00"
0.95 940
80 WAG-F1701 Wagner Master Cylinder
For Power Clusters, AF840 and J098274
1.75 Inch Bore Diameter
Solid Piston Design, "Top Hat" Style Check Valve
For use with DOT 3 Brake Fluid
Casting FE1099
Keep your old style cap as some are different
Repair Kit # F33262 11/16
(11LBS) H 6" L 8" W 6" Box
330.57 1
81 WAG-F1722 Wagner Master Cylinder
Casting FE1107 10/15
268.60 C/F
82 WAG-F17306 Wagner Cap for a J098274, J098275 & F1701 does not include the Gasket F6019. Has cast # FC12103 5/15
(1LBS) H 4.00" L 4.00" W 3.00"
[Amazon]
25.44 4
83 WAG-F1757 Wagner Wheel Cylinder
Casting FD1228
6/13
128.00 C/F
84 WAG-F17693 Wagner Master Cylinder 1.75 Inch
OBSOLETE
Repair Kit is available see WAG-F17693Kit
Casting # FE16283
Call C/F
85 WAG-F17693KIT Wagner Repair Kit
Master Cylinder Repair Kit 1.75 Inch
For Master Cylinder F17693
Casting # FE16283
39.59 C/F
86 WAG-F18299 Wagner Cap 17.86 1
87 WAG-F19476 Wagner Repair Kit
For a F73465 Master Cylinder
Casting # FE24119
(1LBS) H 6.00" L 6.00" W 6.00"
[Amazon]
44.93 C/F
88 WAG-F2109 Wagner Cup 1 Inch Diameter 9/14
(1LBS) H 4.00" L 4.00" W 3.00"
[Amazon]
10.25 8
89 WAG-F2151 Wagner Master Cylinder
1.75 Inch Bore
With Check Valve
Casting FE1575
7/16
340.78 C/F
90 WAG-F2152 Wagner Repair Kit for a Master Cylinder with a 1.75 Inch Bore and a check valve, casting # FE1575 12/13 335.30 C/F
91 WAG-F2398 Wagner Cup
Master Cylinder Cup
1.125 Inch Diameter Bore
12/15
5.58 C/F
92 WAG-F2638 Wagner Wheel Cylinder
Step Down Wheel Cylinder
Casting FD2636
Repair Kit F2638
4/15
78.48 C/F
93 WAG-F2638KIT Wagner Repair Kit for Step Down Wheel Cylinder F2638. Casting# FD2636 4/15 48.84 C/F
94 WAG-F2652 Wagner Master Cylinder. 1 & 1/2 Inch Bore, Single Piece Piston without a Check Valve. For use with DOT 3 Brake Fluid, Casting # FD2704 3/15 135.44 C/F
95 WAG-F2765 Wagner Master Cylinder
OBSOLETE
Casting FE-2695
Repair Kit is still available
See F3613
Call C/F
96 WAG-F2796 Wagner Master Cylinder
Casting FE2693
9/15
49.99 C/F
97 WAG-F2842 Wagner Master Cylinder
1.75 Inch Bore
Casting FE777
Repair Kit F8449
1/15
200.48 C/F
98 WAG-F2936 Wagner Cup
Wheel Cylinder Cup
For a 1.125 Inch Diameter Bore
12/15
(1LBS) H 4.00" L 4.00" W 3.00"
[Amazon]
5.40 6
99 WAG-F2951 Wagner Master Cylinder
1.75 Inch Bore and a Check Valve MH
Casting # FE1575
6/16
339.64 C/F
100 WAG-F2981 Wagner Master Cylinder
1 & 3/4 Inch ID Bore
Uses DOT 3 Brake Fluid
Has the Solid Piston Design
No Check Valve
From Casting # 1099FE
Repair Kit F8450 10/15
363.33 C/F
101 WAG-F300300 Wagner Brake Fluid Ball / Reservoir OBSOLETE
Facilitates filling & bleeding brake systems
Call C/F
102 WAG-F3175 Wagner Seal
1.75 Inch in Diameter
1.25 Inch I.D.
0.25 Inch Thick
(1LB) H 3" L 4" W 4" Box
9/16
5.63 46
103 WAG-F33262 Wagner Repair Kit
For Master Cylinder F1701 which has Casting Number FE1099
Includes 7 items
Single Piece Piston FC6433 with Rubber Seal
Cup FD951, Rubber Bushing 1 & 7/16 Dia 9/16 I.D
Check Valve, Diaphragm 1.5 Dia
2 Spring Clips, 1 Fiber Gasket (1LB)
(1LBS) H 4.00" L 4.00" W 4.00"
[Amazon]
66.84 7
104 WAG-F33726 Wagner Wheel Cylinder
Wagner Wheel Cylinder Assembly
1.5 Inch Diameter
For use with DOT 3 Brake Fluid Only 3/16
(2LBS) H 4.00" L 5.00 W 4.00
92.86 C/F
105 WAG-F34304 Wagner Master Cylinder
Foe a WAG-AF70494 Power Cluster
Normally a Stock Item
11/16
263.55 C/F
106 WAG-F34635 Wagner Compensating Cylinder 10/14 231.89 C/F
107 WAG-F-34635 Wagner Compensating Cylinder
On a FQ7202 6/14
231.89 C/F
108 WAG-F35612 Wagner Master Cylinder for use with Mineral Oil NOT DOT 3 Brake Fluid Call C/F
109 WAG-F3613 Wagner Repair Kit
For a FD2951 F2765 Master Cylinder
Lift Truck, Single Piece Piston
With cone hole in center 10/16
28.20 C/F
110 WAG-F3618 Wagner Repair Kit
For Wheel Cylinder F40462
Casting # FD40510 5/15
23.08 C/F
111 WAG-F3622 Wagner Repair Kit
For a Master Cylinder Part WAG-F661
1 & 1/2 Inch Diameter Master Cylinder
Includes:
Check Valve
Cup
Piston
Lock Ring & Boot 3/16
28.80 C/F
112 WAG-F3631 Wagner Repair Kit
For a F1461 Master Cylinder
With a 1.125 Inch Bore
Casting FE2539
5/16
41.42 1
113 WAG-F36764 Wagner Master Cylinder for a Clutch. Casting # FE23482. Repair Kit F36764 8/14 100.03 C/F
114 WAG-F36939 Wagner Wheel Cylinder
Casting # 2107
52.58 C/F
115 WAG-F38075 Wagner Actuating / Slave Cylinder for a Clutch
1 & 1/16 Inch Bore
Casting FE34884 6/16
82.01 C/F
116 WAG-F40462 Wagner Wheel Cylinder
For Casting # FD40510
The Repair Kit is Part WAG-F3618
5/15
140.26 2
117 WAG-F4073 Wagner Plug with Breather for Control Cylinder J19907. OBSOLETE AS OF 6/8 though still have some left
(1LB) H 4.00" L 5.00" W 4.00" Box
[Amazon]
24.00 10
118 WAG-F4158 Wagner Cup 3/4 Inch, FC4158 8/14
(1LBS) H 4.00" L 4.00" W 3.00"
[Amazon]
12.70 24
119 WAG-F4377 Wagner Cup. Master Cylinder Cup 1 Inch O.D. 9/14
(1LBS) H 4.00" L 5.00" W 4.00" Box
[Amazon]
10.00 9
120 WAG-F4481 Wagner Fitting. Brass Fitting / Plug on a J098274 & 75 11/11 21.20 5
121 WAG-F4572 Wagner Master Cylinder with a 1.25 Inch Diameter Bore. Used on a A837 Power Cluster 9/14 107.57 C/F
122 WAG-F5652 Wagner Master Cylinder
1.75 Inch Bore
For use with DOT 3 Brake Fluid
Repair Kit for this is F8449 4/15
222.91 C/F
123 WAG-F5922 Wagner Gasket for among other things a F4073 Cap 10/15 3.15 4
124 WAG-F6019 Wagner Gasket
For Caps F12103 & F17306
5/15
3.80 5
125 WAG-F6332 Wagner Cup
Master Cylinder Cup
1.125 Inch Diameter
4/16
(1LBS) H 4.00" L 4.00" W 4.00"
7.42 C/F
126 WAG-F6430 Wagner Spring in the F1099, Item 22 on Page 214 Section 3110 12/12 18.40 C/F
127 WAG-F6431 Wagner Spring
Main Spring in a Master Cylinder F2981
1/15
22.54 2
128 WAG-F661 Wagner Master Cylinder
1 & 1/2 Inch Bore
Single Piece Piston
Check Valve
For use with DOT 3 Brake Fluid Only
Casting FD2704
Repair Kit is Part WAG-F3622
3/15
108.36 C/F
129 WAG-F6630 Wagner Wheel Cylinder
2 Inch O.D.
Casting FD6145
Repair Kit F8457
(5LBS) 1/15
47.17 5
130 WAG-F72483 Wagner Master Cylinder
With a 2 Piece Piston with 3/8" Inner Piston
From Casting FD2704
1.5 Inch Bore
Cross Hairs, short depth 9/16
(4LBS) H 4.00" L 8.00" W 4.00"
247.24 1
131 WAG-F7343 Wagner Cap. Vented Cap for the F1701 or FE1099 1/13 36.48 C/F
132 WAG-F73465 Wagner Master Cylinder. OBSOLETE Casting # FE24119 Repair Kit F19476 STILL AVAILABLE 9/14 Call C/F
133 WAG-F78472 Wagner Wheel Cylinder
1.75 Inch ID
Casting # FD9570 8/16
45.99 C/F
134 WAG-F78507 Wagner Cup
1.5 Inch Diameter with a hole in center
Casting FD2704
Modified FD-9222 with hole in center
Part WAG-F78507 7/15
(1LB) H 4" L 5" W 4" Box
7.02 0
135 WAG-F8449 Wagner Repair Kit
For a F2842 & F5652 Master Cylinder
1.75 Inch Bore Diameter
For use with DOT 3 Brake Fluid 10/15
39.64 1
136 WAG-F8450 Wagner Repair Kit for a Master Cylinder. F2981, Casting # 1099FE using Brake Fluid, 1 Piece Piston Design, No Check Valve, 1 & 3/4 Inch Diameter, 6 Pieces in the Repair Kit, FC-6433 Piston, 14199 ERC 03 Boot, FD-951 Cup, Fibre Washer, Spring Clip & Wire Clip 2/14 67.10 5
137 WAG-F8457 Wagner Wheel Repair Kit
Cylinder Repair Kit
2 Inch Bore
Casting # FD6145
Includes 2 Cups & 2 External Boots
Repairs Wheel Cylinder Part F6630
5/16
23.25 C/F
138 WAG-F85887 Wagner Cup
Ships in 1 Day
10/16
15.50 C/F
139 WAG-F86416 Wagner Part 6/15 217.69 C/F
140 WAG-F89086 Wagner Repair Kit
For a F99549 & F99548 Master Cylinder
Casting FE1099
Includes 7 items, 2 Piece Piston with FD3175 Seal , Check Valve with the Round Top, Cup FC89534 2.75 Inch, Rubber Washer 1.5 Inch, Fibre Washer 1.75 Inch, Fibre Washer 1.875 & a Snap Ring
(1LB) 11/16
263.96 C/F
141 WAG-F89149 Wagner Repair Kit
For a Master Cylinder
Master Cylinder Part F105157
With a 1.5 Inch Bore
Has a 2 Piece Piston Assembly
Casting # FE105168 & FE3419
Includes FD1387 & FC31545 5/15
(21LBS) H 4.00" L 6.00" W 4.00"
226.16 2
142 WAG-F89534 Wagner Cup. U Cup 6/15 23.70 C/F
143 WAG-F89535 Wagner Master Cylinder Part
Spring Retainer
For an F1701 Master Cylinder
Normally ships from stock 8/16
(1LB) H 4" L 5" W 4" Box
19.76 C/F
144 WAG-F89536 Wagner Master Cylinder Part
Spring
For an F1701 Master Cylinder
Normally ships from stock 8/16
(1LB) H 4" L 5" W 4" Box
11.94 C/F
145 WAG-F962 Wagner Cup
1.50 Inch in Diameter
Solid Cup no hole 7/15
5.14 0
146 WAG-F9704 Wagner Cup
(1LB) H 4" L 5" W 4" Box
[Amazon]
6.60 50
147 WAG-F99548 Wagner Master Cylinder for the J98274 Disc Brake Power Cluster 3/13 714.53 C/F
148 WAG-F99549 Wagner Master Cylinder
2 Piece Piston
Check Valve
For use with DOT 3 Brake Fluid
Casting # FE1099 10/15
715.18 C/F
149 WAG-F99549KIT Wagner Repair Kit for a F99549 Master Cylinder, 2 Piece Piston with Check Valve for Brake Fluid 7/11 252.00 C/F
150 WAG-F996 Wagner Fitting 5.00 C/F
151 WAG-FC12103 Wagner Cap
Vented Cap for a Master Cylinder
aka FC-12103
1.125 Inch in Diameter
Aluminum Construction
For DOT 3 Brake Fluid Only
12.48 C/F
152 WAG-FC122168 Wagner Cap
(1LB) H 4" L 4" W 5" Box
6/16
[Amazon]
16.07 9
153 WAG-FC1241 Wagner Bolt 9.96 C/F
154 WAG-FC1242 Wagner Gasket. Copper Gasket 1.25 26
155 WAG-FC134280 Wagner Brake Fluid
21B, Heavy Duty DOT 3
Anti Corrosives added
High Lubricity Formulation
401 F / 205 C , Dry Boiling Point
SAEJ1703, Fed Spec VV-B-680
Conforms to FMVSS 116 Case of 24
90.72 C/F
156 WAG-FC134281 Wagner Brake Fluid
21B, Heavy Duty DOT 3
Anti Corrosives added
High Lubricity Formulation
401 F / 205 C , Dry Boiling Point
SAEJ1703, Fed Spec VV-B-680
Conforms to FMVSS 116
Case of Quarts, Qty. 12 Pcs per Case
(32LBS)
61.20 14
157 WAG-FC134282 Wagner Brake Fluid
21B, Heavy Duty DOT 3
Anti Corrosives added
High Lubricity Formulation
401 F / 205 C , Dry Boiling Point
SAEJ1703, Fed Spec VV-B-680
Conforms to FMVSS 116 1 Gallon (10LBS)
35.16 C/F
158 WAG-FC2395 Wagner Boot
Actuator Boot
Item 11
For Actuating Cylinders J007905, J023437 J008765 & others
(1LB)
31.00 C/F
159 WAG-FC2936 Wagner Cup 1 & 1/8 Diameter 10/14 5.40 C/F
160 WAG-FC2952 Wagner Connector, 7/16-20 X 7/16-24 4.85 C/F
161 WAG-FC31545 Wagner Cup 10/15 20.62 C/F
162 WAG-FC3354 Wagner Fitting
Pettibone Forklift Part
Call C/F
163 WAG-FC6431 Wagner Retainer, Return Spring Retainer 11/13 16.20 C/F
164 WAG-FC6433 Wagner Piston Assembly
Single Piece Piston with Rubber Seal Ring
34.10 C/F
165 WAG-FC666 Wagner Cup. Wheel cylinder Cup 1.25 Inch Diameter 5/14 3.58 C/F
166 WAG-FC6858 Wagner Screw, Heeder 11/13 2.50 3
167 WAG-FC89534 Wagner Cup 22.10 10
168 WAG-FD118163 Wagner Cup
7/8 / 0.875 Inch Diameter
11/32 High
EIS R31 / R37 120 USA
aka 3023, FD118163 F3023 8/14
12.50 10
169 WAG-FD1228 Wagner Casting Number for Wheel Cylinder F1757 Call C/F
170 WAG-FD2109 Wagner Cup 9/14 10.25 7
171 WAG-FD2636 Wagner Casting # for Wheel Cylinder F2638 & Repair Kit F2638Kit 4/15 Call C/F
172 WAG-FD2704 Wagner Casting #
For a Master Cylinder WAG-F661
Repair Kit Part Repair Kit is Part WAG-F3622
Call C/F
173 WAG-FD40462 Wagner Wheel Cylinder
Casting # FD40510
4/15
130.92 C/F
174 WAG-FD40510 Wagner Casting #
For Wheel Cylinder Part WAG-F40462
Repair Kit Part WAG-F3618
Call C/F
175 WAG-FD4247 Wagner Wheel Cylinder Casting Number
1.5 Inch Diameter Wheel Cylinder
SEE F33726 Wheel Cylinder if using DOT 3 Brake Fluid
92.86 C/F
176 WAG-FD4377 Wagner Cup
1 Inch Diameter
With Molded in Copper Ring
(1BS) H 4.00" L 5.00" W 4.00" 9/14
10.75 6
177 WAG-FD4570 Wagner Casting #, can be a A837 Pressure Cluster Call C/F
178 WAG-FD4871 Wagner Piston Call C/F
179 WAG-FD6145 Wagner Wheel Cylinder Casting see F6630 1/15 47.17 C/F
180 WAG-FD-6145 Wagner Wheel Cylinder Casting see F6630 1/15 47.17 C/F
181 WAG-FD682 Wagner casting number for a Wagner Wheel Cylinder with a 1.75 Inch Bore for use with DOT 3 Brake Fluid only Call C/F
182 WAG-FD72457 Wagner Cup
Piston Cup 1 & 1/2 Inch Diameter
On a F72483 Master Cylinder & included in a F120277 Repair Kit
Casting # FD2704 10/14
23.84 C/F
183 WAG-FD951 Wagner Cup
1 & 3/4 Inch Diameter
(1LBS) H 4.00" L 5.00" W 4.00"
[Amazon]
6.00 36
184 WAG-FD-951 Wagner Cup
1 & 3/4 Inch Diameter
(1LB) H 3" L 4" W 4" Box
9/16
6.00 C/F
185 WAG-FD9570 Wagner Casting #
For a Wheel Cylinder, 1.75 ID
Part WAG-F78472 8/16
45.99 C/F
186 WAG-FD962 Wagner Cup, 1.50 Inch Diameter, solid no hole 7/15 5.14 C/F
187 WAG-FE105168 Wagner Master Cylinder Casting Number
See F105157 Master Cylinder
With 2 Piece Piston
Repair Kit F89149
See F13066 Master Cylinder
With a Single Piece Piston
Repair Kit F12210
All require DOT 3 Brake Fluid Only
2/13
Call C/F
188 WAG-FE1099 Wagner Master Cylinder Casting Number
Which can be Mfg into a few different Master Cylinders
Need to know:
Uses DoOT 3 Brake Fluid or Mineral Oil?
Does it have a Solid Piston Design
Does it have a Check Valve
See F1701, AF840, A3077, F33262, F89086, F99549 or F2981
Call C/F
189 WAG-FE1107 Wagner Casting Number for a Master Cylinder
See F1722
Call C/F
190 WAG-FE16283 Wagner Casting # for a Master Cylinder
1.75 Inch Master Cylinder F17693
Master Cylinder is OBSOLETE
Repair Kit is available see WAG-F17693Kit
Call C/F
191 WAG-FE23482 Wagner Casting Number for a Clutch Master Cylinder, SEE F36764 Master Cylinder, F106354 Repair Kit Call C/F
192 WAG-FE24119 Wagner Casting Number on a Master Cylinder. See Wagner Master Cylinder F73465 and Repair Kit F19476 Call C/F
193 WAG-FE2539 Wagner Casting #
For Master Cylinder F1461
1.125 Bore
Call C/F
194 WAG-FE2693 Wagner Master Cylinder Casting # for Master Cylinder F2796 1.00 C/F
195 WAG-FE3419 Wagner Casting Number OBSOLETE See F105157 Call C/F
196 WAG-FE34884 Wagner Casting #
For F38075
For a 1 & 1/16 Inch Bore Actuating / Slave Cylinder 11/15
Call C/F
197 WAG-FE777 Wagner Casting # for many different Master Cylinders including F2842 Call C/F
198 WAG-J098274 Wagner Power Cluster
Disc Brake Power Cluster
1 X 15 Ratio
7 Inch Diameter Pneumatic Bore
1.75 Inch Diameter Hydraulic Bore
Includes Mounting Bracket A75420
3/8-18 NPTF Pneumatic Inlet Qty. 3
Hyd. Outlet Ports 1/2-202B. Qty 2
Ports Plugged with F996 Plugs & F17 Gaskets
Stroke Indicator with 2.6 Inches of Active Travel
5.0 Cubic Inch Brake Fluid Displacement per Stroke
SAE 1703 Dot 3 Brake Fluid Only
Replaces JF71883
(38LBS) 3/11
1757.04 C/F
199 WAG-J098275 Wagner Power Cluster
Disc Brake Power Cluster
1 X 8 Ratio
5 Inch Diameter Pneumatic Bore
1.75 Inch Diameter Hydraulic Bore
Includes Mounting Bracket A75420
3/8-18 NPTF Pneumatic Inlet. Qty. 3
Hyd. Outlet Ports 1/2-202B. Qty 2
Ports Plugged with F996 Plugs & F17 Gaskets
Stroke Indicator with 2.6 Inches of Active Travel
5.0 Cubic Inch Brake Fluid Displacement per Stroke
SAE 1703 Dot 3 Brake Fluid Only
Replaces JF71882
(36LBS) 3/12
1756.00 1
200 WAG-J107065 Wagner Power Cluster
1.75 Inch Diameter
Casting # 1099FE
1/16
1654.77 6
201 WAG-J107161 Wagner Repair Kit
For a Master Cylinder
Includes 9 Items
1 Pneumatic Seal 7 Inch Diameter with Spring, AD2918 Piston Aluminum with Rubber Seal, Inner Piston & Screen, O-Ring 7 Inch Diameter., Cup 1 & 7/16" Dia, 3/4 I.D., Fibre Washer 1.75 O.D., 0.75 I.D., Snap Ring 2.125 O.D., Fibre Washer 1 & 7/8" O.D. 1.625 I.D., Accordion Boot AC-2034, Packing Fibre by 21 Inches
(1LB) 5/12
471.30 1
202 WAG-J107170 Wagner Power Cluster
Disc Brake Power Cluster AF840
5 to 1 Ratio
Without the Zero Residual Check Valve
With F996 Plugs
F4481 Adaptor Fitting & F17 Copper Gaskets
8/16
1082.60 1
203 WAG-J54085 Wagner Pressure Cluster
1 X 5 Pressure Ratio
Air / Hydraulic
(30LBS)
1639.91 2
204 WAG-J54086 Wagner Pressure Cluster
1 X 8 Pressure Ratio
Air / Hydraulic
(30LBS)
1639.91 8
205 WAG-J70895 Wagner Solenoid Assembly for a Parking Brake. Obsolete. 240.00 C/F
206 WAG-J83714 Wagner Repair Kit
For a J054085 Pressure Cluster
1 X 5 Ratio
9 Items:
5.875 Inch Dia Diaphragm
1 Piston,FD-951 Cup
Check Valve, Neoprene Bushing
Fibre Washer, Wire Clip
C Spring Clip Kit F33262
(3LBS)
230.00 2
207 WAG-J83715 Wagner Repair Kit
For a J54086 Pressure Cluster 1 X 8 Ratio
10 Items, AD-2965 Pneumatic Seal Ring, FC-6433 Piston, AC-2034 Boot, FD-951 Cup, Fibre Washer, Rubber Spacer, Check Valve, Internal Spring Clip, Wire Retainer and 15 Inches of Packing Material
(1LB) 1/15
352.39 5
208 WAG-JAF46000-B Wagner Pressure Cluster. Very old like J098274 but W/O Check Valve. Repair kit is a S42407 Call C/F
209 WAG-JFC9704 Wagner Cup
1 & 1/8th Inch Diameter 1.125
For use in a Hydraulic Actuator
J007905 or
J008765
aka J009704 (<1LB)
6.00 C/F
210 WAG-S42407 Wagner Repair Kit for a JAF46000-B 6/14 192.79 C/F
Prices are subject to change without notice. Last updated: 03-Dec-2016 01:31:48 PM (EST)


Secure Online Order


Secure Online Order

6,362 part numbers available for
online order

Shopping Cart
Empty

All products are covered by a $1,000,000 liability insurance

Frequently Sold
Replacement Parts

Web Site Features

Part Number Lookup

Enter at least three characters of a part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
About Brake Products, Inc.

About Brake Products, Inc.

Brake Products, Inc. is more than an authorized distributor, we are real stocking distributor with inventory in excess of 2 million dollars. BPI has thousands of parts in our stock to protect your business with same day shipments till almost 7PM. With over 30 years of experience in the material handling business we are ready to assist you in making the right decisions for efficient motion control.

Brake Products specializes in the machining of Brake Wheels for AC & DC Industrial Brakes. We utilized CAD designed & engineered products with CNC machined tools to produce the "Perfect Brake Wheel" these wheels are not limited in design by a previously designed castings for universal use. BPI is an OEM brake wheel manufacturer for Crane Brake Manufacturers. Though we machine all the brake wheel surfaces for balance both static & dynamic balancing to your specification is available.

Please spend some time at our web site, an abundance of product information and CAD style PDF drawings are available to download & share. Pricing and a shopping cart for automated order entry can be done here. Please call with any questions. We would appreciate the opportunity to speak with you and provide a formal quotation.

Ductile Iron Brake Wheels

Ductile Iron Brake Wheels

We manufacture high-quality custom and standard brake wheels from 4-1/2" to 30" diameter, cast from the finest ASTM and ASME specified 80-60-03 Ductile Iron to provide maximum service and a high coefficient of friction. Machining is done on CNC equipment using solid dura bar or iron castings.

Brake wheels for all types of electric and hydraulically actuated brakes. Many wheels available for same day shipment; both pilot bore and finished bored for the 600 and 800 series mill motors.

Replacement Brake Parts

Replacement Brake Parts

Easily locate and purchase hard to find replacement parts for the following most popular OEM brake assemblies:

  •  EC&M
  •  SQUARE-D
  •  WESTINGHOUSE
  •  CUTLER-HAMMER
  •  GEMCO
  •  MONDEL

OEM brake assembly diagrams and selection tables, backed by our extensive replacement brake parts stock, makes it as easy as "1-2-3".

OEM Products


Brake Products is proud to maintain excellent decades-long distrubutor relationships with industry-leading Original Equipment Manufacturers (OEM). We keep most popular items in stock to improve delivery times. These products are available to quote and purchase 24/7 on our e-commerce web sites, along with a multitude of installation and support information:

  •  Gemco (Ametek)
  •  Gleason Reel
  •  Aero-Motive
  •  Cutler-Hammer (Eaton)
  •  Hubbell
  •  SuperBolt
  •  Telemotive (Magnetek)
  •  Renold
  •  Stearns

For online purchases, shipping is free within continental U.S.
Complete Price List
Prices and selection are subject to change according to the market situation. Price list may contain typos. Please feel free to call to confirm item pricing:

  • Brake Products, 5805 items
  • Cutler-Hammer, 6253 items
  • Eldro, 7 items
  • Renold Ajax, 314 items
  • Reuland, 100 items
  • Scan-Pac, 54 items
  • Superbolt, 111 items
  • Wagner, 210 items
  • Westinghouse, 97 items

Inventory items are shipped from stock. Non-inventory items may take up to two weeks to deliver.

Updated: Saturday, December 03, 2016

Pressure Gauges and Parts from Ametek USG

Pressure Gauges and Parts from Ametek USG

Ametek U.S. Gauge - Pressure Gauges

Ametek U.S. Gauge is one of the world's leading suppliers of high quality, competitively priced pressure and temperature measurement products. Founded in 1904, USG's product offering includes bourdon tube and diaphragm capsule pressure gauges ranging in size from 1-1/2 inches to 6 inches; with brass, stainless steel, alloy steel or Monel internals:

  • Process Gauges
  • Liquid Filled Gauges
  • Test Gauges
  • General Equipment Gauges
  • Special Application Gauges
  • Thermowells
  • Accessories

  • Pressure Transducers & Transmitters

Static Grounding Reels from Ametek Hunter Spring

Static Grounding Reels from Ametek Hunter Spring

Ametek Hunter Spring - Static Grounding Reels

Ametek Hunter Spring produces retractable static grounding reels for industrial, commercial and military applications. These reels are ideal for use where a discharge of static electricity could cause a spark and subsequent explosion, such as bulk filling stations, airports, terminals and refineries. Reels are available in powder-coated and 304 stainless steel. Hunter Spring also produces retractable data cable reels (CAT5e/CAT6/USB):

  • Heavy Duty Enclosed Spool Series
  • Heavy Duty Open Spool Series with Internal Brake
  • Stainless Steel Enclosed Spool Series
  • CAT5e / CAT6 / USB Data Cable Reels


Multiconductor and REDI-Bar from TransTech

Multiconductor and REDI-Bar from TransTech

Multiconductor is a compact, reliable, and safe power supply for cranes, hoisting equipment, warehouse equipment, overhead conveyor tracks, etc. Virtually worldwide application, in indoor and outdoor installations, even in unforgiving weather. You are always welcome to contact us directly, refer to the back cover of this brochure for detailed information on our address.


REDI-BAR is a factory-assembled, ready-to-install conductor bar system designed to simplify crane conductor installations and replacements from 64 amps up to 480 amps. With an installation that can be completed in just a few hours, REDI-BAR can be installed quickly and easily with minimal downtime. Standard 4-pole conductor bar assemblies are available off-the-shelf, while custom conductor bar assemblies are manufactured to order for unique applications.

Non-Asbestos Overhead Crane Linings from Scan-Pac

Non-Asbestos Overhead Crane Linings from Scan-Pac

The industrial marketplace has a variety of brake and clutch requirements for overhead cranes. Scan-Pac's technical and application expertise can recommend and furnish the proper material to meet the specific need your operation demands. Numerous specific parts have been molded or machined to meet the unique requirements of a special application. Let Scan-Pac solve those vexing problems in your day-to-day production.

Scan-Pac's RF38 material has been accepted as a well proven material for these applications and has been in use for several decades.



Industrial Brakes and Brake Parts from Reuland

Industrial Brakes and Brake Parts from Reuland

Reuland offers a wide variety of brakes for various applications. Popular MagnaStop brake is a solenoid activated, spring set type brake. The MagnaStop brake is available in standard and dust-tight/waterproof enclosures in standard AC voltages. Torque ratings available range from (1.5-20) lb. Ft. The brake can be ordered as a traditional C-face mount or as a "double C-face" design. The MagnaStop can also be ordered as foot mounted design.

Reuland also offers a wide range of direct acting magnetic disc brakes. These brakes are also available as standard, dust-tight/waterproof, or marine duty enclosures. Torque ratings available vary from 1.5 to 1000 lb. Ft. Reuland brakes are defined as "fail safe". When power is applied to the brake, the brake releases the motor shaft. The load is then free to turn. When power is removed or lost, the brake grabs the motor shaft and stops the load. A brake release knob or flipper is provided to manually release the brake. Reuland offers both adjustable and non-adjustable designs. Reuland brakes are available in both single and three phase designs. Some brakes are available in DC power. Finally, Reuland offers it's "X" series brakes. These brakes are designed to mount to non-Reuland built motors.
Industrial Brakes and Brake Parts from Wagner

Industrial Brakes and Brake Parts from Wagner

Our knowledge is second to none in regard to the old style Wagner brake. It may be worth knowing that Wagner Brake itself has not manufactured this style brake since 1981, yet we have never stopped supplying this brake to our large distributor network.

When it comes to air brake parts, our company roots go way back. We have an extensive library of air brake catalogs which has supplied our customers well over the years. Our knowledge is based mostly on the Bendix (formerly Bendix-Westinghouse), Wagner Air Brake, and the Midland Air Brake line.


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
Supplier of Industrial Brake Parts Since 1985
