Cutler-Hammer (Eaton) Shoe Brakes

DC Magnetic Operated-GH505
Industrial Duty Solenoid Operated-511
Overview

DC Magnetic Operated-GH505

 The GH505 Magnetic Brake is electrically released and spring set. Braking force is applied when power is removed from the coil. Brake wheels are cast of ductile iron specially formulated to withstand the effects of frequent brake operation, and the brake coil is designed for operation with direct current power. GH505 are designed to meet all AIST and NEMA standards for shoe brakes.

 Features

   • "Over-the-wheel" design divides braking force between the pull rod and lower pivots while transmitting the braking force to outer shoe lever. This results in evenly spread braking action over both shoes, providing maximum stopping power with minimum wear to the brake.
  • Single encapsulated coil design in stainless steel housing provides complete environmental and long reliable service life.
  • Specially processed ductile iron brake wheels resistant to high temperatures associated with frequent braking operations, eliminate scored wheel surfaces that usually result from wheel particles lodging in the brake linings.
  • Shoe adjustment indication by sounding pins on upper sides of armature make adjustment easy and accurate.

 Options

   • Manual Release Lever
  • NEMA 4 Enclosure
  • Rectifier Panel

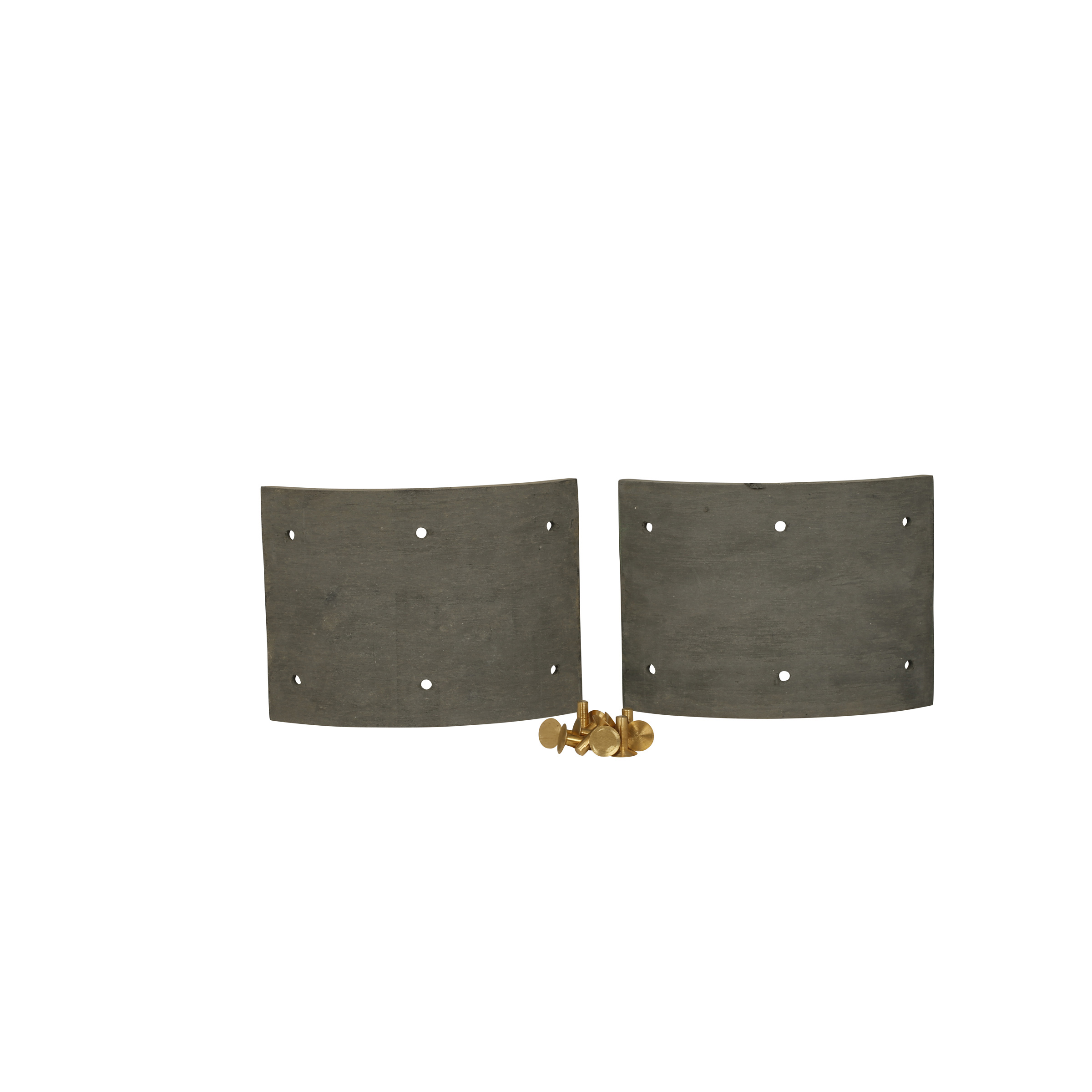

  • Riveted shoe linings
  • Special brake wheel dimensions
  • Visual torque measurement gauge
  • Weather Resistant Enclosure

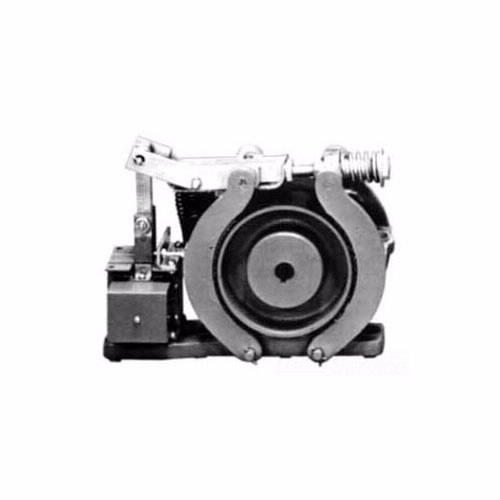

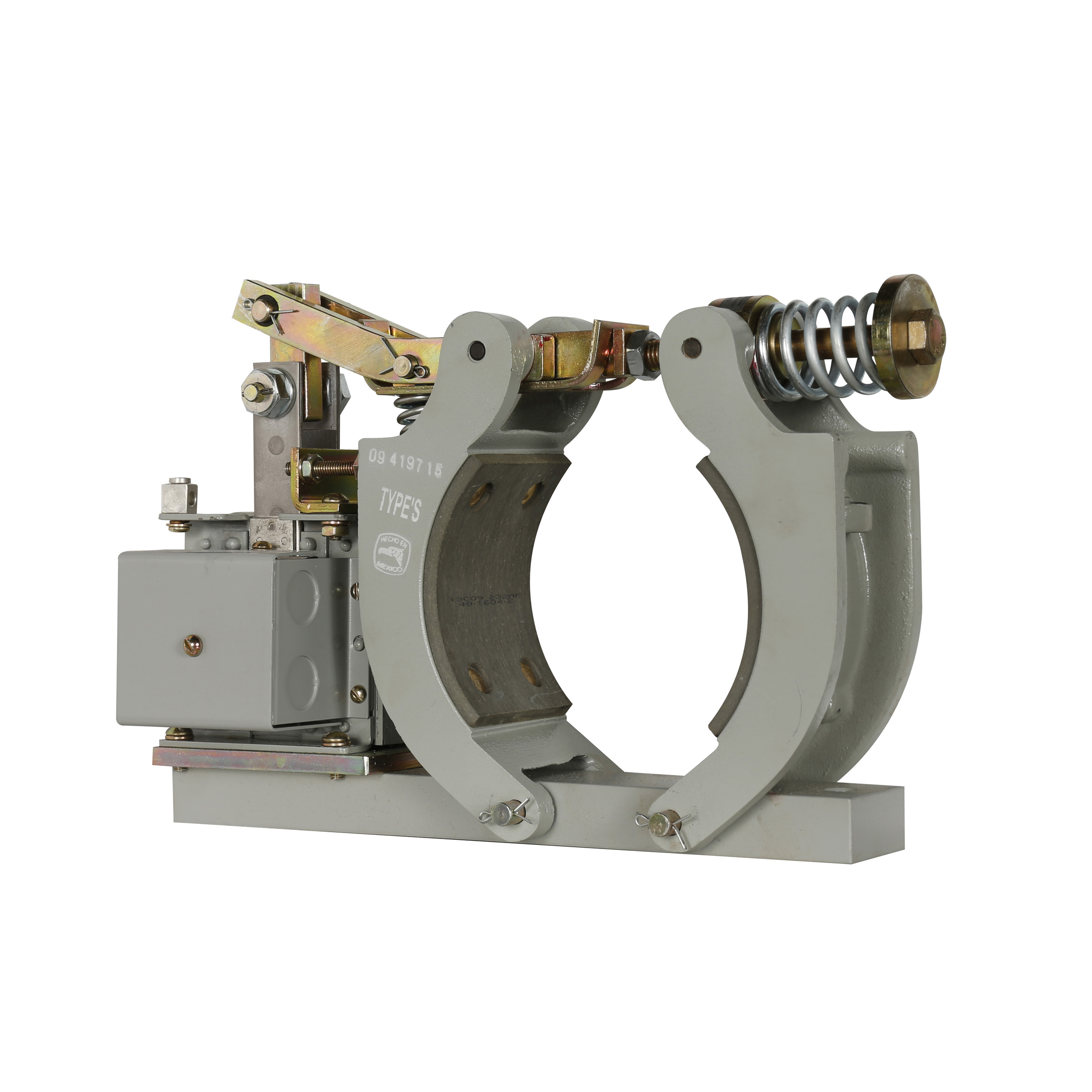

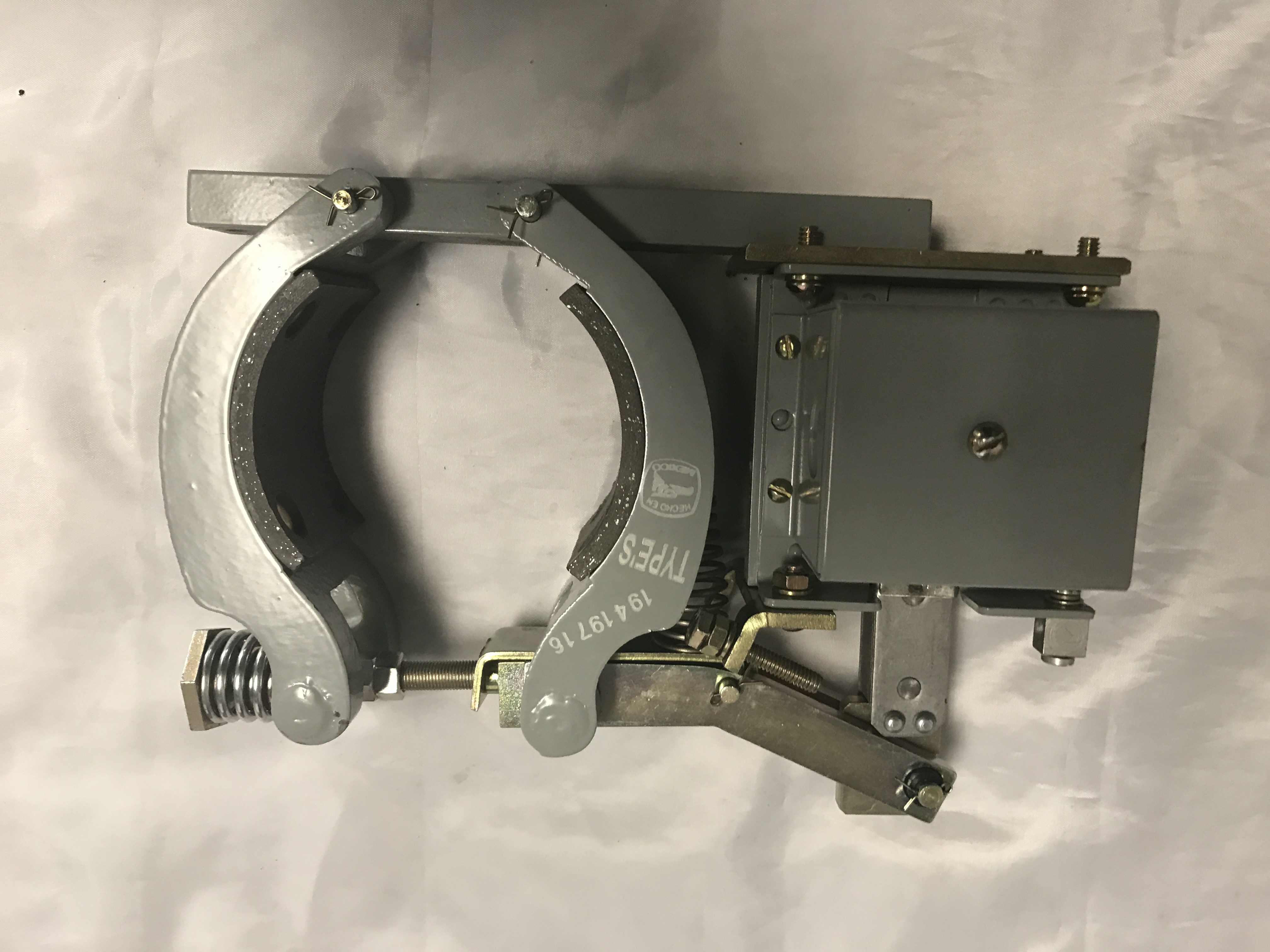

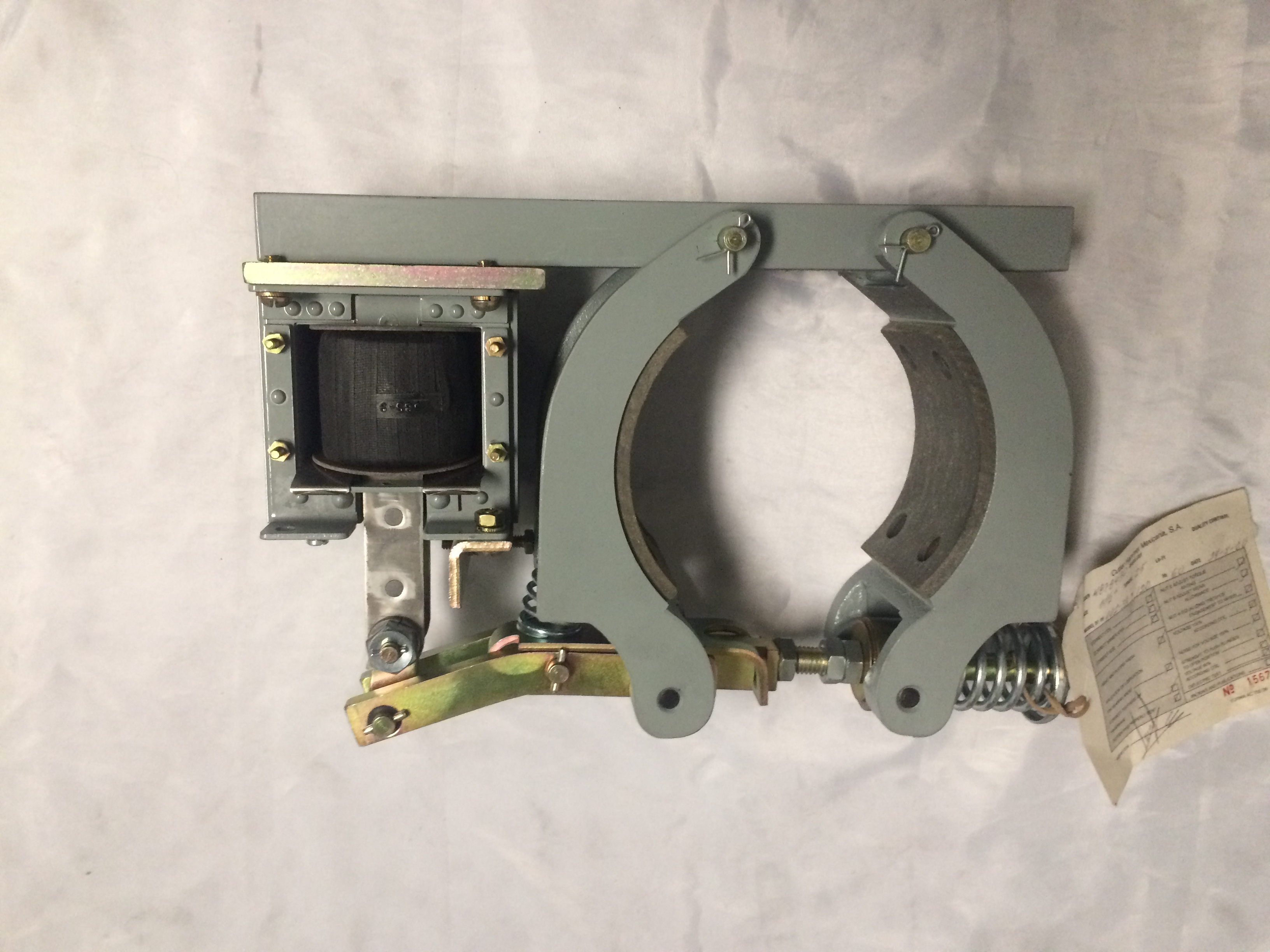

Industrial Duty Solenoid Operated-511

 Industrial Duty Solenoid Operated shoe brakes are electrically released and spring actuated providing "fail-safe" operation. The retarding torque developed is directly proportional to the spring pressure. All solenoid operated brakes offer a high friction material that maintains high head resistance over a wide temperature range. These brakes are designed and recommended for use and mounting only in the floor position.

 Features

   • Equally distributed low shoe pressure over a large lining area results in even wear of friction surfaces and even braking torque.
  • AC or DC rated cont. int. duty coils.
  • DC coils Cont. int. duty coils with low-resistance pick-up winding is used to provide maximum power when the plunger is being pulled in. Combined resistance of two windings limits the holding current to preventing excessive heat build-up in the coil.

 Technical Information

   • 511 Type S Solenoid Operated Brakes (AC/DC)
  • Instruction Sheet For Type 511 4'' ''S'' AC Shoe Brake, Publication No 11326
  • Instruction Sheet For Type 511 4'' ''S'' AC Shoe Brake, Publication No 19320
  • Instruction Sheet For Type 511 4'' ''S'' DC Shoe Brake, Publication No 13864
  • Instruction Sheet For Type 511 5.5'' ''S'' AC Shoe Brake, Publication No 17377, Rev 001
  • Instruction Sheet For Type 511 5.5'' ''S'' AC Shoe Brake, Publication No 17377
  • Instruction Sheet For Type 511 5.5'' ''S'' DC Shoe Brake, Publication No 17378
  • Instruction Sheet For Type 511 7'' ''S'' AC Shoe Brake, Publication No 15475
  • Instruction Sheet For Type 511 7'' ''S'' DC Shoe Brake, Publication No 15477
  • Instruction Sheet For Bulletin 505 13'' DC Magnetic Shoe Brake, Publication No 14768
  • Instruction Sheet For Type GH505 8'' DC Magnetic Shoe Brake, Publication No 17223
  • Instruction Sheet For Type GH505 10'' DC Magnetic Shoe Brake, Publication No 17224
  • Instruction Sheet For Type GH505 13'' DC Magnetic Shoe Brake, Publication No 17225
  • Instruction Sheet For Type GH505 16'' DC Magnetic Shoe Brake, Publication No 17226
  • Instruction Sheet For Type GH505 19'' DC Magnetic Shoe Brake, Publication No 17227
  • Instruction Sheet For Type GH505 23'' DC Magnetic Shoe Brake, Publication No 17228
  • 30 Inch GH505 Brake Replacement Parts List


Documentation

 Catalogs

   • Crane Control
  • Volume 12, Tab 13 - Motor Control Aftermarket Solutions

Brake Assemblies, Model GH505, 8"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505AAA2161N Cutler-Hammer Brake Assembly GH505 8"
Part GH505AAA2161N
8" DC Brake Assembly
N = No Brake Wheel
Ships in 50 Days
Dated 06-2020		 - 0 $17,469.96
2 CUT-GH505-A-A-A-1107-N Cutler-Hammer Brake Assembly
Model CUT-GH505-A-A-A-1107-N
GH505 DC Magnetic Brake AIST Rated
A = 8 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1107 = Coil. Series Wound Coil
Coil Part 9-872-3
N = No Brake Wheel is included		 - 0 $14,527.35
3 CUT-GH505-A-A-A-1109-N Cutler-Hammer Brake Assembly
Part GH505-A-A-A-1109-N
GH505AAA1109N
GH505 DC Magnetic Brake AIST Rated
A = 8 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1109 = Coil. Series Wound Coil
N = No Brake Wheel is included
Coil Part 9-872-5
Ships in 8 to 10 Weeks, SC
Dated 02-2024		 - 0 $22,971.27
4 CUT-GH505-A-A-A-2160-N Cutler-Hammer Brake Assembly GH505
Model GH505-A-A-A-2160-N
GH505AAA2160N
GH505 DC Magnetic Brake, AIST Rated
A = 8 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2160 = Coil Part 9-872-18
N = No Brake Wheel is included
Motor Freight Only
Ships in 12 Weeks, SC
Dated 04-2023		 - 0 $26,514.10
5 CUT-GH505-A-A-A-2162-N Cutler-Hammer DC Brake Assembly GH505 8"
Model GH505-A-A-A-2162-N
GH505AAA2162N
GH505 DC Magnetic Brake AIST Rated
A = 8 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2162 = Coil, Shunt Wound
Coil Part 9-872-11
N = No Brake Wheel is included
Ship in
Dated		 - 0 $14,527.35
6 CUT-GH505-A-A-A-2163-N Cutler-Hammer Brake Assembly
Model CUT-GH505-A-A-A-2163-N
GH505 DC Magnetic Brake AIST Rated
A = 8 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2163 = Coil. Shunt Wound Coil
Part CUT-9-872-11 old CUT-9-1964-1
N = No Brake Wheel is included		 - 0 $14,527.35
7 CUT-GH505-A-A-A-2164-N Cutler-Hammer Brake Assembly
Model CUT-GH505-A-A-A-2164-N
GH505 DC Magnetic Brake AIST Rated
A = 8 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2164 = Coil. Shunt Wound Coil
Coil Part CUT-9-872-18 old CUT-9-1964-2
N = No Brake Wheel is included		 - 0 $14,160.15
8 CUT-GH505-A-H-A-1109-N Cutler-Hammer Brake Assembly
Model CUT-GH505-A-A-A-1109-N
GH505 DC Magnetic Brake AIST Rated
A = 8 Inch Diameter
H = Special Low Torque Version 25 Ft LBS
A = No Brake Enclosure is included
1109 = Coil. Series Wound Coil
Coil Part CUT-9-872-5
N = No Brake Wheel is included		 - 0 $14,527.35
Brake Assemblies, Model GH505, 10"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-B-A-A-1204-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-A-A-1204-N
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1204 = Coil. Series Wound Coil
Part CUT-9-871-4 old CUT-9-864-3
N = No Brake Wheel is included
(223LBS) 12/17		 - 0 $17,436.87
2 CUT-GH505-B-A-A-1205-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-A-A-1204-N
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1204 = Coil. Series Wound Coil
Part CUT-9-871-4 old CUT-9-864-3
N = No Brake Wheel is included
(223LBS) 12/17		 - 0 $16,548.01
3 CUT-GH505-B-A-A-2260-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-A-A-2260-N
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2260 = Coil. Shunt Wound Coil
For Intermittent Duty @ 271 nm
Coil Part CUT-9-871-7 old CUT-9-864-2
N = No Brake Wheel is included
(223LBS) 12/17		 - 0 $17,436.87
4 CUT-GH505-B-A-A-2262-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-A-A-2262-N
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter Duty Continuous 203 nm
A = No other mechanical options
A = No brake enclosure is included
2262 = Coil. Shunt Wound Coil
For Continuous Duty @ 203 nm
Coil Part CUT-9-871-8 old CUT-9-864-1
N = No Brake Wheel is included
(223LBS) 12/17		 - 0 $17,436.87
5 CUT-GH505-B-A-A-2263-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-A-A-2263-N
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter Brake Wheel
A = No other mechanical options
A = No Brake Enclosure is included
2263 = Shunt Wound Coil
For Continuous Duty @ 150 Ft LBS
Coil Part CUT-9-871-8
N = No Brake Wheel is included
(223LBS) 12/17		 - 0 $17,436.87
6 CUT-GH505-B-L-A-2260-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-L-A-2260-N
NEW # GH505-ED165
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter Duty Intermittent 271 nm
L = Soft Stop Option for a gradual increase in torque
A = No enclosure is to be provided
2260 = Coil. Shunt Wound Coil
For Intermittent Duty @ 271 nm
Coil Part CUT-9-871-7 old CUT-9-864-2
N = No Brake Wheel is included
(223LBS) 11/14		 - 0 $20,355.30
7 CUT-GH505-B-N-A-2264-N Cutler-Hammer Brake Assembly
Model CUT-GH505-B-N-A-2264-N
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter
N = Torque Rating
180 Foot LBS Continuous
240 Foot LBS Intermittent
A = No brake enclosure is included
2264 = Coil. Shunt Wound Coil
For Continuous Duty @ High Torque
N = No Brake Wheel is included
(223LBS) 5/16		 - 0 $18,286.56
8 CUT-GH505-ED165 Cutler-Hammer Brake Assembly
Model CUT-GH505-B-L-A-2260-N
NEW # GH505ED165
GH505 DC Magnetic Brake AIST Rated
B = 10 Inch Diameter
L = Soft Stop Option for a gradual increase in torque
A = No Enclosure is to be provided
2260 = Coil. Shunt Wound Coil
For Intermittent Duty @ 271 nm
Coil Part CUT-9-871-7 old CUT-9-864-2
N = No Brake Wheel is included
(223LBS) 11/14		 - 0 $19,157.93
Brake Assemblies, Model GH505, 13"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-C-A-A-1301-N Cutler-Hammer Brake Assembly GH505 13"
Model GH505-C-A-A-1301-N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1301 = Coil. Series Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part 9-883-7 Old Part 9-840-4
Has been used with 806 Mill Motors
N = No Brake Wheel is included
Dated 05-2022
Ship in 60 Days, SC
Motor Freight Only
(420LBS)		 - 0 $27,867.37
2 CUT-GH505-C-A-A-1302-N Cutler-Hammer Brake Assembly
Model GH505-C-A-A-1302-N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1302 = Coil. Series Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part CUT-9-883-10 old CUT-9-840-1
Has been used with 806 Mill Motors
N = No Brake Wheel is included
Dated 8/18
(420LBS) Motor Freight Only		 - 0 $23,295.13
3 CUT-GH505-C-A-A-1303-N Cutler-Hammer Brake Assembly
Model GH505-C-A-A-1303-N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1303 = Coil. Series Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part CUT-9-883-1 old Cut-9-840-7
N = No Brake Wheel is included
Dated 8/18
(420LBS) Motor Freight Only		 - 0 $23,295.13
4 CUT-GH505-C-A-A-1304-N Cutler-Hammer Brake Assembly
Model GH505-C-A-A-1304-N
aka GH505CAA1304N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1304 = Coil. Series Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part 9-883-2
Has been used with 806 Mill Motors
N = No Brake Wheel is included
Ships in 6 to 8 Weeks
Dated 1-2020
(420LBS) Motor Freight Only		 - 0 $27,143.46
5 CUT-GH505-C-A-A-1305-N Cutler-Hammer Brake Assembly
Model GH505-C-A-A-1305-N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1305 = Coil. Series Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part 9-883-6 old 9-840-2
N = No Brake Wheel is included
Dated 8/18
(420LBS) Motor Freight Only		 - 0 $23,295.13
6 CUT-GH505-C-A-A-2360-N Cutler-Hammer Brake Assembly 505 13"
Model GH505-C-A-A-2360-N
GH505CAA2360N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2360 = Coil Suffix, Shunt Wound Coil Part 9-875-7
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
N = No Brake Wheel is included
Ships in
Dated 08-2018
(420LBS) Motor Freight Only		 - 0 $23,295.13
7 CUT-GH505-C-A-A-2362-N Cutler-Hammer Brake Assembly
Model GH505-C-A-A-2362-N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2362 = Shunt Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part Cut-9-875-12
N = No Brake Wheel is included
Dated 8/18
(420LBS) Motor Freight Only		 - 0 $23,295.13
8 CUT-GH505-C-A-A-2364-N Cutler-Hammer Brake Assembly GH505 13"
Model GH505-C-A-A-2364-N
GH505CAA2364N
GH505 DC Magnetic Brake AIST Rated
C = 13 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2364 = Shunt Wound Coil
1/2 Hour Rating 746 nm
1 Hour Rating 495 nm
Coil Part 9-875-7 old 9-865-2
N = No Brake Wheel is included
Ships in 50 to 75 Days
Dated 06-2020
(420LBS) Motor Freight Only		 - 0 $26,865.00
9 CUT-GH505-C-C-A-2364-N Cutler-Hammer Brake Assembly model GH505-C-C-A-2364-N
GH505 DC Brake
C = 13 Inch Diameter
C = Manual Release, Lever Type
A = No enclosure is to be provided
2364 = Coil. Shunt Wound Coil Part 9-875-7 old 9-865-2
N= No Brake Wheel is to be provided (420LBS) 6/15		 - 0 $23,197.86
10 CUT-GH505-C-D-A-2363-N Cutler-Hammer Brake Assembly model GH505-C-D-A-2363-N
GH505 DC Brake
C = 13 Inch Diameter Brake Wheel
D = Maintained Manual Release, Screw Type
2363 = Coil # 9-871-8 or old 9-1969-1
N = Without a Brake Wheel 7/14		 - 0 $22,004.46
11 CUT-GH505-C-D-A-2364-N Cutler-Hammer Brake Assembly model GH505-C-D-A-2364-N
GH505 DC Brake
C = 13 Inch Diameter Brake Wheel
D = Maintained Manual Release, Screw Type
2364 = Coil # 9-875-7 or old 9-865-2
N = Without a Brake Wheel 7/14		 - 0 $22,004.46
12 CUT-GH505-C-N-A-1304-N Cutler-Hammer Brake Assembly model GH505-C-N-A-1304-N
GH505 DC Brake
C = 13 Inch Diameter Brake Wheel
M = Modified for Pot Room Brake, no N Designation?
A = No enclosure is to be provided
1304 = Coil # 9-883-2
N = Without a Brake Wheel		 - 0 $22,004.46
Brake Assemblies, Model GH505, 16"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-D-A-A-1400-N Cutler-Hammer Brake Assembly
Model GH505-D-A-A-1400-N
aka GH505DAA1400N
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1400 = Series Wound Coil
1/2 Hour Rating XXX nm
1 Hour Rating XXX nm
Coil Part 9-884-1 / Old 9-1971-1
Has been used with a 606 Mill Motor
123 to 165 AMP 1/2 Hour
N = No Brake Wheel is included
With 18 to 24 Inch Leads
Ships in 5 to 7 Weeks
Motor Freight Only
Dated 9-19
600 LBS		 - 0 $28,372.72
2 CUT-GH505-D-A-A-1402-N Cutler-Hammer Brake Assembly
Model GH505-D-A-A-1402-N
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
1402 = Series Wound Coil
1/2 Hour Rating 1000 nm
1 Hour Rating XXX nm
Coil Part CUT-9-884-1 / Old CUT-9-1971-1
Has been used with 620 & 808 Mill Motors
N = No Brake Wheel is included
Ships in 40 Days Dated 5/17
(600LBS) Motor Freight Only		 - 0 $23,975.98
3 CUT-GH505-D-A-A-2460-N Cutler-Hammer Brake Assembly
Model GH505-D-A-A-2460-N
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2460 = Shunt Wound Coil
1/2 Hour Rating 1000 nm
1 Hour Rating XXX nm
Coil Part CUT-9-890-1
N = No Brake Wheel is included
4 Weeks to Ship
(600LBS) Motor Freight Only		 - 0 $23,975.98
4 CUT-GH505-D-A-A-2461-N Cutler-Hammer Brake Assembly
Model GH505-D-A-A-2461-N
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2461 = Coil
1/2 Hour Rating XXX nm
1 Hour Rating XXX nm
Coil Part CUT-
N = No Brake Wheel is included
4 Weeks to Ship
(600LBS) Motor Freight Only		 - 0 $23,975.98
5 CUT-GH505-D-A-A-2463-N Cutler-Hammer Brake Assembly
Model GH505-D-A-A-2463-N
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2463 = Shunt Wound Coil
1/2 Hour Rating XXXX nm
1 Hour Rating 750 nm
Coil Part CUT-9-890-2
N = No Brake Wheel is included
4 Weeks to Ship
(600LBS) Motor Freight Only		 - 0 $23,975.98
6 CUT-GH505-D-A-A-2464-N Cutler-Hammer Brake Assembly
Model GH505-D-A-A-2464-N
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
A = No other mechanical options
A = No Brake Enclosure is included
2464 = Shunt Wound Coil
1/2 Hour Rating 1000 nm
1 Hour Rating 750 nm
Coil Part CUT-9-875-7
N = No Brake Wheel is included
4 Weeks to Ship
Dated 1/18
(600LBS) Motor Freight Only		 - 0 $24,696.85
7 CUT-GH505-D-C-A-2460-D07 Cutler-Hammer Brake Assembly
Model GH505-D-C-A-2460-D07
GH505 DC Magnetic Brake AIST Rated
D = 16 Inch Diameter
C = Manual Release / Lever Type
A = No Brake Enclosure is included
2460 = Shunt Wound Coil
1/2 Hour Rating 1000 nm
1 Hour Rating XXX nm
Coil Part CUT-9-890-1
D07 = Includes a Pilot Bore Brake Wheel
4 Weeks to Ship
(750LBS) Motor Freight Only		 - 0 $49,249.41
8 CUT-GH505-ED166 Cutler-Hammer Brake Part GH505 16
Brake Wheel
For a 16 Inch GH505 DC Brake
C-H Publication 17226
Ships in 6 to 8 Weeks
1/17		 - 0 $5,488.76
Brake Assemblies, Model GH505, 19"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-E-A-A-1508-N Cutler-Hammer Brake Assembly GH505 19"
Part GH505-E-A-A-1508-N
GH505EAA1508N
GH505 AIST DC Brake
E = 19 Inch Diameter Brake
A = No other Mechanical Options
A = No Enclosure is to be provided
1508 = Coil Part 9-885-8 & Old Part 9-841-12
N = NO Brake Wheel is to be supplied
12 Weeks to Ship, SC
Dated 01-2024		 - 0 $34,026.35
Brake Assemblies, Model GH505, 23"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-F-A-A-2664-N Cutler-Hammer Brake Assembly
Part GH505-F-A-A-2664-N
GH505 DC Magnetic Brake
AIST Rated Brake Assembly
4000 FT LBS 1/2 Hour Duty Cycle
2600 FT LBS 1 Hour Duty Cycle
F = 23 Inch Diameter Brake / Brake Wheel
A =
A = Open type brake assembly no enclosure is provided
2664 = Coil Suffix
N = No Brake Wheel is supplied
8 Weeks to Ship
Dated 3/18
(1900LBS) 3/18		 - 0 $55,298.69
2 CUT-GH505-F-C-A-1605-F08 Cutler-Hammer Brake Assembly
Part GH505-F-C-A-1605-F08
GH505 DC Magnetic Brake
AIST Rated
4000 FT LBS 1/2 Hour Duty Cycle
2600 FT LBS 1 Hour Duty Cycle
F = 23 Inch Diameter Brake / Brake Wheel
C = Includes a Lever Style Manual Release
A = Open type brake assembly no enclosure is provided
1605 = Coil Suffix for a Series Wound Coil Part 9-886-8
Typically connected to a 618 or 826 Mill Motor
F08 = Brake Wheel with a pilot bore
8 Weeks to Ship
(1900LBS)		 - 0 $68,282.88
Brake Assemblies, Series 511, 4"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1192-39 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1192-39
Electrically Released Spring Applied
15 FT LB / Intermittent Duty Cycle
120 Volt AC, 60 Hz

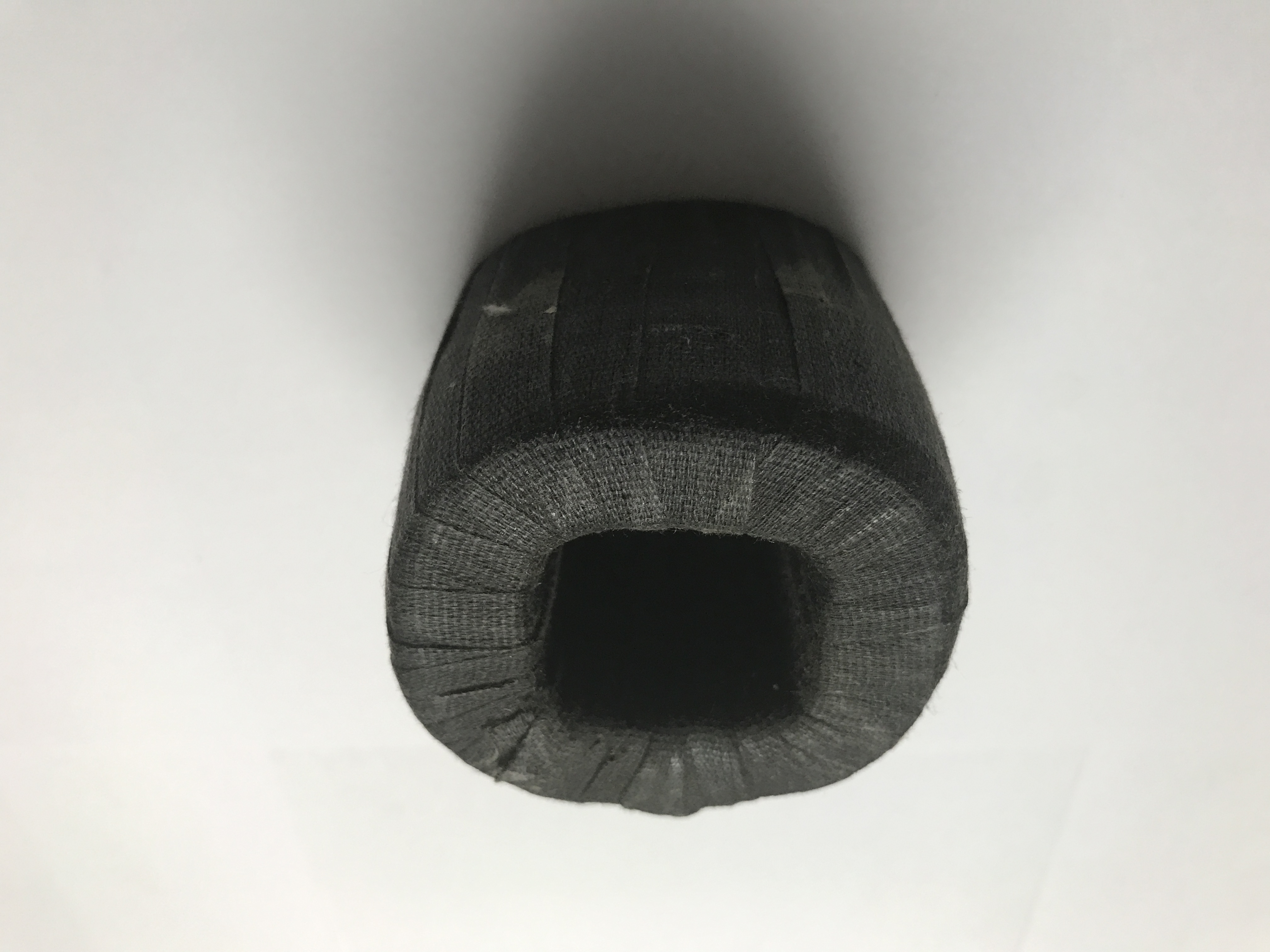

Coil Part CUT-9-591-9
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included

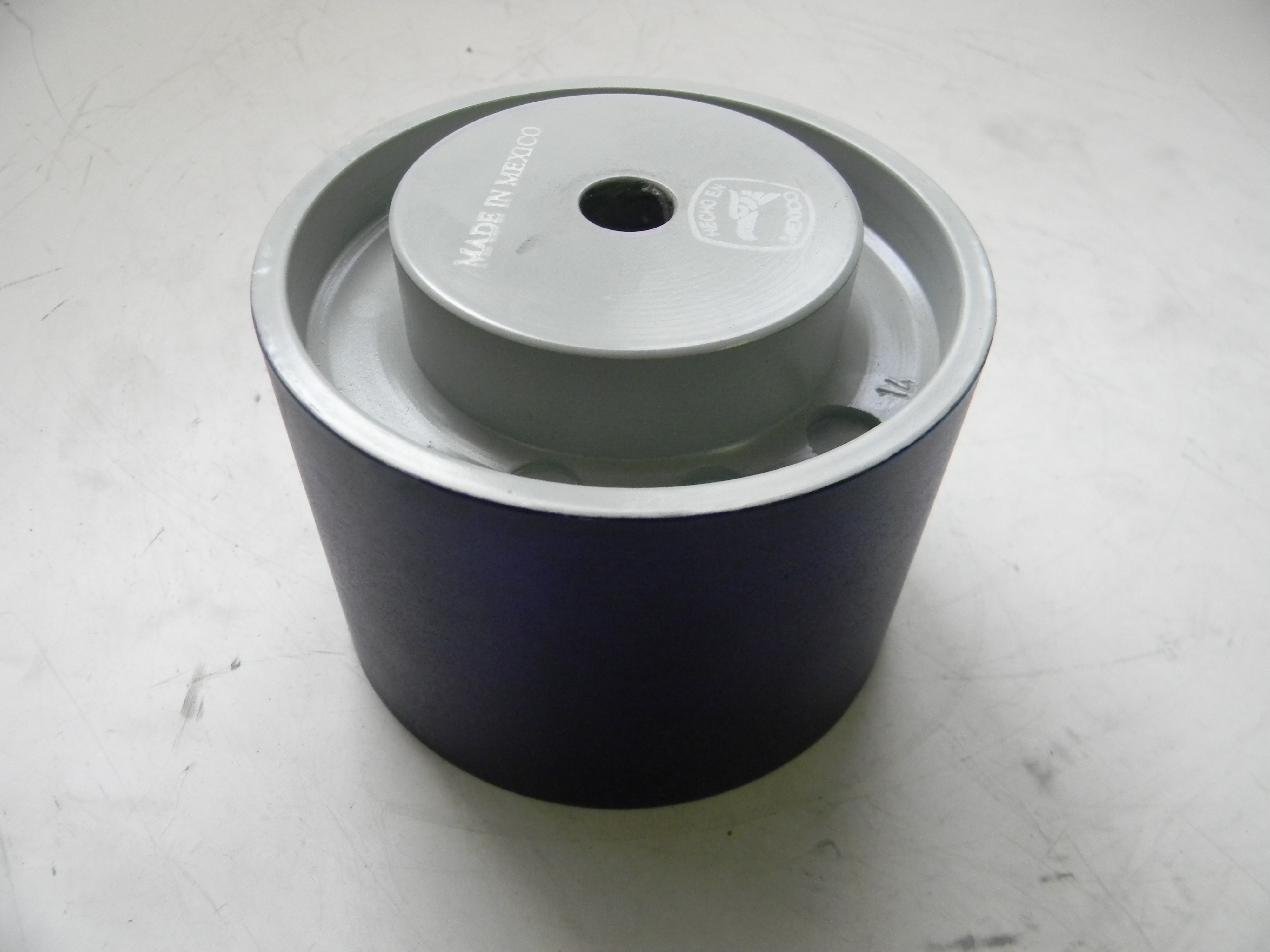

Pilot Bore Part 511H1150-1
Normally a Stock item

Ships from Stock to 6 Weeks
Dated 12-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
2 CUT-511H1192-40 Cutler-Hammer Brake 511H 4" 240
4 Inch 511 Type "S" Solenoid Brake
Part 511H1192-40
Electrically Released Spring Applied
15 FT LB / Intermittent Duty Cycle
240 Volt AC, 60 Hz
Coil Part 9-591-10
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Pilot Bore Brake Wheel Part 511H1150-1
Normally a Stock Item
Ships from Stock to 6 Weeks
Dated 12-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
3 CUT-511H1192-41 Cutler-Hammer Brake 511H
Part 511H1192-41
4 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
15 FT LB / Continuous Duty Cycle
41 = 480 Volt AC, 60 Hz

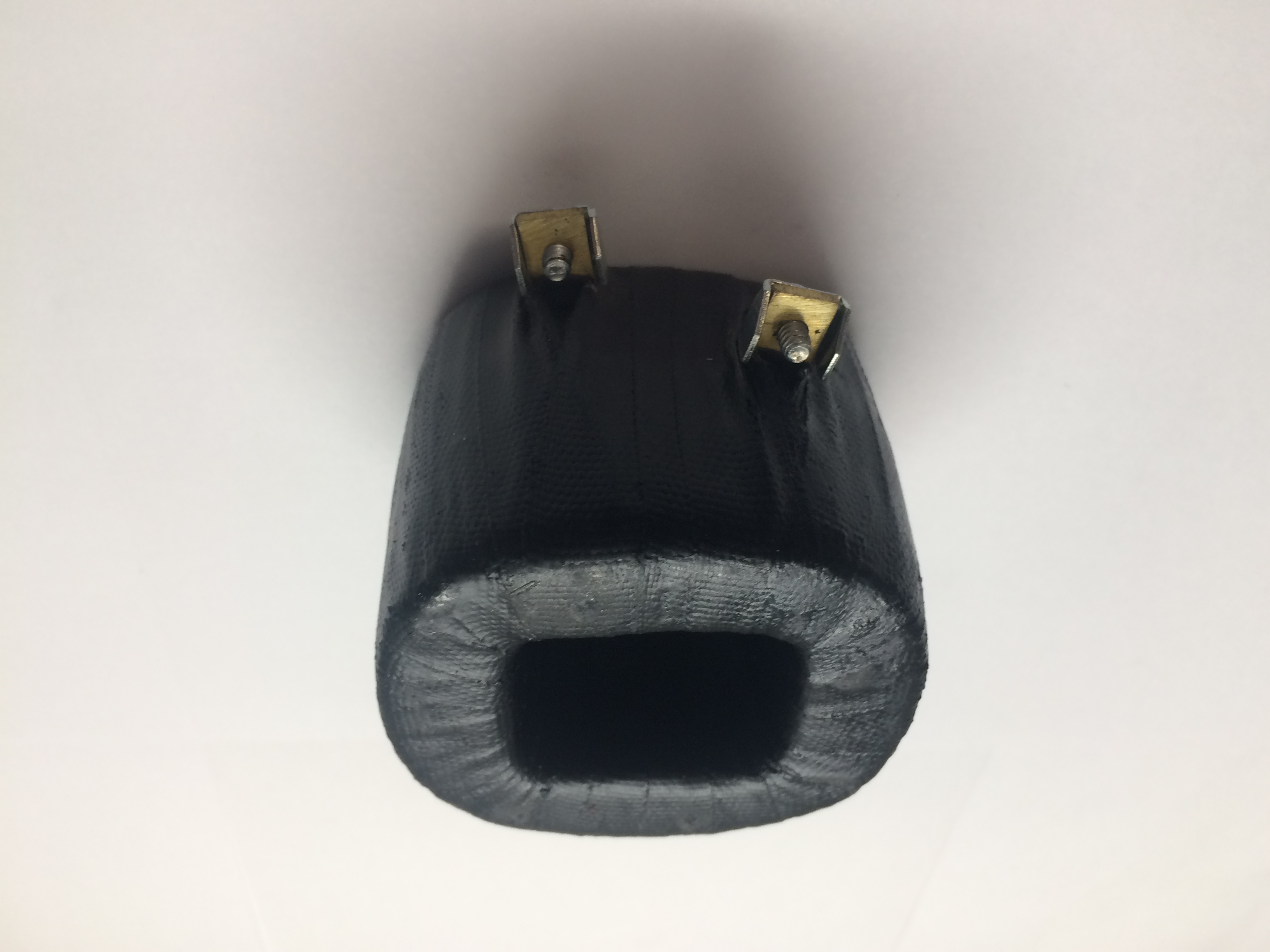

Coil Part 9-591-11
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Normally a Stock Item
Ships from Stock to 6 Weeks
Dated 11-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
4 CUT-511H1192-58 Cutler-Hammer Brake 511H
Part 511H1192-58
4 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
15 FT LB / Intermittent Duty Cycle
575 Volt AC, 60 Hz

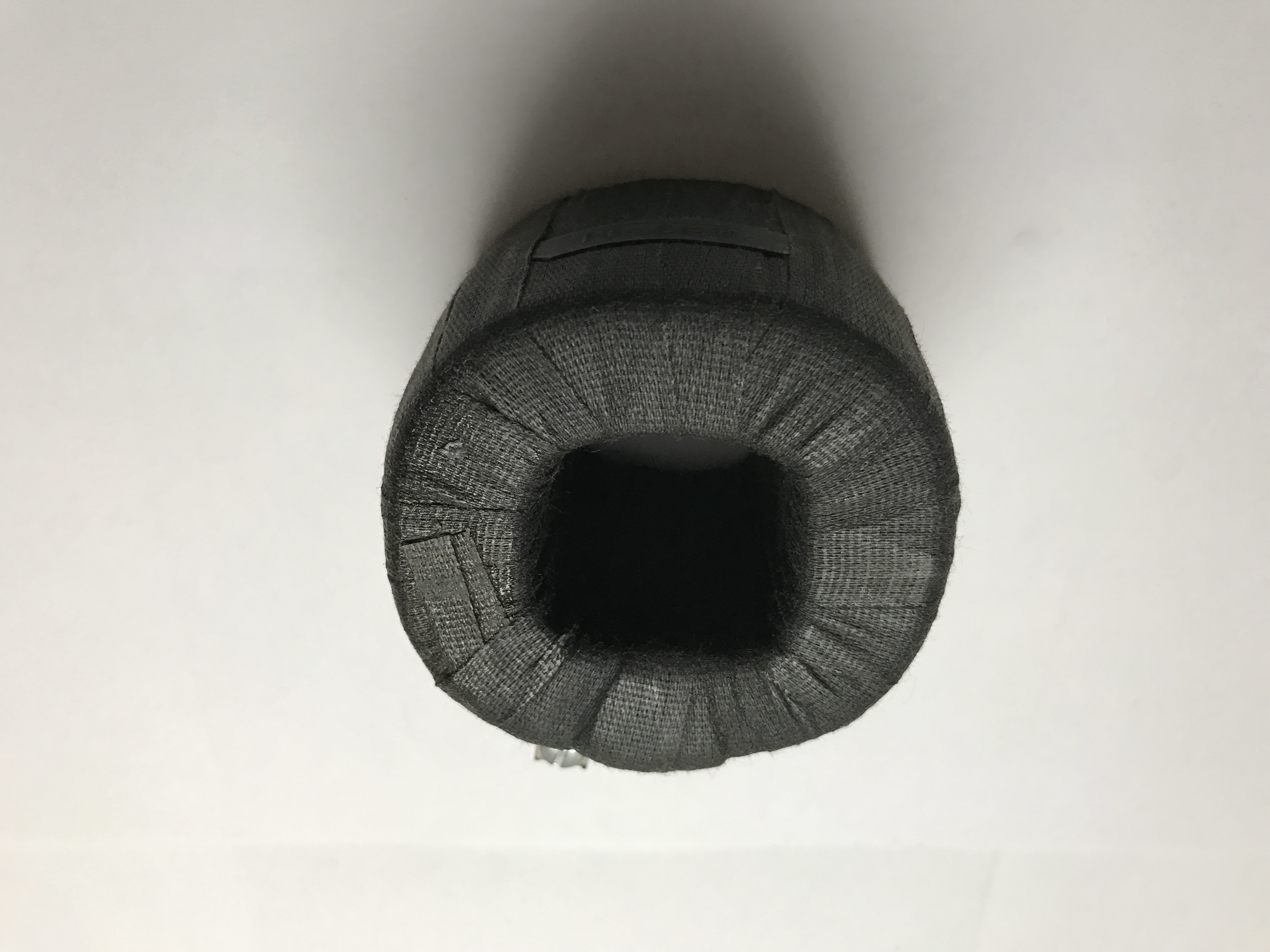

Coil Part 9-591-12
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Ships in 12 to 14 Weeks
Dated 12-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
5 CUT-511H1192-66 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1192-66
Electrically Released Spring Applied
XX FT LB / XXXX Duty Cycle
110 Volt AC, 60 Hz
120 Volt AC, 50Hz
Coil Part CUT-9-591-9
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Dated 12-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
6 CUT-511H1192-8 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1192-8
Electrically Released Spring Applied
15 FT LB / Intermittent Duty Cycle
480 Volt AC, 60 Hz
440 Volt AC, 50 Hz
Coil Part 9-591-11
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Ships in 6 Weeks
Dated 12-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
7 CUT-511H1193-39 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1193-39
Electrically Released Spring Applied
10 FT LB / Continuous Duty Cycle
120 Volt AC, 60 Hz
Coil Part CUT-9-591-9
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Dated 06-2022
(16LBS) H 8" L 14" W 8" Box		 0 $5,031.78
8 CUT-511H1193-40 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1193-40
Electrically Released Spring Applied
10 FT LB / Continuous Duty Cycle
240 Volt AC, 60 Hz
Coil Part CUT-9-591-10
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Ships in 10 to 12 Weeks
Dated 06-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.45
9 CUT-511H1193-41 Cutler-Hammer Solenoid Brake 511H
Part 511H1193-41
4 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
10 FT LB / Continuous Duty Cycle
480 Volt AC, 60 Hz
Coil Part 9-591-11
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Normally a Stock Item
Ships from Stock to 6 Weeks
Dated 03-2024
(16LBS) H 8" L 14" W 8" Box		 1 $5,797.50
10 CUT-511H1193-45 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1193-45
Electrically Released Spring Applied
3 FT LB / Continuous Duty Cycle
240 Volt AC, 60Hz
Coil Part CUT-9-591-16
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Dated 06-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.45
11 CUT-511H1193-58 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1193-58
511H119358
Electrically Released Spring Applied
XX FT LB / XXX Duty Cycle
XXX Volt AC, 60Hz
Coil Part CUT-9-XXX-X
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Pilot Bore Part 511H1150-1
Dated 01-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.45
12 CUT-511H1194-58 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1194-58
Electrically Released Spring Applied
3 FT LB / Continuous Duty Cycle
120 Volt AC, 60Hz
58 = Coil Part CUT-9-591-12
C-H Publication 19320
A 4 X 2.75 Inch Brake Wheel is not included
Dated 08-2022
(16LBS) H 8" L 14" W 8" Box		 0 $5,157.50
13 CUT-511H1195-40 Cutler-Hammer Brake 511H
7Inch 511 Type "S" Solenoid Brake
Part CUT-511H1195-40
Electrically Released Spring Applied
85 FT LB / Continuous Duty Cycle
240 Volt AC, 60Hz
40 = Coil Part CUT-9-941-4
C-H Publication 15475
A 7 X 4.25 Inch Brake Wheel is not included
(52LBS) H 16" L 30" W 16" Box		 0 $10,932.89
14 CUT-511H1195-41 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part 511H1195-41
Electrically Released Spring Applied
85 FT LB / Continuous Duty Cycle

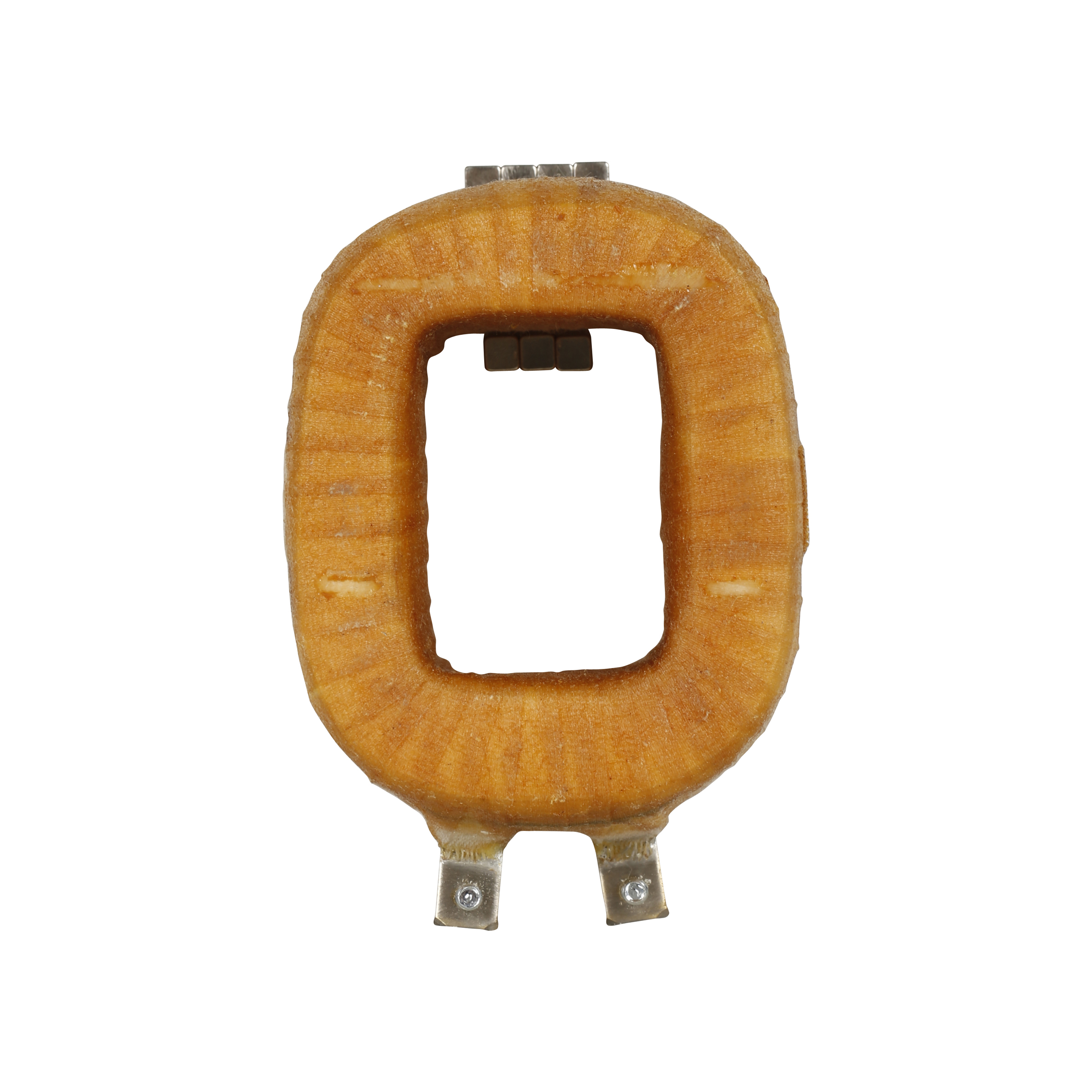

480 Volt AC, 60Hz
Coil Part CUT-9-941-6
C-H Publication 15475
A 7 X 4.25 Inch Brake Wheel is not included
(52LBS) H 16" L 30" W 16" Box		 0 $19,295.53
15 CUT-511H1196-7 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part CUT-511H1196-7
Electrically Released Spring Applied
3 FT LB / Continuous Duty Cycle
120 Volt AC, 60Hz
58 = Coil Part CUT-9-591-13
C-H Publication 19320
A 4 X 2.75 Inch Brake Wheel is not included
Pilot Bore Part 511H1150-1
[UPC 782113 05773]
(16LBS) H 8" L 14" W 8" Box		 0 $10,932.89
Brake Assemblies, Series 511
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1198-98 Cutler-Hammer Brake 10/15 0 $11,535.53
2 CUT-511H955-98 Cutler-Hammer Brake Assembly
511 Series
Electrically released spring applied providing "Fail-Safe" application
3 FT LB / Continuous Duty Cycle
240 Volt DC Coil
A 4 X 2.75 Inch Brake Wheel is not included
(16 LBS)		 0 $4,399.27
3 CUT-511H956-98 Cutler-Hammer Solenoid Brake Assembly
Part 511H956-98
Electrically released spring applied providing for "Fail-Safe" application
4 Inch Diameter
240 Volt DC Coil
10 FT LBS Brake Torque, Continuous Duty Cycle
A 4 X 2.75 Inch Brake Wheel is not included
Ships in
Dated 11-2021
(16LBS) H 8" L 14" W 8" Box		 0 $5,923.96
4 CUT-511H957-98 Cutler-Hammer Brake Assembly
511 Series
Electrically released spring applied providing "Fail-Safe" application
15 FT LB / Intermittent Duty Cycle
240 Volt DC Coil
A 4 X 2.75 Inch Brake Wheel is not included
Net Weight (16 LBS) 7/15		 0 $4,399.27
5 CUT-511H970-40 Cutler-Hammer Solenoid Brake Assembly 511 7" 230 Volt
Part 511H970-40
aka 511H970-40
Bulletin 511 Type S, 7 Inch Diameter
With a 230 Volt 60 Hz Coil
Coil Part 9-941-15
50 FT LB Continuous Duty
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
C-H Publication 15475
Ships in 6 Months
Dated 01-2023		 1 $10,282.43
6 CUT-511H970-41 Cutler-Hammer Solenoid Brake Assembly
Part 511H970-41
Bulletin 511 Type S, 7 Inch Diameter
With a 460 Volt 60 Hz Coil
Coil Part 9-941-12
50 FT LB Continuous Duty
A Light Duty Solenoid Brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
Publication 15475
Ships in 6 Months
Dated 01-2023		 0 $10,282.30
7 CUT-511H970-45 Cutler-Hammer Brake Assembly 511 7"
Part 511H970-45
Bulletin 511 Type S, 7 Inch Diameter
With a 208 Volt 60 Hz Coil Part 9-941-35
50 FT LB Continuous Duty
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
Publication 15475
Ships in 6 Months
Dated 07-2024		 0 $11,552.31
8 CUT-511H971-39 Cutler-Hammer Brake Assembly
Model 511H971-39
7 Inch 511 Series Solenoid Brake
Electrically Released Spring Applied
75 FT LB Brake Torque
With an Intermittent Duty Cycle
Coil Input 120 Volt 60 Hz
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
C-H Publication 15475
Dated 06-2023
(52LBS) H 12" L 20" W 12" Box		 0 $10,796.55
9 CUT-511H971-41 Cutler-Hammer Brake Assembly
Model 511H971-41
7 Inch 511 Series Solenoid Brake
Electrically Released Spring Applied
75 FT LB Brake Torque
With an Intermittent Duty Cycle
Coil Input 480 Volt 60 Hz
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
C-H Publication 15475
Ships from Stock to 6 Weeks
Dated 11-2023
(52LBS) H 12" L 20" W 12" Box		 1 $10,796.55
10 CUT-511H971-45 Cutler-Hammer Brake Assembly 511S 7"
Model 511H971-45
7 Inch 511 Series Solenoid Brake
Electrically Released Spring Applied
75 FT LB Brake Torque
With an Intermittent Duty Cycle
Coil Input 208 Volt 60 Hz
Coil Part 9-941-35
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
C-H Publication 15475
Ships in 8 Weeks
Dated 06-2023
(52LBS) H 12" L 20" W 12" Box		 0 $10,796.55
11 CUT-511H971-7 Cutler-Hammer Brake Assembly
Model 511H971-7
7 Inch 511 Series Solenoid Brake
Electrically Released Spring Applied
75 FT LB Brake Torque
With an Intermittent Duty Cycle
Coil Input XXX Volt 60 Hz
Coil Input XXX Volt 50 Hz
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
C-H Publication
Dated 06-2023
(52LBS) H 12" L 20" W 12" Box		 0 $10,796.55
12 CUT-511H971-8 Cutler-Hammer Brake Assembly
Model 511H971-8
7 Inch 511 Series Solenoid Brake
Electrically Released Spring Applied
75 FT LB Brake Torque
With an Intermittent Duty Cycle
Coil Input 600 Volt 60 Hz
Coil Input 440 Volt 50 Hz
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
C-H Publication
Ships in 5 to 7 Weeks
Dated 06-2023
(52LBS) H 12" L 20" W 12" Box		 0 $10,796.55
13 CUT-511H975-97 Cutler-Hammer Brake Assembly
Part 511H975-97
Series 511 Type "S" Solenoid Brake
Electrically released spring applied
75 FT LBS of Brake Torque
120 Volt DC Coil Part 9-1347-10
A 7 Inch Diameter X 4.25 Inch Brake Wheel
is not included with the brake
C-H Publication 15477
Ships from Stock to 18 to 20 Weeks
Dated 1-19
52LBS		 1 $8,195.90
14 CUT-511H992-45 Cutler-Hammer Brake 511H 7"
Part 511H992-45
5.5 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
25 FT LB - Continuous Duty Cycle
208 Volt AC 60Hz
45 = Coil Part 9-585-33
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
7 Inches High
7 Inched Long
10.4 Inches Wide
C-H Publication 17377
A 5.5 X 3.25 Inch Brake Wheel is not included
Ship in 4 to 6 Weeks
Dated 04-2024
(30LBS) H 10" L 16" W 10" Box		 0 $7,265.24
15 CUT-511H992-58 Cutler-Hammer Brake 511H
Part 511H992-58
5.5 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
25 FT LB / Continuous Duty Cycle
600 Volt AC, 60 Hz
58 = Coil Part 9-585-26Kit
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
7 Inches High
7 Inched Long
10.4 Inches Wide
C-H Publication 17377
A 5.5 X 3.25 Inch Brake Wheel is not included
[UPC 782113 13981]
Dated 04-2024
(29LBS) H 10" L 16" W 10" Box		 0 $7,265.24
16 CUT-511H992-7 Cutler-Hammer Brake 511H
Part 511H992-7
5.5 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
25 FT LB / Continuous Duty Cycle
380 Volt AC, 50 Hz
7 = Coil Part 9-585-5
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
7 Inches High
7 Inched Long
10.4 Inches Wide
C-H Publication 17377
A 5.5 X 3.25 Inch Brake Wheel is not included
Product Code: AO20
Dated 04-2024
(29LBS) H 10" L 16" W 10" Box		 0 $7,265.24
17 CUT-511H992-8 Cutler-Hammer Brake 511H
Part 511H992-8
5.5 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
25 FT LB / Continuous Duty Cycle
440 Volt AC, 50 Hz

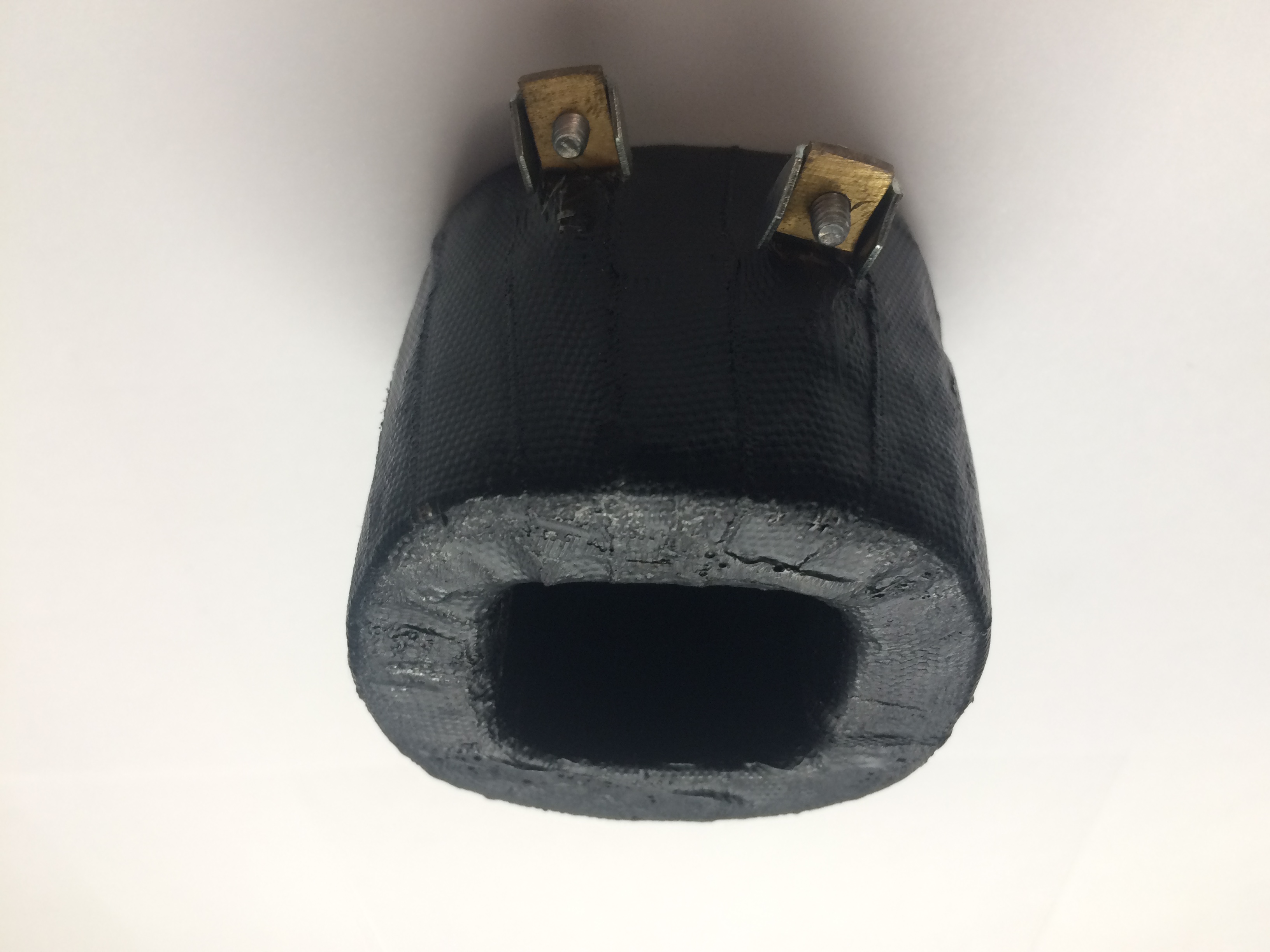

8 = Coil Part 9-585-11
A Light Duty Solenoid Brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
7 Inches High
7 Inched Long
10.4 Inches Wide
C-H Publication 17377
A 5.5 X 3.25 Inch Brake Wheel is not included
Dated 04-2024
(29LBS) H 10" L 16" W 10" Box		 0 $7,265.24
18 CUT-511H993-40 Cutler-Hammer Solenoid Brake Assembly 511H
Model 511H993-40
5-1/2 Inch Series 511 electrically released spring applied brake
35 FT LB - Intermittent Duty Cycle
240 Volt AC 60 Hz., Coil Part 9-585-10
A 5 & 1/2 Inch Diameter Brake Wheel is not included
Ships in
Dated 06-2023
(36LBS) H 10" L 16" W 12" Box		 0 $6,789.94
19 CUT-511H993-41 Cutler-Hammer Solenoid Brake Assembly 511H
Model 511H993-41
aka 511H99341
5-1/2 Inch Series 511 electrically released spring applied brake
35 FT LB / Intermittent Duty Cycle
480 Volt 60 Hz Coil Part 9-585-16
A 5 & 1/2 Inch Diameter Brake Wheel is not included
Is a Light Duty Solenoid Brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection of a brake
NSN 3040-21-914-9909 Gov #
Ships in 8 to 10 Weeks
Dated 03-2024
(36LBS)		 0 $6,789.94
20 CUT-511H993-58 Cutler-Hammer Solenoid Brake Assembly 5.5"
Model 511H993-58
5-1/2 Inch Series 511 electrically released spring applied brake
5 & 1/2 Inch Diameter
600 Volt 60 Hz Coil Part 9-585-26
The Brake Wheel is NOT included
Ships in 14 to 16 Weeks
Dated 06-2023
(36LBS)		 0 $6,789.94
21 CUT-511H994-98 Cutler-Hammer Brake Assembly
511 Series
Electrically released spring applied providing "Fail-Safe" application
25 FT LB / Intermittent Duty Cycle
240 Volt DC Coil 8/14		 0 $5,212.84
22 CUT-511H995-97 Cutler-Hammer Brake Assembly. Series 511, Type "S" Spring Applied Solenoid Released Brake. 5 & 1/2 Inch Diameter. 35 FT LBS Intermittent
97 = 120 Volt DC (29LBS) 8/14		 0 $5,212.84
23 CUT-511H995-98 Cutler-Hammer Brake Assembly
511 Series
Electrically released spring applied providing "Fail-Safe" application
35 FT LB / Intermittent Duty Cycle
240 Volt DC Coil 4/16		 0 $5,212.84
24 CUT-511H1192-45 Cutler-Hammer Solenoid Brake 511H 4" 208V
Part 511H1192-45
4 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
15 FT LB / Intermittent Duty Cycle
208 Volt AC, 60 Hz
Coil Part CUT-9-591-16
C-H Publication 11326
A 4 X 2.75 Inch Brake Wheel is not included
Ships in 6 Weeks
Dated 12-2023
(16LBS) H 8" L 14" W 8" Box		 0 $5,415.31
25 CUT-511H1194-39 Cutler-Hammer Brake 511 4" 120 Volt
Part 511H1194-39
4 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
3 FT LB / Continuous Duty Cycle
120 Volt AC, 60Hz
39 = Coil Part CUT-9-591-9
C-H Publication 19320
A 4 X 2.75 Inch Brake Wheel is not included
Dated 08-2022
(16LBS) H 8" L 14" W 8" Box		 0 $5,157.50
26 CUT-511H1194-40 Cutler-Hammer Brake 511H 4"
4 Inch 511 Type "S" Solenoid Brake
Part 511H1194-40
511H119440
Electrically Released Spring Applied
3 FT LB / Continuous Duty Cycle
240 Volt AC, 60Hz
40 = Coil Part 9-591-10
C-H Publication 19320
A 4 X 2.75 Inch Brake Wheel is not included
Ships in
Dated 08-2022
(16LBS) H 8" L 14" W 8" Box		 0 $5,157.50
27 CUT-511H1194-41 Cutler-Hammer Brake 511H 4" 480
Part 511H1194-41
4 Inch 511H Solenoid Brake
Electrically Released Spring Applied
3 FT LB - Continuous Duty Cycle
480 Volt AC 60Hz
41 = Coil Part 9-591-11
Cutler Hammer Publication 19320
A 4 X 2.75 Inch Brake Wheel is not included
Ships in 3 Months
Dated 08-2022
(16LBS) H 8" L 14" W 8" Box		 0 $5,157.50
28 CUT-511H1195-39 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part CUT-511H1195-39
Electrically Released Spring Applied
85 FT LB / Continuous Duty Cycle
120 Volt AC, 60Hz
39 = Coil Part CUT-9-941-8
C-H Publication 15475
A 7 X 4.25 Inch Brake Wheel is not included
(52LBS) H 16" L 30" W 16" Box		 0 $10,932.89
29 CUT-511H1196-41 Cutler-Hammer Brake 511H
Part 511H1196-41
7 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
110 FT LB / Continuous Duty Cycle
480 Volt AC, 60Hz
40 = Coil Part 9-941-6
C-H Publication 15475
A 7 X 4.25 Inch Brake Wheel is not included
Ships in 12 to 14 Weeks
Dated 08-2023
(52LBS) H 16" L 30" W 16" Box		 0 $18,033.20
30 CUT-511H1197-97 Cutler-Hammer Brake 511 4"
Part 511H1197-97
511H119797
4 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
85 FT LB / Continuous Duty Cycle
120 Volt DC, 60Hz
40 = Coil Part 9-1346-3
C-H Publication 15477
A 7 X 4.25 Inch Brake Wheel is not included
Ships in
Dated
(52LBS) H 16" L 30" W 16" Box		 0 $11,535.53
31 CUT-511H1197-98 Cutler-Hammer Brake 511H
4 Inch 511 Type "S" Solenoid Brake
Part CUT-511H1197-98
Electrically Released Spring Applied
85 FT LB / Continuous Duty Cycle
240 Volt DC, 60Hz
98 = Coil Part CUT-9-1347-13
C-H Publication 15477
A 7 X 4.25 Inch Brake Wheel is not included
Pilot Bore Part 511H1150-1
(52LBS) H 16" L 30" W 16" Box		 0 $11,535.53
32 CUT-511H950-40 OBSOLETE Cutler-Hammer Solenoid Brake, 4 Inch Diameter 3 FT LBS Intermittent or Continuous Duty 240 Volt
AC		 0 $3,282.38
33 CUT-511H955-97 Cutler-Hammer Brake Assembly 511 4"
Part 511H955-97
511H95597
511 Series
Electrically released spring applied providing "Fail-Safe" Application
3 FT LB - Continuous Duty Cycle
120 Volt DC Coil
A 4 X 2.75 Inch Brake Wheel is not included
Ships in
Dated
(16 LBS)		 0 $5,913.00
34 CUT-511H956-97 Cutler-Hammer Solenoid Brake Assembly
Part 511H956-97
Electrically released spring applied providing for "Fail-Safe" application
120 Volt DC Coil
10 FT LBS Brake Torque, Continuous Duty Cycle
A 4 X 2.75 Inch Brake Wheel is not included
Ships in
Dated 11-2021
(16LBS) H 8" L 14" W 8" Box		 0 $5,923.96
35 CUT-511H957-97 Cutler-Hammer Brake Assembly
511 Series
Electrically released spring applied providing "Fail-Safe" application
5 FT LB / Intermittent Duty Cycle
120 Volt DC Coil 9-1346-3
A 4 X 2.75 Inch Brake Wheel is not included
Net Weight (16 LBS) 7/15		 0 $4,399.27
36 CUT-511H970-39 Cutler-Hammer Brake Assembly
Part 511H970-39
Bulletin 511 Type S, 7 Inch Diameter
With a 115 Volt 60 Hz Coil # 9-941-20
50 FT LB Continuous Duty
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
Publication 15475
Ships in 6 Months
Dated 01-2023		 0 $10,282.43
37 CUT-511H970-8 Cutler-Hammer Brake Assembly 511 7"
Part 511H970-8
Bulletin 511 Type S, 7 Inch Diameter
With a 440 Volt 50 Hz Coil # 9-585-11
50 FT LB Continuous Duty
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
C-H Publication 15475
Ships in 4 to 6 Weeks
Dated 01-2022		 0 $9,811.18
38 CUT-511H971 Cutler-Hammer Brake Assembly
7 Inch 511 Series Solenoid Brake
Electrically released spring applied providing "Fail-Safe" application
75 FT LB Brake Torque / Intermittent Duty Cycle
Coil Voltage Required at time of order
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
Dated 11-2021
(52LBS)		 0 $8,804.69
39 CUT-511H971-40 Cutler-Hammer Brake Assembly 511 7"
Model 511H971-40
7 Inch 511 Series Solenoid Brake
Electrically Released Spring Applied
75 FT LB Brake Torque
With an Intermittent Duty Cycle
Coil Input 240 Volt 60 Hz
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included
C-H Publication 15475
Dated 06-2023
Ships from Stock to 8 Weeks
(52LBS) H 12" L 20" W 12" Box		 0 $10,796.55
40 CUT-511H975-98 Cutler-Hammer Brake Assembly
Part 511H975-98
Series 511 Type "S" Solenoid Brake
Electrically released spring applied providing "Fail-Safe" application
Available in 50, 75, 85 & 110 FT LBS of Brake Torque
240 Volt DC Coil Part 9-1347-11
A 7 Inch Diameter X 4.25 Inch Brake Wheel is not included with the brake
C-H Publication 15477
Ships in 90 Days
Dated 1-19
52LBS		 0 $8,195.90
41 CUT-511H976-97 Cutler-Hammer Brake Solenoid Brake
Series 511
Electrically released spring applied providing "Fail-Safe" application
75 FT LB / Intermittent Duty Cycle
120 Volt DC
7 Inch Diameter X 4.25 Inch Brake Wheel is not included
(52LBS)		 0 $7,141.28
42 CUT-511H976-98 Cutler-Hammer Brake Assembly 511H 7" 240 DC
Part 511H976-98
7 Inch Diameter Solenoid Brake
Series 511
Electrically released spring applied providing "Fail-Safe" application
75 FT LB - Intermittent Duty Cycle
240 Volt DC
7 Inch Diameter X 4.25 Inch Brake Wheel is not included
Ships in 4 to 6 Weeks
Dated 05-2021
(52LBS) H 12" L 18" W 14" Box		 0 $8,801.39
43 CUT-511H992-39 Cutler-Hammer Brake 511H 5.5" 120V
Part 511H992-39
511H99239
5.5 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
25 FT LB / Continuous Duty Cycle
120 Volt AC, 60Hz
39 = Coil Part 9-585-9
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
7 Inches High
7 Inched Long
10.4 Inches Wide
C-H Publication 17377
A 5.5 X 3.25 Inch Brake Wheel is not included
Dated 04-2024
(29LBS) H 10" L 16" W 10" Box		 0 $7,265.24
44 CUT-511H992-40 Cutler-Hammer Brake 511H 5.5" 240V
Part 511H992-40
511H99240
5.5 Inch 511 Type "S" Solenoid Brake
Electrically Released Spring Applied
25 FT LB / Continuous Duty Cycle
240 Volt AC, 60Hz
40 = Coil Part 9-585-10
A Light Duty Solenoid brake for up to Class "C" Cranes
Application Safety Factors need to be followed during selection
7 Inches High
7 Inched Long
10.4 Inches Wide
C-H Publication 17377
A 5.5 X 3.25 Inch Brake Wheel is not included
Normally a Stock Item
Ships from Stock to 4 Weeks
Dated 04-2024
(29LBS) H 10" L 16" W 10" Box		 0 $7,265.24
45 CUT-511H993-39 Cutler-Hammer Solenoid Brake Assembly
Model 511H993-39
Series 511 Type "S" 5 & 1/2 Inch Diameter
5-1/2 Inch Series 511 electrically released spring applied brake
35 FT LB / Intermittent Duty Cycle
120 Volt AC 60 Hz Coil Part 9-585-9
5 & 1/2 Inch Diameter Brake Wheel is not included
Dated 02-2024
(36LBS)		 1 $6,789.94
46 CUT-511H997-9 Cutler-Hammer Brake Assembly. OBSOLETE SEE GEMCO CB-160 511 Series Type S-10. Electrically released spring applied for "Fail-Safe" operation. Horizontal frame mount only. 160 Ft LBS 550 Volt 50 Hz Coil 2 $8,430.48
Brake Replacement Parts
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart

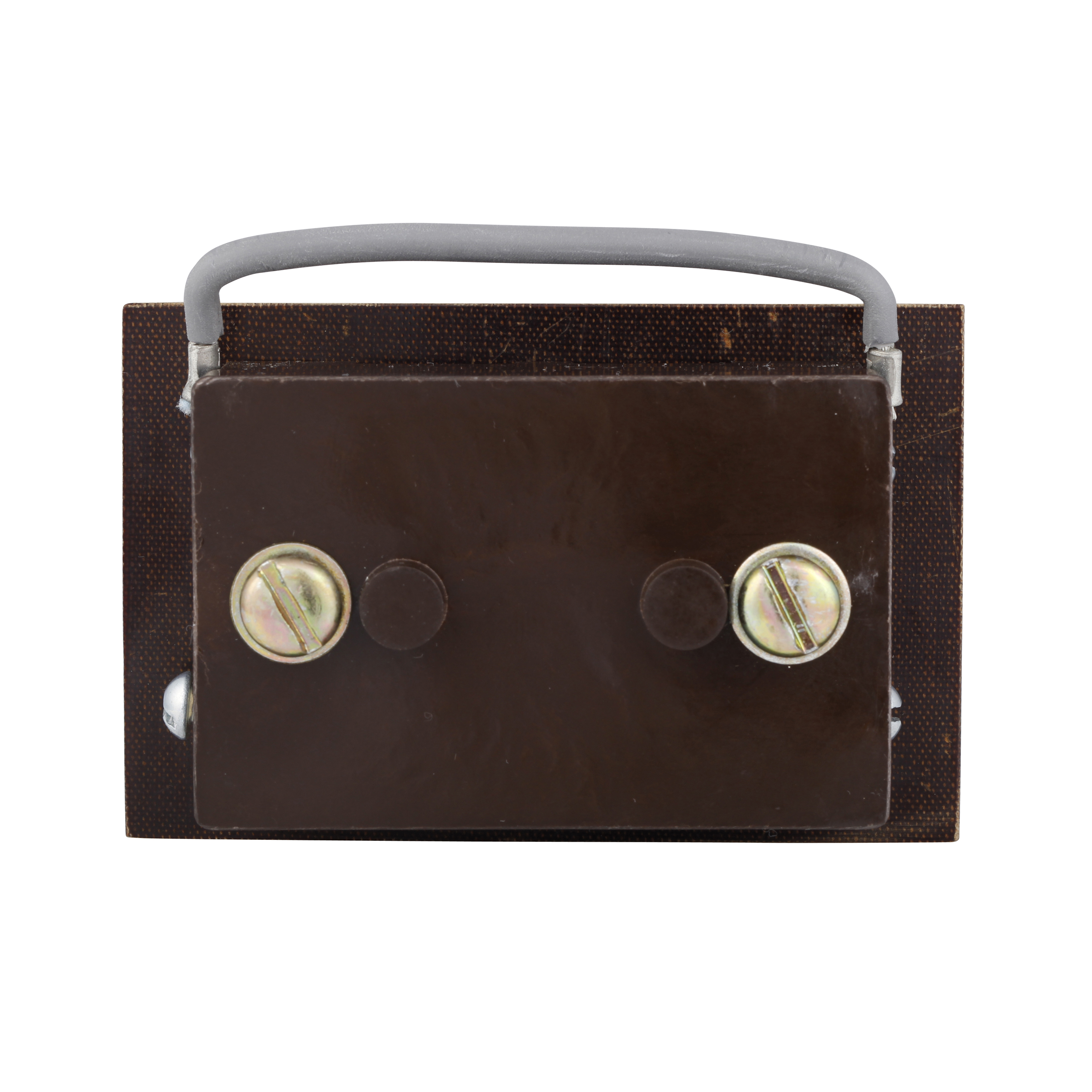

1 CUT-10-1510-4 Cutler-Hammer Switch 511 DC
Part 10-1510-4
1015104
Micro Switch
For DC Solenoid Brakes, 4" 5.5" & 7" Inch
Series 511 Type "S"
C-H Publications 13864 17378 & 15477
Ships from Stock to 10 Days
Dated 01-2019		 0 $557.45
2 CUT-11-1746-4 Cutler-Hammer Screw. Adjusting Screw Assembly on a No 505 16 Inch DC Brake, Item 14, 1 per brake - 0 $708.75
3 CUT-11-2051 Cutler-Hammer Brake Part GH505
Part CUT-11-2051
Screw
For a 8, 10, 13 & 16 Inch GH505 DC Brake
Item XX, 4 per brake, sold each
C-H Publication 17225 & More
Ships in 7 to 10 Days
[NSN 4320-00-348-0098]
(XXLB) 1/17		 - 0 $2.79
4 CUT-11-2051-1 Cutler-Hammer Screw
For a GH505 13 Inch DC Brake
Item 28		 - 0 $2.57
5 CUT-11-272 Cutler-Hammer Adjusting Screw Assembly on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 10, 1 per brake - 0 $1.35

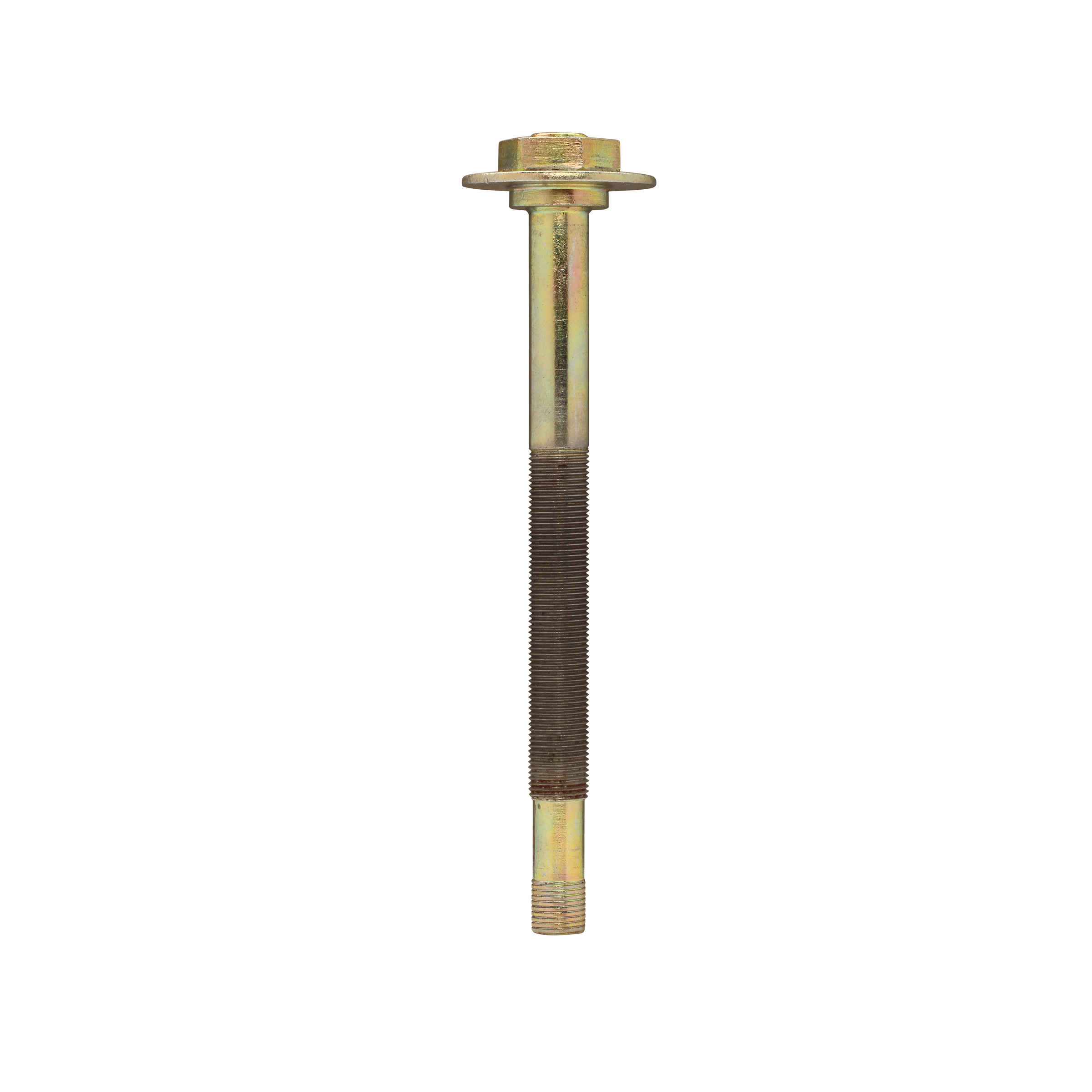

6 CUT-11-302-2 Cutler-Hammer Adjusting Screw 511 7"
Part 11-302-2
113022
Adjusting Screw
For a 7 Inch 511 Series Solenoid Brake
Item 23, 1 per brake
C-H Publication 15475
Ships in 7 to 10 Weeks
Dated 11-2020		 0 $687.00
7 CUT-11-3046-2 Cutler-Hammer Bolt GH505
Part 11-3046-2
aka 1130462
Self Locking Bolt
High Grade Bolt with LockTight Applied
Not to be re-used W/O LockTight Application
For a 8,10 & 13 Inch GH505 DC Brake
Item XX, 4 per brake, sold each
C-H Publication 17225
Ships in 7 to 10 Days
Dated 11-19
(1LB)		 - 0 $9.64
8 CUT-11-3554 Cutler-Hammer Bolt
Part CUT-11-3554
Hex Head Bolt
3/8"-16 X 7.50"
On an 8 Inch GH505 DC Brake
Item 19, 4 per brake
Dated 1/18		 - 0 $4.31
9 CUT-11-3555 Cutler-Hammer Brake Part GH505
Hex Head Bolt
For a 10 & 13 Inch GH505 DC Brake
Item 14, 1 per brake
C-H Publication 17224 & 17225
Part CUT-11-3555
Ships in 7 to 10 Days
(XXLB) 1/17		 - 0 $13.26
10 CUT-11-3556 Cutler-Hammer Bolt. Hex Head Bolt on a 16 Inch 505 DC Brake, item 19, 4 per brake Publication 17226 4/15 - 0 $2.70
11 CUT-11-4625-2 Cutler-Hammer Screw
Part 11-4625-2
aka 1146252
Torque Adjusting Screw
For a 10 Inch GH505 DC Brake
Item 14, 1 per brake
Includes items 13 Pin & 15 Gland
C-H Publication 17225
Ships in 1 Week
Dated 12-19		 - 0 $1,211.98
12 CUT-11-4625-3 Cutler-Hammer Brake Part GH505 13
Screw
For a 13 Inch GH505 DC Brake
Item 14, 1 per brake
C-H Publication 17225
CUT-11-4625-3
Ships in 7 to 10 Days
(XXLB) 1/17		 - 0 $1,011.47
13 CUT-11-4625-4 Cutler-Hammer Torque Adjusting Screw GH505 16"
Part 11-4625-4
aka 1146254
Torque Adjusting Screw
Includes items:
12 Spring Pin 13-4436
13 Gland 49-2036
Item 14, 1 per brake
C-H Publication 17226
Ships in 10 to 14 Days
Dated 1-2020		 - 0 $1,295.93
14 CUT-11-4625-6 Cutler-Hammer Adjusting Screw
Part 11-4625-6
Adjusting Screw Complete
For a 23 Inch GH505 DC Brake
Item 13, 1 per brake
C-H Brake Publication 11381
Ships in 1 Week
Dated 09-2020		 - 0 $2,477.39
15 CUT-11-4640 Cutler-Hammer Screw GH505 10 13 16 19
Part 11-4640
aka 114640
Self Lock Screw
For a 10, 13, 16 or 19 Inch GH505 DC Brake
Item 18, 4 per brake, sold each
C-H Publication
NSN 3110-00-516-5398 Gov #
Ships in 2 Weeks
Dated 1-2020		 - 0 $16.57
16 CUT-11-4719 Cutler-Hammer Adjusting Bolt
Part 11-4719
114719
For a 5.5 Inch 511 Solenoid Brake
Item 23, 1 per brake
C-H Publication 17377
Ships in 10 Days
Dated 04-2022		 0 $124.38
17 CUT-11-723-15 Cutler-Hammer Bolt
Part 11-723-15
1172315
Hex Head Bolt
For a 10 Inch GH505 DC Brake
1/2 -13 x 4.5"
With Roll Pin & Nut
Item 7 or C
Ships in 2 to 3 Weeks
Dated 01-2021
(2LBS) H 4" L 6" W 4" Box		 - 0 $68.90
18 CUT-13-1145-13 Cutler-Hammer Pin on a 7 Inch 511 Series Solenoid Brake. Item 16, 1 per brake. Pub 15475 7/14
(1LB)		 0 $207.82
19 CUT-13-131 Cutler-Hammer Pin on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 15, 2 per brake - 0 $1.35
20 CUT-13-3166 Cutler-Hammer Pin. Spring Pin on a 7 Inch 511 Series Solenoid Brake. Item 7, 2 per brake 7/14 - 0 $2.56
21 CUT-13-317-10 Cutler-Hammer Pin
Part 13-317-10
1331710
For a 7 Inch 511 Series Solenoid Brake
Connects Solenoid Link to the Lever Arm
Item 14, 1 per brake
Pub 15475 10522 15477
Ships in
Dated
(1LB)		 0 $207.83
22 CUT-13-317-9 Cutler-Hammer Pin 511 5.5"
Part 13-317-9
For a 5 & 1/2 Inch Series 511 Type "S" Brake.
Item # 12, 1 per brake
Ships from Stock to 10 Days
Dated 11-2021
(1LB) H 4" L 6" W 4" Box		 0 $154.69
23 CUT-13-3186 Cutler-Hammer Link Pin 511 4"
Part 13-3186
133186
Link Pin on the Plunger
For a 4 Inch 511 Solenoid Brake
With 10, 15 or 20 FT LB Brake Torque
Item 2, 2 per brake, sold each
Ship from Stock to 4 Weeks
Dated 01-2022
(1LB) H 4" L 5" W 4" Box		 8 $2.74
24 CUT-13-3186-21 Cutler-Hammer Pin. Spring Pin 5/15 X 2.75 on a 30 Inch 505 DC Brake. Item 5, 1 per brake Drawing 70-7063 11/14 - 0 $13.48
25 CUT-13-3186-7 Cutler-Hammer Pin
Part 13-3186-7
aka 1331867
Spring Pin for the Pull Rod Spring
On an 8, 10, 13 & 16 Inch GH505 DC Brake
1 per brake
0.187 X 1.50 Inch Long
Ships in
Dated 10-19		 - 0 $4.18
26 CUT-13-3186-9 Cutler-Hammer Pin. Spring Pin on a No 505 13 Inch DC Brake. Item 13 5/14 - 0 $2.58
27 CUT-13-3187-2 Cutler-Hammer Pin 511 5.5"
Part 13-3187-2
1331872
Spring Pin
For a 5 & 1/2 Inch 511 Solenoid Brake
Item 15, 4 per brake, sold each
C-H Publication 15475
Ships in 7 to 10 Days
Dated 01-2022
(1LB)		 0 Call   Call
28 CUT-13-3196 Cutler-Hammer Pin
Part 13-3196
Plunger Pin
For a 4 Inch 511 Solenoid Brake
Item 24, 1 per brake
C-H Publication 9069
Ships in
Dated
(1LB)
 - 2 $144.64
29 CUT-13-3485-2 Cutler-Hammer Pin. Sounding Pin on a 13 & 16 Inch 505 DC Brake, 2 per brake - 0 $80.84
30 CUT-13-3863 Cutler-Hammer Pin 511 4"
Part 13-3863
133863
Link Pin
For a 4 Inch 511 Type "S" Solenoid Brake
Item 7, 1 per brake
NSN 5365-01-121-8965
Ships in 4 to 6 Weeks
Dated 01-2022		 - 0 $154.58
31 CUT-13-3864 Cutler-Hammer Link Pin 511 4"
Part 13-3864
133864
Link Pin Assembly
For a 4 Inch Series 511 Solenoid Brake
Pin with Holes for Cotter Pins
Includes 2 Neoprene Sleeves Part 916-120
Item 24, 1 per brake
C-H Brake Publication 12487
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 01-2022
(1LB) H 4" L 5" W 4" Box		 3 $198.40
32 CUT-13-3864-2 Cutler-Hammer Link Pin 511 4"
Part 13-3864-2
1338642
Link Pin Assembly
For a 4 Inch Series 511 Solenoid Brake
Includes:
1 Link Pin Part 13-3863-3
2 Neoprene Sleeves Part 916-120
2 Spring Pins Part 13-3186
Item 24, 1 per brake
C-H Brake Publication 19320
Ships from Stock to 10 Days
Dated 03-2022
(1LB) H 4" L 5" W 4" Box		 0 $212.28
33 CUT-13-3978 Cutler-Hammer Pin
Part 13-3978
Pull Rod Pin
For a 16 Inch GH505 DC Brake
item 9, 1 per brake
C-H Publication 17226
Ships in 2 to 3 Weeks
Dated 5-2020		 - 0 $453.60
34 CUT-13-433 Cutler-Hammer Pin on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 2, 1 per brake
[NSN 1025-00-894-9582]		 - 0 $1.35
35 CUT-13-4436 Cutler-Hammer Pin. Spring Pin on a 16 Inch 505 DC Brake, item 12, 1 per brake Publication 17226 - 0 $2.14
36 CUT-13-482 Cutler-Hammer Pin
Part CUT-13-482
Base Pin
For a 7 Inch Diameter 511 Solenoid Brake
Item # 28, 2 per brake sold each
Dated 1/18		 0 $120.53
37 CUT-13-506-9 Cutler-Hammer Brake Part GH505
Part 13-506-9
aka 135069
Pull Rod Pin
For an 8, 10, & 13 Inch GH505 DC Brake
Item X, 1 per brake
C-H Publication 17225
Dated 01-2020		 - 0 $123.49
38 CUT-13-5758-2 Cutler-Hammer GH505 Brake Part 30"
Part CUT-13-5758-2
Pin
With Qty 2, Cotter Pin Cut-913-465
With Qty 2, Washers Cut-16-3791
For a 30 Inch GH505 DC Brake
Item 14, 1 per brake
Drawing 70-7063
Dated 7/16		 - 0 $955.02
39 CUT-13-7638 Cutler-Hammer Pin
Part 13-7638
For a Series 511 Type "S" 7 Inch Solenoid Brake Assembly.
Item # 9, 1 per brake
Ships in 4 to 6 Weeks
Dated 11-2021
(1LB) H 4" L 6" W 4" Box		 0 $154.69
40 CUT-13-7700 Cutler-Hammer Pin 511 7"
Part 13-7700
137700
For a 7 Inch 511 Solenoid Brake
Item 7, 1 per brake
Ships in
Dated 07-2014		 - 0 $91.40
41 CUT-14-272 Cutler-Hammer Adjusting Stud 511
Part 14-272
For a 511 Type "S" Brake
Item 14, 1 per brake
NSN 9905-01-133-5322 US GOV #
Ships from Stock to 3 Weeks
Dated 09-2020		 3 $440.92
42 CUT-15-175 Cutler-Hammer Jam Nut on a 7 Inch 511 Series Solenoid Brake. Item 20, 2 per brake. Pub 15475 8/14
[NSN 5342-00-526-1230]
[NSN 4730-00-202-6644]		 0 $5.57
43 CUT-15-1894 Cutler-Hammer Adjusting Stud Nut
Part 15-1894
151894
Adjusting Stud Nut
For a 5.5 Inch 511 Solenoid Brake
Item 16, 1 per brake
C-H Publication 17377
Ships in 8 Weeks
Dated 04-2022		 0 $499.73
44 CUT-15-2161 Cutler-Hammer Nut. Hex Nut 2 X 4.50 on a 30 Inch 505 DC Brake. Item 1, 1 per brake Drawing 70-7063 11/14 - 0 $169.72
45 CUT-15-2162 Cutler-Hammer Nit. Hex Jam Nut on a 30 Inch 505 DC Brake. Item 39, 1 per brake Drawing 70-7063 11/14 - 0 $117.19
46 CUT-15-522 Cutler-Hammer Adjusting Screw Nut on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 5 on Lever, 1 per brake - 0 $1.35
47 CUT-15-541 Cutler-Hammer Nut, Adjusting Stud Nut item 9 on a Bulletin 511 Type "S" 4 Inch Brake. 1 per brake 8/11 - 0 $239.98
48 CUT-15-610 Cutler-Hammer Lock Nut
Part 15-610
15610
1/2-13
For a 5 & 1/2 Inch 511H Solenoid Brake
Item 18, 1 per brake
Publication 17377
Ships in 4 Weeks
Dated 12-2023		 - 0 $4.85
49 CUT-15-680 Cutler-Hammer Brake Part GH505
Locknut
For a 13 Inch GH505 DC Brake
Item 1, 1 per brake
C-H Publication 17225
Part CUT-15-680
[NSN 4810-00-696-8361]
(1LB) 1/17		 - 0 $12.20
50 CUT-15-681 Cutler-Hammer Nut
Part 15-681
Locknut
For a 16 Inch GH505 DC Brake
Item 1, 1 per brake
C-H Publication 17226
Ships in 4-2020
Dated 10-19		 - 0 $44.73
51 CUT-15-776 Cutler-Hammer Adjusting Stud Nut 511 7"
Part 15-776
15776
Adjusting Stud Nut
For a 7 Inch 511 Series Solenoid Brake
Item 18, 1 per brake
C-H Publication 15475
Ships in 10 Days
Dated 11-2020		 0 $543.38
52 CUT-16-1598-2 Cutler-Hammer Spherical Washer
Part 16-1598-2
1615982
Spherical Washer
Pull Rod End
For a 13 Inch GH505 DC Brake
Item 2, 1 per brake
C-H Publication 17225
Ships in
Dated
(1LB) H 4" L 5" W 4" Box		 - 0 $147.07
53 CUT-16-1598-3 Cutler-Hammer Spherical Faced Washer GH505 16"
Part 16-1598-3
Spherical Faced Washer
Located on the Pull Rod End
For a 16 Inch GH505 DC Brake
Item 35, 1 per brake
C-H Publication 17226
Ships in 10 Days
Dated 11-19
(1LBS) H 4" L 5" W 4" Box		 - 0 $165.00
54 CUT-16-1598-5 Cutler-Hammer Washer
Part 16-1598-5
Spherical Washer, , Pull Rod End
For a 23 Inch GH505 DC Brake
Item 35, 1 per brake
C-H Publication 17228
Ships in 7 to 10 days
Dated 7/18
(1LB) H 4" L 5" W 4" Box		 - 2 $239.82
55 CUT-16-1981 Cutler-Hammer Washer. 5 Inch Spherical Washer on a 30 Inch 505 DC Brake. Item 2, 1 per brake Drawing 70-7063 11/14 - 0 $1,049.32
56 CUT-16-1982 Cutler-Hammer Washer
Part 16-1982
4.5 Inch Washer
For a 30 Inch GH505 DC Brake
Item 37, 1 per brake
Drawing 70-7063
DC 15-CD2
Dated 11/14		 - 0 $567.22
57 CUT-16-231 Cutler-Hammer Brake Part Series 511 4 Inch
Part 16-231
aka 16231 & 51-82
Washer, Coil Insulating Washer
For a 4 Inch 511 Type "S" Brake
Item 12, 1 per brake
C-H Brake Publication 9069
Normally a Stock Item @ BPI
Ships from Stock to 4 Week
Dated 02-2022
(1LB) H 4" L 5" W 4" Box		 - 2 $6.11
58 CUT-16-254 Cutler-Hammer Washer 511 5.5 & 7"
Part 16-254
16254
Insulating Solenoid - Coil Washer
For a 5 & 1/2 & 7 Inch 511 Solenoid Brake
Item 31 Publication 14575 & 17377
Sold each, 2 per brake
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 06-2023
(1LB) H 4" L 5" W 4" Box		 6 $12.90
59 CUT-16-319 Cutler-Hammer Washer
OBSOLETE, NO REPLACEMENT
Part 16-319
Shim Washer
For a 7 Inch 511 Series Solenoid Brake
Item 30, as required
C-H Pub 15475
[NSN 5360-00-115-4867]
Dated 8/14		 - 0 $1.08
60 CUT-16-3424 Cutler-Hammer Cup Washer on a 5 & 1/2 Inch Series 511 Brake. Item 22, 1 per brake Publication 17377 8/14 - 0 $24.51
61 CUT-17-10474 Cutler-Hammer Base / Frame on a 4 Inch Series 511 Type "S" Solenoid Brake. I1 per brake Publication 13864 6/13 - 0 $1,823.99
62 CUT-17-2479 Cutler-Hammer Base. Brake Frame on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 16, 1 per brake - 0 $1.35
63 CUT-17-473-2 Cutler-Hammer Block
Part 17-473-2
174732
Pivot Block
Item 12, 1 per brake
For a 4 Inch 511H Solenoid Brake
Ships in 8 Weeks
Dated 12-2023		 5 $494.75
64 CUT-17-476 Cutler-Hammer Solenoid Frame
Part 17-476
17476
Solenoid Frame Only
For a 5.5 & 7 Inch 511 Solenoid Brake
Does Not Include Plunger - Armature or Guides
Publication 17377, 15475 & 10522
Ships in 3 to 4 weeks
Dated 04-2018
(6LBS) H 4" L 8" W 4" Box		 0 $797.50
65 CUT-17-488 Cutler-Hammer Solenoid Frame
For a 4 Inch 511 Type "S" Solenoid Brake
Item 21, 1 per brake
C-H Publication 19320
8/15		 - 0 $602.64
66 CUT-17-515 Cutler-Hammer Base for a 7 Inch Diameter, Type "S" Series 511 Solenoid Brake, Item # 29, 1 per brake 7/10 - 0 $301.32
67 CUT-17-6371-4 CUT-17-6371-4 Cutler-Hammer Base / Frame Assembly for a 13 Inch 505 DC Brake, Item 23, includes items 21, 25, 26, 27 & 28, 1 per brake 9/15 - 0 $8,075.27
68 CUT-17-6934-2 Cutler-Hammer Base Assembly for 505 Series 13 Inch Brake - 0 $3,611.83
69 CUT-17-762 Cutler-Hammer Cover. Terminal Cover on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 29, 1 per brake - 0 $1.35
70 CUT-17-8050 Cutler-Hammer Base. Brake Base / Frame on a 16 Inch 505 DC Brake, item 24, 1 per brake. Includes items 22, 26, 27, 28 & 29 Publication 17226 - 0 $6,785.10
71 CUT-18-615-15 Cutler-Hammer Sleeve
Part 18-615-15
Neoprene, Bearing - Sleeve
For a 7 Inch Series 511 Type "S" Solenoid Brake
Item 12, 1 per brake
C-H Publication 15475
Ships from Stock to 3 - 4 Weeks
Dated 3-19
(1LB)		 0 $81.29
72 CUT-19-3220 Cutler-Hammer Brake Stop Plate GH505 16
Part 19-3220
0.093 Inch Thickness
Different Thicknesses Available
For a 16 Inch GH505 DC Brake
Item 21, 2 per brake, sold each
C-H Publication 17226
NSN 5310-00-118-6314 Gov.
Ships in 2 Weeks
Dated 01-2022		 - 0 $257.20
73 CUT-19-3220-3 Cutler-Hammer Brake Stop Plate GH505 16
Part 19-3220-3
0.102 Inch Thickness
Different Thicknesses Available
For a 16 Inch GH505 DC Brake
Item 21, 2 per brake, sold each
C-H Publication 17226
Ships in 2 Weeks
Dated 01-2020		 - 0 $250.44
74 CUT-19-3220-4 Cutler-Hammer Brake Stop Plate GH505 16
Part 19-3220-4
0.105 Inch Thickness
Different Thicknesses Available
For a 16 Inch GH505 DC Brake
Item 21, 2 per brake, sold each
C-H Publication 17226
Ships in 4 to 6 Weeks
Dated 11-19		 - 0 $220.62
75 CUT-19-972-8 Cutler-Hammer Stop Block GH505 16 19
Part 19-972-8
aka 199728
For a GH505 16 & 19 Inch GH505 DC Brake
Item 20, 2 per brake, sold each
Publication 17226 17227
Ships in 7 to 10 Days
Dated 1-2020		 - 0 $177.60
76 CUT-24-2674-2 Cutler-Hammer Lever
Part 24-2674-2
2426742
Old Part 24-2674
For a 7 Inch 511 Series Solenoid Brake
Item 17, 2 per brake, sold each
C-H Publication 15475
Ships in
Dated		 0 Call   Call
77 CUT-24-7534 Cutler-Hammer Lever 511 5.5"
Part 24-7534
For a 5 & 1/2 Inch Series 511 Type "S" Brake
Item # 14, 2 per brake
Dated 10-2021
(4LBS) H 4" L 8" W 4" Box		 0 $606.34
78 CUT-26-1431 Cutler-Hammer Hydraulic Actuating Cylinder
For a XX Inch GH506 DC Brake
With Hyd Control from Cab
Part CUT-26-1431
10/11		 - 0 $4,857.60
79 CUT-26-1432 Cutler-Hammer Hydraulic Actuating Cylinder
Part 26-1432
aka Old 26-2215
For a 10 Inch GH506 DC Brake
Hydraulic Control from Cab
1 per brake
Ships in 3 to 4 Weeks
Dated 8/18		 - 0 $7,273.96
80 CUT-26-1432-2 Cutler-Hammer Hydraulic Actuating Cylinder
For a 10 Inch GH506 DC Brake
With Hyd Control from Cab
Part CUT-26-1432-2
6/12		 - 0 $5,298.75
81 CUT-26-1432-3 Cutler-Hammer Brake Part GH505 / 506
Part CUT-26-1432-3
Hydraulic Actuating Cylinder
For a 13 Inch GH506 DC Brake
For Hyd Operation from the Crane Cab
Item 24, 1 per brake
Dated 5/17		 - 0 $6,105.00
82 CUT-26-1432-9 Cutler-Hammer Hydraulic Actuating Cylinder
For a 16 Inch GH506 DC Brake
With Hyd Control from Cab
Part CUT-26-1432-9
C-H Publication B70-781
4/11		 - 0 $5,313.60
83 CUT-26-791 Cutler-Hammer Hydraulic Cylinder / Actuating Cylinder
For a GH506 16 Inch DC Brake with Hydraulic Actuator for Crane Cab Service
aka 92314626 8/15		 - 0 $4,668.40
84 CUT-29-1440-2 Cutler-Hammer Spacer 511 7"
Part 29-1440-2
2914402
for a 7 Inch 511 Solenoid Brake
Item 13, 2 per brake, sold each
C-H Publication 15475
Ships in 16 Weeks
Dated 07-2023
(1LB) H 4" L 5" W 4" Box		 0 $61.86
85 CUT-29-1829 Cutler-Hammer Bushing for Series 511 Type S Brake (1LB) 8/11 - 0 $71.71
86 CUT-29-2762-2 Cutler-Hammer Bushing. Sounding Pin Bushing on a 13 & 16 Inch 505 DC Brake, 2 per brake - 0 $122.60
87 CUT-29-5535-2 Cutler-Hammer Bushing
Angle Bracket Bushing
For a 10 & 13 Inch 505 DC Brake
4 per brake, sold each
5/16		 - 0 $51.06
88 CUT-29-5535-3 Cutler-Hammer Bushing GH505 16"
Part 29-5535-3
2955353
Angle Bracket Bushing
For a 16 Inch GH505 DC Brake
0.625 Inch Dia
0.310 Wide
Not shown, 4 per brake, sold each
Publication 17226
Ships in 7 to 10 Days
Dated 1-2020		 6 $17.69
89 CUT-32-467-3 Cutler-Hammer Brake Part GH505 13
Retainer
For a 13 Inch GH505 DC Brake
Item 25, 4 per brake, sold each
C-H Publication 17225
Part CUT-55-1649
Ships in 7 to 10 Days
(XXLB) 1/17		 - 0 $15.27
90 CUT-32-467-6 Cutler-Hammer Gasket for a 23 Inch Brake, Item # 29, Pub 17228 - 0 $6.05
91 CUT-32-467-8 Cutler-Hammer Brake Part GH505
Felt Gasket
For a 13 Inch GH505 DC Brake
Item 21, 2 per brake, sold each
C-H Publication 17225
Part CUT-32-467-8
Ships in 7 to 10 Days
(1LB) 1/17		 - 0 $15.27
92 CUT-32-467-9 Cutler-Hammer Gasket GH505 16"
Part 32-467-9
aka 324679
Dacron Felt Gasket
For a 16 Inch GH505 DC Brake
Item 22, 2 per brake, sold each
C-H Publication 17224
Ships in 10 to 14 Days
Dated 1-2020		 - 4 $18.39
93 CUT-32-50-10 Cutler-Hammer Felt
Part 32-50-10
For a 13 Inch GH505 DC Brake
Item 22 see 32-467-8
Ships in
Dated		 - 0 $14.14
94 CUT-39-16564 Cutler-Hammer Case on a 7 Inch Solenoid Brake Series 511. Item #1, Bulletin 17377, 1 per brake 7/12 - 0 $96.98
95 CUT-39-460 Cutler-Hammer Terminal Case 511 4"
Part 39-460
For a 4 Inch Bulletin 511 Solenoid Brake.
Item 19, 1 per brake
Ships in
Dated 09-2023
(1LB)		 - 0 $155.68
96 CUT-39-507 Cutler-Hammer Case on a 4 Inch Series 511 Type "S" Solenoid Brake, item 25, 1 per brake PUB 19320 6/13 - 0 $118.52
97 CUT-47-762 Cutler-Hammer Cover
Part 47-762
aka 47762
Terminal / Solenoid Cover
For a 4 Inch 511 Brake
Ships in 3 Weeks
Dated 08-2023
(1LB) H 4" L 6" W 4" Box		 1 $55.75
98 CUT-47-828 Cutler-Hammer Terminal Cover 511 4"
Part 47-828
47828
For a 4 Inch 511 Type "S" Solenoid Brake
Item # 24
1 per brake
C-H Publication 19320
Ships in 6 Weeks
Dated 12-2020
(1LB) H 6" L 8" W 6" Box		 2 $56.76
99 CUT-48-555-14 Cutler-Hammer Brake Part GH505 16
Outer Armature
For a 16 Inch GH505 DC Brake
Item #, 1 per brake
C-H Publication
Ships in 3 to 4 Weeks 1/17		 - 0 $11,155.49
100 CUT-48-555-5 Cutler-Hammer Brake Part GH505 16
Outer Armature
For a 16 Inch GH505 DC Brake
Item 10, 1 per brake
C-H Publication 17226
8 Weeks to Ship
1/17		 - 0 $7,950.38
101 CUT-48-602-11 Cutler-Hammer Armature. Outer Armature on a 13 Inch 505 DC Brake, item 11, 1 per brake, Publication 17225 - 0 $7,992.91
102 CUT-48-602-5 Cutler-Hammer Armature. Inner Armature on a 13 Inch 505 DC Brake, item 9, 1 per brake, Publication 17225 - 0 $4,163.40
103 CUT-48-627-5 Cutler Hammer Armature. Inner Armature on a 10 Inch 505 DC Brake, item 9, 1 per brake, Publication 17224 4/1 - 0 $4,170.15
104 CUT-49-1978 Cutler-Hammer Spring Gland
Part 49-1978
491978
Spring Gland on the Tie Rod
For a 4 Inch Series 511 Solenoid Brake
C-H Publication 19320 Item 10
C-H Publication 13864 Item 15
C-H Publication 11326 Item 10
Ships in 1 Week
Dated 10-2020		 0 $229.00
105 CUT-49-2036 Cutler-Hammer Gland on a 16 Inch 505 DC Brake, item 14, 1 per brake Publication 17226 10/8 - 0 $170.10
106 CUT-49-5637 Cutler-Hammer Gland. Spring on a Bull 511 Type "S" 5 & 1/2 Inch Brake. Item # 15, 1 per brake (<1LB) 7/12 - 0 $195.75
107 CUT-51-114-2 Cutler-Hammer Link on a 7 Inch Series 511 Type "S" Solenoid Brake. Item 11. 1 per brake PUB 15475 8/14 0 $337.48
108 CUT-51-1151 Cutler-Hammer Link
Part 51-1151
Plunger & Lever Link
For a 7 Inch Series 511 Type "S" Brake
Item 10, 1 per brake
[Amazon] Dated 1/18
(1LB) H 4" L 6" W 6" Box		 1 Call   Call
109 CUT-51-2220 Cutler-Hammer Link 511 5.5"
Part 51-2220
Link, between Plunger & Lever Arm
For a 5 & 1/2 Inch Series 511 Type "S" Brake
Link between Plunger & Lever Arm
Item 8, 1 per brake
C-H Publication 17377
Dated 10-2021
(1LB) H 4" L 6" W 4" Box		 0 $288.07
110 CUT-51-82 Cutler-Hammer Plunger 511 4 Inch
Part 51-82
5182
Plunger - Armature
For a 4 Inch 511 Type "S" Brake
Item 9 & 22, 1 per brake
C-H Brake Publication 9069 & 12487
NSN 4910-00-355-6136 Gov #
Ships in 10 to 12 Weeks
Dated 02-2024
(2LBS) H 4" L 5" W 4" Box		 - 0 $435.78
111 CUT-51-93 Cutler-Hammer 511 Brake Part
Part 51-93
Plunger / Armature
For a Bulletin 511 Series "S" 5 & 1/2 Brake
[NSN 5305-00-780-9548]
[Amazon] 10/18
(3LBS) H 4" L 5" W 4"		 6 $442.94
112 CUT-51-93-12 Cutler-Hammer Plunger 511 5.5 & 7"
Part 51-93-12
519312
Brake Plunger
For a Series 511 Type "S" 5 & 1/2 & 7 Inch Brake
Item 9, 1 per brake
Includes items 7 & 8
Normally a Stock Item @ BPI
Ships from Stock to 4 Weeks
Dated 06-2023
(2LB) H 4" L 5" W 4" Box		 - 7 $950.28
113 CUT-51-93-15 Cutler-Hammer Plunger - Armature 511 7"
Part 51-93-15
519315
OBSOLETE SEE 51-93-12
For a 7 Inch 511 Solenoid Brake
Item 9, includes items 7 & 8 pin & bearing
Ships in
Dated 12-2016		 - 0 $610.68
114 CUT-51-93-4 Cutler-Hammer Plunger & Link 511 4 & 5.5
Part 51-93-4
51934
For a 4 & 5 & 1/2 Inch 511 Type "S" Solenoid brake
1 per brake
C-H Publications 19320 & 10824
Ships from Stock to 8 Weeks
Dated 02-2022		 - 0 $991.87
115 CUT-51-97-4 Cutler-Hammer Plunger 511H 4"
Part 51-97-4Kit
Solenoid Plunger - Armature
For a 4 Inch 511H Type S Solenoid Brake
10 or 15 FT LB
Item 1, 1 per brake
For Brake Publication 11326 & 19320
Product Code HD20
Ship from Stock to 8 Weeks
Dated 03-2022
(2LBS) H 4" L 5" W 4" Box		 1 $949.76
116 CUT-54-11507 Cutler-Hammer Screw Assembly GH505 8"
Part 54-11507
aka 5411507
Old Part 54-4020
Wedge Adjustment Screw Assembly
For an 8 Inch GH505 DC Brake
Item 7, 1 per brake
Includes item 6, Locknut 915-1004Z
C-H Publication
Ships in 2 to 3 weeks
Dated 08-2020		 - 0 $121.40
117 CUT-54-11507-2 Cutler-Hammer Screw Assembly GH505 10"
Part 54-11507-2
aka 54115072
Old Part 544020-2 & 54-2813
Wedge Adjustment Screw Assembly
For a 10 Inch GH505 DC Brake
Item 7, 1 per brake
Includes Locknut 915-1682Z
C-H Publication 17225 & 17226
Ships in 2 to 3 Weeks
Dated 5-2020		 - 0 $123.49
118 CUT-54-11507-3 Cutler-Hammer Screw Assembly GH505 19"
Part 54-11507-3
Wedge Adjustment Screw Assembly
For a 19 Inch GH505 DC Brake
Item 6, 1 per brake
Includes Locknut 915-1682Z
C-H Publication 17225 & 17226
Ships in 1 to 2 weeks
Dated		 - 0 $216.92
119 CUT-54-11507-5 Cutler-Hammer Screw Assembly GH505 13 & 16"
Part 54-11507-5
aka 54115075
Wedge Adjustment Screw Assembly
For a 13 & 16 Inch GH505 DC Brake
1 per brake
Includes Locknut 915-1443Z
C-H Publication 17225 & 17226
Origin USA
Ships in 2 to 3 Weeks, NC Arden
Dated 11-2023		 - 0 $217.56
120 CUT-54-2652-2 Cutler-Hammer Brake Part GH505
Part CUT-54-2652-2
Adjusting Wedge
For a 13 Inch GH505 DC Brake
Item 8, 1 per brake
C-H Publication 17225
Ships in 7 to 10 Days
(XXLB) 1/17		 - 0 $480.07
121 CUT-54-273 Cutler-Hammer Guides 511 4"
Part 54-273
Plunger Guides
For a 4 Inch Series 511 Solenoid Brake
Item 22, 2 per Brake, sold each
Older Brake, Shorter Solenoid Design
C-H Publication 12487
Normally a Stock Item @ BPI
Ships froom Stock to 4 Weeks
Dated 08-2024
(1LB) H 4" L 6" W 4" Box		 18 $77.19
122 CUT-54-274 Cutler-Hammer Plunger Guide OBSOLETE SEE 54-273 for a 4 Inch Series 511 Brake, Item 22, Older Brake, PUB 12487 (1LB) - 0 $43.19
123 CUT-54-2764 Cutler-Hammer Adjusting Wedge
Part 54-2764
542764
For a 19 & 23 Inch GH505 DC Brake
Item 7, 1 per brake
C-H Publication 17227
Ships in
Dated		 - 3 $749.25
124 CUT-54-2813 Cutler-Hammer Wedge
Part 54-2813
Adjusting Wedge
For a 10 Inch GH505 DC Brake
Item 8, 1 per brake
C-H Publication 17224
Ships in 2 to 3 Weeks
Dated 10-2023		 - 11 $668.09
125 CUT-54-2863 Cutler-Hammer Adjusting Wedge GH505 8"
Part 54-2863
542863
For a 8 Inch GH505 DC Magnetic Brake
Item 8, 1 per brake
Ships from Stock to 3 Weeks
Dated 06-2023		 - 0 $333.00
126 CUT-54-300 Cutler-Hammer Solenoid Guide 511 4"
Part 54-300
For a 4 Inch 511 Type "S" Brake
10, 15 not the 20 FT LB Brake
Item 27, 2 per brake, sold each
C-H Brake Publication 19320
Normally a Stock Item @ BPI
Ships from Stock to 4 Weeks
Dated 02-2022
(1LB) H 4" L 5" W 4" Box		 4 $82.08
127 CUT-54-300-2 Cutler-Hammer Guide 511 5.5 & 7"
Part 54-300-3
543003
Old Part # 54-300-2
Plunger / Solenoid Guide
For a Series 511 Type "S" 5 & 1/2 & 7 Inch Solenoid Brakes
Sold each, 2 per brake
Size D Solenoid
Normally a stock item at BPI
Ships from Stock to 7 Days
Dated 05-2022
(1LB) H 4" L 5" W 4" Box		 - 0 $94.14
128 CUT-54-300-3 Cutler-Hammer Guide 511 5.5 & 7"
Part 54-300-3
543003
Old Part # 54-300-2
Plunger - Solenoid Guide
For a Series 511 Type "S" 5 & 1/2 & 7 Inch Solenoid Brakes
Sold each, 2 per brake
Size D Solenoid
Normally a Stock Item at BPI
Ships from Stock to 14 Days
Dated 05-2024
(1LB) H 4" L 5" W 4" Box		 8 $100.74
129 CUT-54-300-4 Cutler-Hammer Solenoid Guides 511 5.5 & 7”
Part 54-300-4
543004
Plunger - Solenoid Guide
For a 5 ½ & 7 Inch 511H Type "S" Brakes
Sold each, 2 per brake
Item 31
Size D Solenoid
Dated 01-2022
(1LB) H 4" L 5" W 4" Box		 - 11 $38.15
130 CUT-54-4524 Cutler-Hammer Brake Part GH505 16
Adjusting wedge
For a 16 Inch GH505 DC Brake
Item 7, 1 per brake
C-H Publication 17226
Ships in 2 to 3 Weeks, NC		 - 0 $769.26
131 CUT-55-1079 Cutler-Hammer Brake Shoe Clamp GH505 16 & 19"
Part 55-1079
551079
Brake Shoe Clamp
For a GH505 16 or 19 Inch DC Brake
C-H Item 32, 4 per brake, sold each
Publications 17226 & 17227
Ships in 4 to 6 Weeks
Dated 01-2020		 - 0 $117.94
132 CUT-55-1548 Cutler-Hammer Plate on a No 505 23Inch DC Brake, Item 28 9/8 - 0 $107.78
133 CUT-55-1551 Cutler-Hammer Retainer
For a GH505 16 & 19 Inch DC Brake
Item 28, 4 per brake, sold each
Publication 17226 & 17227
2/16		 - 0 $448.31
134 CUT-55-1649 Cutler-Hammer Retainer, GH505 13"
Part 55-1649
For a 13 Inch GH505 DC Brake
Item 25, 4 per brake, sold each
C-H Publication 17225
Ships in 20 Weeks
Dated 07-2023
(4LBS)		 - 0 $342.76
135 CUT-55-1650 Cutler Hammer GH505 Part 8 & 10
Part CUT-55-1650
Retainer
For an 8 or 10 Inch GH505 DC Brake
Item 25, 4 per brake, sold each
Publication 17223 & 17224
Dated 1/18		 - 0 $203.27
136 CUT-56-2561-4 Cutler-Hammer Spacer 511 5.5"
Part 56-2561-4
For a 5.5 Inch 511 Type "S" Brake
Item 10, 2 per brake, sold each
Ships from Stock to 2 Weeks
Dated 01-2022
(1LB)		 36 $6.60
137 CUT-61-1006 Cutler-Hammer Pull Rod GH505 10"
Part 61-1006
For a 10 Inch GH505 DC Brake
Item 5, 1 per brake
Includes items 3 & 4
C-H Publication 17224
Ships in
Dated		 - 0 $762.45
138 CUT-61-1008-3 Cutler-Hammer Pull Rod
For a GH505 23 Inch DC Brake
Part CUT-61-1008-3
Item 4, 1 per brake
7/16		 - 0 $2,667.65
139 CUT-61-1013 Cutler-Hammer Pull Rod on a No 505 8 Inch DC Magnetic Brake, Item 5 - 0 $819.16
140 CUT-61-1675 Cutler-Hammer Pull Rod on a No 505 10 Inch DC Brake 1/11 - 7 $930.96
141 CUT-61-1677 Cutler-Hammer Pull-Rod on a 505 16 Inch DC Brake - 2 $1,656.72
142 CUT-61-837 Cutler-Hammer Link on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 1 Pin to Lever, 1 per brake
[NSN 5360-01-123-2479]		 - 0 $1.35
143 CUT-61-912 Cutler-Hammer Brake Part GH505 16
Part 61-912
Pull Rod
For a 16 Inch GH505 DC Brake
Item 5, 1 per brake
C-H Publication 17226
Ships in 2 to 3 Weeks
Dated 5-2020		 - 5 $1,857.37
144 CUT-61-985 Cutler-Hammer Brake Part GH505 13
Pull Rod
For a 13 Inch GH505 DC Brake
Item 5, 1 per brake, sold each
For Brake Publication 17225
Ships in 7 to 10 Days
(13LBS) 1/17		 - 1 $961.56
145 CUT-61-994-4 Cutler-Hammer Pull Rod GH505 19"
Part 61-994-4
619944
Pull Rod Assembly
For a GH505 19 Inch DC Brake
Item 4, 1 per brake
Includes item 2, Spring 69-226
& item 3 Spring Pin 13-3186-13
C-H Publication 17227
Ships in 2 to 4 Weeks
Dated 08-2020		 - 0 $2,857.56
146 CUT-69-1554 Cutler-Hammer Spring. Main Spring
Main Compression Spring
For a GH505 16 Inch DC Brake
Item 16, 1 per brake
(6LBS) H 4.00" L 6.00" W 6.00"
[Amazon]		 0 $602.24
147 CUT-69-1652 Cutler-Hammer Spring
Compression Spring
For a 13 Inch 505 DC Brake
Item 16, 1 per brake
Publication 17225 6/16		 - 0 $350.22
148 CUT-69-1664 Cutler-Hammer Spring GH505 19"
Part 69-1664
Compression - Torque Spring
For a 19 Inch GH505 DC Brake
Item 15, 1 per brake
C-H PUB 17227
Ships in 2 Weeks
Dated 09-2016		 - 0 $942.89
149 CUT-69-1680 Cutler-Hammer Spring, Torque / Compression Spring on a 10 Inch 505 DC Brake, Item 16, 1 per brake, Publication 17225 - 0 $289.67
150 CUT-69-1692 Cutler-Hammer Spring
Compression Spring
For a GH505 23 Inch DC Brake
Part CUT-69-1692
Item 15, 1 per brake
9/16		 - 2 $972.54
151 CUT-69-1987 Cutler-Hammer Spring
Compression Spring located on the pull rod
For a 23 Inch Series GH505 Brake
Part CUT-69-1987
Item 2, 1 per brake
7/16		 - 0 $315.20
152 CUT-69-202 Cutler-Hammer Spring 511
Part 69-202
69202
Main Brake Application Spring
For a Series 511 Type "S" Brake
1 per brake
A recommended spare part
NSN 5360-00-314-6573 US GOV #
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 12-2023		 10 $76.95
153 CUT-69-2029 Cutler-Hammer Spring
Part 69-2029
692029
Pull Rod Spring
For a 13 Inch GH505 DC Brake
Item 3, 1 per brake]'
C-H Publication 17225
Ships in
Dated		 - 0 $96.98
154 CUT-69-2091 Cutler-Hammer Spring
Part 69-2091
Pull Rod Spring
For a GH505 30 Inch DC Brake
Item 4, 1 per brake
Drawing 70-7063
Dated 8/18		 - 0 $276.11
155 CUT-69-2225 Cutler-Hammer Spring
Part 69-2225
For a 16 Inch GH505 DC Brake
Item 2, 1 per brake
C-H Publication 17226
Ships in
Dated 10-19		 - 0 $281.66
156 CUT-69-273 Cutler-Hammer Spring 511 7"
Part 69-273
69273
Leaf Spring
For a 7 Inch Diameter Series 511 Type "S" Brake
Item 5, 2 per brake sold each
C-H Publication 15475
NSN 5340-00-417-0123 Gov #
Dated 01-2023
(1LB) H 4" L 5" W 4" Box		 0 $38.49
157 CUT-69-287 Cutler-Hammer Spring
Part 69-287
Torque Spring
For a 5 & 1/2 Inch 511 Brake
Item 21, 1 per brake
C-H Publication 17377
[NSN 5360-00-418-9658]
Ships in 7 to 10 Days
Dated 08-2021
(1LB) H 4" L 5" W 4" Box		 0 $51.84
158 CUT-69-2910 Cutler-Hammer Solenoid Spring
Part 69-2910
75 FT LB
For a 7 Inch Series 511 Type "S" Solenoid Brake
Item 10, 1 per brake
C-H Publication 15475
Ships in
Dated		 0 $39.68
159 CUT-69-296 Cutler-Hammer Spring 511 7"
Part 69-296
69296
Solenoid Spring
For a 7 Inch 511 Solenoid Brake
50 & 75 FT LB
Item 10, 1 per brake
C-H Publication 15475
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 05-2021
(1LB) H 4" L 6" W 4" Box		 0 $105.82
160 CUT-69-4575 Cutler-Hammer Spring 511 5.5"
Part 69-4575
694575
Solenoid Spring
For a 5.5 Inch 511 Type "S" Brake
Item 13, 1 per brake
C-H Publication 17377
NSN 5360-00-422-4970 US GOV #
Dated 11-2021
(1LB) H 4" L 5" W 4" Box		 0 $51.84
161 CUT-69-4908 Cutler-Hammer Spring 511 4"
Part 69-4908
Vertical Spring
For a Series 511 Type "S" 4 Inch Brake
Item 8, 1 per brake
Replaces 69-578 & 69-702
C-H Publication 19320
Ships in 7 Days
Dated 01-2022
(1LB) H 4" L 6" W 4" Box		 0 $125.54
162 CUT-69-761 Cutler-Hammer Main Spring
Part 69-761
For a 7 Inch 511 Solenoid Brake
75 FT LB
Dated 10/18		 2 $172.76
163 CUT-73-1017-2 Cutler-Hammer Rubber Guard on a 505 10 inch DC Magnetic Brake, Item 12 - 0 $92.97
164 CUT-73-1017-3 Cutler-Hammer Brake Part GH505
Rubber Guard
For a 13 Inch GH505 DC Brake
Item 12, 1 per brake
C-H Publication 17225
Part CUT-73-1017-3
Ships in 7 to 10 Days
(XXLB) 1/17		 - 0 $112.41
165 CUT-79-15572 Cutler-Hammer Angle Bracket
For a GH505 8 Inch DC Brake
Item 20, 4 per brake, sold each
6/16
(1LB) H 4.00" L 4.00" W 4.00" Box
[Amazon]		 0 $64.65
166 CUT-79-15572-2 Cutler-Hammer Angle Bracket
Part 79-15572-2
For a 13 Inch GH505 DC Brake
Item 20, 2 per brake, sold each
Publication 17225
Dated 1/18		 - 0 $71.45
167 CUT-79-15572-5 Cutler-Hammer Angle Bracket GH505 23"
Part 79-15572-5
aka 79155725
Angle Bracket
Item 18, 1 per brake
C-H Publication 17228
Dated 4/18		 - 0 $198.43
168 CUT-79-15572-6 Cutler-Hammer Angle Bracket
Part 79-15572-6
aka 79155726
Angle Bracket
For a 10 Inch GH505 DC Brake
Item 20, 2 per brake, sold each
C-H Publication 17224
Ships in 10 to 14 Days
Dated 12-19		 - 2 $249.70
169 CUT-79-415 Cutler-Hammer Bracket 511 5.5"
Part 79-415
79415
Bracket
For a 5 & 1/2 Inch 511 Solenoid Brake
Item 6, 1 per brake
Ships in
Dated 03-2024
(1LB) H 4" L 5" W 4" Box		 - 1 $203.42
170 CUT-79-4180-27 Cutler-Hammer Bracket
Lock Bracket
For a 16 Inch GH505 DC Brake
Item 27, 4 per brake, sold each
C-H Publication 17226		 - 0 $77.18
171 CUT-79-4180-28 Cutler-Hammer Locking Bracket
Part 79-4180-28
79418028
For a 23 Inch GH505 DC brake
Item 27
Ships in 10 Weeks
Dated 12-2023		 - 0 $120.06
172 CUT-79-672 Cutler-Hammer Bracket 511 4"
Part 79-672
For 4 Inch Solenoid Brake
Item 6, 1 per brake
C-H Publication 19320
Ships in 8 Weeks
Dated 01-2022		 - 0 $254.44
173 CUT-79-6783-5 Cutler-Hammer Lock Bracket GH505 10 & 13”
Part 79-6783-5
Lock Bracket
For a 10 or 13 Inch GH505 DC Brake
Item 26, 4 per brake, sold each
C-H Publication 17224 & 17225
Ships in 4 Weeks
Dated 07-2023
(4LBS)		 - 0 $37.45
174 CUT-915-1403Z Cutler-Hammer Nut. Lock Nut for the Adjustment Wedge on a 10 Inch 505 DC Brake, item 6, 1 per brake, Publication 17224 3/9 2 $15.37
175 CUT-915-1443Z Cutler-Hammer Lock Nut GH505
Part 915-1443Z
For a 8, 10, 13 & 16 Inch GH505 DC Brake
1 per brake
C-H Publication 17225
Ships in 2 Weeks
Dated 05-2021
(1LB) H 4" L 6" W 4" Box		 - 0 $5.00
176 CUT-915-1562Z Cutler-Hammer Brake Part GH505 13
Nut
For a 13 Inch GH505 DC Brake
Item XX, 1 per brake
C-H Publication 17225
Part CUT-915-1562Z
Ships in 7 to 10 Days
(1LB) 1/17		 - 23 $7.21
177 CUT-916-1081Z Cutler-Hammer Washer on a 7 Inch 511 Series Solenoid Brake. Item 16, 2 per brake. Pub 15475 8/1
(1LB)		 0 $2.52
178 CUT-916-1281Z Cutler-Hammer Washer 511
Part 916-1281Z
No longer available
Source locally
1/2” Flat Washer, 1.29” outside, 0.95” thick?, 0.64” inter
For a 7 Inch 511 Series Solenoid Brake.
Item 20, 1 per brake.
C-H Publication 15475
Ships in
Dated 07-2023		 - 0 $2.52
179 CUT-916-882Z Cutler-Hammer Nut
Lock Nut
For a 4 Inch 511 Type "S" Brake
Item 11, 1 per brake
10/16		 0 $10.04
180 CUT-92314626 Cutler-Hammer Hydraulic Cylinder, aka 26-791 for a 16 Inch Bulletin 506 Brake 12/10 - 0 $3,468.96
181 CUT-99-2058 Cutler Hammer Retro-Fit Kit on a 505 13 DC Magnetic Brake, Item 20 - 0 $392.06
182 CUT-99-2058-2 Cutler-Hammer Brake Part GH505 10
Part CUT-99-2058-2
Retro Fit Kit
for a 10 Inch GH505 DC Brake
Includes 2 Angle Brackets Part CUT-79-15572-6
And the Mounting Hardware		 - 0 $414.97
183 CUT-99-20583 Cutler-Hammer Retro-Fit Kit on No 505 13 Inch DC Magnetek Brake, Item 20 9/13 - 0 $395.46
184 CUT-99-2058-3 Cutler-Hammer Retro-Fit Kit on No 505 13 Inch DC Magnetek Brake, Item 20 6/14 - 0 $414.97
185 CUT-99-2059-2 Cutler-Hammer Retro-Fit Kit
Part 99-2059-2
For a GH505 19 Inch DC Brake
1 per brake
C-H Publication 17227
Ships in 7 to 10 days
Dated 6/18		 - 0 $468.98
186 CUT-99-2059-3 Cutler-Hammer Bracket on a 23 Inch Series 505 DC Brake, 1 per brake, item 19 12/14 - 0 $587.42
187 CUT-GH515ED20-4 Cutler-Hammer Rectifier
Part CUT-GH515ED20-4
For 13 Inch DC Brake
Input 230 3ph 60 Hz
Ships in 40 days
Dated 2/18		 - 0 $8,571.86
188 CUT-11-2051-2 Cutler-Hammer Screw
9/8		 - 0 $6.74
189 CUT-11-3046-3 Cutler-Hammer Self-Lock Screw GH505 19"
Part 11-3046-3
aka 1130463
For the Brake Shoe Clamp
On a GH505 19 Inch DC Brake
Item 33, 4 per Brake, sold each
C-H Publication 17226 & 17227
Ships in 10 to 14 Days
Dated 1-2020		 - 4 $43.70
190 CUT-11-3046-4 Cutler-Hammer SELF LOCKING SCREW, P/N: 11-3046-4
Lead Time: 2 to 3 working days
Product Code: CT7430
UPC: 782113 65352		 - 0 $53.89
191 CUT-11-4625-5 Cutler-Hammer Adjusting Screw GH505 19"
Part 11-4625-5
1146255
Old Part 11-1746-5
Adjusting Screw Assembly
For a 19 Inch GH505 DC Brake
Item 13, 1 per brake
Includes items 12 & 14
C-H Publication 17227
Ships in
Dated 08-2020		 - 0 $1,843.99
192 CUT-13-1181-11 Cutler-Hammer Pin GH505 19"
Part 13-1181-11
13118111
For a GH505 I9 Inch DC Brake
Item 9, 1 per brake
Ships in 2 to 3 Weeks
Dated 08-2020		 - 0 $545.98
193 CUT-13-1181-16 Cutler-Hammer Pin
Part 13-1181-16
For a 23 Inch GH505 DC Brake
Product Code: CT7430
[UPC 782113 59300]
Ships in 7 to 10 Days
Dated 7/16		 - 0 $540.15
194 CUT-13-3186-13 Cutler-Hammer - 0 $5.12
195 CUT-13-3485-3 Cutler-Hammer Sounding Pin
Part 13-3485-3
For a 19 Inch GH505 DC Brake
Item 8, 1 per Brake
C-H Pub 17227
Ships in 2 to 3 Weeks
Dated 05-2020		 - 0 $94.35
196 CUT-15-673 Cutler-Hammer Hex Locknut
Part 15-673
Product Code CT7430
[UPC 782113 65419]
Ships in 7 to 10 days
Dated 7/18		 - 0 $187.33
197 CUT-15-682 Cutler-Hammer - 0 $49.85
198 CUT-16-1598-4 Cutler-Hammer GH505 Brake Part 19"
Part CUT-16-1598-4
Spherical Washer, , Pull Rod End
For a 19 Inch GH505 DC Brake
Item 35, 1 per brake
C-H Publication 17227
Dated 11/15
(1LB) H 4" L 5" W 4" Box		 - 0 $172.45
199 CUT-19-3220-11 Cutler-Hammer Brake Stop Plate
Part 19-3220-11
Product Code CT7430
[UPC 78211367557]
Ships in
Dated		 - 0 $293.72
200 CUT-19-3220-7 Cutler-Hammer Brake Stop Plate
Part 19-3220-7
Ships in
Dated		 - 0 $404.19
201 CUT-19-3220-8 Cutler-Hammer - 0 $404.19
202 CUT-19-3220-9 Cutler-Hammer Brake stop Plate
Part 19-3220-9
Product Code CT7430
[UPC 78211367551]
Ships in
Dated		 - 0 $254.64
203 CUT-19-972-4 Cutler-Hammer 19" BRAKE STOP BLOCK, P/N: 19-972-4
Lead Time: Negotiated promise date
Product Code: CT7430
UPC: 782113 31354		 - 0 $311.22
204 CUT-19-972-6 Cutler-Hammer 23" BRAKE STOP BLOCK, P/N: 19-972-6
Lead Time: 2 to 3 working days
Product Code: CT7430
UPC: 782113 62103		 - 0 $235.77
205 CUT-29-2762-3 Cutler-Hammer - 0 $146.86
206 CUT-29-5535-4 Cutler-Hammer .750 DIA X .340 SPACER, P/N: 29-5535-4
Lead Time: 2 to 3 working days
Product Code: CT7430
UPC: 782113 60868		 - 0 $14.82
207 CUT-32-467-10 Cutler-Hammer Gasket
Brake Gasket 19 Inch		 - 0 $14.82
208 CUT-32-467-5 Cutler-Hammer Dacron Felt
for a GH505 16 & 19 Inch Brake
(1LB) H 4" L 5" W 4" Box
[Amazon]		 0 $14.83
209 CUT-51-1330-6 Cutler-Hammer Master Cylinder
Part 51-1330-6
aka 5113306
Product Code: CT7430
Ships in 8 to 10 Weeks
Dated 12-2021		 - 0 $17,433.18
210 CUT-54-11507-4 Cutler-Hammer Screw Assembly GH505 23"
Part 54-11507-4
aka 54115074
Wedge Adjusting Screw Assembly
For a 23 Inch GH505 DC Brake
Item 6, 1 per brake
Includes Item 5, Locknut Part 915-1682Z
Product Code: CT7430
Ships in 1 to 2 Weeks
Dated		 - 0 $220.96
211 CUT-55-1037 Cutler-Hammer Brake Shoe Clamp GH505
Part 55-1037
aka 551037
Brake Shoe Clamp
For a 8, 10 or 13 Inch GH505 DC Brake
4 per brake, sold each
Ships in 3 Weeks
Dated 09-2022
(1LB)		 - 0 $179.83
212 CUT-55-1039 Cutler-Hammer Brake Shoe Clamp GH505 23"
Part 55-1039
For a 23 Inch GH505 DC Brake
Item 32, 4 per brake, sold each
Ships in 40 Weeks
Dated 12-2023		 - 0 $174.45
213 CUT-55-2195 Cutler-Hammer CLAMP, P/N: 55-2195
Lead Time: Negotiated promise date
Product Code: CT7430
UPC: 782113 66853		 - 0 $146.86
214 CUT-61-1006-3 Cutler-Hammer Pull Rod GH505 10"
Part 61-1006-3
For a 10 Inch GH505 DC Brake
Item 5, 1 per brake
Includes items 3 & 4
C-H Publication 17224
Ships in
Dated
100534		 - 0 $611.68
215 CUT-61-1008 Cutler-Hammer 23" BRAKE PULL ROD, P/N: 61-1008
Lead Time: 2 to 3 working days
Product Code: CT7430
UPC: 782113 67447		 - 0 $2,667.65
216 CUT-61-1013-3 Cutler-Hammer 8" BRAKE PULL ROD, P/N: 61-1013-3
Lead Time: 2 to 3 working days
Product Code: CT7430
UPC: 782113 67449		 - 0 $611.68
217 CUT-69-2226 Cutler-Hammer Spring
Tie Rod Spring
For a GH505 19 Inch DC Brake
Part CUT-69-2226
Item 2, 1 per brake
Ships in 7 to 10 days
7/16		 - 0 $315.20
218 CUT-911-6016Z Cutler-Hammer Screw. Hex Head Cap Screw 6/15 - 4 $16.17
219 CUT-915-2142Z Cutler-Hammer - 0 $39.07
220 CUT-99-2059 Cutler-Hammer Retro-Fit Kit
For a GH505 16 Inch DC Brake
1 per brake
Publication
1/16
(4LBS) H 4" L 8" W 5" Box
[Amazon]		 1 $414.97
221 CUT-99-673-9 Cutler-Hammer Seal Kit
For a GH506 16 Inch DC Brake
1/11		 - 11 $660.18
222 CUT-11-1920 Cutler-Hammer ECCENTRIC SCREW, P/N: 11-1920
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 65193		 - 0 $122.60
223 CUT-13-3239-2 Cutler-Hammer Pin
Part 13-3239-2
Product Code CT7433
[UPC 782113 59410]
Ships in 7 to 10 days
Dated 2/18		 - 0 $68.69
224 CUT-13-3307-6 Cutler-Hammer PIN, P/N: 13-3307-6
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 59411		 - 0 $8.09
225 CUT-13-3859-2 Cutler-Hammer PIN, P/N: 13-3859-2
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 59435		 - 0 $146.86
226 CUT-13-3859-3 Cutler-Hammer PIN, P/N: 13-3859-3
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 59436		 - 0 $161.68
227 CUT-13-3859-4 Cutler-Hammer PIN, P/N: 13-3859-4
Lead Time: 2 to 3 working days
Product Code: CT7433
UPC: 782113 59437		 - 0 $154.94
228 CUT-13-3860 Cutler-Hammer PIN, P/N: 13-3860
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 30419
[NSN 4320-00-083-2846]		 - 0 $18.87
229 CUT-13-3862 Cutler-Hammer PIN, P/N: 13-3862
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 59439		 - 0 $20.21
230 CUT-13-4281-2 Cutler-Hammer Shaft
Part CUT-13-4281-2
Replaces old # 13-4330-2
For Contactors 915, 925 & 935
Dated 2/18		 - 0 $86.02
231 CUT-13-587 Cutler-Hammer Adjusting Pin
Part 13-587
Ships in
Dated		 - 0 $29.65
232 CUT-13-591 Cutler-Hammer ADJUSTING PIN, P/N: 13-591
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 59267		 - 0 $43.11
233 CUT-13-593 Cutler-Hammer ADJUSTING PIN, P/N: 13-593
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 59268		 - 0 $45.81
234 CUT-16-840-11 Cutler-Hammer WASHER, P/N: 16-840-11
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 65509		 - 0 $10.78
235 CUT-16-934-11 Cutler-Hammer Cup Washer
Part 16-934-11
Product Code: CT7433
[UPC 782113 30624]
Ship in 3 weeks
Dated 1/18		 - 0 $3.56
236 CUT-17-6904 Cutler-Hammer MAGNET FRAME ASSEMBLY, P/N: 17-6904
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 61531		 - 0 $433.84
237 CUT-17-7193 Cutler-Hammer MAGNET FRAME ASSEMBLY, P/N: 17-7193
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 61543		 - 0 $785.47
238 CUT-24-1175-3 Cutler-Hammer LEVER, P/N: 24-1175-3
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 61339		 - 0 $262.72
239 CUT-24-4024 Cutler-Hammer INTERLOCK LEVER, P/N: 24-4024
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 11837		 - 0 $175.15
240 CUT-24-4024-2 Cutler-Hammer LEVER ASSEMBLY, P/N: 24-4024-2
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 11892		 - 0 $175.15
241 CUT-24-4119 Cutler-Hammer Contact Lever, Item 19 Complete with Items 17, 18, & 36 with Copper Contacts for 914 & 934 Contactors, Publication 13724 & 13726 4/12 - 0 $607.63
242 CUT-24-4119-2 Cutler-Hammer CONTACT LEVER ASSEMBLY, P/N: 24-4119-2
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 52343		 - 0 $489.07
243 CUT-24-4175 Cutler-Hammer Contact Lever
With Connector
3 to 4 Weeks
12/15		 - 0 $957.93
244 CUT-24-4175-5 Cutler-Hammer CONTACT LEVER ASSEMBLY, P/N: 24-4175-5
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58515		 - 0 $1,564.22
245 CUT-24-4177 Cutler-Hammer Armature Lever for a 915 DC Contactor, Item 37, Publication 13729 4/12 - 0 $1,844.46
246 CUT-24-4179 Cutler-Hammer ARMATURE LEVER ASSEMBLY, P/N: 24-4179
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 47044		 - 0 $1,844.46
247 CUT-24-4182 Cutler-Hammer ARMATURE LEVER ASSEMBLY, P/N: 24-4182
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 47045		 - 0 $1,867.36
248 CUT-24-4204 Cutler-Hammer CONTACT LEVER, P/N: 24-4204
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 47046		 - 0 $750.45
249 CUT-24-4205 Cutler-Hammer Contact Lever for 936 & 575 Contactors, with Connector, old # 24-4205-2, Pub 10531 1/14 - 0 $1,162.72
250 CUT-24-4208-2 Cutler-Hammer ARMATURE LEVER ASSEMBLY, P/N: 24-4208-2
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 47049		 - 0 $2,395.51
251 CUT-24-4584 Cutler-Hammer CONTACT LEVER ASSEMBLY, P/N: 24-4584
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 65987		 - 0 $1,938.76
252 CUT-24-4809-3 Cutler-Hammer CONTACT LEVER, P/N: 24-4809-3
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 32274		 - 0 $4,654.92
253 CUT-24-4812 Cutler-Hammer CONTACT LEVER ASSEMBLY, P/N: 24-4812
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 11875
[NSN 5999-00-413-9898]		 - 0 $122.60
254 CUT-24-489-5 Cutler-Hammer CONTACT LEVER ASSEMBLY, P/N: 24-489-5
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 61330
[NSN 5999-00-956-7700]		 - 0 $1,145.21
255 CUT-24-7793 Cutler-Hammer Armature, Cont & Oper Levers, P/N: 24-7793
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 65884		 - 0 $808.38
256 CUT-24-7794-2 Cutler-Hammer LTL ARMATURE LEVER ASSY, P/N: 24-7794-2
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 57816		 - 0 $1,271.85
257 CUT-29-1264 Cutler-Hammer Retaining Ring 4/15 - 0 $0.81
258 CUT-29-1577 Cutler-Hammer CAM ROLLER ASSEMBLY, P/N: 29-1577
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 60808		 - 0 $269.46
259 CUT-29-2750-3 Cutler-Hammer SPACER, P/N: 29-2750-3
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 60852		 - 0 $389.37
260 CUT-29-531 Cutler-Hammer Ring on Contactors 913, 923, 933, 914 DC Contactors 4/15 - 0 $2.16
261 CUT-29-541 Cutler-Hammer FLAT RETAINING RING, P/N: 29-541
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 60721		 - 0 $13.34
262 CUT-49-1204-13 Cutler-Hammer SPRING GLAND, P/N: 49-1204-13
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 61917		 - 0 $25.60
263 CUT-49-1204-27 Cutler-Hammer SPRING GLAND, P/N: 49-1204-27
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 61918		 - 0 $97.01
264 CUT-49-3247-7 Cutler-Hammer SPRING GLAND, P/N: 49-3247-7
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 62412		 - 0 $63.32
265 CUT-51-784 Cutler-Hammer DASHPOT, P/N: 51-784
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 63044		 - 0 $317.96
266 CUT-51-784-2 Cutler-Hammer DASHPOT, P/N: 51-784-2
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 63045		 - 0 $317.96
267 CUT-61-1275 Cutler-Hammer Contactor Part 5/12 - 0 $202.10
268 CUT-61-1275-2 Cutler-Hammer Part
Part CUT-61-1275-2
DC Mannetic Control &
X Line DC Control
Product Code: CT7433
[UPC 782113 31434]
Ships in 10 days or sooner
Dated 8/17		 - 0 $104.07
269 CUT-61-1275-3 Cutler-Hammer INTERLOCK ROLLER ASSEMBLY, P/N: 61-1275-3
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 67453		 - 0 $53.89
270 CUT-6-169-4 Cutler-Hammer SET OF CONTACTS, P/N: 6-169-4
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 28689		 - 0 $611.68
271 CUT-6-185 Cutler-Hammer SET OF CONTACTS, P/N: 6-185
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 32357
[NSN 5315-01-305-5988]		 - 0 $134.73
272 CUT-6-189 Cutler-Hammer Contact Kit 8/14 - 0 $144.16
273 CUT-6-189-11 Cutler-Hammer SET OF CONTACTS, P/N: 6-189-11
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 786685 87936		 - 0 $1,407.93
274 CUT-6-189-2 Cutler-Hammer SET OF CONTACTS, P/N: 6-189-2
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 28692		 - 0 $154.94
275 CUT-6-189-21 Cutler-Hammer SET OF CONTACTS, P/N: 6-189-21
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 73860		 - 0 $1,704.34
276 CUT-6-189-3 Cutler-Hammer Contacts
Part 6-189-3
61893
Set of Contacts
Origin MX
Ships in 6 Weeks
Dated 07-2022		 - 0 $346.13
277 CUT-6-189-4 Cutler-Hammer SET OF CONTACTS, P/N: 6-189-4
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 28694
[NSN 6110-00-903-6481]		 - 0 $451.34
278 CUT-6-189-8 Cutler-Hammer SET OF CONTACTS, P/N: 6-189-8
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 57792		 - 0 $943.11
279 CUT-6-192-2 Cutler-Hammer Set Of Contacts, P/N: 6-192-2
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58653		 - 0 $1,616.76
280 CUT-6-202 Cutler-Hammer RENEWAL SET OF CONTACTS, P/N: 6-202
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 30331		 - 0 $161.68
281 CUT-6-202-2 Cutler-Hammer RENEWAL SET OF CONTACTS, P/N: 6-202-2
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 11833		 - 0 $242.51
282 CUT-6-207 Cutler-Hammer RENEWAL SET OF CONTACTS, P/N: 6-207
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 57607		 - 0 $565.87
283 CUT-6-207-2 Cutler-Hammer RENEWAL SET OF CONTACTS, P/N: 6-207-2
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 57594		 - 0 $673.65
284 CUT-6-215 Cutler-Hammer CONTACTS, P/N: 6-215
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 58635
[NSN 3040-01-503-5860]		 - 0 $1,185.62
285 CUT-6-599 Cutler-Hammer SET OF CONTACTS, P/N: 6-599
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782114 85421		 - 0 $296.41
286 CUT-69-1766 Cutler-Hammer SPRING, P/N: 69-1766
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 65251		 - 0 $20.21
287 CUT-69-179 Cutler-Hammer SPRING, P/N: 69-179
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 64673
[NSN 5360-00-260-6412]		 - 0 $20.21
288 CUT-69-1839 Cutler-Hammer SPRING, P/N: 69-1839
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 65257		 - 0 $11.86
289 CUT-69-2096 Cutler-Hammer SPRING, P/N: 69-2096
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 65279		 - 0 $40.42
290 CUT-69-2237 Cutler-Hammer SPRING, P/N: 69-2237
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 65304		 - 0 $80.84
291 CUT-69-2294 Cutler-Hammer SPRING, P/N: 69-2294
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 32380		 - 0 $25.60
292 CUT-69-2375 Cutler-Hammer SPRING, P/N: 69-2375
Lead Time: 2 to 3 working days
Product Code: CT7433
UPC: 782113 31471
[NSN 5360-00-875-1593]		 - 0 $7.41
293 CUT-69-2376 Cutler-Hammer Spring
Part CUT-69-2376
UPC: 782113 30477
10 Days to Ship
[NSN 5360-00-364-7361]		 - 0 $26.95
294 CUT-69-2398 Cutler-Hammer SPRING, P/N: 69-2398
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 11891		 - 0 $21.56
295 CUT-69-2569 Cutler-Hammer SPRING, P/N: 69-2569
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 65560		 - 0 $8.09
296 CUT-69-2848-2 Cutler-Hammer SPRING PLUNGER, P/N: 69-2848-2
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 68804		 - 0 $107.78
297 CUT-69-2935 Cutler-Hammer Spring
Part 69-2935
692935
Spring
Ships in 2 to 3 Weeks
Dated 04-2021		 - 0 $126.26
298 CUT-69-432 Cutler-Hammer COMPRESSION SPRING, P/N: 69-432
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 30387
[NSN 5360-01-461-2984]		 - 0 $52.54
299 CUT-69-456 Cutler-Hammer SPRING, P/N: 69-456
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 32390
[NSN 5360-00-209-7709]		 - 0 $37.72
300 CUT-69-524 Cutler-Hammer SPRING, P/N: 69-524
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 11913
[NSN 5360-00-366-7702]		 - 0 $18.87
301 CUT-69-58 Cutler-Hammer Spring
Part 69-58
NSN 5360-00-265-5856 US GOV #
Product Code: CT7433
Ships 3 Weeks
Dated		 - 0 $34.51
302 CUT-69-95 Cutler-Hammer COMPRESSION SPRING, P/N: 69-95
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 30333
[NSN 5360-00-366-7700]		 - 0 $6.74
303 CUT-73-2676 Cutler-Hammer ARC SHIELD-RIGHT HAND, P/N: 73-2676
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 68864		 - 0 $45.81
304 CUT-73-2676-2 Cutler-Hammer ARC SHIELD-LEFT HAND, P/N: 73-2676-2
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 68865		 - 0 $45.81
305 CUT-79-6720 Cutler-Hammer SUPPORT, P/N: 79-6720
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 69453		 - 0 $47.15
306 CUT-911-5447Z Cutler-Hammer CAP SCREW, P/N: 911-5447Z
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 71452		 - 0 $2.29
307 CUT-911-5672Z Cutler-Hammer TAP BOLT, P/N: 911-5672Z
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 58774		 - 0 $5.93
308 CUT-915-1682Z Cutler-Hammer Nut
Part 915-1682Z
Hex Head Jam Nut
Ships in 7 to 10 Days
Dated 5-2020		 - 0 $22.57
309 CUT-915-2382Z Cutler-Hammer Hex Nut GH505 10"
Part 915-2382Z
For a 10 Inch GH505 DC Brake
Ships in
Dated 9-19		 1 $78.40
310 CUT-916-1164Z Cutler-Hammer WASHER, P/N: 916-1164Z
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 30674		 - 0 $13.07
311 CUT-916-1602Z Cutler-Hammer WASHER, P/N: 916-1602Z
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 71575		 - 0 $2.96
312 CUT-13-1377 Cutler-Hammer MASTER SWITCH PIN, P/N: 13-1377
Lead Time: Negotiated promise date
Product Code: CT7434
UPC: 782113 11911		 - 0 $21.56
313 CUT-13-3962 Cutler-Hammer ADJUSTING PIN, P/N: 13-3962
Lead Time: Negotiated promise date
Product Code: CT7434
UPC: 782113 59369		 - 0 $24.26
314 CUT-13-441-4 Cutler-Hammer ADJUSTING PIN, P/N: 13-441-4
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 59261		 - 0 $146.86
315 CUT-24-1498-2 Cutler-Hammer LEVER ASSEMBLY, P/N: 24-1498-2
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 62126		 - 0 $211.53
316 CUT-24-1675 Cutler-Hammer STARWHEEL LEVER, P/N: 24-1675
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 11815		 - 0 $330.09
317 CUT-24-4653 Cutler-Hammer Master Switch. Cam Operated Multi Speed Master Switch Bul 14951 Item 15 10/12 - 0 $392.06
318 CUT-24-5316-10 Cutler-Hammer Armature, Cont & Oper Levers, P/N: 24-5316-10
Lead Time: 4 to 10 working days
Product Code: CT7434
UPC: 782113 50078		 - 0 $918.86
319 CUT-24-5316-11 Cutler-Hammer CONTACT LEVER, P/N: 24-5316-11
Lead Time: 4 to 10 working days
Product Code: CT7434
UPC: 782113 50079		 - 0 $926.94
320 CUT-24-5316-9 Cutler-Hammer Contact Levers, P/N: 24-5316-9
Lead Time: 4 to 10 working days
Product Code: CT7434
UPC: 782113 50077		 - 0 $918.86
321 CUT-24-6203 Cutler-Hammer CRANK PIN ASSEMBLY, P/N: 24-6203
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 65879		 - 0 $64.67
322 CUT-26-1059 Cutler-Hammer COUPLING ASSEMBLY, P/N: 26-1059
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 66200		 - 0 $80.84
323 CUT-29-2957 Cutler-Hammer SPACER, P/N: 29-2957
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 60882		 - 0 $3.37
324 CUT-32-1410 Cutler-Hammer GASKET, P/N: 32-1410
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 66302		 - 0 $18.87
325 CUT-32-1411 Cutler-Hammer GASKET, P/N: 32-1411
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 66303		 - 0 $11.32
326 CUT-49-3467 Cutler-Hammer SPRING GLAND, P/N: 49-3467
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 30453		 - 0 $127.99
327 CUT-49-5367 Cutler-Hammer CASE (UPPER), P/N: 49-5367
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63011		 - 0 $281.59
328 CUT-49-5368 Cutler-Hammer CASE (LOWER), P/N: 49-5368
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63012		 - 0 $385.33
329 CUT-49-5719 Cutler-Hammer Spring Assembly 8/14 - 8 $1,259.72
330 CUT-51-780 Cutler-Hammer PLUNGER, P/N: 51-780
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63043		 - 0 $556.44
331 CUT-54-6008 Cutler-Hammer Cam, P/N: 54-6008
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63491		 - 0 $122.60
332 CUT-54-716 Cutler-Hammer WEIGHT ASSEMBLY, P/N: 54-716
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 67541		 - 0 $464.82
333 CUT-54-7409-2 Cutler-Hammer PINION WITHOUT KEY, P/N: 54-7409-2
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 30641		 - 0 $367.82
334 CUT-55-1373 Cutler-Hammer CONTACT CLAMP, P/N: 55-1373
Lead Time: 4 to 10 working days
Product Code: CT7434
UPC: 782113 63571		 - 0 $1,589.81
335 CUT-55-1491 Cutler-Hammer CONTACT CLAMP, P/N: 55-1491
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63585		 - 0 $392.06
336 CUT-55-1492 Cutler-Hammer CLAMP, P/N: 55-1492
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63586		 - 0 $794.91
337 CUT-55-1533 Cutler-Hammer CONTACT CLAMP, P/N: 55-1533
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63587		 - 0 $700.60
338 CUT-55-1534 Cutler-Hammer CLAMP, P/N: 55-1534
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 63588		 - 0 $344.91
339 CUT-69-721 Cutler-Hammer SPRING, P/N: 69-721
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 64706		 - 0 $86.23
340 CUT-69-791 Cutler-Hammer SPRING, P/N: 69-791
Lead Time: 16 to 20 working days
Product Code: CT7434
UPC: 782113 11820
[NSN 5360-00-312-3451]		 - 0 $17.52
341 CUT-69-905 Cutler-Hammer COMPRESSION SPRING, P/N: 69-905
Lead Time: Negotiated promise date
Product Code: CT7434
UPC: 782113 30394
[NSN 5360-00-141-6824]		 - 0 $188.62
Brake Shoes, Linings and Parts
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-48-1267-4 Cutler-Hammer Brake Shoe & Lining
Part 48-1267-4
4812674
For an 8 Inch GH505 DC Brake
Premium Bonded Non-Asbestos Lining Material
Sold each, 2 per brake
Ships from Stock to 3 Weeks
Normally a Stock Item @ BPI
Dated 04-2024
(3LBS)		 - 0 $2,101.73
2 CUT-48-1268-4 Cutler-Hammer Brake Shoe & Assembly GH505 10"
Part 48-1268-4
4812684
Old Part 48-1268
For a 10 Inch Diameter GH505-B DC Brake
Premium Bonded, Non Asbestos Linings
2 per brake, sold each
Publication 17224
Normally a Stock Item @ BPI
Ships from Stock to 22 Weeks
Dated 05-2023
(6LBS) H 5" L 8" W 5" Box		 2 $4,985.88
3 CUT-48-1817 Cutler-Hammer 30" BRAKE SHOE LINING, P/N: 48-1817
Lead Time: Negotiated promise date
Product Code: CT7430
UPC: 782113 61802		 - 0 $631.89
4 CUT-48-1818 Cutler-Hammer Lining Kit
Part 48-1818
Brake Shoe Lining Kit
For an 8 Inch GH505 DC Magnetic Brake
Item 30, 2 per brake, sold each
Does not include Groove Pins Part 13-4762
8 Pins required per lining
For fastened not bonded brake shoes
Ships in 7 days
Dated 10/18
(1LBS) H 4" L 10" W 4" Box		 - 0 $111.00
5 CUT-48-1818-2 Cutler-Hammer Brake Shoe Lining 10" GH505
Part 48-1818-2
Brake Shoe Lining
For an 10 Inch GH505 DC Magnetic Brake
Item 30, 2 per brake, sold each
Does NOT include Groove Pins 13-4762, Qty 8
For fastened not bonded brake shoes
Dated 11-2023
(1LB) H 4" L 8" W 4" Box		 - 0 $264.76
6 CUT-48-1818-3 Cutler-Hammer Lining
Part 48-1818-3
aka 4818183
Brake Lining
For a 13 Inch GH505 DC Brake
Item 30, 2 per brake, sold each
For use with Groove-Pin - Rivet 13-4762
Which are not included
For Brake Publication 17225
Premium Non-Asbestos Material
Ships in 4 Weeks
Dated 10-2022		 - 0 $601.08
7 CUT-48-1818-4 Cutler-Hammer Brake Shoe & Lining Assembly 16"
Part 48-1818-4
4818184
For a 16 Inch 505 DC Brake
2 per brake, sold each
Bonded Non-Asbestos Material
Item 34
Dated 09-2022
(35LBS)		 - 0 $471.56
8 CUT-48-1818-5 Cutler-Hammer Lining Material
Part 48-1818-5
For a 19 Inch GH505 DC Brake
Item 31, 2 per brake, sold each
Premium Non-Asbestos Lining Material
aka old 48-338-21 & 27-140		 - 1 $503.90
9 CUT-48-1818-6 Cutler-Hammer Lining Material
23 Inch Diameter for the GH505 Series DC Brake
It is NOT Drilled & Countersunk
Sold each, 2 per brake 10/15		 - 0 $718.11
10 CUT-48-1971 Cutler-Hammer Brake Shoe Assembly 19"
Part 48-1971
481971
For a 19 Inch GH505 DC Brake
Aluminum Casting with a Bonded Non -Asbestos Lining
Riveted linings are no longer available
Item 34, 2 per brake sold each
C-H Publication 17227
Ships in 10 to 12 Weeks
Dated 08-2023		 - 0 $6,388.20
11 CUT-48-554-7 Cutler-Hammer Brake Shoe GH505 16"
Part 48-554-7
aka 485547
For a 16 Inch GH505 DC Brake
Item 34, 2 per brake, sold each
Premium Bonded Non-Asbestos Material
Ships in
Dated
(20LBS)		 - 0 $2,434.36
12 CUT-48-603-7 Cutler-Hammer Brake Shoe Assembly GH505 13
Part 48-603-7
486037
Brake Shoe Assembly
For a 13 Inch GH505 DC Brake
Premium Bonded Non-Asbestos Lining Material
Item 33, 2 per brake, sold each
For Brake Publication 17225
Ships from Stock to 12 Weeks
Dated 06-2023
(13LBS) H 6" L 10" W 8" Box		 - 0 $3,786.83
13 CUT-48-612-4 Cutler-Hammer - 0 $11,721.51
14 CUT-11-3045-3 Cutler-Hammer Self-Lock Screw for the Brake Shoe Clamp on a GH505 13 Inch Brake Assembly. Item 32. Qty. 1, 4 required per brake. 1/2 -13 X 2.00 Self Lock Screw - 0 $34.50
15 CUT-11-3046-3 Cutler-Hammer Self-Lock Screw GH505 19"
Part 11-3046-3
aka 1130463
For the Brake Shoe Clamp
On a GH505 19 Inch DC Brake
Item 33, 4 per Brake, sold each
C-H Publication 17226 & 17227
Ships in 10 to 14 Days
Dated 1-2020		 - 4 $43.70
16 CUT-13-431 Cutler-Hammer Pin
Brake Shoe Pin
OBSOLETE BY C-H & No Replacement
For a 4 Inch Series 511 Type "S" Solenoid Brake
Qty 4 per brake, sold each
Publication 11326
8/14		 - 0 $50.22
17 CUT-17-516 Cutler-Hammer Block on a 7 Inch 511 Series Solenoid Brake. Item 20, 1 per brake. Pub 15475 / 15477 / 15475 & 10522, 1 per brake. Tie Rod to Outer Shoe Arm 8/14 - 2 $441.94
18 CUT-24-2678 Cutler-Hammer Lever on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 3 between Plunger Link & Brake Shoe Arm, 2 per brake - 0 $1.35
19 CUT-24-2951-12 Cutler-Hammer Shoe Lever
Inner Shoe Lever
Includes item 7 Adjusting Wedge 54-4524
Part CUT-24-2951-12
For a 16 Inch GH505 DC Brake
Item 23, 1 per brake
Publication 17226
6/16		 - 0 $3,684.04
20 CUT-24-3227-4 Cutler-Hammer Shoe Lever
Outer Shoe Lever
For a 13 Inch GH505 DC Brake
Item 29, 1 per brake
Publication 17225
5/14		 - 0 $2,560.29
21 CUT-24-3288-11 Cutler-Hammer Shoe Lever, Inner Brake Shoe Lever on a 10 Inch 505 DC Brake, Item 22, 1 per brake, includes item 7, Publication 17224 2/14 - 0 $1,890.04
22 CUT-24-3288-9 Cutler-Hammer OBSOLETE SEE 24-3288-11 Shoe Lever, Inner Brake Shoe Lever on a No 505 10 Inch DC Brake, Item 22 - 0 $1,890.04
23 CUT-24-3289-4 Cutler-Hammer Shoe Lever. Outer Shoe Lever on a 10 Inch 505 DC Brake, item 29. 1 per brake, Publication 17224 4/9 - 0 $1,151.28
24 CUT-24-3305-4 Cutler-Hammer Brake Part GH505 23"
Outer Shoe Lever Arm
For a 23 Inch 505 DC Brake
Item 30, 1 per brake
C-H Publication 17228
4/17		 - 0 $7,492.50
25 CUT-48-1199-2 Cutler-Hammer Lining
Part 48-1199-2
For a 7 Inch Series 511 Type "S" Solenoid Brake
Premium Non-Asbestos Material
With Qty 6 Drilled & Countersunk Holes
Sold each, 2 per brake
Does NOT include Fasteners
Dated 12/14
(1LB)		 - 0 $259.15
26 CUT-48-1200-3 Cutler-Hammer Brake Shoe Assembly 511 7"
Part 48-1200-3
4812003
Brake Shoe & Lining Assembly
For a 7 Inch Diameter 511 Solenoid Brake
Item 25, 2 per brake, sold each
Publication 15475
This is the Newer Style with Screwed Pins & Bonded Linings
Ships in 3 to 4 Weeks
Dated 10-2023
(6LBS) H 4" L 8" W 5" Box		 0 $3,344.73
27 CUT-48-1278 Cutler-Hammer Brake Lining Insert. 30 Inch Diameter with a Metal Backing Plate.Bolt Holes (30LBS) 1/14 - 0 $3,290.25
28 CUT-48-1278-3 Cutler-Hammer Brake Lining Insert
Part 48-1278-3
aka 4812783
For a 30 Inch GH505 DC Brake
With a Metal Backing Plate with Bolt Holes
Premium Non Asbestos Lining Material
Item 34, 2 per brake sold each
C-H Publication 70-763
[Ships in 4 Weeks]
[Updated 1-19]
(30LBS)		 - 0 $3,524.26
29 CUT-48-1463-3 Cutler-Hammer Brake Part GH505 10"
Part 48-1463-3
Shoe & Lining Assembly
For a 10 Inch Diameter GH505 DC Brake
Premium Non-Asbestos Lining Material
Sold each, 2 per brake
C-H Publication 17224
Dated 9/17		 - 0 $1,232.16
30 CUT-48-1604-3 Cutler-Hammer Lining.
Part 48-1604-3
4816043
Old Part 48-338-4
For a 7 Inch Diameter 511 Solenoid Operated Brake.
Undrilled
Sold each, 1 piece, 2 per brake.
NSN 3040-00-204-3297 Gov #
Ships from Stock
Dated 08-2023
(1LB)		 - 0 $313.39
31 CUT-48-1605 Cutler-Hammer Lining
Part 48-1605
Brake Lining Kit
For a 5 & 1/2 Inch Series 511 Brake
Item 32, 1 per brake
Includes items 26 & 27
C-H Publication 17377
Ships stock to 10 days
Dated 3/18		 0 $269.07
32 CUT-48-1787 Cutler-Hammer Brake Shoe & Lining 511 5.5”
Part 48-1787
481787
For a 5 & 1/2 Inch 511 Solenoid Brake
Qty 1, 2 per brake, Item 24
Normally a Stock Item @ BPI
Ships from Stock to 5 Weeks
Dated 04-2022
(4LBS)		 2 $1,299.31
33 CUT-48-306 Cutler-Hammer Brake Shoe Assembly 511 4"
Part 48-306
Old Part 48-306-3
Brake Shoe & Lining Assembly
For a 4 Inch 511 Solenoid Brake
Item 16, 2 per brake, sold each
C-H Publication 19320, & 11326
Newer Style with removable top pin
NSN 5330-00-168-9924
NSN 4810-01-373-6911
Ships in 8 Weeks
Dated 12-2023		 - 0 $1,232.90
34 CUT-48-306-3 Cutler-Hammer Brake Shoe Assembly 511 4"
Part 48-306
Old Part 48-306-3
Brake Shoe & Lining Assembly
For a 4 Inch 511 Solenoid Brake
Item 16, 2 per brake, sold each
C-H Publication 19320, & 11326
Newer Style with removable top pin
NSN 5330-00-168-9924
NSN 4810-01-373-6911
Ships in 8 Weeks
Dated 02-2022		 - 0 $1,075.82
35 CUT-48-338-21 Cutler-Hammer Lining Material
SEE 48-1818-5
For a GH505 19 Inch DC Brake
Item 31, 2 per brake, sold each
Premium Non-Asbestos Lining Material 11/15		 - 0 $503.78
36 CUT-48-510 Cutler-Hammer Brake Shoe & Lining
Part 48-510
For a 4 Inch Type "S" Brake
Dated		 - 0 $682.99
37 CUT-48-510-3 Cutler-Hammer Brake Part 511 4
Part 48-510-3
OBSOLETE by OEM
See Part 113462
Brake Shoe & Lining
For 4 Inch Series 511 Brake
C-H Bulletin 9069 & 13864		 - 0 $361.71
38 CUT-48-554-8 Cutler-Hammer Brake Shoe & Lining Assembly
Part 48-554-8
For a 16 Inch GH505 DC Brake
Item 34, 2 per brake, sold each
Non-Asbestos Material
Ships in 3 to 4 weeks
(20LBS) Dated 4/18		 - 0 $2,774.30
39 CUT-48-603-8 Cutler-Hammer Brake Part GH505 13
Part 48-603-8
Brake Shoe Assembly
For a 13 Inch GH505 DC Brake
Premium Bonded Non-Asbestos Lining Material
Item 33, 2 per brake, sold each
For Brake Publication 17225
Stock to 12 Weeks
Dated 07-2023
(13LBS) H 6" L 14" W 6" Box		 - 0 $3,786.83
40 CUT-48-611-4 Cutler-Hammer Brake Shoe Assembly GH505 19"
Part 48-611-4
486114
aka 48-1971
For a 19 Inch GH505 DC Brake
Sold each, 2 per brake
Premium Bonded Material
Ships in
Dated
(18LBS)		 - 2 $6,388.20
41 CUT-48-80 Cutler-Hammer Lining 511 4"
Part 48-80
Old Part 48-80-02
For a 4 Inch 511 Type S Brake
Ships from Stock to 10 Days
Dated 05-2022
(1LB) H 6" L 6" W 6" Box		 0 $215.44
42 CUT-4880-2 Cutler-Hammer Lining. Brake Lining on a 4 Inch Bulletin 511 Type "S" Solenoid Brake. Item 13, sold each, 2 per brake - 0 $1.35
43 CUT-48-80-2 Cutler-Hammer Lining Kit
Part 48-80
Old Part 48-80-02
For a 4 Inch 511 Type S Brake
2 Linings & Push Pins
Material required for 2 brake Shoes
Ships from Stock to 10 Days
Dated 2-2020
(2LBS) H 6" L 6" W 6" Box		 - 3 $194.84
44 CUT-55-1037 Cutler-Hammer Brake Shoe Clamp GH505
Part 55-1037
aka 551037
Brake Shoe Clamp
For a 8, 10 or 13 Inch GH505 DC Brake
4 per brake, sold each
Ships in 3 Weeks
Dated 09-2022
(1LB)		 - 0 $179.83
45 CUT-55-1039 Cutler-Hammer Brake Shoe Clamp GH505 23"
Part 55-1039
For a 23 Inch GH505 DC Brake
Item 32, 4 per brake, sold each
Ships in 40 Weeks
Dated 12-2023		 - 0 $174.45
46 CUT-6-166 Cutler-Hammer Lining Kit 511 4"
Part 6-166
2 Brake Linings & Brass Push Pins
For a 4 Inch C-H 511 Type "S" Solenoid Brake
4 Holes Drilled and Countersunk for Push Pins
3.75 Long X 2.5 Wide X .025 Thick
Ships from Stock to 3 Weeks
Dated 04-2022
(1LB) H 5" L 4" W 4" Box		 0 $499.73
47 CUT-6-166-2 Cutler-Hammer Lining Kit 511 5.5"
Part 6-166-2
61662
Brake Lining Kit
For a 5 & 1/2 Inch Series 511 Brake
Item 32, 1 per brake
Includes items:
26 Lining
27 Groove Pins
C-H Publication 17377
NSN 3040-00-895-8662 Gov #
Ships from Stock to 3 Weeks
Dated 09-2023
(3LBS)		 0 $681.74
48 CUT-6-166-5 Cutler Hammer Lining Kit
Part 6-166-5
aka 61665
2 Brake Linings & Groove Pins
For a 7 Inch 511S Solenoid Brake
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 2-2020
(3LBS) H 6" L 11" W 10" Box		 0 $543.38
Brake Wheels, 4"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1150-1 Cutler-Hammer Brake Wheel 4"
Part 511H1150-1
4 Inch Diameter
Pilot - Rough Bore
2 & 3/4 Inch Face Width
1 & 5/8 Inch Offset from C.L.
1 & 5/8 Inch Hub Length
1/2 Inch Pilot Bore
Maximum Bore Dia. 1 & 3/8 Inch
Ship from Stock to 4 Weeks
Dated 07-2021
(5LBS) H 4" L 4" W 4" Box		 0 $1,011.14
2 CUT-511H1150-2 Cutler-Hammer Brake Wheel 4"
Part 511H1150-2
4 Inch Diameter
With a 5/8 Inch Diameter Straight Bore
3/16 X 3/32 Keyway
Ships in 4 to 6 Weeks
Dated 5-2020
(5LBS) H 4" L 4" W 4" Box		 0 $1,003.39
3 CUT-511H1150-3 Cutler-Hammer Brake Wheel 4"
Part 511H1150-3
4 Inch Diameter
With a 3/4 Inch Diameter Straight Bore
3/16 X 3/32 Keyway
Ships in 4 to 6 Weeks
Dated 5-2020
(5LBS) H 4" L 4" W 4" Box		 0 $1,003.39
4 CUT-511H1150-4 Cutler-Hammer Brake Wheel
Part 511H1150-4
4 Inch Diameter
With a 7/8 Inch Diameter Straight Bore
3/16 X 3/32 Keyway
Ships in 8 Weeks
Dated 06-2022
(5LBS) H 4" L 4" W 4" Box		 0 $1,275.83
5 CUT-511H1150-5 Cutler-Hammer Brake Wheel 4"
Part 511H1150-5
4 Inch Diameter
With a 1.00 Inch Diameter Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 4 to 6 Weeks
Dated 07-2022
(5LBS) H 4" L 4" W 4" Box		 0 $1,275.83
6 CUT-511H1150-54 Cutler-Hammer Brake Wheel 4"
Part 511H1150-54
4 Inch Diameter
With a 1.375 Inch Diameter Straight Bore
5/16 X 5/32 Inch Keyway
Ships in 4 to 6 Weeks
Dated 5-2020
(5LBS) H 4" L 4" W 4" Box		 0 $1,003.39
7 CUT-511H1150-6 Cutler-Hammer Brake Wheel 4"
Part 511H1150-6
4 Inch Wheel Diameter
1.125 Inch Diameter Straight Bore
1/4 X 1/8 Inch Keyway
Dated 5-2020
(5LBS) H 4" L 4" W 4" Box		 0 $882.88
8 CUT-511H1150-7 Cutler-Hammer Brake Wheel 4"
Part 511H1150-7
4 Inch Diameter Brake Wheel
For a 511 Type "S" Brake
1.25 Inch Diameter Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 4 to 6 Weeks
Dated 5-2020
(5LBS) H 4" L 4" W 4" Box		 0 $1,003.39
9 CUT-511H1150-8 Cutler-Hammer Brake Wheel 4"
Part 511H1150-8
4 Inch Diameter
With a 1.375 Inch Diameter Straight Bore
5/16 X 5/32 Inch Keyway
Ships in 4 to 6 Weeks
Dated 5-2020
(5LBS) H 4" L 4" W 4" Box		 0 $1,003.39
Brake Wheels, 5.5"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1160-1 Cutler-Hammer Brake Wheel 511 5.5"
Part 511H1160-1
5 & 1/2 Inch Wheel Diameter
3.25 Inch Face Width
2 Inch Hub Length
3.25 Inch Offset
3.25 Inch Hub Diameter
With a 0.75 Inch Diameter Pilot Bore
2 Inch Maximum Bore
Ships from Stock
Dated 11-2023
(10LBS) H 8" L 8" W 6" Box		 0 $1,910.54
2 CUT-511H1160-10 Cutler-Hammer Brake Wheel
Part 511H1160-10
5 & 1/2 Inch Wheel Diameter
1 & 7/8 Inch Diameter Bore
Straight Bore
1/2 X 1/4 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
3 CUT-511H1160-3 Cutler-Hammer Brake Wheel
Part 511H1160-3
5 & 1/2 Inch Wheel Diameter
3/4 Inch Diameter Bore
Straight Bore
3/16 X 3/32 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
4 CUT-511H1160-4 Cutler-Hammer Brake Wheel 5.5"
Part 511H1160-4
511H11604
5 & 1/2 Inch Wheel Diameter
7/8 Inch Diameter Bore
Straight Bore
3/16 X 3/32 Inch Keyway
Ships in 3 to 5 Weeks, SC
Dated 04-2024
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
5 CUT-511H1160-5 Cutler-Hammer Brake Wheel
Part 511H1160-5
5 & 1/2 Inch Wheel Diameter
1 Inch Diameter Bore
Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
6 CUT-511H1160-57 Cutler-Hammer Brake Wheel
Part 511H1160-57
5 & 1/2 Inch Wheel Diameter
1 & 1/2 Inch Diameter Bore
Straight Bore
3/8 X 3/16 Inch Keyway
(10LBS) H 8" L 8" W 6" Box		 1 $2,222.23
7 CUT-511H1160-59 Cutler-Hammer Brake Wheel
Part 11H1160-59
5 & 1/2 Inch Wheel Diameter
1 & 3/4 Inch Diameter Bore
Straight Bore
3/8 X 3/16 Inch Keyway
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.34
8 CUT-511H1160-6 Cutler-Hammer Brake Wheel
Part 511H1160-6
5 & 1/2 Inch Wheel Diameter
1.125 Inch Diameter Bore
Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
9 CUT-511H1160-61 Cutler-Hammer Brake Wheel
Part 511H1160-61
5 & 1/2 Inch Wheel Diameter
2 Inch Diameter Bore
Straight Bore
1/2 X 1/4 Inch Keyway
(10LBS) H 8" L 8" W 6" Box		 0 $2,735.05
10 CUT-511H1160-7 Cutler-Hammer Brake Wheel
Part 511H1160-7
5 & 1/2 Inch Wheel Diameter
1 & 1/4 Inch Diameter Bore
Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
11 CUT-511H1160-8 Cutler-Hammer Brake Wheel
Part 511H1160-8
5 & 1/2 Inch Wheel Diameter
1 & 3/8 Inch Diameter Bore
Straight Bore
5/16 X 5/32 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,735.05
12 CUT-511H1160-9 Cutler-Hammer Brake Wheel
Part 511H1160-9
5 & 1/2 Inch Wheel Diameter
1 & 5/8 Inch Diameter Bore
Straight Bore
3/8 X 3/16 Inch Keyway
Ships in 3 to 4 weeks
(10LBS) H 8" L 8" W 6" Box		 0 $2,222.23
13 CUT-511H1161 Cutler-Hammer Brake Wheel, 5.50 Inch Diameter with a Tapered Bore & Keyway 8/14 0 $2,156.45
Brake Wheels, 7"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1170-1 Cutler-Hammer Brake Wheel 7"
Part 511H1170-1
Pilot Bore Brake Wheel
7 Inch Wheel Diameter
4.25 Inch Face Width
3 Inch Hub Length
3.25 Inch Offset
3.25 Inch Hub Diameter
With a 0.50 Inch Diameter Pilot Bore
Ships from Stock to 8 Weeks
Dated 11-04-2022
(20LBS) H 5" L 7" W 7" Box		 2 $7,032.00
2 CUT-511H1170-10 Cutler-Hammer Brake Wheel 511H 7"
Part 511H1170-10
7 Inch Wheel Diameter
With a Finished Bore & Keyway
1 & 5/8 Inch Diameter Straight Bore
3/8 X 3/16 Inch Keyway
Ships in 12 Weeks
Dated 11-2023		 0 $7,032.00
3 CUT-511H1170-5 Cutler-Hammer Brake Wheel 7"
Part 511H1170-5
7 Inch Diameter
Finished Brake Wheel
1.00 Inch Diameter Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
4 CUT-511H1170-57 Cutler-Hammer Brake Wheel 7"
Part 511H1170-57
7 Inch Diameter
Finished Brake Wheel
1 & 1/2 Inch Diameter Straight Bore
3/8 X 3/16 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 1 $7,032.00
5 CUT-511H1170-58 Cutler-Hammer Brake Wheel 7"
Part 511H1170-58
7 Inch Diameter
Finished Brake Wheel
1.687 Inch Diameter Straight Bore
3/8 X 3/16 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
6 CUT-511H1170-59 Cutler-Hammer Brake Wheel 7"
Part 511H1170-59
7 Inch Diameter
Finished Brake Wheel
1 & 3/4 Inch Diameter Straight Bore
3/8 X 3/16 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
7 CUT-511H1170-6 Cutler-Hammer Brake Wheel 7"
Part 511H1170-6
7 Inch Diameter
1 & 1/8 Inch Diameter Straight Bore
1/4 X 1/8th Inch Keyway
Ships in 12 Weeks
Dated 11-2023		 0 $7,032.00
8 CUT-511H1170-60 Cutler-Hammer Brake Wheel 7"
Part 511H1170-60
7 Inch Diameter
1.937 Inch Diameter Straight Bore
1/2 X 1/4 Inch Keyway
Ships in 12 Weeks
Dated 11-2023		 0 $7,032.00
9 CUT-511H1170-61 Cutler-Hammer Brake Wheel 7"
Part 511H1170-61
7 Inch Diameter
Finished Brake Wheel
2.00 Inch Diameter Straight Bore
1/2 X 1/4 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
10 CUT-511H1170-62 Cutler-Hammer Brake Wheel 7"
Part 511H1170-62
7 Inch Diameter
Finished Brake Wheel
2 & 1/4 Inch Diameter Straight Bore
1/2 X 1/4 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
11 CUT-511H1170-7 Cutler-Hammer Brake Wheel 7"
Part 511H1170-7
7 Inch Diameter
Finished Brake Wheel
1 & 1/4 Inch Diameter Straight Bore
1/4 X 1/8 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
12 CUT-511H1170-8 Cutler-Hammer Brake Wheel 7"
Part 511H1170-8
7 Inch Diameter
With a 1 & 3/8 Inch Diameter Straight Bore
5/16 X 5/32 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(10LBS) H 6" L 7" W 7" Box		 0 $7,032.00
13 CUT-511H1170-9 Cutler-Hammer Brake Wheel 7"
Part 511H1170-9
7.00 Inch Diameter
1.625 Inch Diameter Straight Bore
3/8 X 3/16 Inch Keyway
Ships in 12 Weeks
Dated 11-2023		 0 $7,032.00
14 CUT-511H1171 Cutler-Hammer Brake Wheel 7"
Part 511H1171
7 Inch Diameter
With a Tapered Bore & Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
15 CUT-511H1171-1 Cutler-Hammer Brake Wheel 7"
Part 511H1171-1
7 Inch Diameter
Finished Brake Wheel
0.75 Inch Diameter Tapered Bore
No Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
16 CUT-511H1171-12 Cutler-Hammer Brake Wheel 7"
Part 511H1171-12
7 Inch Diameter
Finished Brake Wheel
2.375 Inch Diameter Tapered Bore
5/8 X 5/16 Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box		 0 $7,032.00
Brake Wheels, 10"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1190-1 Cutler-Hammer Brake Wheel, 10 Inch Diameter, 4.25 Inch Face Width , 3.25 Inch Hub Length, 2.375 Inch Offset, 4.875 Inch Hub Diameter, with a 1.25 Inch Diameter Pilot Bore, 2.875 Inch Maximum Bore 6/13 0 $3,939.84
2 CUT-511H1190-10 Cutler-Hammer Brake Wheel, 10 Inch Diameter, 4.25 Inch Face Width , 3.25 Inch Hub Length, 2.375 Inch Offset, 4.875 Inch Hub Diameter, with a 1.875 Inch Straight Bore and a 1/2 X 1/4 Keyway 6/13 0 $4,118.04
3 CUT-511H1190-11 Cutler-Hammer Brake Wheel, 10 Inch Diameter, 4.25 Inch Face Width , 3.25 Inch Hub Length, 2.375 Inch Offset, 4.875 Inch Hub Diameter, with a 2.125 Inch Straight Bore and a 1/2 X 1/4 Keyway 6/13 0 $4,118.04
4 CUT-GH505-KX-B01 Cutler-Hammer Brake Wheel
Part CUT-GH505-KX-B01
10 Inch Brake Wheel Diameter
With a Finished Bore & Keyway
3.75 Inch Face Width
3.00 Inch Hub Length
4.25 Inch Hub Offset
1.75 Inch Bore
1.25 Inch Taper Per Foot
0.50 X 0.25 Inch Keyway
Hub Length, Bore & Keyway for:
602, 802
AC1, AC2 or AC4 Motors
Dated 5/16
(37LBS) H 7" L 10" W 10" Box		 - 0 $4,213.62
5 CUT-GH505-KX-B02 Cutler-Hammer Brake Wheel 10 Inch
With a Finished Bore & Keyway
10.00" Diameter X 3.75" Face
3.50" Hub Length X 4.25 Offset
2.00" Bore
1.25" Taper / Foot
0.50 Wide X 0.25 Deep Keyway
Hub Length Bore & Keyway for 603 604 803 804 Motors 5/16		 - 0 $4,213.62
6 CUT-GH505-KX-B03 Cutler-Hammer Brake Wheel
10 Inch with a Finished Bore & Keyway
10.00 Inch Diameter
3.75 Inch Face Width / Brake Surface
4.25 Inch Hub Offset from Face Centerline
4.00 Inch Hub Length / Through Bore
2.50 Inch Hub Bore Diameter
1.25 Inch Taper per Foot
0.50 Inch Wide X 0.25 Inch Deep Keyway
Hub Length Bore & Keyway for:
For 606, 806, ,AC8 & AC12 Motors 9/16
(35LBS) H 7" L 10" W 10" Box		 - 0 $4,213.62
7 CUT-GH505-KX-B04 Cutler-Hammer Brake Wheel 10 Inch with a Finished Bore & Keyway 10.00" D X 3.75" F X 4.50" HL X 4.25 O X 3.00" Bore X 1.25" Taper X 0.75 X 0.25 Keyway. For 608 Motors 5/16 - 0 $4,213.62
8 CUT-GH505-KX-B05 Cutler-Hammer Brake Wheel 10 Inch
Part GH505-KX-B05
GH505KXB05
Universal / Pilot Bore Brake Wheel
10.00 Inch Diameter
3.75 Inch Face Width
7.75 Inch Hub Length
6.25 Inch Offset from Centerline
1.00 Inch Pilot / Rough Bore
Ships in 40 Weeks
Dated 11-2023
(50LBS)		 - 0 $7,116.66
9 CUT-GH505KXB02 Cutler-Hammer Brake Wheel 10 Inch
Part GH505-KX-B02
10 Inch Bored & Keyed Brake Wheel
10.00 Inch Wheel Diameter
3.75 Inch Face Width
3.50 Inch Hub Length
4.25 Inch Offset
2.00 Inch Bore Diameter
1.25" Taper - Foot
0.50 Wide X 0.25 Deep Keyway
Hub Length Bore & Keyway for 603 604 803 804 Motors
Ships in 4 to 8 Weeks
Dated 11-2021		 0 $6,028.12
Brake Wheels, 13"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-LX-C01 Cutler-Hammer Brake Wheel 13 Inch with a Finished Bore & Keyway 13.00" D X 5.75" F X 3.50" HL X 5.00 O X 2.00" Bore X 1.25" Taper X 0.50 X 0.25 Keyway. For 603 604 803 804 Motors 0 $5,026.05
2 CUT-GH505-LX-C02 Cutler-Hammer Brake Wheel 13 Inch
Part GH505-LX-C02
GH505LXC02
13 Inch Diameter
With a Finished Bore & Keyway
5.75 Inch Face Width
5.00 Hub Length
2.50 Inch Bore Diameter
0.50 X 0.25 Inch Keyway
Finished for 606 806 AC8 & AC12 Motors
Ships in 6 to 8 Weeks
Dated 10-2022		 0 $7,768.09
3 CUT-GH505-LX-C03 Cutler-Hammer Brake Wheel 13" Finished
Part GH505-LX-C03
13 Inch with a Finished Bore & Keyway
13 Inch Diameter
5.75 Inch Face Width
4.50 Inch Hub Length
5.38 Inch Offset
3.00 Inch Bore Diameter, Tapered
1.25 Inch - Foot Tapered Bore
0.75 X 0.25 Inch Keyway.
Bore, Hub & Keyway for For 608 & 808 Mill Motors,
Ships in 9 Weeks
Dated 02-2024
(85LBS)		 0 $9,176.06
4 CUT-GH505-LX-C04 Cutler-Hammer Brake Wheel 13 Inch with a Finished Bore & Keyway 13.00" D X 5.75" F X 4.50" HL X 5.38 O X 3.25" Bore X 1.25" Taper X 0.75 X 0.25 Keyway. For 610 810 AC18 MC10 Motors 0 $5,026.05
5 CUT-GH505-LX-C05 Cutler-Hammer Brake Wheel 13 Inch with a Finished Bore & Keyway 13.00" D X 5.75" F X 5.00" HL X 5.38 O X 3.62 - 3.63" Bore X 1.25" Taper X 0.75 X 0.25 Keyway. For 612 812 AC25 AC30 Motors 0 $5,026.05
6 CUT-GH505-LX-C07 Cutler-Hammer Brake Wheel 13 Inch Universal / Pilot Bore 13.00" D X 5.75" F X 8.00" HL X 6.00 O X 1.00" Rough Bore 8/15 0 $5,026.05
7 CUT-GH505-LX-C08 Cutler-Hammer Brake Wheel 13 Inch
With a Finished Bore & Keyway
13.00" Diameter
5.75" Face Width
4.00" Hub Length
4.00 Offset
2.12" Straight Bore
0.50 X 0.19 Keyway
For K6 Motors		 0 $5,026.05
8 CUT-GH505-LX-C09 Cutler-Hammer Brake Wheel 13 Inch with a Finished Bore & Keyway 13.00" D X 5.75" F X 4.00" HL X 4.00 O X 2.37" Bore X 0.63 X 0.25 Keyway. For K7 Motors 0 $5,026.05
9 CUT-GH505-LX-C10 Cutler-Hammer Brake Wheel 13 Inch with a Finished Bore & Keyway 13.00" D X 5.75" F X 4.00" HL X 4.00 O X 2.62" Bore X 0.63 X 0.28 Keyway. For K8 Motors 0 $5,026.05
10 CUT-GH505LXC03 Cutler-Hammer Brake Wheel 13"
Part GH505LXC03
13 Inch Wheel Diameter
Finished
Product Code CT5005
Ships in 40 Days
Dated 04-2022		 0 $7,164.68
11 CUT-GH505LXC07 Cutler-Hammer 13" BRAKE WHEEL, P/N: GH505LXC07
Lead Time: Negotiated promise date
Product Code: CT5005
UPC: 782113 54591		 0 $5,026.05
Brake Wheels, 16"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-MX-D01 Cutler-Hammer Brake Wheel 16 Inch with a Finished Bore & Keyway 16.00" D X 6.25" F X 4.00" HL X 6.50 O X 2.50" Bore X 1.25" Taper X 0.50 X 0.25 Keyway. For 606 806 AC8 AC12 Motors 12/14 0 $9,958.05
2 CUT-GH505-MX-D02 Cutler-Hammer Brake Wheel 16 Inch with a Finished Bore & Keyway 16.00" D X 6.25" F X 4.50" HL X 6.50 O X 3.00" Bore X 1.25" Taper X 0.75 X 0.25 Keyway. For 608 808 Motors 0 $9,958.05
3 CUT-GH505-MX-D03 Cutler-Hammer Brake Wheel 16 Inch
With a Finished Bore & Keyway
CUT-GH505-MX-D03
16.00" Diameter
6.75" Face Width
4.50" Hub Length
6.50" Offset, which is the AIST Standard
3.25" Bore with a 1.25" Taper / Ft
0.75 X 0.25 Keyway
For 610 810 & AC18 Motors
(150LBS) Motor Freight Only		 0 $9,958.05
4 CUT-GH505-MX-D04 Cutler-Hammer Brake Wheel 16 Inch with a Finished Bore & Keyway 16.00" D X 6.25" F X 5.00" HL X 6.50 O X 3.62 - 3.63" Bore X 1.25" Taper X 0.75 X 0.25 Keyway. For 612 812 AC25 AC30 Motors 0 $9,958.05
5 CUT-GH505-MX-D05 Cutler-Hammer Brake Wheel 16 Inch with a Finished Bore & Keyway 16.00" D X 6.25" F X 5.00" HL X 6.50 O X 4.25" Bore X 1.25" Taper X 1.00 X 0.38 Keyway. For 614 814 AC40 AC50 Motors 0 $9,958.05
6 CUT-GH505-MX-D06 Cutler-Hammer Brake Wheel 16" Finished
Part GH505-MX-D06
GH505MCD06
16 Inch Diameter
With a Finished Bore & Keyway
For 616 816 Motors
16.00" Wheel Diameter
6.25" Face Width
5.50" Hub Length
6.50 Offset
4.62 - 4.63" Bore
1.25" Taper / Foot
1.25 X 0.38 Keyway
Ships in 12 Weeks, SC
Dated 12-2022		 0 $9,958.05
7 CUT-GH505MXD07 Cutler-Hammer Brake Wheel GH505 16
Part CUT-GH505MXD07
Pilot / Rough Bore Brake Wheel
16.00 Inch Diameter
6.75 Inch Face Width
7.25 Offset
8.375 Hub Length
Dated 8/14		 0 $5,719.14
8 CUT-GH505-MX-D07 Cutler-Hammer Brake Wheel GH505
Part GH505-MX-D06
16 Inch Pilot bore Brake Wheel - Universal
16 Inch Wheel Diameter
6.25 Inch Face Width
8.38 Inch Hub Length
7.25 Inch Offset
1.50 Inch Diameter Pilot Bore
Ships in
Dated
(150LBS?)		 0 $8,708.05
Brake Wheels, 19"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505NXE03 Cutler-Hammer Brake Wheel GH505 19
Part CUT-GH505NXE03
Pilot / Rough Bore Brake Wheel
19.00 Inch Diameter
8.75 Inch Face Width
7.25 Offset
Product Code CT5005
[UPC 782113 54596]		 0 $9,092.79
Brake Wheels, 23"
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-GH505-PX-F08 Cutler-Hammer Brake Wheel
Part GH505-PX-F08
23 Inch Diameter with a Pilot Bore
12.25 Inch Hub Length
11 Inch Offset
Ships in 40 work days
Dated 8/18
(400LBS)		 0 $16,893.14
Brake Wheels
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-511H1161-1 Cutler-Hammer Brake Wheel, P/N: 511H1161-1
Lead Time: Negotiated promise date
Product Code: AO20
UPC: 782113 34274		 0 $2,156.45
2 CUT-511H1171-57 Cutler-Hammer Brake Wheel 7"
Part 511H1171-57
X.XX Inch Diameter Straight Bore
Inch Keyway
Ships in 12 Weeks
Dated 11-2023
(23LBS) H 8" L 8" W 8" Box
 0 $7,032.00
Solenoids, Coils and Parts
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-9-460-443 Cutler-Hammer BAR WOUND COIL, P/N: 9-460-443
Lead Time: Negotiated promise date
Product Code: CT7434
UPC: 782113 58244		 - 0 $646.70
2 CUT-9-1688-1 Cutler-Hammer Coil
Part 9-1688-1
916881
Contactor Coil
NSN 5950-00-904-2005 Gov #
Ships in 4 to 6 Weeks
Dated 08-2023
(8LBS)		 - 0 $1,945.43
3 CUT-9-1688-6 Cutler-Hammer COIL, P/N: 9-1688-6
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 32406		 - 0 $1,037.43
4 CUT-9-1688-8 Cutler-Hammer COIL, P/N: 9-1688-8
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 59007		 - 0 $1,052.24
5 CUT-9-1717-2 Cutler-Hammer Coil
Part 9-1717-2
Dated 5/17
(14LBS)		 - 0 $2,009.10
6 CUT-9-179-42 Cutler-Hammer BAR WOUND COIL, P/N: 9-179-42
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 11871		 - 0 $1,010.48
7 CUT-9-460-437 Cutler-Hammer Coil
Part 9-460-437
aka 9460437
Bar Wound Coil
Product Code CT7433
Ships in 2 Weeks
Dated 1-2020		 - 0 $690.97
8 CUT-9-494-5 Cutler-Hammer Coil
Part 9-494-5
Contactor Coil
Dated 10/17		 - 0 $808.92
9 CUT-9-494-8 Cutler-Hammer Coil
Part 9-494-8
Product Code: CT7433
[UPC: 782113 30499]
[NSN 5950-00-646-0334]
Ships in 10 Days or sooner
Dated 10/17		 - 0 $1,040.62
10 CUT-9-547-4 Cutler-Hammer Coil
Part 9-547-4
Product Code CT7433
[UPC 782113 58258]
Ships in 20 days or sooner
Dated 4/18		 - 0 $2,874.20
11 CUT-9-547-5 Cutler-Hammer Coil
Part 9-547-5
Product Code: CT7433
[UPC 782113 30503]
Ships in 2 to 3 weeks
Dated 1/18		 - 0 $2,874.20
12 CUT-9-547-7 Cutler-Hammer COIL, P/N: 9-547-7
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58259		 - 0 $2,294.45
13 CUT-9-61-13 Cutler-Hammer Coil
Part CUT-9-61-13
Form Wound Coil
Product Code CT7433
[UPC 782113 30855]
[NSN 5950-00-790-8148]
Normally a stock item, NC
Dated 2/18		 - 0 $743.70
14 CUT-9-91-100 Cutler-Hammer Coil
Product Code: CT7433
Part CUT-9-91-100
UPC: 782113 58315
1/17		 - 0 $912.98
15 CUT-9-91-29 Cutler-Hammer COIL, P/N: 9-91-29
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 32421
[NSN 5950-00-229-6292]		 - 0 $886.53
16 CUT-9-91-42 Cutler-Hammer COIL, P/N: 9-91-42
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 57518		 - 0 $886.53
17 CUT-9-91-75 Cutler-Hammer COIL, P/N: 9-91-75
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58309		 - 0 $886.53
18 CUT-9-91-85 Cutler-Hammer COIL, P/N: 9-91-85
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58313
[NSN 2520-01-055-4486]		 - 0 $886.53
19 CUT-9-91-87 Cutler-Hammer COIL, P/N: 9-91-87
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 43388		 - 0 $886.53
20 CUT-9-91-88 Cutler-Hammer COIL, P/N: 9-91-88
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 30518		 - 0 $886.53
21 CUT-9-967-5 Cutler-Hammer COIL, P/N: 9-967-5
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 28913		 - 0 $1,886.22
22 CUT-9-967-7 Cutler-Hammer Coil. Contactor Coil 4/15 - 0 $1,251.65
23 CUT-9-1549-1 Cutler-Hammer Coil
Part 9-1549-1
Product Code: CT7433
[UPC 782113 28705]
Dated 10/17		 - 0 $531.41
24 CUT-9-1549-2 Cutler-Hammer Coil CT7433
Part 9-1549-2
915492
Ship in 4 to 8 Weeks
Dated 09-2020		 - 0 $622.29
25 CUT-9-1552-15 Cutler-Hammer BOBBIN WOUND COIL, P/N: 9-1552-15
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 58086		 - 0 $269.46
26 CUT-9-1552-16 Cutler-Hammer BOBBIN WOUND COIL, P/N: 9-1552-16
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 58087		 - 0 $269.46
27 CUT-9-1552-7 Cutler-Hammer BLOWOUT COIL, P/N: 9-1552-7
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 58084		 - 0 $269.46
28 CUT-9-1553-3 Cutler-Hammer Coil
Part 9-1553-3
915533
Blow-Out Coil
Ships in
Dated		 - 0 $1,460.47
29 CUT-9-1583-1 Cutler-Hammer Coil
Part CUT-9-1583-1
Contactor Coil
Size 3
230 Volt DC
Product Code CT7433
[UPC 782113 28708]
Ships in 10 days or sooner
Dated 10/17		 - 0 $623.00
30 CUT-9-1583-2 Cutler-Hammer Coil
Part 9-1583-2
915832
Product Code: CT7433
Ships in 2 to 3 Weeks
Dated 06-2021 PRICE INCREASE NEXT MONTH		 - 0 $787.38
31 CUT-9-1585-1 Cutler-Hammer Coil
Part 9-1585-1
Operating Coil
For a 230 Volt DC Contactor
NEMA 2, 3 & 4
[NSN 5950-00-964-4961]
Dated 10/17		 - 0 $457.88
32 CUT-9-1585-2 Cutler-Hammer COIL, P/N: 9-1585-2
Lead Time: 4 to 10 working days
Product Code: CT7433
UPC: 782113 28712		 - 0 $468.86
33 CUT-9-1585-6 Cutler-Hammer COIL, P/N: 9-1585-6
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58291		 - 0 $513.32
34 CUT-9-1589-1 Cutler-Hammer Coil
Part 9-1589-1
Product Code: CT7433
[UPC 782113 28714]
[NSN 5950-00-904-2003]
Ships in 10 Days or sooner
Dated 10/17		 - 0 $518.71
35 CUT-9-1589-2 Cutler-Hammer Coil
Part 9-1589-2
915892
Origin MX
Ships in 8 Weeks
Dated 07-2022		 - 0 $1,136.60
36 CUT-9-159-2 Cutler-Hammer BOBBIN WOUND COIL, P/N: 9-159-2
Lead Time: Negotiated promise date
Product Code: CT7433
UPC: 782113 58320
[NSN 5950-00-232-4883]
[NSN 5365-01-161-2190]		 - 0 $741.02
37 CUT-55-1451 Cutler-Hammer COIL CLAMP (NAVY), P/N: 55-1451
Lead Time: 16 to 20 working days
Product Code: CT7433
UPC: 782113 63578		 - 0 $32.34
38 CUT-51-2120 Cutler-Hammer Coil Core?, aka 51-979 8/11 - 0 $235.77
39 CUT-9-1641-8 Cutler-Hammer Coil
Part CUT-9-1641-8
Series Wound Coil
For GH505 30 Inch DC Brake
Suffix 1704 for a 620 Mill Motor
3 to 4 Weeks to Ship
Date 7/17		 - 0 $27,133.34
40 CUT-9-872-11 Cutler-Hammer Coil
Part 9-872-11
Shunt Wound Brake Coil
For an 8 Inch GH505 DC Brake
Continuous Duty Cycle
Brake Suffix 2163 W/O Resistor
110.6 OHM
Was 9-847-1 & 9-1964-2
4 to 5 weeks to ship
Dated 5/18
(34LBS)		 - 0 $5,903.82
41 CUT-9-872-18 Cutler-Hammer Brake Coil
Part 9-872-18
987218
Old Part 9-847-2
Shunt Wound Brake Coil
For an 8 Inch GH505 DC Brake
Brake Part GH505AAA2164N
Brake Suffix 2160 2164
Ships in 5 to 7 Weeks
Dated Dated 05-2021
(34LBS)		 - 0 $7,026.21
42 CUT-9-875-12 Cutler-Hammer Coil
Shunt Wound Coil
Part CUT-9-875-12
For a 13 Inch 505 DC Brake
Suffix 2362 & 2363
2 Weeks to Ship
Old 9-865-5 6/16		 - 0 $7,442.17
43 CUT-9-875-7 Cutler Hammer Brake Coil 505 13”
Part 9-875-7
98757
Old Part 9-865-2
Shunt Wound Coil
For a 13 Inch GH505 DC Brake
Brake Coil Suffix 2364
Coil OHMS Cold 29.1
Ships in 5 to 7 Weeks
Dated 03-2021		 - 0 $9,185.24
44 CUT-9-885-24 Cutler-Hammer 19" BRAKE COIL, P/N: 9-885-24
Lead Time: Negotiated promise date
Product Code: CT7430
UPC: 782113 50137		 - 0 $16,234.97
45 CUT-9-886-4 Cutler-Hammer Brake Coil GH505 23"
Part 9-886-4
98864
Series Wound Coil
For a 23 Inch GH505FAA1603N
Brake Coil Designation 1603
Ships in 10 Weeks
Dated 01-2024		 - 0 Call   Call
46 CUT-9-888-1 Cutler-Hammer Brake Coil
Part 9-888-1
Old Part 9-867-1
Shunt Wound Brake Coil
For a 19 Inch Cutler Hammer GH505 DC Brake
Brake Suffix 2562
Ships in 6 to 8 Weeks
Dated 02-2022		 - 0 $15,866.92
47 CUT-9-890-1 Cutler-Hammer DC Brake Coil
Part 9-890-1
Old Part 9-886-2
Shunt Wound Brake Coil
For a 16 Inch GH505 DC Brake
Item 16, 1 per brake
Brake Suffix 2464
Ships in 40 Days
Dated 06-2022		 - 0 $15,304.19
48 CUT-73-1017 Cutler-Hammer Rubber Guard
Part CUT-73-1017
For an 8 Inch GH505 DC Brake
Keeps crap from getting into coil gap
Item #12, 1 per brake
Dated 1/18		 - 6 $91.57
49 CUT-73-1017-5 Cutler-Hammer Rubber Guard over the Coil on a GH505 19 Inch Brake Assembly. Item 11. Qty. 1, 1 required per brake. - 0 $144.16
50 CUT-79-15572-3 Cutler-Hammer Brake Part GH505 16 Inch
Part 79-15572-3
aka 79155723
Angle Bracket
Frame to Coil
Cutler-Hammer Angle Bracket GH505 16 Inch
Angle Bracket
Frame to Coil
For a 16 Inch 505 DC Brake
Item 18, 2 per brake, sold each
C-H Brake Publication 17226 & 112397
Normally a Stock Item, NC
Dated 11-19
(1LB) H 4" L 5" W 4" Box		 3 $127.65
51 CUT-79-15572-4 Cutler-Hammer Bracket
Part 79-15572-4
aka 99-2059-2
Frame to Coil Bracket
For a 19 Inch GH505 DC Brake
Item 18, 2 per brake
Dated 12/18		 - 0 $97.01
52 CUT-ME-220G Cutler-Hammer Contact. Auxiliary Contact for DC Brake. 110 VDC Coil, 2 Pole Type MME Contactor 2/13 - 0 $390.96
53 CUT-10370H246 Cutler-Hammer Solenoid Assembly 6/7 0 $996.36
54 CUT-10370H357 Cutler-Hammer Solenoid
General Purpose Push Pull Solenoid
With a 220 Volt Coil
Size "D"
7 to 10 Days to Ship
Dated 5/17		 0 $1,250.48
55 CUT-10370H358 Cutler-Hammer Coil
Part 10370H358
Ships in 4 to 6 Weeks, PR
Dated 8/19		 0 $1,394.12
56 CUT-10370H368 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H368
Voltage Rating - 110A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 18A/Sealed 1.58A
Mounting - Floor mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Special Features - With conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23622		 0 $1,334.85
57 CUT-10370H369 Cutler- Hammer Coil 8/11 0 $1,334.85
58 CUT-10370H370 Cutler-Hammer Solenoid
Part 10370H370
Continuous Duty AC Solenoid
Voltage Rating 440 Volt AC
Frequency Rating 60 Hz
Full Load Current Range - Inrush 4.4 AMP /Sealed ..40A
Floor Mount
Magnetic Force Against Gravity
11.15 LBS at 100% Voltage
8.75 LBS at 85% Voltage
Operation - Pull type
Magnetic Force Horizontal
12.4 LBS at 100% Voltage
10 LBS at 85% Voltage
Size - D
Magnetic Force With Gravity
13.65 LBS at 100% Voltage
11.25 LBS at 85% Voltage
With Conduit Box
Product Code: AO10
[UPC 782113 23624]
ships in 4 to 8 Weeks, Puerto Rico
Dated 6/18		 0 $1,417.21
59 CUT-10370H380 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H380
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 18A/Sealed 1.58A
Mounting - Floor mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 23625		 0 $1,334.85
60 CUT-10370H382 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H382
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 4.4A/Sealed ..40A
Mounting - Floor mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 28568		 0 $1,334.85
61 CUT-10370H392 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H392
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 18A/Sealed 1.58A
Mounting - Floor mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Special Features - With conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 23626		 0 $1,455.38
62 CUT-10370H393 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H393
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 9.3A/Sealed .81A
Mounting - Floor mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23627		 0 $1,455.38
63 CUT-10370H518 Cutler-Hammer Solenoid
General Purpose Solenoid
Part 10370H518
Lead Time: 2 to 3 Working Days
Product Code: AO10
UPC: 782113 46552		 0 $1,372.01
64 CUT-10370H57 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H57
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Floor mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23606		 0 $898.94
65 CUT-10370H58 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H58
Voltage Rating - 220V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Floor mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23607		 0 $898.94
66 CUT-10370H586 Cutler-Hammer Solenoid
General Purpose Solenoid
Part 10370H586
Product Code: AO10
[UPC 782113 28571]
Dated 10/17		 0 $1,682.37
67 CUT-10370H588 Cutler-Hammer Solenoid
Part 10370H588
General Purpose Solenoid
Product Code A010
Ships in 6 to 8 Weeks
Dated 05-2023		 0 $2,658.13
68 CUT-10370H59 Cutler-Hammer Solenoid & Coil
Part CUT-10370H59
Continuous Duty AC Solenoid
440 Volt AC 60 Hz
Full Load Current Range
Inrush 5.4 AMP
Sealed 0.87 AMP
Floor Mount
Magnetic Force Against Gravity
3.9 LBS at 100% voltage
2.7 LBS at 85% voltage
Pull type
Magnetic Force Horizontal
4.2 LBS at 100% voltage
3.0 LBS at 85% voltage
Size - B
Magnetic Force With Gravity
4.5 LBS at 100% voltage
3.3 LBS at 85% voltage
Without Conduit Box
Product Code: AO10
(UPC782113 23608)
Dated 12/17		 0 $954.18
69 CUT-10370H610 Cutler-Hammer Solenoid
Part 10370H610
Continuous Duty AC Solenoid
Voltage Rating - 110A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush .92A/Sealed .17A
Mounting - Wall mount
Magnetic Force Against Gravity - 0.55 lbs at 100% voltage, 0.33 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 0.72 lbs at 100% voltage, 0.50 lbs at 85% voltage
Size - A
Magnetic Force With Gravity - 0.90 lbs at 100% voltage, 0.68 lbs at 85% voltage
Special Features - With conduit box
Product Code: AO10
Ships in 6 Weeks
Dated 11-2022		 0 $1,225.16
70 CUT-10370H611 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H611
Voltage Rating - 220A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush .92A/Sealed .17A
Mounting - Wall mount
Magnetic Force Against Gravity - 0.55 lbs at 100% voltage, 0.33 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 0.72 lbs at 100% voltage, 0.50 lbs at 85% voltage
Size - A
Magnetic Force With Gravity - 0.90 lbs at 100% voltage, 0.68 lbs at 85% voltage
Special Features - With conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23636		 0 $715.13
71 CUT-10370H638 Cutler-Hammer GEN PURPOSE SOLENOID, P/N: 10370H638
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46560		 0 $1,429.26
72 CUT-10370H69 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H69
Voltage Rating - 110A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Floor mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Special Features - With conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 23609		 0 $996.36
73 CUT-10370H694 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H694
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Wall mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23637		 0 $898.94
74 CUT-10370H70 Cutler-Hammer Industrial Solenoid
Part 10370H70
Continuous Duty AC Solenoid
Voltage Rating - 220A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Floor mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Special Features - With conduit box
Lead Time: Negotiated promise date
Product Code: AO10
Ships in
Dated		 0 $996.36
75 CUT-10370H708 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H708
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Wall mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 23638		 0 $996.36
76 CUT-10370H71 Cutler-Hammer GEN PURPOSE SOLENOID, P/N: 10370H71
Lead Time: 4 to 10 working days
Product Code: AO10
UPC: 782113 46566		 0 $996.36
77 CUT-10370H711 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H711
Voltage Rating - 440V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Wall mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46568		 0 $996.36
78 CUT-10370H81 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H81
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.4A/Sealed .87A
Mounting - Floor mount
Magnetic Force Against Gravity - 3.9 lbs at 100% voltage, 2.7 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 4.2 lbs at 100% voltage, 3 lbs at 85% voltage
Size - B
Magnetic Force With Gravity - 4.5 lbs at 100% voltage, 3.3 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23611		 0 $996.36
79 CUT-10370H814 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H814
Voltage Rating - 220V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 18A/Sealed 1.58A
Mounting - Wall mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23640		 0 $1,213.32
80 CUT-10370H816 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H816
Voltage Rating - 440V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 9.3A/Sealed .81A
Mounting - Wall mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46577		 0 $1,213.32
81 CUT-10370H817 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H817
Voltage Rating - 440V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 4.4A/Sealed ..40A
Mounting - Wall mount
Magnetic Force Against Gravity - 11.15 lbs at 100% voltage, 8.75 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 12.4 lbs at 100% voltage, 10 lbs at 85% voltage
Size - D
Magnetic Force With Gravity - 13.65 lbs at 100% voltage, 11.25 lbs at 85% voltage
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46578		 0 $1,213.32
82 CUT-10370H886 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H886
Frequency Rating - 60 Hz
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 13569		 0 $898.94
83 CUT-10370H887 Cutler-Hammer GENERAL PURPOSE SOLENOID, P/N: 10370H887
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 43374		 0 $866.80
84 CUT-10370H93 Cutler-Hammer Solenoid
Part CUT-10370H93
Continuous Duty AC Solenoid
110 Volt
60 HZ
Full Load Current Range - Inrush 5.4 AMP /Sealed 0.87 AMP
Floor Mount
Magnetic Force Against Gravity - 3.9 LBS @ 100% voltage, 2.7 LBS @ 85% voltage
Push Type Operation
Magnetic Force Horizontal - 4.2 LBS @ 100% voltage, 3 LBS @ 85% voltage
Size B
Magnetic Force With Gravity - 4.5 LBS @ 100% Voltage, 3.3 LBS @ 85% Voltage
With Conduit Box
Product Code: AO10
[UPC 782113 23612]		 0 $1,126.94
85 CUT-10370H930 Cutler-Hammer Solenoid
Part CUT-10370H930
General Purpose Solenoid
Ships in 2 to 3 Days
Product Code AO10
[UPC 782113 46594]		 0 $1,213.32
86 CUT-1346-4 Cutler-Hammer Coil. DC Coil on a 4 Inch Series 511 Solenoid Brake - 0 $1,077.84
87 CUT-16-255 Cutler-Hammer Washer 511 4"
Part 16-255
16255
Insulated Coil Washer
For a 4 Inch 511 Solenoid Brake
2 per brake, sold each
Normally a Stock Item @ BPI
Ships from Stock to 2 Weeks
Dated 11-2021
(1LB) H 4" L 5" W 4" Box		 - 0 $9.87
88 CUT-24-3226-14 Cutler-Hammer Brake Part GH505
Inner Shoe Lever, next to coil
For a 13 Inch GH505 DC Brake
Item X, 1 per brake
Includes Items 6 & 7 Wedge Adj Screw Assembly
C-H Publication 17225
Part CUT-24-3226-14
Ships in 3 to 4 Weeks
(XXLB)
Dated 4/18		 - 0 $3,022.66
89 CUT-24-3320-8 Cutler-Hammer Shoe Lever GH505 8"
Part 24-3320-8
Old Part 24-3320-6
Inner - Nearest Coil
For an 8 Inch GH505 DC Brake
Item 22
1 per brake
Ships in 30 Days
Dated 08-2020		 - 0 $2,363.61
90 CUT-69-253 Cutler-Hammer Spring
Part 69-253
Coil spring
For a 4 Inch 511H Solenoid Brake
Item 7, 2 per Brake
C-H Publication 9069
NSN 5340-00-468-2257 Gov #
Ships in
Dated 02-2022
(1LB)		 0 $44.05
91 CUT-69-276 Cutler-Hammer Spring
Coil Spring
For a 4 Inch Series 511 Brake
Item 26, 2 per brake, sold each 12/16
[NSN 5360-00-569-1072]		 - 0 $23.50
92 CUT-88-1342-11 Cutler-Hammer Solenoid Assembly 511 7"
Part 88-1342-11KIT
88134211
For a 7 Inch 511 Type "S" Brake
Includes Solenoid, Plunger, Coil Spring, Coil Washer & Guides
Does NOT include the Electric Coil
Normally a Stock Item @ BPI
Ships from Stock to 4 Weeks
Dated 02-2024
(6LBS)		 - 0 $1,931.75
93 CUT-88-1553-8 Cutler-Hammer Solenoid Assembly 511 4"
Part 88-1553-8
For a 4 Inch Series 511 Type "S" Brake
Item 28, 1 per brake
Includes items:
Item 1 Plunger 51-97-4
Item 21 Solenoid Frame 17-488
Item 23 Coil Washer 16-255 X 2
Item 26 Coil Spring 69-276 X 2
Item 27 54-300 Plunger Guides X 2
C-H Publication 19320
aka 88-3015-4 & 88-1584
Normally a Stock Item
Ships from Stock to 6 Weeks
Dated 01-2023
(6LBS) H 4" L 8" W 4" Box		 - 0 $1,878.45
94 CUT-88-1584 Cutler-Hammer Solenoid Assembly 511 4"
Part 88-1584
OBSOLETE PART
SEE 88-1553-8
Solenoid Assembly
For a 4 Inch 511 Type "S" Solenoid Operated Brake
Includes Solenoid,
plunger - Armature
Coil Spring 69-276
Coil Washer 16-255
& Coil Guides 54-300
Does NOT include the electric coil
C-H Publication 11326		 - 0 $1,441.31
95 CUT-88-3015-4 Cutler-Hammer Solenoid Assembly 511 4"
Part 88-3015-4
8830154
Solenoid Assembly
For a 4 Inch Series 511 Type "S" Brake
Item 28, 1 per brake
Includes items:
Item 1 Plunger 51-97-4
Item 21 Solenoid Frame 17-488
Item 23 Coil Washer 16-255 X 2
Item 26 Coil Spring 69-276 X 2
Item 27 54-300 Plunger Guides X 2
C-H Publication 19320
aka 88-1553-8 & 88-1584
Ships in 10 to 11 Weeks
Dated 05-2024
(6LBS) H 4" L 8" W 4" Box		 0 $2,082.30
96 CUT-88-45-5 Cutler-Hammer Solenoid Assembly 511 4"
Part 88-45-5
88455
For a 4 Inch 511 Solenoid Brake
Includes Guides 54-273 but not the Plunger or Coil
Older Design Short Solenoid
Publication 12487
Ships in 4 to 6 Weeks
Dated 09-2023
(6LBS)		 - 0 $1,793.26
97 CUT-88-521-5 Cutler-Hammer Solenoid Assembly
Part 88-521-5
885215
DC Solenoid Assembly
For a 5 & 1/2 or 7 Inch Brake
Includes Guides & Plunger-Armature
Ships in 4 to 6 Weeks
Dated 01-2024
(12LBS) H 6" L 6" W 6" Box		 - 0 $3,723.46
98 CUT-88-593-9 Cutler-Hammer Solenoid Assembly
For a 4 Inch Bulletin 511 Type "S" Solenoid Brake
Item 26, 1 per brake
Includes items 1, 18, 21 & 23
Older Design, Shorter
Publication 12487		 - 0 $1.35
99 CUT-9-1346-3 Cutler-Hammer Coil Kit
Part 9-1346-3KIT
aka 9-1346-3 913463
120 Volt DC Brake Coil
For a 4 Inch 511 Type "S" Brake
New Style Brake
[Ships from Stock to 3 Weeks]
[Updated 1-19]		 1 $1,656.27
100 CUT-9-1346-4 Cutler-Hammer Coil
Part 9-1346-4
240 Volt DC Solenoid Brake Coil
For a Bulletin 511 Series "S" 4 Inch Diameter Brake
3, 10 & 25 FT LB
Coil Suffix -98
[Amazon] Dated 6/18
(2LBS) H 4" L 5" W 4" Box		 0 $1,441.31
101 CUT-9-1347-10 Cutler-Hammer Brake Coil DC 511 5.5 or 7 Inch
Part 9-1347-10
9134710
1347-10
120 Volt DC
For a 5.5 or 7 Inch 511 Type "S" Brake
7 Inch 50 or 75 FT LB
Ships in 14 to 16 Weeks
Dated 12-2023
(3LBS)		 - 0 $2,380.59
102 CUT-9-1347-11 Cutler-Hammer Brake Coil DC 511 5.5 or 7 Inch
Part 9-1347-11
aka 9134711 1347-11
1347-11
240 Volt DC
For a 5.5 or 7 Inch 511 Type "S" Brake
7 Inch 50 or 75 FT LB
Ships from Stock to 4 -6 Weeks
Dated 11-19		 - 0 $1,577.91
103 CUT-9-1347-12 Cutler-Hammer Brake Coil 511 7"
Part 9-1347-12
9134712
120 Volt DC Coil
For a Series 511 Type "S" Solenoid Brake
7 Inch Diameter
85 or 110 FT LBS
Ships from Stock to 8 Weeks
Dated 06-2022		 - 0 $2,213.26
104 CUT-9-1347-13 Cutler-Hammer Brake Coil DC 511 5.5 or 7 Inch
Part 9-1347-13
aka 9134713 1347-13
240 Volt DC Coil
For a Series 511 Type "S" Solenoid Brake
7 Inch @ 85 & 110 FT LB
Ships from Stock to 4-6 Weeks
Dated 11-19		 - 0 $1,654.24
105 CUT-9-2628-1 Cutler-Hammer Coil
Series Wound Coil on a 10 Inch 505 DC Brake
Suffix 1207 for a 804 Mill Motor
old 9-844-3
Item 17, 1 per brake		 - 0 $5,906.40
106 CUT-9-2628-2 Cutler-Hammer Coil
Part CUT-9-2628-2
Series Wound Coil on a 10 Inch 505 DC Brake
Suffix 1208 for a 606 Mill Motor
old 9-844-4
Item 17, 1 per brake
Dated 6/17		 - 0 $8,602.50
107 CUT-9-2628-3 Cutler-Hammer Coil
Series Wound Coil
For a 10 Inch GH505 DC Brake
Suffix 1210 for a 610 Mill Motor
old 9-844-2
Item 17, 1 per brake		 - 0 $5,906.40
108 CUT-9-580-1 Cutler-Hammer Coil 110 Volt 4 Inch
Solenoid Brake Coil for a Bulletin 511 Series "S" 4 Inch Diameter Brake
110 Volts, 60 Hz for a 10370 Solenoid 8/14
[NSN 5950-00-229-6030]		 1 $413.81
109 CUT-9-580-13 Cutler-Hammer Coil 208 Volt 4 Inch
Solenoid Brake Coil for a Bulletin 511 Series "S" 4 Inch Diameter Brake
208 Volts, 60 Hz for a 10370 Solenoid 8/14		 - 0 $413.81
110 CUT-9-580-2 Cutler-Hammer Brake Coil 511 4"
Part 9-580-2
220 Volt
For use with a 4 Inch 511 Series Solenoid Brake
For use with Solenoid 10370
C-H Publication 12487
NSN 5950-00-648-4971 Gov
(2LBS) H 4" L 5" W 4" Box		 0 $413.81
111 CUT-9-580-3 Cutler-Hammer Coil 240 Volt 4 Inch
Solenoid Brake Coil for a Bulletin 511 Series "S" 4 Inch Diameter Brake
240 Volts, 60 Hz for a 10370 Solenoid 7/13		 - 0 $413.81
112 CUT-9-580-4 Cutler-Hammer Coil 440 Volt 4 Inch
Part CUT-9-580-4
Brake Coil 4 Inch 440 Volt 60Hz
For a 4 Inch 511 Series Brake
For Solenoid 10370
A smaller older Solenoid
[NSN 5950-00-229-6164]
[Amazon] Dated 7/17
(2LBS) H 4" L 5" W 4" Box		 1 $413.81
113 CUT-9-580-5 Cutler-Hammer Brake Coil 511 4"
Part 9-580-5
95805
480 Volt
For use with a 4 Inch 511 Series Solenoid Brake
For use with Solenoid 10370
C-H Publication 10370
Ships from Stock to 4 Weeks
Dated 06-2022
(2LBS) H 4" L 5" W 4" Box		 - 0 $619.39
114 CUT-9-580-51 Cutler-Hammer Coil 240 Volt 4 Inch
Solenoid Brake Coil
For a Bulletin 511 Series "S"
4 Inch Diameter Brake
208 / 240 Volts 60 Hz
For a 10370 Solenoid 11/16		 - 0 $413.81
115 CUT-9-580-53 Cutler-Hammer Coil 120 Volt 4 Inch
Solenoid Brake Coil
For a Bulletin 511 Series "S" 4 Inch Diameter Brake
120 Volts, 60 Hz
For a 10370 Solenoid
11/16		 - 0 $413.81
116 CUT-9-580-6 Cutler-Hammer Coil. Solenoid Brake Coil for a Bulletin 511 Series "S" 4 Inch Diameter Brake. 550 Volts, 60 Hz for a 10370 Solenoid 8/14 - 0 $413.81
117 CUT-9-585-10 Cutler-Hammer Brake Coil 511 .5" 240 V
Part 9-585-10
958510
240 Volt 60 Hz
220 Volt 50 Hz
For a 5.5 Inch 511 Solenoid Brake
C-H Brake Coil Suffix -67, Size "D"
Normally a Stock Item @ BPI
Ships from Stock to 3 Weeks
Dated 06-2023
(3LBS)		 0 $1,143.58
118 CUT-9-585-11 Cutler-Hammer Coil
Part 9-585-11
Brake Coil
440 Volt 50Hz Coil
For a 7 Inch Series 511 Solenoid Brake
Dated 03-2023
Ships in 4 to 8 weeks, Puerto Rico
(2LBS) H 4" L 5" W 4"		 5 $1,113.56
119 CUT-9-585-13 Cutler-Hammer Brake Coil 511 5.5"
Part 9-585-13
aka 958513
440 Volt AC 60 Hz
For a 5 & 1/2 Inch 511 Solenoid Brake
For use with a 10370 Solenoid
Ships in 4 Weeks
Dated 5-2020		 - 0 $713.12
120 CUT-9-585-14 Cutler-Hammer Coil
Part 9-585-14
aka 958514
Solenoid Brake Coil
For a Bulletin 511 Series "S" 5 & 1/2 Inch
220 Volts AC, 60 Hz
For a 10370 Solenoid
Size "D"
Mfg Code C111025
Ships in
Dated
(2LBS) H 4" L 5" W 4" Box		 0 $713.12
121 CUT-9-585-17 Cutler-Hammer Brake Coil 511 5.5" 208 V
Part 9-585-17
958517
208 Volt 60 Hz
For a 5.5 Inch 511 Solenoid Brake
Solenoid 10370
Ships in 6 to 8 Weeks
Dated 03-2022
(2LBS) H 4" L 5" W 4" Box		 - 0 $997.88
122 CUT-9-585-18 Cutler-Hammer Brake Coil 440 Volt 5.5 Inch
Part 9-585-18
958518
For a 5.5 Inch 511 Solenoid Brake
440 Volts, 60 Hz
For a 10370 Solenoid
Ships in?
Dated 08-2023
(2LBS)		 - 0 $1,204.04
123 CUT-9-585-19 Cutler-Hammer Brake Coil
Part 9-585-19
aka 958519
For a 5 & 1/2 Inch 511 Series Solenoid Brake
550 Volt 60 Hz
Used with a Part 10370 Solenoid
Ships in 4 to 6 Weeks
Dated 5-2020
(2LBS)		 - 0 $879.85
124 CUT-9-585-2 Cutler-Hammer Coil 511 5.5" 240 Volt
Part 9-585-2
240 Volt 60 Hz
220 Volt 50 Hz
For a 5.5 Inch 511 Solenoid Brake
Ships from Stock to 4 Weeks
Dated 05-2021
(2LBS) H 4" L 5" W 4" Box		 2 $854.45
125 CUT-9-585-20 Cutler-Hammer Coil. Solenoid Brake Coil for a Bulletin 511 Series "S" 5 & 1/2 Inch Diameter Brake. 440 Volts, 60 Hz for a 10370 Solenoid (2LBS) 7/18 2 $745.26
126 CUT-9-585-33 Cutler-Hammer Brake Coil
Part 9-585-33
208 Volt
For a 5 & 1/2 Inch 511 S Solenoid Brake
Brake Suffix -45
Ships in
Dated 8-18
(2LBS) H 4" L 5" W 4" Box		 - 0 $745.26
127 CUT-9-585-4 Cutler-Hammer Brake Coil 5.5 480
Part 9-585-4
95854
Solenoid Brake Coil
For a 5.5 Inch 511 Series Brake
480 Volt AC 60 Hz
220 Volt AC 25 Hz
Used with Solenoid 10370
Normally a Stock Item
Dated 10-2021		 0 $1,062.55
128 CUT-9-585-5 Cutler-Hammer Brake Coil 511
Part 9-585-5
95855
Solenoid Brake Coil
440 Volt AC, 60 Hz
380 Volt AC, 50 Hz
For a 5.5 Inch 25 or 35 FT LB Brake
Used with Solenoid 88-2930-4
Or 7 Inch Brake 50 & 75 FT LB Brake
Used with Solenoid 88-1342-11
Brake Suffix -7
NSN 6110-00-420-7731 US Gov #
NSN 5950-00-229-6060 US Gov #
Ships from Stock to 8 to 10 Weeks
Dated 12-2023
(2LBS) H 4" L 5" W 4" Box		 - 0 $1,143.58
129 CUT-9-585-6 Cutler-Hammer Coil 550 Volt 50 Hz for a 4 Inch Brake
Part 9-585-6
Solenoid Brake Coil
For a 4 Inch 511 Series Brake
550 Volts 50 Hz
Dated 7/18
[NSN 5950-00-648-4746]
(2LBS) H 4" L 5" W 4"		 - 0 $745.26
130 CUT-9-585-9 Cutler-Hammer Brake Coil 120 Volt 5.5"
Part 9-585-9
95859
For a 5.5 & 7 Inch 511 Series Brake
120 Volts 60 Hz
110 Volts 50 Hz
Brake Suffix -39, -5 & -66
Normally a Stock Item @ BPI
Ships from Stock to 6 Weeks
Dated 08-2023		 - 1 $1,143.58
131 CUT-9-591-10KIT Cutler-Hammer Brake Coil 511 220 Volt 4"
Part 9-591-10KIT
aka 9-591-10 959110
220 Volt
For a 4 Inch 511 Solenoid Brake
Ships in 10 to 12 Weeks
Dated 12-2023
(2LBS) H 4" L 5" W 4" Box		 - 0 $999.25
132 CUT-9-591-11 Cutler-Hammer Brake Coil 511 4"
Part 9-591-11
aka 959111 591-11
Brake Coil
460 Volt AC 60 Hz
For a 4 Inch, Bulletin 511 Type "S" Solenoid Brake
Brake Coil Suffix 41
C-H Brake Publication 19320
Normally a Stock Item @ BPI
Ships from Stock to 6 Weeks
Dated 10-2023
(2LBS) H 4" L 5" W 4" Box		 0 $999.25
133 CUT-9-591-12 Cutler-Hammer Brake Coil 600 Volt 4 Inch
Part 9-591-12
aka 959112
For a 4 Inch, Bulletin 511 Type "S" Solenoid Operated Brake
600 Volt @ 60 Hz
550 Volt @ 50 Hz
Brake Suffix 58
Brake Suffix 9 & 71
Ships in 4 to 6 Weeks
Dated 03-2022
(2LBS) H 4" L 5" W 4" Box		 3 $871.94
134 CUT-9-591-5 Cutler-Hammer Brake Coil 511 4" Inch
Part 9-591-5
aka 95915
Brake Coil
For a 4 Inch 511 Type "S" Solenoid Brake
440 Volt, 60 Hz.
NSN 5950-00-229-6073 US Gov #
Ships in 6 to 8 Weeks
Dated 07-2022
Price increase 08-01-2022
(2LBS) H 4" L 5" W 4" Box		 3 $928.45
135 CUT-9-591-6 Cutler-Hammer Brake Coil 511 4" 550
Part 9-591-6
95916
For a 4 Inch 511 Solenoid Brake
550 Volts AC 60 Hz
Coil Suffix -
Ships in 4 Weeks
Dated 03-2022
(2LBS) H 4" L 5" W 4" Box		 - 0 $871.94
136 CUT-9-591-9 Cutler-Hammer Brake Coil
Part 9-591-9
95919
120 Volt AC 60 Hz
For a 4 Inch 511 Type "S" Solenoid 120 Volt
Dated 10-2020
Ships in 4 to 6 Weeks
(2LBS) H 4" L 5" W 4" Box		 0 $730.19
137 CUT-9-758-2 Cutler-Hammer OBSOLETE Coil for a S-10, 10 Inch Solenoid Brake. 240 Volt, 125 FT LB 8/14 - 0 $4,223.50
138 CUT-9-758-20 Cutler-Hammer Brake Coil 511 10" 480V
Part 9-758-20
For a 10 Inch Series 511, 10 Inch Solenoid Brake
480 Volt
160 FT LB
Dated OLD
(18LBS) H 6" L 7" W 6" Box		 0 $4,223.50
139 CUT-9-758-30 Cutler-Hammer Brake Coil
Part 9-758-30
Obsolete by OEM
For a 10 Inch 511 Type S Brake
240 Volt
160 FT LBS		 - 0 $3,838.32
140 CUT-9-758-4 Cutler Hammer Brake Coil 480 Volt 10"
Part 9-758-4
97584
For a 511 Series 10 Inch Solenoid Brake
480 Volt @ 125 FT LB
NOT for the 160 FT LB Brake
Use with Solenoid 17-17199
C-H Pub 17379
Ships from BPI Stock
(30LBS) H 6" L 10" W 6" Box		 1 $4,223.50
141 CUT-9-840-1 Cutler-Hammer Coil. 13 Inch Series 505 30 VDC - 0 $9,380.88
142 CUT-9-847-1 Cutler-Hammer Brake Coil GH505 8"
Part 9-847-1
aka 98471 9-1964-2
New Part 9-872-11
Shunt Wound Brake Coil
W/O Resistor 110.6 OHM
For an 8 Inch GH505 DC Brake
Brake Suffix 2163
Ships in 4 to 5 Weeks
Dated		 - 0 $5,903.82
143 CUT-9-847-2 Cutler-Hammer Brake Coil
Part 9-872-18
987218
Old Part 9-847-2
Shunt Wound Brake Coil
For an 8 Inch GH505 DC Brake
Brake Part GH505AAA2164N
Brake Suffix 2160 2164
Ships in 6 to 8 Weeks
Dated 05-2021
(34LBS)		 - 0 $7,026.21
144 CUT-9-864-2 Cutler-Hammer Coil
Part 9-864-2
New Part 9-871-7
Shunt Wound Brake Coil
For a 10 Inch 505 DC Brake
Brake Part GH505BAA2260N
Brake Suffix 2260 & 2264
44.6 OHMS
Dated 4/18
(23LBS)		 - 0 $6,576.76
145 CUT-9-867-1 Cutler-Hammer Brake Coil
Part 9-888-1
Old Part 9-867-1
Shunt Wound Brake Coil
For a 19 Inch Cutler Hammer GH505 DC Brake
Brake Suffix 2562
Ships in 6 to 8 Weeks
Dated 02-2022		 - 0 $15,866.92
146 CUT-9-871-1 Cutler-Hammer Brake Coil
Part 9-871-1
For a 10 Inch GH505 DC Brake
Old Part 9-864-6
Item 17, 1 per brake
Ships in 4 to 6 weeks
Dated 11/18		 - 0 $7,574.85
147 CUT-9-871-12 Cutler-Hammer Coil
Series Wound Brake Coil
For a 10 Inch GH505 DC Brake
aka old # 9-864-10
Item 17, 1 per brake
Ships in 8 to 10 Weeks
2/17		 - 0 $7,574.85
148 CUT-9-871-13 Cutler-Hammer Coil on a 10 Inch 505 DC Brake, old 9-864-12, item 17, 1 per brake - 0 $7,574.85
149 CUT-9-871-14 Cutler-Hammer Coil on a 10 Inch 505 DC Brake, old 9-864-11, item 17, 1 per brake - 0 $7,574.85
150 CUT-9-871-15 Cutler-Hammer Brake Coil
Part 9-871-15
For a 10 Inch GH505 DC Brake
Old Part 9-864-13
Item 17, 1 per brake
Ships in 4 to 6 weeks
Dated 11/18		 - 0 $7,574.85
151 CUT-9-871-2 Cutler-Hammer Coil. Series Wound Coil on a 10 Inch 505 DC Brake, Suffix 1202, old 9-864-9, item 17, 1 per brake - 0 $6,576.76
152 CUT-9-871-3 Cutler-Hammer Coil. Series Wound Coil on a 10 Inch 505 DC Brake, Suffix 1203, old 9-864-8, item 17, 1 per brake - 0 $6,576.76
153 CUT-9-871-4 Cutler-Hammer Coil. Series Wound Coil on a 10 Inch 505 DC Brake, Suffix 1204 for a 603 & 802C Mill Motor, old 9-864-3, item 17, 1 per brake - 0 $6,576.76
154 CUT-9-871-5 Cutler-Hammer Coil. Series Wound Coil on a 10 Inch 505 DC Brake, Suffix 1205, old 9-864-4, item 17, 1 per brake - 0 $6,576.76
155 CUT-9-871-6 Cutler-Hammer Brake Coil GH505 10'
Part 9-871-6
98716
Series Wound Brake Coil
For a 10 Inch GH505 Brake
Has been used with 604 & 803 Mill Motors
Brake Suffix 1206
Dated 08-2023		 - 0 $11,006.41
156 CUT-9-871-7 Cutler-Hammer Coil 871
Part 9-871-7
Old Part 9-864-2
Shunt Wound Brake Coil
For a 10 Inch 505 DC Brake
Brake Part GH505BAA2260N
Brake Suffix 2260 & 2264
44.6 OHMS
Ships in 4 to 5 Weeks, SC
Dated
(23LBS)		 - 0 $6,576.76
157 CUT-9-871-8 Cutler-Hammer DC Brake Coil 10"
Part 9-871-8
98718
Old Part 9-864-1
Shunt Wound Coil
For a 10 Inch GH505 DC Brake
Suffix 2263
Item 17, 1 per brake
Ships in 40 to 60 Days, SC
Dated 04-2024
(21LBS)		 - 0 $12,106.28
158 CUT-9-871-9 Cutler-Hammer Coil on a 10 Inch 505 DC Brake, old 9-864-7, item 17, 1 per brake - 0 $6,576.76
159 CUT-9-872-1 Cutler-Hammer Coil
Part 9-872-1
Brake Coil
For an 8 Inch GH505 DC Brake
Brake Suffix
Old 9-847-7
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,563.11
160 CUT-9-872-10 Cutler-Hammer Coil
Part 9-872-10
Series Wound Brake Coil
For an 8 Inch Gh505 DC Brake
Brake Part GH505AAA1102N
Brake Suffix 1102
Old 9-847-8
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
161 CUT-9-872-12 Cutler-Hammer Coil
Part 9-872-12
Brake Coil
For an 8 Inch GH505 DC Brake
Brake Suffix 1111
Old 9-847-3
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
162 CUT-9-872-13 Cutler-Hammer Coil
Part 9-872-13
Series Wound Brake Coil
For an 8 Inch Gh505 DC Brake
Brake Part GH505AAA1113N
Brake Suffix 1113
Old 9-847-12
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
163 CUT-9-872-14 Cutler-Hammer Coil
Part 9-872-14
For an 8 Inch GH505 DC Brake
Old 9-847-14
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
164 CUT-9-872-16 Cutler-Hammer Coil
Part 9-872-16
Brake Coil
For an 8 Inch GH505 DC Brake
Brake Suffix
Old 9-847-6
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
165 CUT-9-872-21 Cutler-Hammer Coil
Part 9-872-21
Brake Coil
For an 8 Inch GH505 DC Brake
Brake Suffix
Old 9-847-13
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
166 CUT-9-872-22 Cutler-Hammer Coil
Part 9-872-22
Brake Coil
For an 8 Inch GH505 DC Brake
Brake Suffix
Old 9-847-14
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
167 CUT-9-872-3 Cutler-Hammer Coil
Part 9-872-3
Series Wound Brake Coil
For an 8 Inch Gh505 DC Brake
Brake Part GH505AAA1107N
Brake Suffix 1107
Old 9-847-10
4 to 5 weeks to ship
(34LBS)		 - 0 $5,903.82
168 CUT-9-872-4 Cutler-Hammer Brake Coil
Part 9-872-4
98724
aka Old 9-847-4
Series Wound Brake Coil
For a 8 Inch GH505 DC Brake
Brake Part GH505BAA1204N
Brake Suffix 1108 & 1204
aka Old 9-847-4
5 to 7 Weeks to ship
Dated 06-2021
(34LBS)		 - 0 $7,026.21
169 CUT-9-872-5 Cutler-Hammer Coil
Part 9-872-5
Series Wound Brake Coil
For an 8 Inch GH505 DC Brake
Brake Part GH505AAA1109N
Brake Suffix 1109
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
170 CUT-9-872-7 Cutler-Hammer Coil
Part 9-872-7
Series Wound Brake Coil
For an 8 Inch GH505 DC Brake
Brake Suffix 1111
Old 9-847-5
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
171 CUT-9-872-8 Cutler-Hammer Coil
Part 9-872-8
Series Wound Brake Coil
For an 8 Inch Gh505 DC Brake
Brake Part GH505AAA1112N
Brake Suffix 1112
Old 9-847-9
4 to 5 weeks to ship
Dated
(34LBS)		 - 0 $5,903.82
172 CUT-9-875-1 Cutler-Hammer Coil. Series Wound Coil on a 13 Inch 505 DC Brake. Suffix 1308. Old 9-865-8 - 0 $11,098.62
173 CUT-9-875-14 Cutler-Hammer Coil on a 13 Inch 505 DC Brake, old 9-865-17 - 0 $11,098.62
174 CUT-9-875-16 Cutler-Hammer Brake Coil
Part 9-875-16
987516
Old Part 9-865-14
For a 13 Inch GH505 DC Brake
Ships in
Dated 04-2022		 - 0 $10,276.50
175 CUT-9-875-19 Cutler-Hammer Coil on a 13 Inch 505 DC Brake, old 9-865-16 - 0 $11,098.62
176 CUT-9-875-2 Cutler Hammer Coil. Series Wound Coil on a 13 Inch 505 DC Brake. Suffix 1309. Old 9-865-8 8/14 - 0 $11,098.62
177 CUT-9-875-4 Cutler-Hammer Coil on a 13 Inch 505 DC Brake, old 9-865-9 - 0 $11,098.62
178 CUT-9-875-8 Cutler-Hammer Coil. Shunt Wound Coil on a 13 Inch 505 DC Brake. Suffix 1307. Old 9-875-8 8/14 - 0 $11,098.62
179 CUT-9-875-9 Cutler-Hammer Coil on a 13 Inch 505 DC Brake, old 9-865-14
[NSN 5305-00-626-6727]		 - 0 $11,098.62
180 CUT-9-883-1 Cutler-Hammer Coil
Series Wound Coil for a 13 Inch 505 DC Brake
Suffix 1303
Old Part 9-840-7 11/15		 - 0 $11,257.55
181 CUT-9-883-10 Cutler Hammer Brake Coil DC
Part 9-883-10
Old Part 9-840-3
Series Wound Brake Coil
For a 13 Inch, Series 505 DC Brake
Like GH505CAA1302N
Brake Suffix 1302
Full Load Rating 92-149 AMPS
Ships in 6 to 8 Weeks
Dated 01-2022		 - 0 $16,195.73
182 CUT-9-883-2 Cutler Hammer Brake Coil
Part 9-883-2
aka 98832
Old Part # old 9-840-5
Series Wound Brake Coil
For a 13 Inch GH505 DC Brake
Brake Suffix 1304
Used with an 806 Mill Motor
Ships in 6 to 8 Weeks
Dated 1-20		 - 0 $12,348.39
183 CUT-9-883-3 Cutler-Hammer Coil CUT-9-883-3
Shunt Wound Coil
For a GH505 19 Inch Brake 11/15		 - 0 $9,382.50
184 CUT-9-883-4 Cutler-Hammer Brake Coil GH505 13"
Part 9-883-4
98834
Old Part 9-840-6
Series Wound Brake Coil
For a 13 Inch 505 DC Brake
Brake Suffix 1305
Ships in 6 Weeks
Dated 08-2014		 - 0 $11,098.62
185 CUT-9-883-6 Cutler-Hammer Brake Coil GH505 13"
Part 9-883-6
98836
Old Part 9-840-2
Series Wound Brake Coil
For a 13 Inch 505 DC Brake
Brake Suffix 1305
Ships in 6 Weeks
Dated 08-2014		 - 0 $11,098.62
186 CUT-9-883-7 Cutler-Hammer Brake Coil GH505 13"
Part 9-883-7
98837
Old Part 9-840-4
Series Wound Brake Coil
For a 13 Inch 505 DC Brake
Brake Suffix 1301
Ships in 6 Weeks
Dated 08-2014		 - 0 $11,098.62
187 CUT-9-884-1 Cutler-Hammer Brake Part GH505 16
Part 9-884-1
Series Wound Brake Coil
For a GH505 16 Inch DC Brake
16 Inch Brake Part Suffix 1402
Old Coil Part 9-827-1 & 9-1971-1
Has been used with 620 & 808 Mill Motors
1/2 Hour 148 Minimum - 244 Maximum
1 Hour 120 Minimum - 193 Maximum
Item 16, 1 per brake
C-H Publication 17226
Dated 5/18		 - 0 $14,579.17
188 CUT-9-885-16 Cutler-Hammer Coil. Series Wound Coil for a GH505EAA1505N, 19 Inch DC Brake 8/14 - 0 $16,231.35
189 CUT-9-885-17 Cutler-Hammer Coil. Series Brake Coil. Suffix 1505 8/14 - 0 $16,231.35
190 CUT-9-885-27 Cutler-Hammer Brake Coil
Part 9-885-27
Series Wound Brake Coil
For a 19 Inch GH505 DC Brake
Brake Suffix 1507
aka Old # 9-841-5
Ships in 3 to 4 weeks
Dated 6/18		 - 0 $18,256.04
191 CUT-9-885-8 Cutler-Hammer Brake Coil
Part 9-885-8
Series Wound Brake Coil
For a 19 Inch GH505 DC Brake
Suffix 1508
Used with 616 / 814 Mill Motors
aka old 9-841-12
Ships in
Dated 8/18		 - 0 $18,256.04
192 CUT-9-886-1 Cutler-Hammer Coil. 23 Inch DC Brake Coil
For a GH505 DC Brake
Coil Suffix 1602
AMP Range 1/2 Hour 459 to 618
AMP Range 1 Hour 366 to 503
(240LBS)
2/16		 - 0 $19,171.19
193 CUT-9-886-5 Cutler-Hammer Coil
Part CUT-9-886-5
Series Wound Coil
For a 23 Inch GH505 DC Brake
Brake Suffix 1604
aka CUT-9-845-1
Old Part CUT-9-1960-1
Dated 7/17		 - 0 $19,747.59
194 CUT-9-886-8 Cutler-Hammer Brake Coil DC GH505 23"
Part 9-886-8
aka Old # 9-845-2
Series Wound
For a GH505FAA1605N 23 Inch DC Brake
Ships in 4 to 6 Weeks
Dated 4-19		 - 0 $19,551.46
195 CUT-9-888-3 Cutler-Hammer Coil
Shunt Wound Coil
For a 19 Inch GH505 DC Brake
Brake Suffix 2560 2564
8/14		 - 0 $10,311.17
196 CUT-9-889-1 Cutler-Hammer Brake Coil 23"
Part 9-889-1
Shunt Wound Coil
For a 23 Inch Series 505 DC Brake
GH5052660N
Coil Suffix 2664
Ships in 8 to 10 Weeks, SC
Dated 11-2022		 - 0 $21,580.33
197 CUT-9-889-5 Cutler-Hammer Brake Coil DC
Part 9-889-5
Shunt Wound Brake Coil
For a 23 Inch GH505 DC Brake
Brake suffix 2662
aka Old part 9-868-1
90 OHM
Dated 8/16		 - 0 $12,415.98
198 CUT-9-890-2 Cutler-Hammer Coil
Part 9-890-2
98902
Old Part 9-886-1
Shunt Wound Brake Coil
For a 16 Inch GH505 DC Brake
Brake Suffix 2463
Ships in 22 Weeks, SC
Dated 09-2024		 - 0 $15,665.89
199 CUT-9-941-17 Cutler-Hammer Brake Coil 511 7"
Part 9-941-17
994117
Brake Coil
For a 7 Inch Series 511 Type "S" Solenoid Brake
50 FT LB & 75 FT LB
440 Volt 50 Hz
Size "D" Mfg Code C010724
Used with Solenoid 88-1342-11
NSN 5950-00-681-6213 Gov #
Ships from Stock to 10 to 12 Weeks
Dated 06-2023
(4LBS) H 4" L 6" W 4" Box		 4 $1,319.03
200 CUT-9-941-19 Cutler-Hammer Brake Coil 220 7"
Part 9-941-19
aka 994119
220 Volt 60 Hz
For a 7 Inch 511H Solenoid Brake
Ships in 4 to 6 Weeks
Dated 2-2020		 0 $1,030.10
201 CUT-9-941-20 Cutler-Hammer Coil Kit 511 7" 120 Volt
Part 9-941-20
994120
Brake Coil
120 Volt AC 60 Hz
For a 7 Inch 511 Series, Solenoid Brake
Brake Suffix 39 & B
50 & 75 LB LBS Torque
1.48 OHMS
Ships in 6 Weeks
Dated 11-2023
(2LBS) H 4" L 5" W 4" Box		 0 $1,393.84
202 CUT-9-941-3 Cutler-Hammer Coil for a 7 Inch, Bulletin 511 Type "S" Solenoid Operated Brake, 440 Volt, 50 Hz, 85 & 110 LB Torque, Coil Suffix -8 7/13
(2LBS) H 4.00" L 5.00" W 4.00"
[Amazon]		 3 $964.22
203 CUT-9-941-35 Cutler-Hammer Brake Coil 511 7" 208V
Part 9-941-35
994135
208 Volts AC 60Hz
For a 7 Inch 511H Solenoid Brake
50 & 75 FT LB Only
Ships in 4 to 6 Weeks
Dated 10-2020		 0 $1,012.44
204 CUT-9-941-4 Cutler-Hammer Brake Coil
Part 9-941-4
For a 7 Inch 511 Series Type "S" Solenoid Brake
240 Volt AC
85 / 110 FT LB
Brake Suffix 40
Size "D"
Ships from Stock to 3 Weeks
Dated 8-19
(1LB) H 4" L 5" W 4" Box		 1 $964.22
205 CUT-9-941-51 Cutler-Hammer Brake Part 511 7 Inch
Part 9-941-51
Brake Coil
120 / 100 Volt AC 60 Hz
For a 7 Inch 511 AC Brake
Dated 8/14
(2LBS) H 4" L 5" W 4" Box		 0 $964.22
206 CUT-9-941-54 Cutler-Hammer Coil 208 Volts @ 60 Hz for a 7 Inch Solenoid Brake series 511 7/13 - 0 $964.22
207 CUT-9-941-6 Cutler-Hammer Coil Kit
Part 9-941-6KIT
aka 9416 941-6
Brake Coil
460 Volt AC 60 Hz
85 FT LB Continuous - 110 FT LB Intermittent
NOT 50 - 75 FT LB
For a 7 Inch, 511 Solenoid Brake
Brake Suffix -41
C-H Publication 15475
Size "D", Mfg.Code C011010
Ships from Stock to 8 Weeks
Dated 07-2023
(3LBS) H 4" L 5" W 4" Box		 0 $1,263.15
208 CUT-9-941-7 Cutler-Hammer Brake Part 511
Coil 220 Volt AC
For a Series 511 Solenoid Brake
220 Volt AC, 50 FT LB
[Amazon] 7/13
(2LBS) H 4" L 5" W 4" Box		 0 $1,090.09
209 CUT-9-941-8 Cutler-Hammer Coil
Part 9-941-8
Brake Coil
120 Volt, 60 Hz Coil
For a 7 Inch 511 Solenoid Brake
85 & 110 FT LBS
Dated 7/13
(2LB) H 4" L 5" W 4" Box		 - 0 $964.22
210 CUT-99-673-9 Cutler-Hammer Seal Kit
For a GH506 16 Inch DC Brake
1/11		 - 11 $660.18
211 CUT-B106-194941 Cutler-Hammer Clark Coil B106-194941 16 Inch Series Wound Coil 8/9 - 0 $2,678.40
212 CUT-10370H13 Cutler-Hammer Part 10/14 0 $715.13
213 CUT-9-3242-1 Cutler-Hammer Magnet Coil
Part 9-3242-1
Used with C30 Lighting Contactor
Coil Voltage - 115-120 Volt 60Hz
110 Volt 50Hz
Product Code AB79A
Ships in 10 Days, SC
Dated 03-2023
(2LBS)		 1 $350.85
214 CUT-9-3242-2 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-2
Coil Voltage - 230-240V 60 Hz/220V 50Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 240V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13609		 0 $186.82
215 CUT-9-3242-3 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-3
Coil Voltage - 460-480V 60 Hz/440V 50 Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 460-480V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13610		 0 $186.82
216 CUT-9-3242-4 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-4
Coil Voltage - 575-600V 60 Hz/550V 50 Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 575-600V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13611		 0 $186.82
217 CUT-9-3242-5 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-5
Coil Voltage - 200-208V 60 Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 202-208V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13612		 0 $186.82
218 CUT-9-3242-6 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-6
Coil Voltage - 265-277V 60 Hz/240V 50 Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 277V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13613		 0 $186.82
219 CUT-9-3242-7 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-7
Coil Voltage - 24V 60 Hz/20V 50 Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 24V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13614		 0 $186.82
220 CUT-9-3242-9 Cutler-Hammer C30 Renewal Part, P/N: 9-3242-9
Coil Voltage - 347V 60 Hz
Series - C30
Special Features - Used with C30 Lighting Contactor
Type - Magnet coil
Used With - Used with C30 Lighting Contactor
Voltage Rating - 347V
Lead Time: Stock
Product Code: AB79A
UPC: 782116 13616		 0 $186.82
221 CUT-49-7899KIT Cutler-Hammer Definite Purpose Contactor Accessory- Finger Proof Shield, P/N: 49-7899KIT
Used With - Definite Purpose Contactor (15-360A 50 mm)
Lead Time: 4 to 10 working days
Product Code: AK50K1
UPC: 786685 87507
(0.1LBS) H 1.66" L 1.94" W 0.7"		 - 0 $5.63
222 CUT-10370ED19-1 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370ED19-1
Type - General purpose
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 28564		 0 $616.70
223 CUT-10370ED19-2 Cutler-Hammer GEN PURPOSE SOLENOID, P/N: 10370ED19-2
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 32478		 0 $616.70
224 CUT-10370ED19-3 Cutler-Hammer GEN PURPOSE SOLENOID, P/N: 10370ED19-3
Lead Time: 4 to 10 working days
Product Code: AO10
UPC: 782113 68745		 0 $616.70
225 CUT-10370ED21-1 Cutler-Hammer GEN PURPOSE SOLENOID, P/N: 10370ED21-1
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 08352		 0 $1,213.32
226 CUT-10370H1 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H1
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 1.83A/Sealed 0.34A
Mounting - Wall mount
Magnetic Force Against Gravity - 0.55 lbs at 100% voltage, 0.33 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 0.72 lbs at 100% voltage, 0.50 lbs at 85% voltage
Size - A
Magnetic Force With Gravity - 0.90 lbs at 100% voltage, 0.68 lbs at 85% voltage
Lead Time: Stock
Product Code: AO10
UPC: 782113 20695		 0 $616.70
227 CUT-10370H2 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H2
Voltage Rating - 220V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush .92A/Sealed .17A
Mounting - Wall mount
Magnetic Force Against Gravity - 0.55 lbs at 100% voltage, 0.33 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 0.72 lbs at 100% voltage, 0.50 lbs at 85% voltage
Size - A
Magnetic Force With Gravity - 0.90 lbs at 100% voltage, 0.68 lbs at 85% voltage
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 20696		 0 $616.70
228 CUT-10370H244 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H244
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 10.4A/Sealed 1.07A
Mounting - Floor mount
Magnetic Force Against Gravity - 6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 8 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 23613		 0 $996.36
229 CUT-10370H245 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H245
Voltage Rating - 220V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.2A/Sealed .52A
Mounting - Floor mount
Magnetic Force Against Gravity - 6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 9 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23614		 0 $996.36
230 CUT-10370H25 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H25
Frequency Rating - 60 Hz
Full Load Current Range - Inrush .92A/Sealed .17A
Mounting - Wall mount
Magnetic Force Against Gravity - 0.55 lbs at 100% voltage, 0.33 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 0.72 lbs at 100% voltage, 0.50 lbs at 85% voltage
Size - A
Magnetic Force With Gravity - 0.90 lbs at 100% voltage, 0.68 lbs at 85% voltage
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23605		 0 $824.61
231 CUT-10370H256 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H256
Voltage Rating - 110A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 10.4A/Sealed 1.07A
Mounting - Floor mount
Magnetic Force Against Gravity - 6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 11 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - With conduit box
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 23615		 0 $1,126.94
232 CUT-10370H257 Cutler-Hammer Solenoid
Continuous Duty AC Solenoid
Part 10370H257
Voltage Rating - 220A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.2A/Sealed .52A
Mounting - Floor Mount
Magnetic Force Against Gravity
6 LBS at 100% Voltage
4.25 LBS at 85% Voltage
Operation - Pull type
Magnetic Force Horizontal
7 LBS at 100% Voltage
5.25 LBS at 85% Voltage
Size - C
Magnetic Force With Gravity - 12 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - With conduit box
Lead Time: 2 to 3 Working Days
Product Code: AO10
UPC: 782113 23616		 0 $1,126.94
233 CUT-10370H258 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H258
Voltage Rating - 440A
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 2.5A/Sealed .26A
Mounting - Floor mount
Magnetic Force Against Gravity - 6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 13 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - With conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 23617		 0 $1,126.94
234 CUT-10370H268 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H268
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 10.4A/Sealed 1.07A
Mounting - Floor mount
Magnetic Force Against Gravity - 6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 14 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - Without conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46530		 0 $1,126.94
235 CUT-10370H280 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H280
Voltage Rating - 110V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 10.4A/Sealed 1.07A
Mounting - Floor mount
Magnetic Force Against Gravity - 6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 15 lbs at 100% voltage, 6.25 lbs at 85% voltage
Special Features - With conduit box
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46532		 0 $1,242.44
236 CUT-10370H281 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H281
Frequency Rating - 60 Hz
Full Load Current Range - Inrush 5.2A/Sealed .52A
Mounting - Floor mount
Magnetic Force Against Gravity - 7 lbs at 100% voltage, 4.25 lbs at 85% voltage
Operation - Push type
Magnetic Force Horizontal - 7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Size - C
Magnetic Force With Gravity - 16 lbs at 100% voltage, 6.25 lbs at 85% voltage
Lead Time: 2 to 3 working days
Product Code: AO10
UPC: 782113 46533		 0 $1,242.44
237 CUT-10370H3 Cutler-Hammer Continuous Duty AC Solenoid, P/N: 10370H3
Voltage Rating - 440V
Frequency Rating - 60 Hz
Full Load Current Range - Inrush .45A/Sealed .08A
Mounting - Wall mount
Magnetic Force Against Gravity - 0.55 lbs at 100% voltage, 0.33 lbs at 85% voltage
Operation - Pull type
Magnetic Force Horizontal - 0.72 lbs at 100% voltage, 0.50 lbs at 85% voltage
Size - A
Magnetic Force With Gravity - 0.90 lbs at 100% voltage, 0.68 lbs at 85% voltage
Lead Time: Negotiated promise date
Product Code: AO10
UPC: 782113 20697		 0 $616.70
238 CUT-10370H356 Cutler-Hammer Solenoid Assembly
Part 10370H356
Continuous Duty AC Solenoid
Voltage 110 Volts 60 Hz
Full Load Current Range
Inrush 18 AMPS Sealed 1.58 AMPS
Floor Mount
Magnetic Force Against Gravity
11.15 LBS at 100% voltage, 8.75 LBS at 85% Voltage
Operation - Pull Type
Magnetic Force Horizontal
12.4 LBS at 100% voltage, 10 LBS at 85% Voltage
Size - D
Magnetic Force With Gravity
13.65 LBS at 100% voltage, 11.25 LBS at 85% voltage
Without Conduit Box
Ships in 2 to 4 Weeks
Dated 02-2023		 0 $1,881.26
239 CUT-9-875-15 Cutler-Hammer Coil
For a 13 Inch GH505 DC Brake
aka Old Part 9-865-12
8/16		 - 0 $7,442.17
240 CUT-9-875-17 Cutler-Hammer Coil
For a 13 Inch GH505 DC Brake
aka Old Part 9-865-12
8/16		 - 0 $7,442.17
241 CUT-9-875-18 Cutler-Hammer Coil
For a 13 Inch GH505 DC Brake
aka Old Part 9-865-13
8/16		 - 0 $7,442.17
242 CUT-9-884-10 Cutler-Hammer Coil
For a 16 Inch GH505 DC Brake
Brake Suffix 1401
Item 16 , 1 per brake
aka Old Part 9-827-2
8/16		 - 0 $13,739.39
243 CUT-9-884-11 Cutler-Hammer Coil
For a 16 Inch GH505 DC Brake
Brake Suffix 1400
Item 16, 1 per brake
aka Old Part 9-827-6
8/16		 - 0 $13,739.39
244 CUT-9-884-3 Cutler-Hammer Coil
For a 16 Inch GH505 DC Brake
Item 16, 1 per brake
aka Old Part 9-827-11
8/26		 - 0 $13,739.39
245 CUT-9-884-4 Cutler-Hammer Brake Coil
Part 9-884-4
For a 16 Inch GH505 DC Brake
Item 16, 1 per brake
aka Old Part 9-827-10
[NSN 5305-00-207-3257]
Dated 8/16		 - 0 $13,739.39
246 CUT-9-884-5 Cutler-Hammer Coil
For a 16 Inch GH505 DC Brake
Series
0.006 OHMS
(145LBS)		 - 0 $13,739.39
247 CUT-9-884-6 Cutler-Hammer Coil
Series Wound Coil
For a 16 Inch GH505 DC brake
Brake Suffix 1403
8/16		 - 0 $13,739.39
248 CUT-9-884-9 Cutler-Hammer Coil
For a 16 Inch GH505 DC Brake
Brake Suffix 1404
Item 16, 1 per brake
aka Old Part 9-827-7
8/26
[NSN 2520-01-200-4319]		 - 0 $13,739.39
Brake Shoes, Linings, Bolts and Pins, Series 511
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-13-431 Cutler-Hammer Pin
Brake Shoe Pin
OBSOLETE BY C-H & No Replacement
For a 4 Inch Series 511 Type "S" Solenoid Brake
Qty 4 per brake, sold each
Publication 11326
8/14		 - 0 $50.22
2 CUT-13-4762 Cutler-Hammer Groove Pin
Part 13-4762
134762
Groove Pin, Push Pin - Rivet
For attachment of Linings to Brake Shoes
NSN 5315-00-664-4699 Gov #
Normally a stock item @ BPI
Dated 02-2022
(1LB) H 4" L 5" W 4" Box		 30 $6.89
3 CUT-48-1200-3 Cutler-Hammer Brake Shoe Assembly 511 7"
Part 48-1200-3
4812003
Brake Shoe & Lining Assembly
For a 7 Inch Diameter 511 Solenoid Brake
Item 25, 2 per brake, sold each
Publication 15475
This is the Newer Style with Screwed Pins & Bonded Linings
Ships in 3 to 4 Weeks
Dated 10-2023
(6LBS) H 4" L 8" W 5" Box		 0 $3,344.73
4 CUT-48-1787 Cutler-Hammer Brake Shoe & Lining 511 5.5”
Part 48-1787
481787
For a 5 & 1/2 Inch 511 Solenoid Brake
Qty 1, 2 per brake, Item 24
Normally a Stock Item @ BPI
Ships from Stock to 5 Weeks
Dated 04-2022
(4LBS)		 2 $1,299.31
5 CUT-48-306 Cutler-Hammer Brake Shoe Assembly 511 4"
Part 48-306
Old Part 48-306-3
Brake Shoe & Lining Assembly
For a 4 Inch 511 Solenoid Brake
Item 16, 2 per brake, sold each
C-H Publication 19320, & 11326
Newer Style with removable top pin
NSN 5330-00-168-9924
NSN 4810-01-373-6911
Ships in 8 Weeks
Dated 12-2023		 - 0 $1,232.90
6 CUT-48-306-3 Cutler-Hammer Brake Shoe Assembly 511 4"
Part 48-306
Old Part 48-306-3
Brake Shoe & Lining Assembly
For a 4 Inch 511 Solenoid Brake
Item 16, 2 per brake, sold each
C-H Publication 19320, & 11326
Newer Style with removable top pin
NSN 5330-00-168-9924
NSN 4810-01-373-6911
Ships in 8 Weeks
Dated 02-2022		 - 0 $1,075.82
7 CUT-48-510 Cutler-Hammer Brake Shoe & Lining
Part 48-510
For a 4 Inch Type "S" Brake
Dated		 - 0 $682.99
8 CUT-48-510-3 Cutler-Hammer Brake Part 511 4
Part 48-510-3
OBSOLETE by OEM
See Part 113462
Brake Shoe & Lining
For 4 Inch Series 511 Brake
C-H Bulletin 9069 & 13864		 - 0 $361.71
9 CUT-48-80 Cutler-Hammer Lining 511 4"
Part 48-80
Old Part 48-80-02
For a 4 Inch 511 Type S Brake
Ships from Stock to 10 Days
Dated 05-2022
(1LB) H 6" L 6" W 6" Box		 0 $215.44
10 CUT-48-80-2 Cutler-Hammer Lining Kit
Part 48-80
Old Part 48-80-02
For a 4 Inch 511 Type S Brake
2 Linings & Push Pins
Material required for 2 brake Shoes
Ships from Stock to 10 Days
Dated 2-2020
(2LBS) H 6" L 6" W 6" Box		 - 3 $194.84
11 CUT-48-98-3 Cutler-Hammer OBSOLETE
Brake Shoe & Lining 5.5 Inch
For a Type "S" 5 & 1/2 Inch Solenoid Brake
Item 22, 2 per brake, sold each
Publication 10824 & 13840 Old Style with Welded Pins
(1LB) H 3" L 8" W 3" Box		 - 0 $410.40
12 CUT-49-1200-3 Cutler-Hammer Brake Shoe Assembly 511H 7"
Part 49-1200-3
For a 7 Inch 511 Series Type "S" Brake
New Style
Ships in
Dated		 - 0 $2,025.88
Brake Shoes, Linings, Bolts and Pins, Model GH505
No Part
Number		 Description Image Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 CUT-11-3045-3 Cutler-Hammer Self-Lock Screw for the Brake Shoe Clamp on a GH505 13 Inch Brake Assembly. Item 32. Qty. 1, 4 required per brake. 1/2 -13 X 2.00 Self Lock Screw - 0 $34.50
2 CUT-11-3046-3 Cutler-Hammer Self-Lock Screw GH505 19"
Part 11-3046-3
aka 1130463
For the Brake Shoe Clamp
On a GH505 19 Inch DC Brake
Item 33, 4 per Brake, sold each
C-H Publication 17226 & 17227
Ships in 10 to 14 Days
Dated 1-2020		 - 4 $43.70
3 CUT-48-1267-4 Cutler-Hammer Brake Shoe & Lining
Part 48-1267-4
4812674
For an 8 Inch GH505 DC Brake
Premium Bonded Non-Asbestos Lining Material
Sold each, 2 per brake
Ships from Stock to 3 Weeks
Normally a Stock Item @ BPI
Dated 04-2024
(3LBS)		 - 0 $2,101.73
4 CUT-48-1268-4 Cutler-Hammer Brake Shoe & Assembly GH505 10"
Part 48-1268-4
4812684
Old Part 48-1268
For a 10 Inch Diameter GH505-B DC Brake
Premium Bonded, Non Asbestos Linings
2 per brake, sold each
Publication 17224
Normally a Stock Item @ BPI
Ships from Stock to 22 Weeks
Dated 05-2023
(6LBS) H 5" L 8" W 5" Box		 2 $4,985.88
5 CUT-48-1463-3 Cutler-Hammer Brake Part GH505 10"
Part 48-1463-3
Shoe & Lining Assembly
For a 10 Inch Diameter GH505 DC Brake
Premium Non-Asbestos Lining Material
Sold each, 2 per brake
C-H Publication 17224
Dated 9/17		 - 0 $1,232.16
6 CUT-48-1817 Cutler-Hammer 30" BRAKE SHOE LINING, P/N: 48-1817
Lead Time: Negotiated promise date
Product Code: CT7430
UPC: 782113 61802		 - 0 $631.89
7 CUT-48-1818 Cutler-Hammer Lining Kit
Part 48-1818
Brake Shoe Lining Kit
For an 8 Inch GH505 DC Magnetic Brake
Item 30, 2 per brake, sold each
Does not include Groove Pins Part 13-4762
8 Pins required per lining
For fastened not bonded brake shoes
Ships in 7 days
Dated 10/18
(1LBS) H 4" L 10" W 4" Box		 - 0 $111.00
8 CUT-48-1818-2 Cutler-Hammer Brake Shoe Lining 10" GH505
Part 48-1818-2
Brake Shoe Lining
For an 10 Inch GH505 DC Magnetic Brake
Item 30, 2 per brake, sold each
Does NOT include Groove Pins 13-4762, Qty 8
For fastened not bonded brake shoes
Dated 11-2023
(1LB) H 4" L 8" W 4" Box		 - 0 $264.76
9 CUT-48-1818-4 Cutler-Hammer Brake Shoe & Lining Assembly 16"
Part 48-1818-4
4818184
For a 16 Inch 505 DC Brake
2 per brake, sold each
Bonded Non-Asbestos Material
Item 34
Dated 09-2022
(35LBS)		 - 0 $471.56
10 CUT-48-1971 Cutler-Hammer Brake Shoe Assembly 19"
Part 48-1971
481971
For a 19 Inch GH505 DC Brake
Aluminum Casting with a Bonded Non -Asbestos Lining
Riveted linings are no longer available
Item 34, 2 per brake sold each
C-H Publication 17227
Ships in 10 to 12 Weeks
Dated 08-2023		 - 0 $6,388.20
11 CUT-48-554-7 Cutler-Hammer Brake Shoe GH505 16"
Part 48-554-7
aka 485547
For a 16 Inch GH505 DC Brake
Item 34, 2 per brake, sold each
Premium Bonded Non-Asbestos Material
Ships in
Dated
(20LBS)		 - 0 $2,434.36
12 CUT-48-554-8 Cutler-Hammer Brake Shoe & Lining Assembly
Part 48-554-8
For a 16 Inch GH505 DC Brake
Item 34, 2 per brake, sold each
Non-Asbestos Material
Ships in 3 to 4 weeks
(20LBS) Dated 4/18		 - 0 $2,774.30
13 CUT-48-603-7 Cutler-Hammer Brake Shoe Assembly GH505 13
Part 48-603-7
486037
Brake Shoe Assembly
For a 13 Inch GH505 DC Brake
Premium Bonded Non-Asbestos Lining Material
Item 33, 2 per brake, sold each
For Brake Publication 17225
Ships from Stock to 12 Weeks
Dated 06-2023
(13LBS) H 6" L 10" W 8" Box		 - 0 $3,786.83
14 CUT-48-603-8 Cutler-Hammer Brake Part GH505 13
Part 48-603-8
Brake Shoe Assembly
For a 13 Inch GH505 DC Brake
Premium Bonded Non-Asbestos Lining Material
Item 33, 2 per brake, sold each
For Brake Publication 17225
Stock to 12 Weeks
Dated 07-2023
(13LBS) H 6" L 14" W 6" Box		 - 0 $3,786.83
15 CUT-48-611-4 Cutler-Hammer Brake Shoe Assembly GH505 19"
Part 48-611-4
486114
aka 48-1971
For a 19 Inch GH505 DC Brake
Sold each, 2 per brake
Premium Bonded Material
Ships in
Dated
(18LBS)		 - 2 $6,388.20
16 CUT-48-633-4AL Brake Part GH505 23 Inch
Part CUT-48-633-4AL
Brake Shoe & Lining Assembly
For a 23 Inch GH505 DC Brake
Item 35, 2 per brake, sold each
Premium Non-Asbestos Lining Material
Riveted Construction
Machined from Aluminum Castings
Bulletin 17228 & 11381
(32LBS)		 - 0 $1,563.58
17 CUT-55-1037 Cutler-Hammer Brake Shoe Clamp GH505
Part 55-1037
aka 551037
Brake Shoe Clamp
For a 8, 10 or 13 Inch GH505 DC Brake
4 per brake, sold each
Ships in 3 Weeks
Dated 09-2022
(1LB)		 - 0 $179.83
18 CUT-55-1079 Cutler-Hammer Brake Shoe Clamp GH505 16 & 19"
Part 55-1079
551079
Brake Shoe Clamp
For a GH505 16 or 19 Inch DC Brake
C-H Item 32, 4 per brake, sold each
Publications 17226 & 17227
Ships in 4 to 6 Weeks
Dated 01-2020		 - 0 $117.94
19 CUT-623-127 Cutler-Hammer Brake Shoe Assembly
For a 30 Inch Series 503 DC Brake
Aluminum Construction
Premium Non-Asbestos Lining		 - 6 $5,378.40
20 CUT-623-134 Cutler-Hammer Brake Part 503 10 Inch
OBSOLETE
Brake Shoe & Lining Assembly
For a 10 Inch 503 Type "M" Brake
Item 14, 2 per brake sold each
Part CUT-623-134
(6LBS) H 5" L 12" W 5" Box		 - 1 $820.80
Secure Online Order


 Secure Online Order

48,035 part numbers available for
online order

Shopping Cart
Empty
Checkout is secure

Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Product MSDS Information
Web Site Features

Part Number Lookup

 Enter at least three characters of a part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


 Search scope:
This web site only

Formal PDF Quotation

 To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

 Your shopping cart is kept intact and you can still check out at a later time.
About Brake Products, Inc.

About Brake Products, Inc.

 Brake Products, Inc. is more than an authorized distributor, we are real stocking distributor with inventory in excess of 2 million dollars. BPI has thousands of parts in our stock to protect your business with same day shipments till almost 7PM. With over 30 years of experience in the material handling business we are ready to assist you in making the right decisions for efficient motion control.

 Brake Products specializes in the machining of Brake Wheels for AC & DC Industrial Brakes. We utilized CAD designed & engineered products with CNC machined tools to produce the "Perfect Brake Wheel" these wheels are not limited in design by a previously designed castings for universal use. BPI is an OEM brake wheel manufacturer for Crane Brake Manufacturers. Though we machine all the brake wheel surfaces for balance both static & dynamic balancing to your specification is available.

 Please spend some time at our web site, an abundance of product information and CAD style PDF drawings are available to download & share. Pricing and a shopping cart for automated order entry can be done here. Please call with any questions. We would appreciate the opportunity to speak with you and provide a formal quotation.

Order Status Lookup by Invoice/Web Order Number


BPI Invoice/Web Order #

Invoice number is all-numeric, 5-7 digits, web order is alpha-numeric. Only recent invoices are available. Web orders may take a day or two to have an invoice created.


Ductile Iron Brake Wheels

Ductile Iron Brake Wheels

 We manufacture high-quality custom and standard brake wheels from 4-1/2" to 30" diameter, cast from the finest ASTM and ASME specified 80-60-03 Ductile Iron to provide maximum service and a high coefficient of friction. Machining is done on CNC equipment using solid dura bar or iron castings.

 Brake wheels for all types of electric and hydraulically actuated brakes. Many wheels available for same day shipment; both pilot bore and finished bored for the 600 and 800 series mill motors.

Replacement Brake Parts

Replacement Brake Parts

 Easily locate and purchase hard to find replacement parts for the following most popular brake assemblies:

   •  EC&M
  •  SQUARE-D
  •  WESTINGHOUSE
  •  CUTLER-HAMMER
  •  GEMCO
  •  MONDEL

 Brake assembly diagrams and selection tables, backed by our extensive replacement brake parts stock, makes it as easy as "1-2-3".

OEM Products


 Brake Products is proud to maintain excellent decades-long distrubutor relationships with industry-leading Original Equipment Manufacturers (OEM). We keep most popular items in stock to improve delivery times. These products are available to quote and purchase 24/7 on our e-commerce web sites, along with a multitude of installation and support information:

   •  Gemco (Ametek)
  •  Gleason Reel
  •  Aero-Motive
  •  Cutler-Hammer (Eaton)
  •  Hubbell
  •  SuperBolt
  •  Telemotive (Magnetek)
  •  Renold
  •  Stearns

 For online purchases, shipping is free within continental U.S.
Electrical Contactors Parts

Electrical Contactors Parts

 Easily locate and purchase hard to find replacement parts for the following most popular electrical contactors:

   •  Clark Control

 Contactors assembly diagrams and selection tables, backed by our extensive replacement contactors parts stock, makes it as easy as "1-2-3".


Non-Asbestos Overhead Crane Linings from Scan-Pac

Non-Asbestos Overhead Crane Linings From Scan-Pac

 The industrial marketplace has a variety of brake and clutch requirements for overhead cranes. Scan-Pac's technical and application expertise can recommend and furnish the proper material to meet the specific need your operation demands. Numerous specific parts have been molded or machined to meet the unique requirements of a special application. Let Scan-Pac solve those vexing problems in your day-to-day production.

 Scan-Pac's RF38 material has been accepted as a well proven material for these applications and has been in use for several decades.

Scan-Pac Products Available From Stock

Non-OEM Brake Replacement Parts


High quality, aftermarket, non-OEM, brake replacement parts


Non-OEM Brake Replacement Parts Available From Stock


Industrial Brakes and Brake Parts from Reuland

Industrial Brakes and Brake Parts from Reuland

 Reuland offers a wide variety of brakes for various applications. Popular MagnaStop brake is a solenoid activated, spring set type brake. The MagnaStop brake is available in standard and dust-tight/waterproof enclosures in standard AC voltages. Torque ratings available range from (1.5-20) lb. Ft. The brake can be ordered as a traditional C-face mount or as a "double C-face" design. The MagnaStop can also be ordered as foot mounted design.

 Reuland also offers a wide range of direct acting magnetic disc brakes. These brakes are also available as standard, dust-tight/waterproof, or marine duty enclosures. Torque ratings available vary from 1.5 to 1000 lb. Ft. Reuland brakes are defined as "fail safe". When power is applied to the brake, the brake releases the motor shaft. The load is then free to turn. When power is removed or lost, the brake grabs the motor shaft and stops the load. A brake release knob or flipper is provided to manually release the brake. Reuland offers both adjustable and non-adjustable designs. Reuland brakes are available in both single and three phase designs. Some brakes are available in DC power. Finally, Reuland offers it's "X" series brakes. These brakes are designed to mount to non-Reuland built motors.
Industrial Brakes and Brake Parts from Wagner

Industrial Brakes and Brake Parts from Wagner

 Our knowledge is second to none in regard to the old style Wagner brake. It may be worth knowing that Wagner Brake itself has not manufactured this style brake since 1981, yet we have never stopped supplying this brake to our large distributor network.

 When it comes to air brake parts, our company roots go way back. We have an extensive library of air brake catalogs which has supplied our customers well over the years. Our knowledge is based mostly on the Bendix (formerly Bendix-Westinghouse), Wagner Air Brake, and the Midland Air Brake line.


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
