Complete Price List

Brake Products   |  Cutler-Hammer   |  Eldro   |  Renold Ajax   |  Reuland   |  Scan-Pac   |  Superbolt   |  Wagner   |  Westinghouse

Renold Ajax
No. Part Number Description Image Price Stock Qty
1 REN-1 - 1/2 EXP KIT LMS Renold Ajax Flange Accessory Set
Part 1-1/2 EXP Kit LMS
Hardware for bolting ring gears together
Size 1-1/2 Labyrinth Metal Seal Gear Coupling
With Exposed Bolts
Dated
- 20.00 C/F
2 REN-1 - 1/2 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 1 - 1/2 "O" Ring Seal Gear Coupling with Exposed Bolts - 20.00 C/F
3 REN-1 - 1/2 SHR KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 1 - 1/2 Labyrinth Metal Seal Gear Coupling with Shrouded Bolts - 20.00 C/F
4 REN-1 - 1/2 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 1 - 1/2 "O" Ring Seal Gear Coupling with Shrouded Bolts - 20.00 C/F
5 REN-1 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 1 "O" Ring Seal Gear Coupling with Exposed Bolts - 20.00 C/F
6 REN-1 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 1 "O" Ring Seal Gear Coupling with Shrouded Bolts - 20.00 C/F
7 REN-10126 Renold Ajax Bushing. Steel Pan Arm Bushing on a Vibratory Conveyor 1/12 - 34.86 C/F
8 REN-10264 Renold Ajax Conveyor Part
Part REN-10264
Pan Arm with Bushings
For a Vibratory Conveyor
Arcelor 100144668
Dated 8/17
- 142.86 C/F
9 REN-1-1.5-S-PB Renold Ajax Pin & Bushing Coupling S
Part 1-1.5-S-PB
S Series, Forged Steel Coupling
Maximum Bore 1.62 Inches
Maximum RPM 3600
5.5 Inch Overall Diameter
2.5 Inch Hub Diameter
4.59 Overall Length
with Qty 8, Size 4.5 Studs & Urethane Bushings
(16LBS)
598.75 2
10 REN-119098 Pin
Base Pin
13-474
- 55.00 C/F
11 REN-1601-000-000 Renold Ajax Cement
REN-1601-000-000
Neoprene Bronze Bushing Cement
1/2 Pint Can
[Amazon]
(1LB) H 4" L 5" W 4" Box
31.43 1
12 REN-1601-0000-000 Renold Ajax Cement
REN-1601-000-000
Neoprene Bronze Bushing Cement
1/2 Pint Can
[Amazon]
(1LB) H 4" L 5" W 4" Box
- 31.42 C/F
13 REN-1605-0100-001 Renold Ajax Flange #1 S - Call C/F
14 REN-1665-0300-001 Renold Ajax #3 Bushing Urethane
Part 1665-0300-001
0.938 OD / 0.438 ID / 0.625 Inch Long Less the Flange
For obsolete "A" coupling 3/4"
For obsolete 400 coupling #412
Flange design, no cementing or bonding required
Temperature range -65 degree to 200 degree F
[Amazon] Dated 1/18
(1LB) H 4" L 5" W 4" Box
11.25 C/F
15 REN-1665-0400-001 Renold Ajax Bushing
Part 1665-0400-001
#4 Urethane Bushing
For PB Series Coupling 1
For S Series Coupling 1
For Obsolete Couplings 1A, 1-1/4A, 417 & 523
Flange design, no cementing or bonding required
Temperature range -65 to 200 Degree F
F = 1.125 Inch Barrel Diameter
G = 0.750 Inch Overall Length
E = 0.5625 Inch ID for Pin Diameter
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
12.50 39
16 REN-1665-0450-001 Renold Ajax Bushing
Part 1665-0450-001
#4-1/2 Urethane Bushing
For S Series Coupling 1-1/2 & 2
For Obsolete Coupling 422
Flange Design, no cementing or bonding required
Temperature range -65 to 200 Degree F
F = 1.250 Inch Barrel Diameter
G = 1.000 Inch Overall Length
E = 0.625 Inch ID for a 4.5 Pin Diameter
Used with Stud Part REN-Stud 4.5 Not Included
[Amazon] Dated 1/18
(1LB) H 4" L 5" W 4" Box
13.75 43
17 REN-1665-0500-001 Renold Ajax Bushing
Part 1665-0500-001
#5 Urethane Bushing
S Series Coupling 2-1/2
PB Series Coupling 1-1/2
Obsolete Couplings 1-3/8A, 1-1/2A, 1-3/4A & 427
Flange design, no cementing or bonding required
Temperature range -65 degree to 200 degree F
F = 1.375 Inch Barrel Diameter
G = 1.125 Inch Overall Length
E = 0.750 Inch ID for Pin Diameter
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
15.00 7
18 REN-1665-0600-001 Renold Ajax Bushing
Part 1665-0600-001
#6 Urethane Bushing
For PBS Series Coupling Size 2
For S Series Coupling Size 3
Obsolete Couplings 2A & 2-3/8A
Flange Design, no cementing or bonding required
Temperature range -65 to 200 Degree F
F= 1.625 Inch Barrel Diameter
G = 1.375 Inch Overall Length
E = 0.8125 Inch ID for Pin Diameter
[NSN 5365-01-355-2676]
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
20.00 C/F
19 REN-1665-0700-001 Renold Ajax Bushing
Part 1665-0700-001
#7 Urethane Bushing
For PBS Series Coupling 2-1/2, 3, 3-1/2
For S Series Coupling 3-1/2
Obsolete Couplings 2-3/4A & 3-1/8A
Flange Design, no cementing or bonding required
Temperature range -65 to 200 Degree F
[NSN 5365-01-355-2676]
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
23.75 30
20 REN-1665-0800-001 Renold Ajax Bushing
Part 1665-0500-001
#8 Urethane Bushing
S Series Coupling 4S
PB Series Coupling 4
Obsolete Couplings 3-5/8A, 4A, 4-1/2A, 5A, 5-1/2A & 427
Flange design, no cementing or bonding required
Temperature range -65 degree to 200 degree F
F = 2.000 Inch Barrel Diameter
G = 1.875 Inch Overall Length
E = 1.000 Inch ID for #8 Pin Diameter
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
26.25 20
21 REN-1665-0900-001 Renold Ajax Bushing
Part 1665-0900-001
#9 Urethane Bushing
For S Series Coupling 4 & 1/2
For Obsolete Couplings 6A
Flange design, no cementing or bonding required
Temperature range -65 degree to 200 degree F
F = 2.250 Inch Barrel Diameter
G = 2.375 Inch Overall Length
E = 1.125 Inch ID for Pin Diameter
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
36.25 C/F
22 REN-1665-1000-001 Renold Ajax Bushing
Part 1665-1000-001
#10 Urethane Bushing
For S Series Couplings Sizes 5 & 6
Obsolete Coupling Size 6-1/2A
Flange Design, no cementing or bonding required
Temperature Range -65 to 200 Degree F
F = 2.500 Inch Barrel Diameter
G = 2.875 Inch Overall Length
E = 1.25 Inch ID for Pin Diameter
Sold each
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
53.75 C/F
23 REN-17318-4 Renold Ajax Shaft, D200 on a Vibratory Conveyor - 1135.00 C/F
24 REN-1759-2300-500 Renold Ajax Brake drum for a brake drum coupling assembly. Letter of Conformance included with invoice & packings slip - 2540.00 C/F
25 REN-1858-0300-001 Renold Ajax #3 Bushing Neoprene / Bronze. S Series Coupling 1-1/2 & 2. For PB Series Coupling 1. Obsolete Couplings 1A, 1-1/4A & 417. Bushings are installed with adhesive purchased separately. Temperature range -65 degree to 285 degree F.
(1LB) H 4" L 5" W 4" Box
[Amazon]
23.75 C/F
26 REN-1858-0400-001 Renold Ajax #4 Bushing Neoprene / Bronze
Part 1858-0400-001
S Series Coupling 1-1/2 & 2. For PB Series Coupling 1
Obsolete Couplings 1A, 1-1/4A & 417
Bushings are installed with adhesive purchased separately
Temperature range -65 degree to 285 degree F
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
27.50 C/F
27 REN-1858-0450-001 Renold Ajax Bushing #4-1/2 Neoprene Bronze
Part REN-1858-0450-001
1.25 OD / 0.625 ID / 1.00 Inch Long less the flange
For S Series Coupling 1-1/2 & 2
For Obsolete Coupling 422
Cementing or Bonding Required
Part REN-1601-000-000 Renold Ajax Bushing Cement 1/2 Pint Can
Cement not included
Temperature range -65 to 200 Degree F
Used with Stud Part REN-Stud 4.5 Not Included
[Amazon]
(1LB) H 4" L 5" W 4" Box
- 30.00 C/F
28 REN-1858-0500-001 Renold Ajax #5 Bushing Neoprene / Bronze. S Series Coupling 2 & 1/2. For PB Series Coupling 1 & 1/2. Obsolete Couplings 1 & 3/8, 1 & 1/2, 1 & 3/4. Bushings are installed with adhesive cement purchased separately. Temperature range -65 degree to 285 degree F. 6 or 12 1858-0500-001
(1LB) H 4" L 5" W 4" Box
[Amazon]
- 37.14 C/F
29 REN-1858-0600-001 Renold Ajax #6 Neoprene / Bronze Bushing
Part 1665-0600-001
For PB Series Coupling 2
For S Series Coupling 3
For 2A & 2-3/8A Obsolete Couplings
1.375 Inches Long 1.625 OD 13/16 ID
Bushings are installed with adhesive
cement purchased separately
Temperature range -65 degree to 285 degree F
[NSN 3120-01-181-1455]
[Amazon] Dated 1/18
(1LB) H 4" L 5" W 4" Box
44.29 2
30 REN-1858-0700-001 Renold Ajax #7 Bushing Neoprene / Bronze
Part REN-1858-0700-001
For PB Type 2-1/2, 3, 3-1/2, S Type 3
Obsolete Couplings 2-3/4A, 3-1/8A
Bushings are installed with adhesive cement purchased separately
Temperature range -65 degree to 285 degree F
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
55.71 9
31 REN-1858-0800-001 Renold Ajax #8 Bushing Neoprene / Bronze for Type 4PB, 4S, 1A, 3-5/8A, 4-1/2A, 5A & 5-1/2A Coupling. Bushings are installed with adhesive cement purchased separately. Temperature range -65 degree to 285 degree F.
(1LB) H 4" L 5" W 4" Box
[Amazon]
- 68.57 C/F
32 REN-1858-0900-001 Renold Ajax #9 Bushing Neoprene / Bronze for Type 4 & 1/2 S & 6A Couplings. 2 & 1/2 Inch Diameter x 2 & 3/8 Inches Long with a 1 & 1/8 Inch Inside Diameter. Bushings are installed with adhesive cement purchased separately. Temperature range -65 degree to 285 degree F.
(1LB) H 4" L 5" W 4" Box
[Amazon]
92.86 C/F
33 REN-1858-1000-001 Renold Ajax #10 Bushing Neoprene / Bronze for Coupling S Series Size 5 7 6. Obsolete Coupling Size 6-1/2A. Bushings are installed with adhesive cement purchased separately. Temperature range -65 degree to 285 degree F.
(1LB) H 4" L 5" W 4" Box
[Amazon]
- 122.50 C/F
34 REN-1902-0150-503 Renold 1-12 PB Coupling - 872.50 C/F
35 REN-1905-250-1 Renold Ajax Coupling, Type "S" Pin & Bushing Coupling, Size 2 & 1/2 with a rough bore
[NSN 3010-01-131-7461]
- 1330.00 C/F
36 REN-1-EXP-KIT Renold Ajax Coupling Part
Part REN-1-EXP-KIT
Gasket & Bolt Kit, Flange Accessories
For a # 1 O'Ring Gear Coupling 6901-108-1
aka 6901-108-1
With Exposed Bolts
Dated 9/15
- 27.14 C/F
37 REN-1S STOCK BORE Renold Ajax Coupling
Part 1S
Pin & Bushing Coupling
Forged Steel Coupling
Includes:
Qty 8, # 4 Studs & Bushings
Maximum Bore Diameter 1.12 Inch
Maximum RPM 3600
(7LBS)
- 520.00 1
38 REN-1-SHR-KIT Gasket & Bolt Kit, Flange Accessories
For a # 1 O'Ring Gear Coupling 6901-108-2
With Shrouded Bolts
Dated 9/15
- 20.00 C/F
39 REN-1S-NB-KIT Renold Ajax Stud & Neo Bronze Bushings for a #1S Flange - Call C/F
40 REN-2 - 1/2 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 - 1/2 "O" Ring Seal Gear Coupling with Exposed Bolts - 24.28 C/F
41 REN-2 - 1/2 EXP LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 - 1/2 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 25.71 C/F
42 REN-2 - 1/2 SHR KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 - 1/2 Labyrinth Metal Seal Gear Coupling with Shrouded Bolts - 25.71 C/F
43 REN-2 - 1/2 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 - 1/2 "O" Ring Seal Gear Coupling with Shrouded Bolts - 24.28 C/F
44 REN-2 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 24.28 C/F
45 REN-2 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 "O" Ring Seal Gear Coupling with Exposed Bolts - 24.28 C/F
46 REN-2 SHR KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 Labyrinth Metal Seal Gear Coupling with Shrouded Bolts - 25.71 C/F
47 REN-2 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 2 "O" Ring Seal Gear Coupling with Shrouded Bolts - 24.28 C/F
48 REN-2-1/2 S FINISHED Renold Ajax Type S Forged Steel Pin & Bushing type Coupling with a Finished Bore, 2.5 Inch Maximum bore, Maximum RPM 3600, Maximum H.P. @ 100 RPM 17.5, Maximum Torque LB. - Inch X 10 to the 3rd power. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. (33LBS) - 1764.29 C/F
49 REN-2-1/2 S PILOT Renold Ajax Forged Steel Pin & Bushing type Coupling. Pilot Bore 1/2 Inch, 2.5 Inch Maximum bore, Maximum RPM 3600, Maximum H.P. @ 100 RPM 17.5, Maximum Torque LB. - Inch X 10 to the 3rd power (33LBS) - 1330.00 C/F
50 REN-2638-1200-001 Renold Ajax Pinion Stub on a #12 Shaker - 364.00 C/F
51 REN-2639-1000-020 Renold Pinion, Drive Pinion on a 10 DF Shaker, Item 7 - 364.00 C/F
52 REN-2639-1200-001 Renold Ajax Shaker Part
Pinion Drive
For a #12 Shaker
1/17
- 726.25 C/F
53 REN-2655-1000-001 Renold Ajax Key, Weight Key on a # 12 Shaker - 3.00 C/F
54 REN-2663-1000-002 Renold Shaft V-Ring on a 10 DF Shaker, Item 12 - 16.00 C/F
55 REN-2666-1200-001 Renold Ajax Key, O'Ring on a # 12 Shaker - 16.00 C/F
56 REN-267-1200-001 Renold Ajax Gasket, 12C Housing on a # 12 Shaker - 16.00 C/F

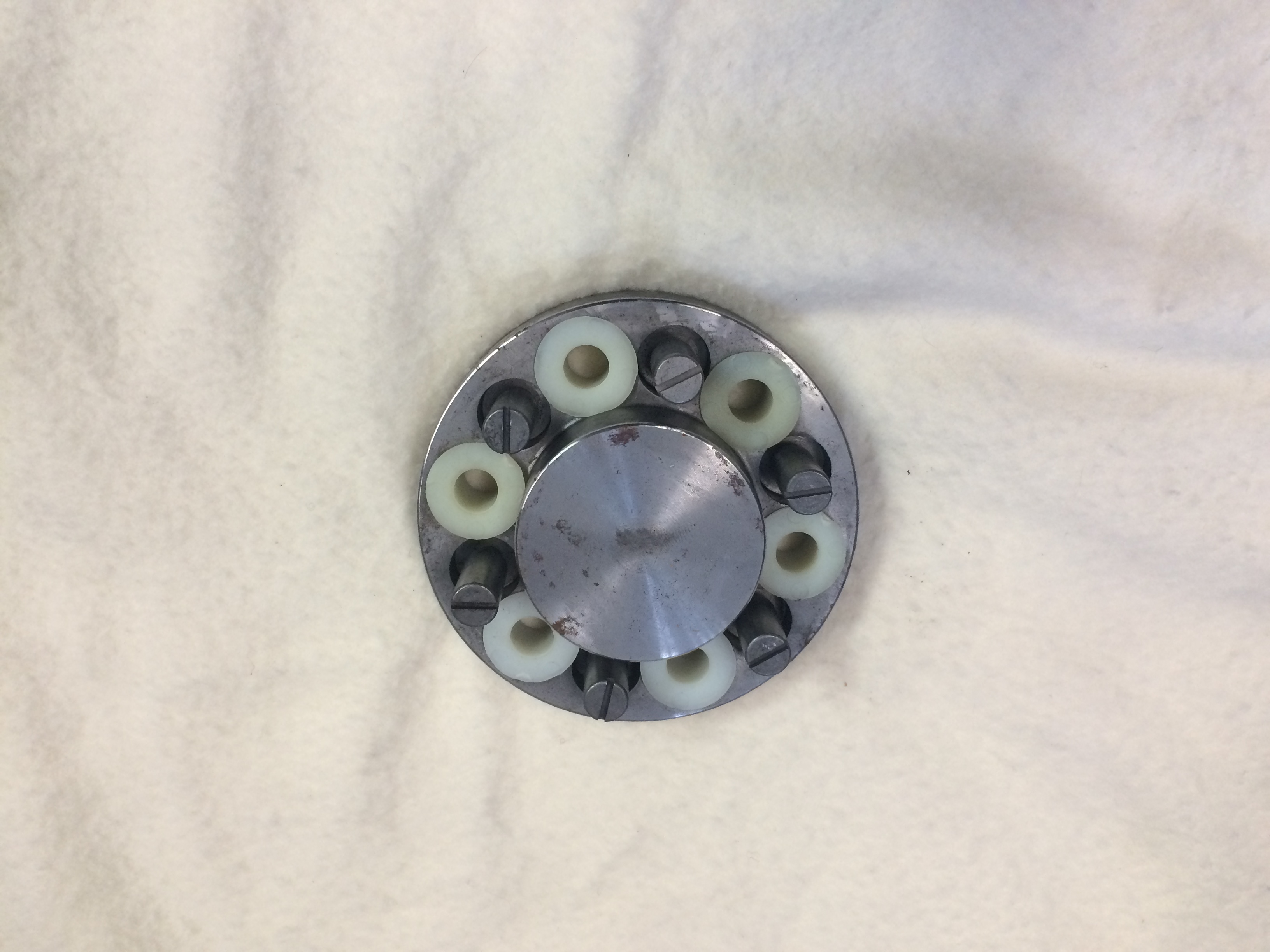

57 REN-2S STOCK BORE Renold Ajax Coupling
Part 2S
Pin & Bushing Coupling
Forged Steel Coupling
Includes:
Qty 12, # 4 & 1/2 Studs & Bushings
Maximum Bore Diameter 2.00 Inch
Maximum RPM 3600
(19LBS)
837.50 1
58 REN-2-SHR-KIT Renold Ajax Flange Accessories for #2 Shrouded Bolt Coupling - 24.28 C/F
59 REN-3 - 1/2 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 3 - 1/2 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 41.42 C/F
60 REN-3 - 1/2 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 3 - 1/2 "O" Ring Seal Gear Coupling with Exposed Bolts - 40.00 C/F
61 REN-3 - 1/2 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 3 - 1/2 "O" Ring Seal Gear Coupling with Shrouded Bolts - 40.00 C/F
62 REN-3 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 3 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 34.28 C/F
63 REN-3 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 3 "O" Ring Seal Gear Coupling with Exposed Bolts - 31.42 C/F
64 REN-3 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 3 "O" Ring Seal Gear Coupling with Shrouded Bolts - 31.42 C/F
65 REN-4 - 1/2 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 4 - 1/2 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 58.57 C/F
66 REN-4 - 1/2 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 4 - 1/2 "O" Ring Seal Gear Coupling with Exposed Bolts - 55.71 C/F
67 REN-4 - 1/2 SHR OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 4 - 1/2 "O" Ring Seal Gear Coupling with Shrouded Bolts - 58.57 C/F
68 REN-4 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 4 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 50.00 C/F
69 REN-4 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 4 "O" Ring Seal Gear Coupling with Exposed Bolts - 47.14 C/F
70 REN-4 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 4 "O" Ring Seal Gear Coupling with Shrouded Bolts - 47.14 C/F
71 REN-450 Renold Ajax # 450 Rigid Half Coupling, 4857-1275-500, includes 14, .625 -11 X 3.25" body bound bolts & 14, lock washers - 1450.00 C/F
72 REN-4640-0300-001 Renold Ajax Gear. 300 DS Hub Gear for 6 & 1/2 Degree Mis-Alignment, Rough Bore - 360.00 C/F
73 REN-4661-0300-001 Renold Ajax Seal. Grease Seal on a DS300 Spindle Coupling, Item #8, 2 Required - 61.70 C/F
74 REN-4661-0500-001 Renold Ajax Seal, Grease / Lip Seal on a D-500 Model 4140 HT Spindle Coupling, Drawing 4904-0500-045 - 178.00 C/F
75 REN-4736-0560-006 Renold Ajax Ring Gear Sleeve, 300 DS - 760.00 C/F
76 REN-4736-0743-046 Renold Ajax Sleeve - 2533.75 C/F
77 REN-4760-0587-250 Renold Ajax "O" Ring on a DS300 Spindle Coupling, Item #8, 2 Required - 24.38 C/F
78 REN-4760-1400-250 Renold O-Ring 622783 - Call C/F
79 REN-4777-0450-039 Renold Hardened Insert, Item 24 - 606.25 C/F
80 REN-4877-0450-002 Renold Plunger Sub Assembly, Item 19 - 1743.00 C/F
81 REN-4901-250-1 Renold Ajax "D" Series Full Flex Coupling, Size 250, Adapters, & Hub Gears with Finished Bores & Keyways. Gear Teeth are Induction Hardened. Exposed Flange Bolts. Maximum Offset 3.5 Degrees, Maximum Bore 2.63 Inches (100LBS) 4901-250-1 4/9 - 1393.51 C/F
82 REN-4908-0200-003 Renold Ajax Coupling. D Series Flex Rigid - 1770.00 C/F
83 REN-496047 Renold Ajax Size 3-1/8 A Female Flange Half Pin & Bushing Coupling, URE, Coupling per Drawing 1703-0312-029 43 LBS Gross - 1305.00 C/F
84 REN-4S FINISHED Renold Ajax Type S Forged Steel Pin & Bushing Coupling with a Finished Bore, 4 Inch Maximum bore, Maximum RPM 3600, Maximum H.P. @ 100 RPM 74, 46.7 Maximum Torque LB. - Inch X 10 to the 3rd power. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. (127LBS) - 4452.86 C/F
85 REN-5 - 1/2 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 5 - 1/2 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 160.00 C/F
86 REN-5 - 1/2 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 5 - 1/2 "O" Ring Seal Gear Coupling with Exposed Bolts - 152.85 C/F
87 REN-5 - 1/2 SHR OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 5 - 1/2 "O" Ring Seal Gear Coupling with Shrouded Bolts - 152.85 C/F
88 REN-5 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 5 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 101.42 C/F
89 REN-5 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 5 "O" Ring Seal Gear Coupling with Exposed Bolts - 97.14 C/F
90 REN-5 SHR KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 5 "O" Ring Seal Gear Coupling with Shrouded Bolts - 97.14 C/F
91 REN-550 Renold / Ajax "D" Series Coupling, Size 550 , 3 & 1/2 Degree Misalignment, Recessed Bolt Heads, Full Flex - 10312.00 C/F
92 REN-6 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 6 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 214.00 C/F
93 REN-6 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 6 "O" Ring Seal Gear Coupling with Exposed Bolts - 204.00 C/F
94 REN-6232-0358-001 Renold Ajax Gear Ring
For a 3-1/2 Inch Gear Coupling
With Exposed Bolts
- Call C/F
95 REN-6232-1200-250 Renold Ajax Ring Gear & O Ring for a Size #6 Gear Coupling - 791.00 C/F
96 REN-6256-150-1 Renold Ajax Coupling Parts
Part REN-6256-150-1
Rigid Half Adaptor
Size 1 - 1/2 American Gear Coupling
Metal Seal Coupling
2.75 Inch Maximum Bore with a 5/8 Inc Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
37.8 HP / 100 RPM
23.8 LB - Inch X 10 to 3rd
3600 RPM Maximum
6 Inch Diameter X 1.94 Inch Wide
aka REN-6256-0150-001
[Amazon]
(12LBS) H 2" L 6" W 6" Box
- 180.00 C/F
97 REN-6256-200-1 Renold Ajax Coupling Parts
Parts REN-6256-200-1
Rigid Half Adaptor
Size 2 American Gear Coupling
Metal Seal Coupling
3.50 Inch Maximum Bore with a 7/8 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
64.4 HP / 100 RPM
40.6 LB - Inch X 10 to 3rd
3600 RPM Maximum
7 Inch Diameter X 2.44 Inch Wide
aka REN-6256-0200-001
[Amazon]
(18LBS) H 3" L 7" W 7" Box
- 198.67 C/F
98 REN-6256-250-1 Renold Ajax Coupling Parts
Part REN-6256-250-1
Rigid Half Adaptor
Size 2 - 1/2 American Gear Coupling
Metal Seal Coupling
4.38 Inch Maximum Bore with a 1 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
104 HP / 100 RPM
65.7 LB - Inch X 10 to 3rd
3600 RPM Maximum
8.38 Inch Diameter X 3.035 Inch Wide
aka REN-6256-0250-001
[Amazon]
(28LBS) H 4" L 9" W 9" Box
- 242.67 C/F
99 REN-6256-300-1 Renold Ajax Coupling Parts
Part REN-6256-300-1
Rigid Half Adaptor
Size 3 American Gear Coupling
Metal Seal Coupling
5 Inch Maximum Bore with a 1.25 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
172 HP / 100 RPM
108 LB - Inch X 10 to 3rd
3600 RPM Maximum
9.44 Inch Diameter X 3.59 Inch Wide
aka REN-6256-0300-001
[Amazon]
(45LBS) H 4" L 10" W 10" Box
- 312.00 C/F
100 REN-6256-350-1 Renold Ajax Coupling Parts
Part REN-6256-350-1
Rigid Half Adaptor
Size 3 1/2 American Gear Coupling
Metal Seal Coupling
5.75 Inch Maximum Bore with a 1.5 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
3600 RPM Maximum
263 HP / 100 RPM
11 Inch Diameter X 4.185 Inch Wide
aka REN-6256-0350-001
[Amazon]
(70LBS) H 5" L 11" W 11" Box
- 490.67 C/F
101 REN-6256-400-1 Renold Ajax Coupling Parts
Part REN-6256-400-1
Rigid Half Adaptor
Size 4 American Gear Coupling
Metal Seal Coupling
6.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
263 HP / 100 RPM
166 LB - Inch X 10 to 3rd
3600 RPM Maximum
12.5 Inch Diameter X 4.755 Inch Wide
aka REN-6256-0400-001
[Amazon]
(100LBS) H 5" L 13" W 13" Box
- 609.33 C/F
102 REN-6256-450-1 Renold Ajax Coupling Parts
Part REN-6256-450-1
Rigid Half Adaptor
Size 4 1/2 American Gear Coupling
Metal Seal Coupling
7.38 Inch Maximum Bore with a 1.75 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
578 HP / 100 RPM
365 LB - Inch X 10 to 3rd
2920 RPM Maximum
13.63 Inch Diameter X 5.31 Inch Wide
aka REN-6256-0450-001
Motor Freight Only, box on skid
(150LBS) H 5" L 14" W 14"
- 754.67 C/F
103 REN-6256-500-1 Renold Ajax Coupling Parts
Part REN-6256-500-1
Rigid Half Adaptor
Size 5 American Gear Coupling
Metal Seal Coupling
8.25 Inch Maximum Bore with a 2 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
776 HP / 100 RPM
489 LB - Inch X 10 to 3rd
2630 RPM Maximum
15.31 Inch Diameter X 6.03 Inch Wide
aka REN-6256-0500-001
Motor Freight Only, box on skid
(200LBS) H 7" L 16" W 16"
- 1021.33 C/F
104 REN-6256-550-1 Renold Ajax Coupling Parts
Part REN-6256-550-1
Rigid Half Adaptor
Size 5 - 1/2 American Gear Coupling
Metal Seal Coupling
9.25 Inch Maximum Bore with a 2 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
1150 HP / 100 RPM
725 LB - Inch X 10 to 3rd
2320 RPM Maximum
16.75 Inch Diameter X 6.685 Inch Wide
aka REN-6256-0550-001
Motor Freight Only, box on a skid
(250LBS) H 7" L 17" W 17"
- 1953.33 C/F
105 REN-6256-600-1 Renold Ajax Coupling Parts
Part REN-6256-600-1
Rigid Half Adaptor
Size 6 American Gear Coupling
Metal Seal Coupling
10 Inch Maximum Bore with a 2 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
1470 HP / 100 RPM
925 LB - Inch X 10 to 3rd
2120 RPM Maximum
18 Inch Diameter X 7.405 Inch Wide
aka REN-6256-0600-001
Motor Freight Only, box on a skid
(325LBS) H 8" L 18" W 18" Box on
- 2400.00 C/F
106 REN-6256-700-1 Renold Ajax Coupling Parts
Part REN-6256-700-1
Rigid Half Adaptor
Size 7 American Gear Coupling
Metal Seal Coupling
11.25 Inch Maximum Bore with a 3 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
2200 HP / 100 RPM
1390 LB - Inch X 10 to 3rd
1830 RPM Maximum
20.75 Inch Diameter X 8.94 Inch Wide
aka REN-6256-0700-001
Motor Freight Only, box on a skid
(500LBS) H 9" L 21" W 21" Box on
- 4417.33 C/F
107 REN-6632-0108-001 Renold Ajax Ring Gear #1 Shrouded Bolt Design - Call C/F
108 REN-6632-0358-1 Renold Ajax Ring Gear with Seal. Size 3 - 1/2 with seal # 666-0356-1 - 228.57 C/F
109 REN-6641-108-1 Renold Ajax Gear Hub
aka 6641-0108-001
- 46.67 C/F
110 REN-6641-156-1 Renold Ajax Coupling Parts
Hub Gear
Size 1 - 1/2 American Gear Coupling
Metal Seal Coupling
1.75 Inch Maximum Bore with a 3/8 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
37.8 HP / 100 RPM
23.8 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6641-0156-001
(7LBS) H 4" L 6" W 6" Box
[Amazon]
- 76.00 C/F
111 REN-6641-206-1 Renold Ajax Coupling Parts
Hub Gear
Size 2 American Gear Coupling
Metal Seal Coupling
2.25 Inch Maximum Bore with a 1/2 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
64.4 HP / 100 RPM
40.6 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6641-0206-001
(10LBS) H 5" L 6" W 6" Box
[Amazon]
- 93.33 C/F
112 REN-6641-256-1 Renold Ajax Coupling Parts
Hub Gear
Size 2 - 1/2 American Gear Coupling
Metal Seal Coupling
2.75 Inch Maximum Bore with a 1/2 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
104 HP / 100 RPM
65.7 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6641-0256-001
(20 LBS) H 6" L 6" W 6" Box
[Amazon]
- 118.67 C/F
113 REN-6641-306-1 Renold Ajax Coupling Parts
Hub Gear
Size 3 American Gear Coupling
Metal Seal Coupling
3.25 Inch Maximum Bore with a 3/4 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
172 HP / 100 RPM
108 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6641-0306-001
(30 LBS) H 6" L 7" W 7" Box
[Amazon]
- 182.67 C/F
114 REN-6641-356-1 Renold Ajax Coupling Parts
Hub Gear
Size 3 - 1/2 American Gear Coupling
Metal Seal Coupling
3.75 Inch Maximum Bore with a 3/4 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
263 HP / 100 RPM
166 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6641-0356-001
(65 LBS) H 7" L 9" W 9" Box
[Amazon]
- 232.00 C/F
115 REN-6641-358-1 Renold Ajax Gear Hub
For a 3-1/2 Inch Gear Coupling
With Exposed Bolts
aka REN-6641-0358-001
[Amazon]
- 184.00 C/F
116 REN-6641-406-1 Renold Ajax Coupling Parts
Hub Gear
Size 4 American Gear Coupling
Metal Seal Coupling
4.25 Inch Maximum Bore with a 1 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
419 HP / 100 RPM
264 LB - Inch X 10 to 3rd
3290 RPM Maximum
aka REN-6641-0406-001
(70 LBS) H 8" L 10" W 10" Box
[Amazon]
- 353.33 C/F
117 REN-6641-456-1 Renold Ajax Coupling Parts
Hub Gear
Size 4 - 1/2 American Gear Coupling
Metal Seal Coupling
4.75 Inch Maximum Bore with a 1.25 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
578 HP / 100 RPM
365 LB - Inch X 10 to 3rd
2920 RPM Maximum
aka REN-6641-0456-001
(86 LBS) H 9" L 10" W 10" Box
[Amazon]
- 522.67 C/F
118 REN-6641-506-1 Renold Ajax Coupling Parts
Hub Gear
Size 5 American Gear Coupling
Metal Seal Coupling
5.50 Inch Maximum Bore with a 1.25 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
776 HP / 100 RPM
489 LB - Inch X 10 to 3rd
2630 RPM Maximum
aka REN-6641-0506-001
(94 LBS) H 9" L 12" W 12" Box
[Amazon]
- 705.33 C/F
119 REN-6641-556-1 Renold Ajax Coupling Parts
Hub Gear
Size 5 - 1/2 American Gear Coupling
Metal Seal Coupling
6.25 Inch Maximum Bore with a 1.25 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
1150 HP / 100 RPM
725 LB - Inch X 10 to 3rd
2320 RPM Maximum
aka REN-6641-0556-001
(154 LBS) H 10" L 14" W 14" Box on Skid
Motor Freight Only
- 1072.00 C/F
120 REN-6641-606-1 Renold Ajax Coupling Parts
Hub Gear
Size 6 American Gear Coupling
Metal Seal Coupling
7.00 Inch Maximum Bore with a 1.75 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
1470 HP / 100 RPM
925 LB - Inch X 10 to 3rd
2120 RPM Maximum
aka REN-6641-0606-001
(216 LBS) H 10" L 14" W 14" Box on Skid
Motor Freight Only
- 1397.33 C/F
121 REN-6641-608-1 Renold Ajax Hub Gear
For a Size 6 Gear Coupling
Rough Bore
aka REN-6641-0608-001
- 1185.33 C/F
122 REN-6641-706-1 Renold Ajax Coupling Parts
Hub Gear
Size 7 American Gear Coupling
Metal Seal Coupling
8.25 Inch Maximum Bore with a 1.75 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
2200 HP / 100 RPM
1390 LB - Inch X 10 to 3rd
1930 RPM Maximum
aka REN-6641-0708-001
(300 LBS) H 12" L 16" W 16" Box on Skid
Motor Freight Only
- 2148.00 C/F
123 REN-6641-708-1 Renold Ajax Coupling Parts
Hub Gear
Size 7 American Gear Coupling
Metal Seal Coupling
8.25 Inch Maximum Bore with a 1.75 Inch Square Keyway
Rough Stock / Pilot Bore
Exposed Bolt Design
Bolts are not included
2200 HP / 100 RPM
1390 LB - Inch X 10 to 3rd
1930 RPM Maximum
aka REN-6641-0708-001
(300 LBS) H 12" L 16" W 16" Box on Skid
Motor Freight Only
- 1740.00 C/F
124 REN-6656-0108-001 Renold Ajax Adaptor # 1 Shrouded Design - Call C/F
125 REN-6656-0150-001 Renold Ajax Adaptor, # 1 -1/2 Shrouded Bolts - 170.00 C/F
126 REN-6656-0350-1 Renold / Ajax Rigid Half Coupling. Size 3-1/2 with Shrouded Bolts - 327.50 C/F
127 REN-6656-350-1 Renold Ajax Rigid Half Adaptor. Size 3 - 1/2 "O" Ring Seal Coupling - 334.28 C/F
128 REN-6759-2300-500 Renold Ajax Brake drum for a brake drum coupling assembly. Letter of Conformance included with invoice & packings slip. Radial holes by Renold - 3120.00 C/F
129 REN-6801-0208-002 Renold Ajax O-Ring Seal Flex Half # 2 Gear Coupling with Shrouded Bolt Holes. Available options include finished bores & hardware - 168.00 C/F
130 REN-6801-0258-001 Renold Ajax Coupling #2-1/2 FH Exposed Bolts, Rough Bore - 217.00 C/F
131 REN-6801-108-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 228.75 C/F
132 REN-6801-108-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 137.50 C/F
133 REN-6801-158-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 275.00 C/F
134 REN-6801-158-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 185.00 C/F
135 REN-6801-208-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 312.50 C/F
136 REN-6801-208-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 206.25 C/F
137 REN-6801-308-1 Renold Ajax #3 Flex Half "O" Ring Seal Coupling - 308.75 C/F
138 REN-6801-308-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 496.25 C/F
139 REN-6801-308-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 367.50 C/F
140 REN-6801-358-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 640.00 C/F
141 REN-6801-358-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X"
[Amazon]
- 485.00 C/F
142 REN-6801-408-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 851.25 C/F
143 REN-6801-408-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 687.50 C/F
144 REN-6801-458-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1072.50 C/F
145 REN-6801-458-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 896.25 C/F
146 REN-6801-508-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1388.75 C/F
147 REN-6801-508-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1200.00 C/F
148 REN-6801-558-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 2020.00 C/F
149 REN-6801-558-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1810.00 C/F
150 REN-6801-608-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 2453.75 C/F
151 REN-6801-608-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 2218.75 C/F
152 REN-6801-708-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 4002.50 C/F
153 REN-6801-708-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Half Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6801-XXX-XXX
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 3733.75 C/F
154 REN-6806-0158-602 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 1-1/2 American Standard
Flex 1/2 602 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0158-602
- 363.75 C/F
155 REN-6806-0158-603 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 1-1/2 American Standard
Flex 1/2 603 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0158-603
- 363.75 C/F
156 REN-6806-0158-604 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 1-1/2 American Standard
Flex 1/2 604 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0158-604
- 363.75 C/F
157 REN-6806-0208-603 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 2 American Standard
Flex 1/2 603 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0208-603
- 412.50 C/F
158 REN-6806-0208-604 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 2 American Standard
Flex 1/2 604 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0208-604
- 412.50 C/F
159 REN-6806-0208-606 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 2 American Standard
Flex 1/2 606 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0208-606
- 412.50 C/F
160 REN-6806-0258-606 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 2-1/2 American Standard
Flex 1/2 606 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0258-606
- 531.25 C/F
161 REN-6806-0258-608 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 2-1/2 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0258-608
- 531.25 C/F
162 REN-6806-0308-608 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 3 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0308-608
- 662.50 C/F
163 REN-6806-0308-610 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 3 American Standard
Flex 1/2 610 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0308-610
- 662.50 C/F
164 REN-6806-0308-612 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 3 American Standard
Flex 1/2 612 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0308-612
- 662.50 C/F
165 REN-6806-0358-612 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 3-1/2 American Standard
Flex 1/2 612 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0358-612
- 830.00 C/F
166 REN-6806-0358-614 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 3-1/2 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0358-614
- 830.00 C/F
167 REN-6806-0408-614 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 4 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0408-614
- 1105.00 C/F
168 REN-6806-0408-616 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 4 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0408-616
- 1105.00 C/F
169 REN-6806-0408-618 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 4 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0408-618
- 1105.00 C/F
170 REN-6806-0458-614 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 4-1/2 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0458-614
- 1380.00 C/F
171 REN-6806-0458-616 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 4-1/2 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0458-616
- 1380.00 C/F
172 REN-6806-0458-618 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 4-1/2 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0458-618
- 1380.00 C/F
173 REN-6806-0508-616 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 5 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0508-616
- 2045.00 C/F
174 REN-6806-0508-618 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 5 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0508-618
- 2045.00 C/F
175 REN-6806-0508-620 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 5 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0508-620
- 2045.00 C/F
176 REN-6806-0558-618 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 5-1/2 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0558-618
- 3210.00 C/F
177 REN-6806-0558-620 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 5-1/2 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0558-620
- 3210.00 C/F
178 REN-6806-0558-622 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 5-1/2 American Standard
Flex 1/2 622 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0558-622
- 3210.00 C/F
179 REN-6806-0608-620 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 6 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0608-620
- 4302.50 C/F
180 REN-6806-0608-622 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 6 American Standard
Flex 1/2 622 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0508-622
- 4302.50 C/F
181 REN-6806-0608-624 Renold Ajax Coupling Part
Mill Motor O Ring Seal Coupling
Flex Half
Size 6 American Standard
Flex 1/2 624 Motor Frame with the Tapered Bore & Keyway
Less Hardware / Fasteners
Part REN-6806-0608-624
- 4302.50 C/F
182 REN-6832-156-1 Renold Ajax Coupling Parts
Part REN-6832-0156-1
Ring Gear
Size 1-1/2 American Gear Coupling
Metal Seal Coupling
1.75 Inch Maximum Bore with a 3/8 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
37.8 HP / 100 RPM
23.8 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6832-0156-001
[Amazon] Dated 1/17
(8LBS) H 4" L 6" W 6" Box
- 240.00 C/F
183 REN-6832-206-1 Renold Ajax Coupling Parts
Part REN-6832-206-1
Ring Gear
Size 2 American Gear Coupling
Metal Seal Coupling
2.25 Inch Maximum Bore with a 1/2 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
64.4 HP / 100 RPM
40.6 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6832-0206-001
[Amazon] Dated 1/17
(10LBS) H 5" L 7" W 7" Box
- 290.00 C/F
184 REN-6832-256-1 Renold Ajax Coupling Parts
Part REN-6832-256-1
Ring Gear
Size 2-1/2 American Gear Coupling
Metal Seal Coupling
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
104 HP / 100 RPM
65.7 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6832-0256-001
[Amazon] Dated 1/17
(18LBS) H 6" L 9" W 9" Box
- 355.71 C/F
185 REN-6832-306-1 Renold Ajax Coupling Parts
Part REN-6832-306-1
Ring Gear
Size 3 American Gear Coupling
Metal Seal Coupling
3.25 Inch Maximum Bore with a 3/4 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
172 HP / 100 RPM
108 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6832-0306-001
[Amazon] Dated 1/17
(23LBS) H 6" L 10" W 10" Box
- 460.00 C/F
186 REN-6832-356-1 Renold Ajax Coupling Parts
REN-6832-356-1
Ring Gear
Size 3-1/2 American Gear Coupling
Metal Seal Coupling
3.75 Inch Maximum Bore with a 7/8 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
263 HP / 100 RPM
166 LB - Inch X 10 to 3rd
3600 RPM Maximum
aka REN-6832-0356-001
[Amazon] Dated 1/17
(34BS) H 9" L 11" W 11" Box
- 608.57 C/F
187 REN-6832-406-1 Renold Ajax Coupling Parts
Part REN-6832-406-1
Ring Gear
Size 4 American Gear Coupling
Metal Seal Coupling
4.25 Inch Maximum Bore with a 1 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
419 HP / 100 RPM
264 LB - Inch X 10 to 3rd
3290 RPM Maximum
aka REN-6832-0406-001
[Amazon] Dated 1/17
(50BS) H 10" L 13" W 13" Box
- 812.86 C/F
188 REN-6832-456-1 Renold Ajax Coupling Parts
Ring Gear
Size 4-1/2 American Gear Coupling
Metal Seal Coupling
4.75 Inch Maximum Bore with a 1.25 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
578 HP / 100 RPM
365 LB - Inch X 10 to 3rd
2920 RPM Maximum
aka REN-6832-0456-001
(65BS) H 10" L 16" W 16" Box
[Amazon]
- 1017.14 C/F
189 REN-6832-506-1 Renold Ajax Coupling Parts
Ring Gear
Size 5 American Gear Coupling
Metal Seal Coupling
5.50 Inch Maximum Bore with a 1.25 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
776 HP / 100 RPM
489 LB - Inch X 10 to 3rd
2630 RPM Maximum
aka REN-6832-0506-001
(70LBS) H 12" L 16" W 16" Box
[Amazon]
- 1262.86 C/F
190 REN-6832-556-1 Renold Ajax Coupling Parts
Ring Gear
Size 5-1/2 American Gear Coupling
Metal Seal Coupling
6.25 Inch Maximum Bore with a 1.5 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
1150 HP / 100 RPM
725 LB - Inch X 10 to 3rd
2320 RPM Maximum
aka REN-6832-0556-001
(115LBS) H 14" L 17" W 17" Box
[Amazon]
- 1814.29 C/F
191 REN-6832-606-1 Renold Ajax Coupling Parts
Ring Gear
Size 6 American Gear Coupling
Metal Seal Coupling
7 Inch Maximum Bore with a 1.75 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
1470 HP / 100 RPM
925 LB - Inch X 10 to 3rd
2120 RPM Maximum
aka REN-6832-0606-001
(163LBS) H 14" L 17" W 17" Box on Skid
Motor Freight Only
- 2118.75 C/F
192 REN-6832-706-1 Renold Ajax Coupling Parts
Ring Gear
Size 7 American Gear Coupling
Metal Seal Coupling
8.25 Inch Maximum Bore with a 2 Inch Square Keyway
Exposed Bolt Design
Bolts are not included
2200 HP / 100 RPM
1390 LB - Inch X 10 to 3rd
1830 RPM Maximum
aka REN-6832-0706-001
(225LBS) H 17" L 21" W 21" Box on Skid
Motor Freight Only
- 2972.50 C/F
193 REN-6832-708-1 Renold Ajax R5B Ring Gears with O'Ring Installed
aka REN-6832-0708-001
- 2103.75 C/F
194 REN-6901-108-1F Renold Ajax Coupling
Part REN-6901-108-1F
Size 1 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
1.63 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
4.56 Inch Diameter, 6 Inches Long
aka REN-6901-0108-001
Product available at Amazon.com and BrakeProducts.com
[Amazon] Dated 1/17
(10LBS) H 4" L 5" W 5" Box
- 481.25 C/F
195 REN-6901-108-1P Renold Ajax Coupling
Part REN-6901-108-1P
Size 1 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Pilot / Rough Bore
1.63 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
4.56 Inch Diameter, 6 Inches Long
aka REN-6901-0108-001
Product available at Amazon.com and BrakeProducts.com
[Amazon] Dated 1/17
(10LBS) H 4" L 5" W 5" Box
- 298.75 C/F
196 REN-6901-108-2F Renold Ajax Coupling
Part REN-6901-0108-002F
Size 1 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
1.63 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
4.56 Inch Diameter, 6 Inches Long
aka REN-6901-0108-002
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(11LBS) H 4" L 5" W 5" Box
- 481.25 C/F
197 REN-6901-108-2P Renold Ajax Coupling
Part REN-6901-108-2P
Size 1 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Pilot / Rough Bore
1.63 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
4.56 Inch Diameter, 6 Inches Long
aka REN-6901-0108-002
Product available at Amazon.com and BrakeProducts.com
[Amazon]
(11LBS) H 4" L 5" W 5" Box
- 298.75 C/F
198 REN-6901-156-1F Renold Ajax Gear Coupling
Size 1 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
1.75 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
6 Inch Diameter, 4 Inches Long
aka REN-6901-0156-001
(22LBS) H 4" L 6" W 6" Box
[Amazon]
- 776.25 C/F
199 REN-6901-156-1P Renold Ajax Gear Coupling
Size 1 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
1.75 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
6 Inch Diameter, 4 Inches Long
aka REN-6901-0156-001
(22LBS) H 4" L 6" W 6" Box
[Amazon]
- 568.75 C/F
200 REN-6901-158-1F Renold Ajax Coupling
Part REN-6901-158-1F
Size 1-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
2.13 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
6 Inch Diameter, 4 Inches Long
aka REN-6901-0158-001
[Amazon] Dated 1/17
(17LBS) H 4" L 6" W 6" Box
- 587.50 C/F
201 REN-6901-158-1P Renold Ajax Coupling
Part REN-6901-158-1P
Size 1 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes High Strength Bolts
Exposed Bolt Design
6 Inch Diameter, 4 Inches Long
aka REN-6901-0158-001
[Amazon] Dated 1/17
(17LBS) H 4" L 6" W 6" Box
- 392.50 C/F
202 REN-6901-158-2F Renold Ajax Coupling
Part REN-6901-158-2F
Size 1-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
2.13 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
6 Inch Diameter, 4 Inches Long
aka REN-6901-0158-002
[Amazon] Dated 1/17
(17LBS) H 4" L 6" W 6" Box
- 587.50 C/F
203 REN-6901-158-2P Renold Ajax Coupling
Part REN-6901-158-2P
Size 1-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
2.13 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
6 Inch Diameter, 4 Inches Long
aka REN-6901-0158-002
[Amazon] Dated 1/17
(17LBS) H 4" L 6" W 6" Box
- 392.50 C/F
204 REN-6901-206-1F Renold Ajax Coupling
Size 2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
2.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
7 Inch Diameter, 5 Inches Long
aka REN-6901-0206-001
(34LBS) H 5 L 7" W 7" Box
[Amazon]
- 920.00 C/F
205 REN-6901-206-1P Renold Ajax Coupling
Size 2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
2.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
7 Inch Diameter, 5 Inches Long
aka REN-6901-0206-001
(34LBS) H 5 L 7" W 7" Box
[Amazon]
- 691.25 C/F
206 REN-6901-208-1F Renold Ajax Coupling
Part REN-6901-208-1F
Size 2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
2.75 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
7 Inch Diameter, 5 Inches Long
aka REN-6901-0208-001
Part [Amazon] Dated 1/17
(33LBS) H 5" L 7" W 7" Box
- 650.00 C/F
207 REN-6901-208-1P Renold Ajax Coupling
Part REN-6901-208-1P
Size 2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
2.75 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
7 Inch Diameter, 5 Inches Long
aka REN-6901-0208-001
[Amazon] Dated 1/17
(33LBS) H 5" L 7" W 7" Box
- 438.75 C/F
208 REN-6901-208-2F Renold Ajax Coupling
Part REN-6901-208-2F
Size 2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
2.75 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
7 Inch Diameter, 5 Inches Long
aka REN-6901-0208-002
[Amazon] 1/17
(36LBS) H 5" L 7" W 7" Box
- 650.00 C/F
209 REN-6901-208-2P Renold Ajax Coupling
REN-6901-208-2P
Size 2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
2.75 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
7 Inch Diameter, 5 Inches Long
aka REN-6901-0208-002
[Amazon] Dated 1/17
(36LBS) H 5" L 7" W 7" Box
- 438.75 C/F
210 REN-6901-256-1F Renold Ajax Coupling
Size 2 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
2.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
8.38 Inch Diameter, 6.25 Inches Long
aka REN-6901-0256-001
(57LBS) H 7 L 9" W 9" Box
[Amazon]
- 1101.25 C/F
211 REN-6901-256-1P Renold Ajax Coupling
Size 2 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
2.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
8.38 Inch Diameter, 6.25 Inches Long
aka REN-6901-0256-001
(57LBS) H 7 L 9" W 9" Box
[Amazon]
- 848.75 C/F
212 REN-6901-256-2F Renold Ajax Full-Flex Metal Seal Coupling. Forged Medium Carbon Steel. Coupling Size 2-1/2. SB Shrouded Bolts. Maximum Bore Size 2.75" with square key. 3.00" with reduced keyway. Maximum RPM 3600. Design rating based on = or - 1-1/2 degree of misalignment. Offset misalignment .090" 57 LBS. - 623.75 C/F
213 REN-6901-258-1F Renold Ajax Coupling
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
3.25 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
8.375 Inch Diameter, 6.25 Inches Long
aka REN-6901-0258-001
(56LBS) H 7" L 9" W 9" Box
[Amazon]
- 775.00 C/F
214 REN-6901-258-1P Renold Ajax Coupling
Part REN-6901-258-1P
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
3.25 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
8.375 Inch Diameter, 6.25 Inches Long
aka REN-6901-0258-001
[Amazon] Dated 1/17
(56LBS) H 7" L 9" W 9" Box
- 550.00 C/F
215 REN-6901-258-2F Renold Ajax Coupling
Part REN-6901-258-2F
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
3.25 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
8.375 Inch Diameter, 6.25 Inches Long
aka REN-6901-0258-002
[Amazon] 1/17
(60LBS) H 7" L 9" W 9" Box
- 797.50 C/F
216 REN-6901-258-2P Renold Ajax Coupling
Part REN-6901-258-2P
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
3.25 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
8.375 Inch Diameter, 6.25 Inches Long
aka REN-6901-0258-002
[Amazon] Dated 1/17
(60LBS) H 7" L 9" W 9" Box
- 561.25 C/F
217 REN-6901-306-1F Renold Ajax Coupling
Size 3 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
3.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
9.44 Inch Diameter, 7.38 Inches Long
aka REN-6901-0306-001
(57LBS) H 8 L 10" W 10" Box
[Amazon]
- 1425.00 C/F
218 REN-6901-306-1P Renold Ajax Coupling
Size 3 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
3.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
9.44 Inch Diameter, 7.38 Inches Long
aka REN-6901-0306-001
(57LBS) H 8 L 10" W 10" Box
[Amazon]
- 1152.50 C/F
219 REN-6901-308-1F Renold Ajax Coupling
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
4.00 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
9.44 Inch Diameter, 7.38 Inches Long
aka REN-6901-0308-001
(81LBS) H 8" L 10" W 10" Box
[Amazon]
- 1003.75 C/F
220 REN-6901-308-1P Renold Ajax Coupling
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
4.00 Inch Maximum Bore
Includes High Strength Bolts
Exposed Bolt Design
9.44 Inch Diameter, 7.38 Inches Long
aka REN-6901-0308-001
(81LBS) H 8" L 10" W 10" Box
[Amazon]
- 753.75 C/F
221 REN-6901-308-2F Renold Ajax Coupling
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
4.00 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
9.44 Inch Diameter, 7.38 Inches Long
aka REN-6901-0308-002
(86LBS) H 8" L 10" W 10" Box
[Amazon]
- 1003.75 C/F
222 REN-6901-308-2P Renold Ajax Coupling
Size 2 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
4.00 Inch Maximum Bore
Includes High Strength Bolts
Shrouded Bolt Flanges
9.44 Inch Diameter, 7.38 Inches Long
aka REN-6901-0308-001
(86LBS) H 8" L 10" W 10" Box
[Amazon]
- 753.75 C/F
223 REN-6901-356-1F Renold Ajax Coupling
Size 3 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
3.75 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
11 Inch Diameter, 8.63 Inches Long
aka REN-6901-0356-001
(134LBS) H 8 L 10" W 10" Box
[Amazon]
- 1838.75 C/F
224 REN-6901-356-1P Renold Ajax Coupling
Size 3 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
3.75 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
11 Inch Diameter, 8.63 Inches Long
aka REN-6901-0356-001
(134LBS) H 8 L 10" W 10" Box
[Amazon]
- 1507.50 C/F
225 REN-6901-358-1F Renold Ajax Coupling
Size 3 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0358-001F
- 1290.00 C/F
226 REN-6901-358-1P Renold Ajax Coupling
Size 3 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0358-001
- 990.00 C/F
227 REN-6901-358-2F Renold Ajax Coupling
Size 3 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Includes Fasteners
Part REN-6901-0358-002
- 1003.75 C/F
228 REN-6901-358-2P Renold Ajax Coupling
Size 3 - 1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0358-002
- 753.75 C/F
229 REN-6901-406-1F Renold Ajax Coupling
Size 4 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerance
4.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
12.50 Inch Diameter, 9.75 Inches Long
aka REN-6901-0406-001
(200LBS) H 10 L 13" W 13" Box
On Skid, Motor Freight Only
- 2431.25 C/F
230 REN-6901-406-1P Renold Ajax Coupling
Size 4 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
4.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
12.50 Inch Diameter, 9.75 Inches Long
aka REN-6901-0406-001
(200LBS) H 10 L 13" W 13" Box
On Skid, Motor Freight Only
- 2081.25 C/F
231 REN-6901-408-1F Renold Ajax Coupling
Size 4 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0408-001F
- 1710.00 C/F
232 REN-6901-408-1P Renold Ajax Coupling
Size 4 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0408-001
- 1392.50 C/F
233 REN-6901-408-2F Renold Ajax Coupling
Size 4 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
- 1290.00 C/F
234 REN-6901-408-2P Renold Ajax Coupling
Size 4 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0408-002
- 1392.50 C/F
235 REN-6901-456-1F Renold Ajax Coupling
Size 4 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
4.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
13.63 Inch Diameter, 10.94 Inches Long
aka REN-6901-0456-001
(257LBS) H 11 L 14" W 14" Box
On Skid, Motor Freight Only
- 3122.50 C/F
236 REN-6901-456-1P Renold Ajax Coupling
Size 4 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
4.25 Inch Maximum Bore with a Square Keyway
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
13.63 Inch Diameter, 10.94 Inches Long
aka REN-6901-0456-001
(257LBS) H 11 L 14" W 14" Box
On Skid, Motor Freight Only
- 2745.00 C/F
237 REN-6901-458-1F Renold Ajax Coupling
Size 4-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0458-001F
- 2147.50 C/F
238 REN-6901-458-1P Renold Ajax Coupling
Size 4-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0458-001
- 1805.00 C/F
239 REN-6901-458-2F Renold Ajax Coupling
Size 4-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
- 5010.00 C/F
240 REN-6901-458-2P Renold Ajax Coupling
Size 4-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
- 1805.00 C/F
241 REN-6901-506-1F Renold Ajax Coupling
Size 5-1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
- 3947.50 C/F
242 REN-6901-506-1P Renold Ajax Coupling
Size 5 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
- 3546.25 C/F
243 REN-6901-508-1F Renold Ajax Coupling
Size 5 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0508-001F
- 2810.00 C/F
244 REN-6901-508-1P Renold Ajax Coupling
Size 5 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0508-001
- 2445.00 C/F
245 REN-6901-508-2F Renold Ajax Coupling
Size 5-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Shrouded / Enclosed Bolts
Includes Hardened Fasteners
aka REN-6901-0558-002F
- 2810.00 C/F
246 REN-6901-508-2P Renold Ajax Coupling
Size 5 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Shrouded / Enclosed Bolts
Includes Hardened Fasteners
aka REN-6901-0508-002P
- 2445.00 C/F
247 REN-6901-556-1F Renold Ajax Coupling
Size 4 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
- 5672.50 C/F
248 REN-6901-556-1P Renold Ajax Coupling
Size 4 - 1/2 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
- 5223.75 C/F
249 REN-6901-558-1F Renold Ajax Coupling
Size 5-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0558-001F
- 4102.50 C/F
250 REN-6901-558-1P Renold Ajax Coupling
Size 5-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0558-001
- 4618.75 C/F
251 REN-6901-558-2F Renold Ajax Coupling
Size 5-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Shrouded / Enclosed Bolts
Includes Hardened Fasteners
aka REN-6901-0558-002F
- 4102.50 C/F
252 REN-6901-558-2P Renold Ajax Coupling
Size 5-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Shrouded / Enclosed Bolts
Includes Hardened Fasteners
aka REN-6901-0558-002F
- 3695.00 C/F
253 REN-6901-606-1F Renold Ajax Coupling
Size 6 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
- 7418.75 C/F
254 REN-6901-606-1P Renold Ajax Coupling
Size 6 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
- 6913.75 C/F
255 REN-6901-608-1F Renold Ajax Coupling
Size 6 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0608-001
- 5010.00 C/F
256 REN-6901-608-1P Renold Ajax Coupling
Size 6 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0608-001
- 4552.50 C/F
257 REN-6901-706-1F Renold Ajax Coupling
Size 7 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
- 10568.75 C/F
258 REN-6901-706-1P Renold Ajax Coupling
Size 7 Metal Seal Coupling
Full Flex, Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
- 9993.75 C/F
259 REN-6901-708-1F Renold Ajax Coupling
Size 6-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Includes Fasteners
aka REN-6901-0708-001F
(972LBS)
- 8067.50 C/F
260 REN-6901-708-1P Renold Ajax Coupling
Size 6-1/2 O-Ring Seal Gear Coupling
Full Flex, Forged Medium Carbon Steel
With Crowned & Barreled Teeth
Pilot / Rough Bore
Includes Fasteners
Part REN-6901-0708-001
(972LBS)
- 7545.00 C/F
261 REN-6905-0158-602 Renold Ajax Coupling
Part REN-6905-0158-602
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 1-1/2 American Standard
Flex 1/2 602 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.13 Inch Maximum Bore with a 1/2 Inch Square Keyway
Dated 1/17
- 713.75 C/F
262 REN-6905-0158-603 Renold Ajax Coupling
Part REN-6905-0158-603
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 1-1/2 American Standard
Flex 1/2 603 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.13 Inch Maximum Bore with a 1/2 Inch Square Keyway
Dated 1/17
- 692.50 C/F
263 REN-6905-0158-604 Renold Ajax Coupling
Part REN-6905-0158-604
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 1-1/2 American Standard
Flex 1/2 604 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.13 Inch Maximum Bore with a 1/2 Inch Square Keyway
Dated 1/17
- 713.75 C/F
264 REN-6905-0208-603 Renold Ajax Coupling
Part REN-6905-0208-603
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 2 American Standard
Flex 1/2 603 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Dated 1/17
- 777.50 C/F
265 REN-6905-0208-604 Renold Ajax Coupling
Part REN-6905-0208-604
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 2 American Standard
Flex 1/2 604 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Dated 1/17
- 777.50 C/F
266 REN-6905-0208-606 Renold Ajax Coupling
Part REN-6905-0208-606
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 2 American Standard
Flex 1/2 606 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Dated 1/17
- 777.50 C/F
267 REN-6905-0258-606 Renold Ajax Coupling
Part REN-6905-0258-606
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 2-1/2 American Standard
Flex 1/2 606 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
3.25 Inch Maximum Bore with a 3/4 Inch Square Keyway
Dated 1/17
- 921.25 C/F
268 REN-6905-0258-608 Renold Ajax Coupling
Part REN-6905-0258-608
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 2-1/2 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
3.25 Inch Maximum Bore with a 3/4 Inch Square Keyway
Dated 1/17
- 921.25 C/F
269 REN-6905-0308-608 Renold Ajax Coupling
Part REN-6905-0308-608
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 3 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4.00 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1138.75 C/F
270 REN-6905-0308-610 Renold Ajax Coupling
Part REN-6905-0308-610
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 3 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4.00 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1138.75 C/F
271 REN-6905-0308-612 Renold Ajax Coupling
Part REN-6905-0308-612
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 3 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4.00 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1138.75 C/F
272 REN-6905-0358-612 Renold Ajax Coupling
Part REN-6905-0358-612
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 3-1/2 American Standard
Flex 1/2 612 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
4.50 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1513.75 C/F
273 REN-6905-0358-614 Renold Ajax Coupling
Part REN-6905-0358-614
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 3-1/2 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 1513.75 C/F
274 REN-6905-0408-614 Renold Ajax Coupling
Part REN-6905-0408-614
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 4 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 1937.50 C/F
275 REN-6905-0408-616 Renold Ajax Coupling
Part REN-6905-0408-616
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 4 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 1937.50 C/F
276 REN-6905-0408-618 Renold Ajax Coupling
Part REN-6905-0408-618
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 4 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 1937.50 C/F
277 REN-6905-0458-614 Renold Ajax Coupling
Part REN-6905-0458-614
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 4-1/2 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
6 Inch Maximum Bore with a 1.50 Inch Square Keyway
Dated 1/17
- 2377.50 C/F
278 REN-6905-0458-616 Renold Ajax Coupling
Part REN-6905-0458-616
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 4-1/2 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
6 Inch Maximum Bore with a 1.50 Inch Square Keyway
Dated 1/17
- 2377.50 C/F
279 REN-6905-0458-618 Renold Ajax Coupling
Part REN-6905-0458-618
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 4-1/2 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
6 Inch Maximum Bore with a 1.50 Inch Square Keyway
Dated 1/17
- 2377.50 C/F
280 REN-6905-0508-616 Renold Ajax Coupling
Part REN-6905-0508-616
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 5 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
6.63 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 3338.75 C/F
281 REN-6905-0508-618 Renold Ajax Coupling
Part REN-6905-0508-618
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 5 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
6.63 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 3338.75 C/F
282 REN-6905-0508-620 Renold Ajax Coupling
Part REN-6905-0508-620
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 5 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
6.63 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 3338.75 C/F
283 REN-6905-0558-618 Renold Ajax Coupling
Part REN-6905-0558-618
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 5-1/2 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
7.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 5508.75 C/F
284 REN-6905-0558-620 Renold Ajax Coupling
Part REN-6905-0558-620
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 5-1/2 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
7.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 5508.75 C/F
285 REN-6905-0558-622 Renold Ajax Coupling
Part REN-6905-0558-622
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 5-1/2 American Standard
Flex 1/2 622 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
7.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 5508.75 C/F
286 REN-6905-0608-620 Renold Ajax Coupling
Part REN-6905-0608-620
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 6 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
8.13 Inch Maximum Bore with a 2 Inch Square Keyway
Dated 1/17
- 7533.75 C/F
287 REN-6905-0608-622 Renold Ajax Coupling
Part REN-6905-0608-622
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 6 American Standard
Flex 1/2 622 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
8.13 Inch Maximum Bore with a 2 Inch Square Keyway
Dated 1/17
- 7533.75 C/F
288 REN-6905-0608-624 Renold Ajax Coupling
Part REN-6905-0608-624
Mill Motor O Ring Seal Coupling
Flex - Rigid
Size 6 American Standard
Flex 1/2 624 Motor Frame with the Tapered Bore & Keyway
Rigid 1/2 Straight Bore with a Machine Finished Bore & Keyway
to AGMA Standards
8.13 Inch Maximum Bore with a 2 Inch Square Keyway
Dated 1/17
- 7533.75 C/F
289 REN-6906-0158-602 Renold Ajax Coupling
Part REN-6906-0158-602
Mill Motor O Ring Seal Coupling
Full-Flex
Size 1-1/2 American Standard
Flex 1/2 602 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.13 Inch Maximum Bore with a 1/2 Inch Square Keyway
Dated 1/17
- 695.00 C/F
290 REN-6906-0158-603 Renold Ajax Coupling
Part REN-6906-0158-603
Mill Motor O Ring Seal Coupling
Full-Flex
Size 1-1/2 American Standard
Flex 1/2 603 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.13 Inch Maximum Bore with a 1/2 Inch Square Keyway
Dated 1/17
- 695.00 C/F
291 REN-6906-0158-604 Renold Ajax Coupling
Part REN-6906-0158-604
Mill Motor O Ring Seal Coupling
Full-Flex
Size 1-1/2 American Standard
Flex 1/2 604 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.13 Inch Maximum Bore with a 1/2 Inch Square Keyway
Dated 1/17
- 695.00 C/F
292 REN-6906-0208-603 Renold Ajax Coupling
Part REN-6906-0208-603
Mill Motor O Ring Seal Coupling
Full-Flex
Size 2 American Standard
Flex 1/2 603 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Dated 1/17
- 796.25 C/F
293 REN-6906-0208-604 Renold Ajax Coupling
Part REN-6906-0208-604
Mill Motor O Ring Seal Coupling
Full-Flex
Size 2 American Standard
Flex 1/2 604 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Dated 1/17
- 796.25 C/F
294 REN-6906-0208-606 Renold Ajax Coupling
Part REN-6906-0208-606
Mill Motor O Ring Seal Coupling
Full-Flex
Size 2 American Standard
Flex 1/2 606 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
2.75 Inch Maximum Bore with a 5/8 Inch Square Keyway
Dated 1/17
- 796.25 C/F
295 REN-6906-0258-606 Renold Ajax Coupling
Part REN-6906-0258-606
Mill Motor O Ring Seal Coupling
Full-Flex
Size 2-1/2 American Standard
Flex 1/2 606 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
3.25 Inch Maximum Bore with a 3/4 Inch Square Keyway
Dated 1/17
- 997.50 C/F
296 REN-6906-0258-608 Renold Ajax Coupling
Part REN-6906-0258-608
Mill Motor O Ring Seal Coupling
Full-Flex
Size 2-1/2 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
3.25 Inch Maximum Bore with a 3/4 Inch Square Keyway
Dated 1/17
- 997.50 C/F
297 REN-6906-0308-608 Renold Ajax Coupling
Part REN-6906-0308-608
Mill Motor O Ring Seal Coupling
Full-Flex
Size 3 American Standard
Flex 1/2 608 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1263.75 C/F
298 REN-6906-0308-610 Renold Ajax Coupling
Part REN-6906-0308-610
Mill Motor O Ring Seal Coupling
Full-Flex
Size 3 American Standard
Flex 1/2 610 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1263.75 C/F
299 REN-6906-0308-612 Renold Ajax Coupling
Part REN-6906-0308-612
Mill Motor O Ring Seal Coupling
Full-Flex
Size 3 American Standard
Flex 1/2 612 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1263.75 C/F
300 REN-6906-0358-612 Renold Ajax Coupling
Part REN-6906-0358-612
Mill Motor O Ring Seal Coupling
Full-Flex
Size 3-1/2 American Standard
Flex 1/2 612 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4.50 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1602.50 C/F
301 REN-6906-0358-614 Renold Ajax Coupling
Part REN-6906-0358-614
Mill Motor O Ring Seal Coupling
Full-Flex
Size 3-1/2 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
4.50 Inch Maximum Bore with a 1 Inch Square Keyway
Dated 1/17
- 1610.00 C/F
302 REN-6906-0408-614 Renold Ajax Coupling
Part REN-6906-0408-614
Mill Motor O Ring Seal Coupling
Full-Flex
Size 4 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 2122.50 C/F
303 REN-6906-0408-616 Renold Ajax Coupling
Part REN-6906-0408-616
Mill Motor O Ring Seal Coupling
Full-Flex
Size 4 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 2122.50 C/F
304 REN-6906-0408-618 Renold Ajax Coupling
Part REN-6906-0408-618
Mill Motor O Ring Seal Coupling
Full-Flex
Size 4 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
5.38 Inch Maximum Bore with a 1.25 Inch Square Keyway
Dated 1/17
- 2122.50 C/F
305 REN-6906-0458-614 Renold Ajax Coupling
Part REN-6906-0458-614
Mill Motor O Ring Seal Coupling
Full-Flex
Size 4-1/2 American Standard
Flex 1/2 614 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
6 Inch Maximum Bore with a 1.50 Inch Square Keyway
Dated 1/17
- 2655.00 C/F
306 REN-6906-0458-616 Renold Ajax Coupling
Part REN-6906-0458-616
Mill Motor O Ring Seal Coupling
Full-Flex
Size 4-1/2 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
6 Inch Maximum Bore with a 1.50 Inch Square Keyway
Dated 1/17
- 2655.00 C/F
307 REN-6906-0458-618 Renold Ajax Coupling
Part REN-6906-0458-618
Mill Motor O Ring Seal Coupling
Full-Flex
Size 4-1/2 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
6 Inch Maximum Bore with a 1.50 Inch Square Keyway
Dated 1/17
- 2655.00 C/F
308 REN-6906-0508-616 Renold Ajax Coupling
Part REN-6906-0508-616
Mill Motor O Ring Seal Coupling
Full-Flex
Size 5 American Standard
Flex 1/2 616 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
6.63 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 3736.25 C/F
309 REN-6906-0508-618 Renold Ajax Coupling
Part REN-6906-0508-618
Mill Motor O Ring Seal Coupling
Full-Flex
Size 5 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
6.63 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 3736.25 C/F
310 REN-6906-0508-620 Renold Ajax Coupling
Part REN-6906-0508-620
Mill Motor O Ring Seal Coupling
Full-Flex
Size 5 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
6.63 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 3736.25 C/F
311 REN-6906-0558-618 Renold Ajax Coupling
Part REN-6906-0558-618
Mill Motor O Ring Seal Coupling
Full-Flex
Size 5-1/2 American Standard
Flex 1/2 618 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
7.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 5690.00 C/F
312 REN-6906-0558-620 Renold Ajax Coupling
Part REN-6906-0558-620
Mill Motor O Ring Seal Coupling
Full-Flex
Size 5-1/2 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
7.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 5690.00 C/F
313 REN-6906-0558-622 Renold Ajax Coupling
Part REN-6906-0558-622
Mill Motor O Ring Seal Coupling
Full-Flex
Size 5-1/2 American Standard
Flex 1/2 622 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
7.50 Inch Maximum Bore with a 1.75 Inch Square Keyway
Dated 1/17
- 5690.00 C/F
314 REN-6906-0608-620 Renold Ajax Coupling
Part REN-6906-0608-620
Mill Motor O Ring Seal Coupling
Full-Flex
Size 6 American Standard
Flex 1/2 620 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
8.13 Inch Maximum Bore with a 2 Inch Square Keyway
Dated 1/17
- 7351.25 C/F
315 REN-6906-0608-622 Renold Ajax Coupling
Part REN-6906-0608-622
Mill Motor O Ring Seal Coupling
Full-Flex
Size 6 American Standard
Flex 1/2 622 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
8.13 Inch Maximum Bore with a 2 Inch Square Keyway
Dated 1/17
- 7351.25 C/F
316 REN-6906-0608-624 Renold Ajax Coupling
Part REN-6906-0608-624
Mill Motor O Ring Seal Coupling
Full-Flex
Size 6 American Standard
Flex 1/2 624 Motor Frame with the Tapered Bore & Keyway
Flex 1/2 Straight Bore with a Machine Finished Bore & Keyway to AGMA Standards
8.13 Inch Maximum Bore with a 2 Inch Square Keyway
Dated 1/17
- 7351.25 C/F
317 REN-6908-108-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0108-001
(XXLBS) H X" L X" W X"
[Amazon]
- 478.75 C/F
318 REN-6908-108-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0108-001
(XXLBS) H X" L X" W X" Box
[Amazon]
- 286.25 C/F
319 REN-6908-108-2 Renold Ajax Coupling. Flex Rigid Gear Coupling with O-Ring Seal.
Size # 1 with Shrouded Bolts
Finished straight bore & keyway
Maximum Bore with a standard keyway
1.63 Inches 3/8 x 3/16
Maximum Bore with a reduced keyway 1.88 Inches 1/2 x 3/16
Offset Misalignment .049
12.7 IN. LB x 10 to the 3rd
Maximum RPM 3600
4.56 Inch Diameter x 3.5 Inches Long
2.38 Inch Hub Diameter
(10LBS)
- 342.50 C/F
320 REN-6908-156-1F Renold Ajax Flex-Rigid Labyrinth Metal Seal Gear Coupling, size 1 -1/2 as found on pages 4 & 5 of Renold Flexible Gear Coupling Catalog dated 7/98 . Each coupling flex hub and rigid half to be bored for 1.625" bore with 3/8" X 3/16" keyway. - 673.75 C/F
321 REN-6908-158-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0158-001
(XXLBS) H X" L X" W X"
[Amazon]
- 581.25 C/F
322 REN-6908-158-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0158-001
(XXLBS) H X" L X" W X" Box
[Amazon]
- 376.25 C/F
323 REN-6908-158-2 Renold Ajax Flex-Rigid O-Ring Seal Coupling. Size 1 & 1/2 with Shrouded Bolt Flanges. Maximum RPM 3600, Design rating based on plus or minus 1 & 1/2 degree misalignment. - 268.75 C/F
324 REN-6908-208-1 Renold Ajax Coupling. Flex Rigid Coupling, Size # 2 with Shrouded Bolts and a finished bore & keyway - 370.00 C/F
325 REN-6908-208-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0208-001
(XXLBS) H X" L X" W X"
[Amazon]
- 643.75 C/F
326 REN-6908-208-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0208-001
(XXLBS) H X" L X" W X" Box
[Amazon]
- 421.25 C/F
327 REN-6908-258-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0258-001
(XXLBS) H X" L X" W X"
[Amazon]
- 768.75 C/F
328 REN-6908-258-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0258-001
(XXLBS) H X" L X" W X" Box
[Amazon]
- 520.00 C/F
329 REN-6908-308-1 Renold Ajax Flex-Rigid O'Ring Seal Gear Coupling, Size 3 Rough Bore - 676.25 C/F
330 REN-6908-308-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0308-001
(XXLBS) H X" L X" W X"
[Amazon]
- 966.25 C/F
331 REN-6908-308-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0308-001
(XXLBS) H X" L X" W X" Box
[Amazon]
- 696.25 C/F
332 REN-6908-358-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0358-001
(XXLBS) H X" L X" W X"
[Amazon]
- 1308.75 C/F
333 REN-6908-358-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0358-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 983.75 C/F
334 REN-6908-408-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0408-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1661.25 C/F
335 REN-6908-408-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0408-001
(207BS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1317.50 C/F
336 REN-6908-458-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0458-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 2038.75 C/F
337 REN-6908-458-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0458-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 1668.75 C/F
338 REN-6908-508-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0508-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 2661.25 C/F
339 REN-6908-508-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0508-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 2267.50 C/F
340 REN-6908-558-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0558-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 4268.75 C/F
341 REN-6908-558-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0558-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 3828.75 C/F
342 REN-6908-608-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0608-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 5602.50 C/F
343 REN-6908-608-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0608-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 5107.50 C/F
344 REN-6908-708-1F Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Finished Straight Bore, Keyway & Set Screw
Turned finished to AGMA Standard Bore Tolerances
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0708-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 8547.50 C/F
345 REN-6908-708-1P Renold Ajax Gear Coupling
O Ring Seal, Flex Rigid Coupling
Forged Medium Carbon Steel
Crowned & Barreled Teeth
With a Pilot / Rough Bore
Includes Tight Fitting High Strength Bolts
Exposed Bolt Design
X Inch Diameter, X Inches Long
aka REN-6908-0708-001
(XXLBS) H X" L X" W X" Box on Skid
Motor Freight Only
- 7982.50 C/F
346 REN-6928-0458-500 Renold Ajax Brake Drum Coupling # 4 1/2 - Call C/F
347 REN-7 EXP KIT LMS Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 7 Labyrinth Metal Seal Gear Coupling with Exposed Bolts - 260.00 C/F
348 REN-7 EXP KIT OR Renold Ajax Flange Accessory Set. (hardware for bolting ring gears together) Size 7 "O" Ring Seal Gear Coupling with Exposed Bolts - 247.00 C/F
349 REN-788-074-00-000 Renold Ajax Washer, 788-074-00-000 Flat Washer, W-6 0.076 ID, 1.50 OD, 0.125 Thick - 3.00 C/F
350 REN-792-437-62-003 Renold Coil Spring, Item 21 - 637.50 C/F
351 REN-A-359-BD Renold Ajax Size 3-5/8 Complete Brake Drum Coupling per drawing WIH-1024 - 7198.00 C/F
352 REN-CP57BB4 Renold Coupling - 511.43 C/F
353 REN-CPLPBIR1.5F Renold Ajax Flexible Coupling
Size 1 & 1/2 Pin & Bushing Coupling from Cast Iron
With a finished straight Bore, Keyway & set screw
Inch Maximum Finished Bore 1.88 Inch
Misalignment Capacity = 0r - 1/2 Degree
Maximum RPM 3600
7.1 Maximum, HP @ 100 RPM
6.56 Inch Outside Diameter
4.50 Inch Overall Length
Fail Safe Design
Cushings vibration and shock, No Lubrication Required
Operates Horizontally or Vertically
Permits Free End Float
Simple to Install, Align & Maintain
Includes 6, Size #5 Studs & Urethane Bushings
Neoprene/Bronze Bushings are available @ additional cost
Part REN-CPLPBIR1.5F
(223LBS) H 6" L 8" W 8" Box
- 542.50 C/F
354 REN-CPLPBIR1.5P Renold Ajax Flexible Coupling
Size 1 & 1/2 Pin & Bushing Coupling from Cast Iron
Supplied with a Pilot / Rough Bore
Inch Maximum Finished Bore 1.88 Inch
Misalignment Capacity = 0r - 1/2 Degree
Maximum RPM 3600
7.1 Maximum, HP @ 100 RPM
6.56 Inch Outside Diameter
4.50 Inch Overall Length
Fail Safe Design
Cushings vibration and shock, No Lubrication Required
Operates Horizontally or Vertically
Permits Free End Float
Simple to Install, Align & Maintain
Includes 6, Size #5 Studs & Urethane Bushings
Neoprene/Bronze Bushings are available @ additional cost
Finished Bore, Keyway & Set Screw @ additional cost
Part REN-CPLPBIR1.5P
(23LBS) H 6" L 8" W 8" Box
405.00 1
355 REN-CPLPBIR1F Renold Ajax Flexible Coupling
Size 1 Pin & Bushing Coupling from Cast Iron
With a finished straight Bore, Keyway & set screw
Inch Maximum Finished Bore 1.12 Inch
Misalignment Capacity = 0r - 1/2 Degree
Maximum RPM 3600
2.5 Maximum, HP @ 100 RPM
4.68 Inch Outside Diameter
2.97 Inch Overall Length
Fail Safe Design
Cushings vibration and shock, No Lubrication Required
Operates Horizontally or Vertically
Permits Free End Float
Simple to Install, Align & Maintain
Includes 6, Size #6 Studs & Urethane Bushings
Neoprene/Bronze Bushings are available @ additional cost
Part REN-CPLPBIR1F
(7LBS) H 4" L 6" W 6" Box
- 432.50 C/F
356 REN-CPLPBIR1P Renold Ajax Flexible Coupling
Size 1 Pin & Bushing Coupling from Cast Iron
Supplied with a Pilot / Rough Bore
Inch Maximum Finished Bore 1.12 Inch
Misalignment Capacity = 0r - 1/2 Degree
Maximum RPM 3600
2.5 Maximum, HP @ 100 RPM
4.68 Inch Outside Diameter
2.97 Inch Overall Length
Fail Safe Design
Cushings vibration and shock, No Lubrication Required
Operates Horizontally or Vertically
Permits Free End Float
Simple to Install, Align & Maintain
Includes 6, Size #6 Studs & Urethane Bushings
Neoprene/Bronze Bushings are available @ additional cost
Can be provided with Finished Bore, Keyway & Set Screw @ additional cost
Part REN-CPLPBIR1P
(8LBS) H 4" L 6" W 6" Box
- 326.25 C/F
357 REN-D200 Renold Ajax Shaft 17318-4 on a Vibratory Conveyor - 1135.00 C/F
358 REN-D250 Renold Ajax "D" Series Full Flex Coupling, Size 250 with Finished Bores & Keyways. Gear Teeth are Induction Hardened. Exposed Flange Bolts. Maximum Offset 3.5 Degrees, Maximum Bore 2.63 Inches (100LBS) 4901-250-1 4/9 - 1655.00 C/F
359 REN-DS250 Renold DS Series Type Spindle Coupling, Size 250, Adapters, & Hub Gears with rough bore. Gear Teeth are Induction Hardened. Both ends without the shaft. Maximum Bore 3.06 Inches (86LBS) - 3481.25 C/F
360 REN-MB-23655 Renold Special Size 3 - 1/2 Rigid Half per PMC Drawing MB-23655 - 584.66 C/F
361 REN-MB-23658 Renold Special Size 2 O-Ring Seal Full Flex Coupling per PMC Drawing MB-23658 - 788.00 C/F
362 REN-MB-23665-M Renold Special Size 3 - 1/2 Rigid Half per PMC Drawing MB-23655 - 584.00 C/F
363 REN-MB-23666-M Renold Special Size 3 - 1/2 Rigid Half per PMC Drawing MB-23655 10/9 - 786.00 C/F
364 REN-MB-7936-M Renold Special Size 4 O-Ring Seal Coupling Half - 1987.00 C/F
365 REN-PB 2 ROUGH Renold Ajax Coupling PB
1602 Pin & Flexible Bushing Coupling
Size 2
With a Pilot / Rough Bore
2.56 Inch Maximum Straight Bore
Urethane Bushings
Cast Iron Body
Options include:
Finished Machined Bore, Keyway & Setscrew
Neoprene Bronze Bushings
Extra Keyway & Setscrew
Dated 1/17
(48LBS)

- 613.75 C/F
366 REN-PB 2 S FINISHED Renold Ajax # 2S, Type S Forged Steel, Pin & Bushed Flexible Coupling with a finished bore & keyway. Fail safe design. Angular misalignment + or - 1/2 degree. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Can be finished with bore & keyway machined to your requirements at additional cost (22LBS) - 958.75 C/F
367 REN-PB 2 S ROUGH Renold Ajax # 2S, Type S Forged Steel, Pin & Bushed Flexible Coupling. Rough Stock Bore. Fail safe design. Angular misalignment + or - 1/2 degree. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Can be finished with bore & keyway machined to your requirements at additional cost (22LBS) - 727.50 C/F
368 REN-PB 2-1/2 FINISHED Renold Ajax Coupling PB
1602 Pin & Bushed Flexible Coupling
Size 2-1/2
With a Straight Bore, Keyway & Setscrew
Urethane Bushings
Options include:
Neoprene Bronze Bushings
Extra Keyway & Setscrew
Dated 1/17
- 1210.00 C/F
369 REN-PB 2-1/2 ROUGH Renold Ajax Coupling PB
1602 Pin & Bushed Flexible Coupling
Size 2-1/2
With a Pilot / Rough Bore
Urethane Bushings
Options include:
Finished Machined Bore, Keyway & Setscrew
Neoprene Bronze Bushings
Extra Keyway & Setscrew
Dated 1/17
- 892.50 C/F
370 REN-PB 3 ROUGH Renold Ajax #3, Type PB, Pin & Bushed Flexible Coupling. Rough Stock Bore. Fail safe design. Angular misalignment + or - 1/2 degree. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Can be finished with bore & keyway machined to your requirements at additional cost. - 1193.75 C/F
371 REN-PB 3-1/2 ROUGH Renold Ajax #3-1/2, Type PB, Pin & Bushed Flexible Coupling. Rough Stock Bore. Fail safe design. Angular misalignment + or - 1/2 degree. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Can be finished with bore & keyway machined to your requirements at additional cost. - 1582.50 C/F
372 REN-PB 4 ROUGH Renold Ajax #4, Type PB, Pin & Bushed Flexible Coupling. Rough Stock Bore. Fail safe design. Angular misalignment + or - 1/2 degree. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Can be finished with bore & keyway machined to your requirements at additional cost. - 2657.50 C/F
373 REN-PB 4-1/2 S Renold Ajax #4-1/2 "S", Type S Forged Steel
Pin & Bushing Flexible Coupling
Pilot / Stock Bore
Fail safe design
Cushions vibration and shock
No lubrication required
Operates horizontally or vertically
Permits free end float
(220LBS)
- 8387.50 C/F
374 REN-PB 4-1/2 S  FINISHED Renold Ajax #4-1/2 "S", Type S Forged Steel
Pin & Bushing Flexible Coupling
Finished Straight Bore, Keyway and set screw
Finish Machine to your specifications
Fail safe design
Cushions vibration and shock
No lubrication required
Operates horizontally or vertically
Permits free end float
(210LBS)
- 8900.00 C/F
375 REN-PB 5 S  FINISHED Renold Ajax #5 "S", Type S Forged Steel, Pin & Bushed Flexible Coupling. Finished Bore & Keyway to your specifications.. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Maximum bore 5 inch. Includes all required fasteners & urethane bushings 276 LBS Gross with Wooden box - 6148.35 C/F
376 REN-PB COUPLING 1-1/2 FINISHED Renold Ajax Cast Iron Pin & Bush Coupling. Bored & keyed to your exact requirements. 1.88 Maximum finished bore. Maximum + or - 1/2 degree angular misalignment capacity. 3600 Maximum R.P.M. 7.1 Maximum, H.P. @ 100 RPM 6.56 Inch diameter. 4.50 Overall length. Fail safe design. Cushings vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Qty. 6, Size #5 studs & bushings. Supplied with urethane bushings, neoprene/bronze are optional. 23 LBS. - 563.75 C/F
377 REN-PB COUPLING 2 1/2 FINISHED Renold Ajax Cast Iron Pin & Bushing type Coupling. Finished machined bore & keyway to your dimensions, Maximum Bore 3.25 Inch, Maximum RPM 2700, Maximum H.P. @ 100 RPM. 28.6, Maximum Torque LB. - Inch X 10 to the 3rd power 18.0, 80 LBS Gross. - 1210.00 C/F
378 REN-PB COUPLING 2 FINISHED Renold Ajax Cast Iron Pin & Bushing type Coupling. Finished machined bore & keyway to your dimensions, Maximum Bore 2.56 Inch, Maximum RPM 3200, Maximum H.P. @ 100 RPM. 17.5, Maximum Torque LB. - Inch X 10 to the 3rd power 11.0, 46 LBS Gross. - 813.75 C/F
379 REN-PB COUPLING 3 FINISHED Renold Ajax Cast Iron Pin & Bushing type Coupling. Finished machined bore & keyway to your dimensions, Maximum Bore 4.00 Inch, Maximum RPM 2000, Maximum H.P. @ 100 RPM. 61.9, Maximum Torque LB. - Inch X 10 to the 3rd power 39.0, 202 LBS Gross. - 1600.00 C/F
380 REN-RA2.5PB Renold Ajax Model 2 1/2 PB coupling which is the current model replacing 562360. Note that some minor dimensional changes may have been made. - 566.00 C/F
381 REN-RAS6NB Renold Ajax Size 6 Neoprene Bronze Bushing for 2 3/8" A dimension coupling. Ref: 562360. - 28.34 C/F
382 REN-RENOLD AJAX Renold Ajax product - Call C/F
383 REN-S COUPLING 1 FINISHED Renold Ajax #1 "S", Type S Forged Steel, Pin & Bushed Flexible Coupling. Finished Bore & Keyway to your specifications.. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float - 708.75 C/F
384 REN-S COUPLING 1-1/2 FINISHED Renold Ajax #1-1/2 "S", Type S Forged Steel, Pin & Bushed Flexible Coupling. Finished Bore & Keyway to your specifications.. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float (16LBS) - 791.25 C/F
385 REN-S COUPLING 1-1/2 STOCK BORE Renold Ajax Coupling
Part REN-S Coupling 1-1/2 Stock Bore
Pin & Bushing Style Flexible Coupling
Type "S" Machined from Forged Steel
Size 1- 1/2 "S"
Rough / Stock Bore, NOT Finished
Maximum Bore Diameter of 1.62 Inches
Fail safe design that cushions both vibration and shock
No lubrication required
Operates horizontally or vertically
Permits free end float
Has Qty 8 Size 4, Studs & Urethane Bushings
(16LBS) Dated 1/17
- 598.75 C/F
386 REN-S COUPLING 2  FINISHED Renold Ajax # 2 Forged Steel Pin & Bush Coupling with a Finished Straight Bore, Keyway & Set Screw. 2.00 Inch Maximum finished bore. Maximum + or - 1/2 degree angular misalignment capacity. 3600 Maximum R.P.M. 12.5 Maximum, H.P. @ 100 RPM 6.12 Inch Diameter. 4.62 Overall length. Fail safe design. Cushings vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Qty. 12 Size #4.5 studs & bushings. Supplied with urethane bushings, neoprene/bronze are optional (19LBS) - 997.50 C/F
387 REN-S COUPLING 2 1/2  FINISHED Renold Ajax # 2 1/2 Forged Steel Pin & Bush Coupling with a Finished Straight Bore, Keyway & Set Screw. 2.50 Inch Maximum finished bore. Maximum + or - 1/2 degree angular misalignment capacity. 3600 Maximum R.P.M. 17.5 Maximum, H.P. @ 100 RPM 7.25 Inch Diameter. 5.12 Overall length. Fail safe design. Cushings vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Qty. 12 Size #5 Studs & Bushings. Supplied with Urethane Bushings, Neoprene/ Bronze are optional (33LBS) - 1605.00 C/F
388 REN-S COUPLING 2 1/2  ROUGH Renold Ajax # 2 1/2 Forged Steel Pin & Bush Coupling with a Rough Bore, Keyway & Set Screw. 2.50 Inch Maximum finished bore. Maximum + or - 1/2 degree angular misalignment capacity. 3600 Maximum R.P.M. 17.5 Maximum, H.P. @ 100 RPM 7.25 Inch Diameter. 5.12 Overall length. Fail safe design. Cushings vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Qty. 12 Size #5 Studs & Bushings. Supplied with Urethane Bushings, Neoprene/ Bronze are optional (33LBS) - 1210.00 C/F
389 REN-S COUPLING 3 STOCK BOR Renold Ajax # 3 Forged Steel Pin & Bush Coupling with a Rough Bore, Keyway & Set Screw. 2.50 Inch Maximum finished bore. Maximum + or - 1/2 degree angular misalignment capacity. 3600 Maximum R.P.M. 17.5 Maximum, H.P. @ 100 RPM 7.25 Inch Diameter. 5.12 Overall length. Fail safe design. Cushings vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float. Qty. 12 Size #5 Studs & Bushings. Supplied with Urethane Bushings, Neoprene/ Bronze are optional (33LBS) - 1468.75 C/F
390 REN-S COUPLING 3-1/2 FINISHED Renold Ajax #3-1/2 "S", Type S Forged Steel, Pin & Bushed Flexible Coupling with a finished bore & keyway. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float - 2840.00 C/F
391 REN-S COUPLING 3-1/2 STOCK BOR Renold Ajax #3-1/2 "S", Type S Forged Steel, Pin & Bushed Flexible Coupling. Stock Bore. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float - 2241.25 C/F
392 REN-S COUPLING 4 FINISHED Renold Ajax #4 "S", Type S Forged Steel, Pin & Bushed Flexible Coupling with a finished bore & keyway. Fail safe design. Cushions vibration and shock. No lubrication required. Operates horizontally or vertically. Permits free end float - 4052.50 C/F
393 REN-STUD-10 Renold Ajax Stud Assembly
Part Stud-10
#10 Stud Assembly
For Steel Couplings "S" 5 & 6S
For Obsolete Couplings "A" 6.5A
High Tensile Alloy Steel
6.156 Inch Overall Length
1.25 Inch Shaft Diameter
1.00 Inch Thread Diameter
[Amazon]
(3LBS) H 4" L 6" W 4" Box
136.00 2
394 REN-STUD-3 Renold Ajax Stud Assembly
Part Stud-3
#3 Stud Assembly
For Obsolete Couplings "A" 0.75A, 1.5A & 1.75A
For Obsolete Coupling 400
High Tensile Alloy Steel
1.375 Inch Overall Length
0.4375 Inch Shaft Diameter
0.3125 Inch Thread Diameter
[Amazon]
(1LBS) H 4" L 5" W 4" Box
21.33 2
395 REN-STUD-4 Renold Ajax Stud Assembly
Part Stud-4
#4 Stud Assembly
For Coupling "PB" 1PB
For Coupling "S" 1S
For Obsolete Couplings "A" 1A, 1.25
For Obsolete Coupling 417
High Tensile Alloy Steel
1.781 Inch Overall Length
0.5625 Inch Shaft Diameter
0.357 Inch Thread Diameter
6 or 8 per Coupling
[Amazon] Dated
(1LBS) H 4" L 5" W 4" Box
29.33 8
396 REN-STUD-4.5 Renold Ajax Stud Assembly
Part Stud 4.5
#4.5 Stud Assembly: Pin, Nut & Lockwasher
For Coupling "S" 1.5S & 2S
For Obsolete Couplings "A" 1A, 1.25
For Obsolete Coupling 422
High Tensile Alloy Steel
2.3125 Inch Overall Length
0.625 Inch Shaft Diameter
0.325 Inch Thread Diameter
8 or 12 per Coupling
Used with Bushing 4.5
[Amazon] Dated
(1LBS) H 4" L 5" W 4" Box
32.00 10
397 REN-STUD-5 Renold Ajax Stud Assembly
Part Stud- 5
#5 Stud Assembly
For Cast Iron Coupling "PB" 1.5PB
For Steel Couplings " S", 2S & 2.5S
For Obsolete Couplings "A" 1.375A, 1.5A & 1.75A
For Obsolete Coupling 427
High Tensile Alloy Steel
2.53 Inch Overall Length
0.75 Inch Shaft Diameter
0.50 Inch Thread Diameter
Includes Stud, Nut & Lockwasher
4, 6 or 12 Studs per Coupling
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
36.00 20
398 REN-STUD-6 Renold Ajax Stud Assembly
Part Stud-6
#6 Stud Assembly
For Cast Iron Coupling "PB" 2PB
For Steel Coupling "S" 3S
For Obsolete Couplings "A" 1A, 1.25
For Obsolete Coupling "A" 2.375A
High Tensile Alloy Steel
3.031 Inch Overall Length
0.8125 Inch Shaft Diameter
0.5625 Inch Thread Diameter
[Amazon] Dated 1/18
(1LBS) H 4" L 5" W 4" Box
38.67 30
399 REN-STUD-7 Renold Ajax Stud Assembly
Part Stud 7
#7 Stud Assembly
For Cast Iron Coupling "PB" 2.5,3, 3.5PB
For Steel Couplings "S" 3.5S
For Obsolete Couplings "A" 2.75, 1.25
For Obsolete Coupling "A" 2.375A, 3.125A
High Tensile Alloy Steel
3.531 Inch Overall Length
0.875 Inch Shaft Diameter
0.625 Inch Thread Diameter
[Amazon]
(2LBS) H 4" L 5" W 4" Box
46.67 4
400 REN-STUD-8 Renold Ajax Stud Assembly
#8 Stud Assembly
For Cast Iron Coupling "PB" 4PB
For Steel Couplings "S" 4S
For Obsolete Couplings "A" 3.625, 4, 4.5, 5, 5.5A
High Tensile Alloy Steel
4.0312 Inch Overall Length
1.00 Inch Shaft Diameter
0.750 Inch Thread Diameter
Part REN-Stud#8
(1LB) H 4" L 5" W 4" Box
- 62.67 C/F
401 REN-STUD-9 Renold Ajax Stud Assembly
#9 Stud Assembly
For Steel Couplings "S" 4.5S
For Obsolete Couplings "A" 6A
High Tensile Alloy Steel
5.166 Inch Overall Length
1.125 Inch Shaft Diameter
0.875 Inch Thread Diameter
Part REN-Stud#9
(2LBs) H 4" L 6" W 4" Box
- 109.33 C/F
Prices are subject to change without notice. Last updated: 26-Mar-2019 08:53:43 AM (EST)

Secure Online Order


Secure Online Order

62,610 part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)


Product MSDS Information
Web Site Features

Part Number Lookup

Enter at least three characters of a part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
About Brake Products, Inc.

About Brake Products, Inc.

Brake Products, Inc. is more than an authorized distributor, we are real stocking distributor with inventory in excess of 2 million dollars. BPI has thousands of parts in our stock to protect your business with same day shipments till almost 7PM. With over 30 years of experience in the material handling business we are ready to assist you in making the right decisions for efficient motion control.

Brake Products specializes in the machining of Brake Wheels for AC & DC Industrial Brakes. We utilized CAD designed & engineered products with CNC machined tools to produce the "Perfect Brake Wheel" these wheels are not limited in design by a previously designed castings for universal use. BPI is an OEM brake wheel manufacturer for Crane Brake Manufacturers. Though we machine all the brake wheel surfaces for balance both static & dynamic balancing to your specification is available.

Please spend some time at our web site, an abundance of product information and CAD style PDF drawings are available to download & share. Pricing and a shopping cart for automated order entry can be done here. Please call with any questions. We would appreciate the opportunity to speak with you and provide a formal quotation.

Order Status Lookup by Invoice/Web Order Number


BPI Invoice/Web Order #

Invoice number is all-numeric, 5-7 digits, web order is alpha-numeric. Only recent invoices are available. Web orders may take a day or two to have an invoice created.


Ductile Iron Brake Wheels

Ductile Iron Brake Wheels

We manufacture high-quality custom and standard brake wheels from 4-1/2" to 30" diameter, cast from the finest ASTM and ASME specified 80-60-03 Ductile Iron to provide maximum service and a high coefficient of friction. Machining is done on CNC equipment using solid dura bar or iron castings.

Brake wheels for all types of electric and hydraulically actuated brakes. Many wheels available for same day shipment; both pilot bore and finished bored for the 600 and 800 series mill motors.

Replacement Brake Parts

Replacement Brake Parts

Easily locate and purchase hard to find replacement parts for the following most popular brake assemblies:

  •  EC&M
  •  SQUARE-D
  •  WESTINGHOUSE
  •  CUTLER-HAMMER
  •  GEMCO
  •  MONDEL

Brake assembly diagrams and selection tables, backed by our extensive replacement brake parts stock, makes it as easy as "1-2-3".

OEM Products


Brake Products is proud to maintain excellent decades-long distrubutor relationships with industry-leading Original Equipment Manufacturers (OEM). We keep most popular items in stock to improve delivery times. These products are available to quote and purchase 24/7 on our e-commerce web sites, along with a multitude of installation and support information:

  •  Gemco (Ametek)
  •  Gleason Reel
  •  Aero-Motive
  •  Cutler-Hammer (Eaton)
  •  Hubbell
  •  SuperBolt
  •  Telemotive (Magnetek)
  •  Renold
  •  Stearns

For online purchases, shipping is free within continental U.S.
Electrical Contactors Parts

Electrical Contactors Parts

Easily locate and purchase hard to find replacement parts for the following most popular electrical contactors:

  •  Clark Control

Contactors assembly diagrams and selection tables, backed by our extensive replacement contactors parts stock, makes it as easy as "1-2-3".


Non-Asbestos Overhead Crane Linings from Scan-Pac

Non-Asbestos Overhead Crane Linings From Scan-Pac

The industrial marketplace has a variety of brake and clutch requirements for overhead cranes. Scan-Pac's technical and application expertise can recommend and furnish the proper material to meet the specific need your operation demands. Numerous specific parts have been molded or machined to meet the unique requirements of a special application. Let Scan-Pac solve those vexing problems in your day-to-day production.

Scan-Pac's RF38 material has been accepted as a well proven material for these applications and has been in use for several decades.

Scan-Pac Products Available From Stock

Non-OEM Brake Replacement Parts


High quality, aftermarket, non-OEM, brake replacement parts


Non-OEM Brake Replacement Parts Available From Stock


Industrial Brakes and Brake Parts from Reuland

Industrial Brakes and Brake Parts from Reuland

Reuland offers a wide variety of brakes for various applications. Popular MagnaStop brake is a solenoid activated, spring set type brake. The MagnaStop brake is available in standard and dust-tight/waterproof enclosures in standard AC voltages. Torque ratings available range from (1.5-20) lb. Ft. The brake can be ordered as a traditional C-face mount or as a "double C-face" design. The MagnaStop can also be ordered as foot mounted design.

Reuland also offers a wide range of direct acting magnetic disc brakes. These brakes are also available as standard, dust-tight/waterproof, or marine duty enclosures. Torque ratings available vary from 1.5 to 1000 lb. Ft. Reuland brakes are defined as "fail safe". When power is applied to the brake, the brake releases the motor shaft. The load is then free to turn. When power is removed or lost, the brake grabs the motor shaft and stops the load. A brake release knob or flipper is provided to manually release the brake. Reuland offers both adjustable and non-adjustable designs. Reuland brakes are available in both single and three phase designs. Some brakes are available in DC power. Finally, Reuland offers it's "X" series brakes. These brakes are designed to mount to non-Reuland built motors.
Industrial Brakes and Brake Parts from Wagner

Industrial Brakes and Brake Parts from Wagner

Our knowledge is second to none in regard to the old style Wagner brake. It may be worth knowing that Wagner Brake itself has not manufactured this style brake since 1981, yet we have never stopped supplying this brake to our large distributor network.

When it comes to air brake parts, our company roots go way back. We have an extensive library of air brake catalogs which has supplied our customers well over the years. Our knowledge is based mostly on the Bendix (formerly Bendix-Westinghouse), Wagner Air Brake, and the Midland Air Brake line.


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
