Complete Price List

Brake Products   |  Cutler-Hammer   |  Eldro   |  Renold Ajax   |  Reuland   |  Scan-Pac   |  Superbolt   |  Wagner   |  Westinghouse

Superbolt
No. Part Number Description Image Price Stock Qty
1 SUP-2000191157 Superbolt Nordlock Fastening Assembly
Part 2000191157
MT-600-6/W
Standard Nut Style Mechanical Tensioner
6.000-6 Thread
Quote QUO-4041-002024-1
Dated 6/18
- 1062.50 C/F
2 SUP-325-4-W Superbolt Torquenut MT
Part 325-4/W
Torquenut
Standard Mechanical Tensioners with Hardened Washer
325 = 3.25 Bolt / Stud Diameter
4 = 4 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
5.45 Inch OD
Application information is now required
with all Superbolt inquiries & orders
Dated 9/15
- 406.13 C/F
3 SUP-CY-M24-3-W Superbolt CY High Strength Tensioner
Part CY-M24-3/W
CY Tensioners can be used on Grade 8 Bolts & Studs with High Preload
M48 = Nominal Thread Diameter in mm
5 = Threads per Inch
W = With Hardened Washer
Preload LBS 196500
Torque LB FT 98
O.D. 85mm
With a Hardened Lockwasher
Supplied with Superbolt JL-G Lubricant
Socket size Required 10 mm
Application information is now required
with all Superbolt inquiries & orders
(3LBS)
- 69.06 C/F
4 SUP-CY-M48-5-W Superbolt Nordlock
CY High Strength Tensioner with a Hardened Lockwasher
Part CY-M48-5-W
CY Tensioners can be used on Grade 8 Bolts & Studs with High Preload
Part SUP-CY-M48-5/W
M48 = Nominal Thread Diameter in mm
5 = Threads per Inch
W = With Hardened Washer
Preload LBS 196500
Torque LB FT 98
OD 85mm
Supplied with Superbolt JL-G Lubricant
Socket size Required 10 mm
Application information is now required
with all Superbolt inquiries & orders
Dated
(3LBS) H 4" L 5" W 4" Box
176.38 C/F
5 SUP-DOCUMENT-LOOK-UP For Superbolt Installation, Removal and Safety Information go to:

http://www.superboltdirect.com

This Information is listed near the bottom of the page
- Call C/F
6 SUP-H650-225-8-W Superbolt STD.H650, 2.25-8
Part H650-225-8/W
2.25-8 TPI Medium Temp
Tensioner with Hardened Washer
Application information is now required
with all Superbolt inquiries & orders
Dated 11/15
- 243.31 C/F
7 SUP-H650-275-8-W Superbolt STD.H650, 2.750-8
Part H650-275-8/W
2.75-8 TPI Medium Temp
Tensioner with Hardened Washer
Application information is now required
with all Superbolt inquiries & orders
Dated 5/14
- 345.31 C/F
8 SUP-H650-300-8-W Superbolt STD.H650, 3.00-8
Part SUP-H650-300-8/W
3.00-8 TPI Medium Temp
Tensioner with Hardened Washer
Application information is now required
with all Superbolt inquiries & orders
Dated
- Call C/F
9 SUP-H650T-275-8-W Superbolt STD.H650T, 2.750-8
Part SUP-H650T-275-8/W
2.75-8 TPI Medium Temp
Tensioner with Hardened Washer
Application information is now required
with all Superbolt inquiries & orders
Dated 10/17
- 418.63 C/F
10 SUP-JB-0520 Superbolt Jack Bolt / Set Screw
Part JB-0520
5/8 Inch Hardened & Ground
With a Protruded Tip
18 Threads Per Inch
For MT-300-8
Application information is now required
with all Superbolt inquiries & orders
Dated 3/15
- 10.81 C/F
11 SUP-JB-70102 Superbolt Jack Bolt / Set Screw
Part JB-70102
5/16 / 0.3125 Inch Hardened & Ground
With a Protruded Tip
24 Threads Per Inch
0.625 Long
Application information is now required
with all Superbolt inquiries & orders
Dated 3/15
- 1.87 C/F

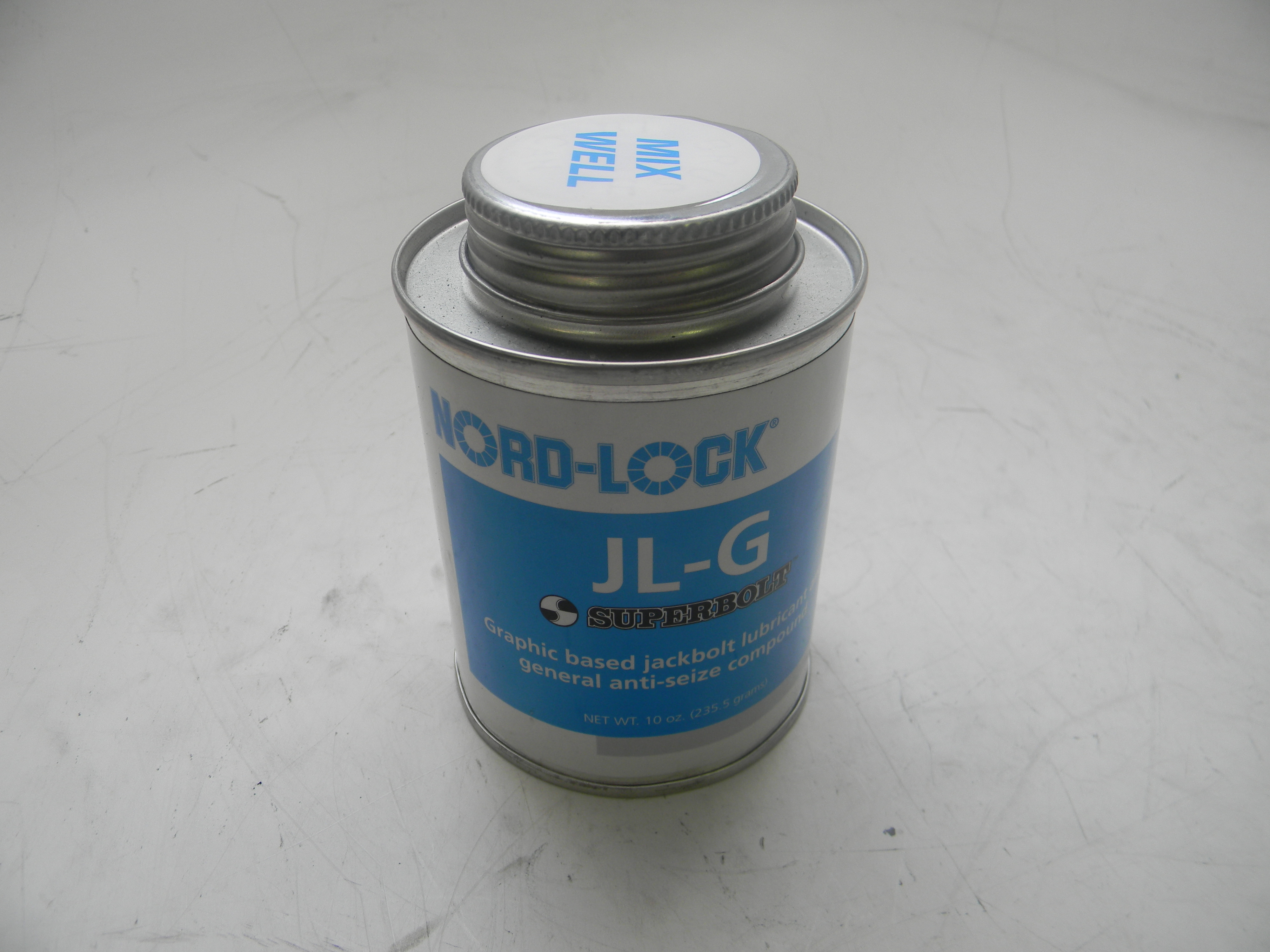

12 SUP-JL-G-10-OZ Superbolt Lubricant
Part JL-G-10-OZ
Item 2000188417
Graphite Based Jackbolt Lubricant
General Anti-Seize Compound
With Brush Top Container
10 OZ / 235.5 Grams
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Normally a stock item @ BPI
Dated 1/18
(1LBS) H 4" L 5" W 4" Box
24.75 5
13 SUP-JL-G-GALLON Superbolt Lubricant
Part JL-G- Gallon
Graphite Based Jackbolt Lubricant and General Anti-Seize Compound
Gallon
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Dated 6/18
(12LBS) H 10" L 12" W 10" Box
165.38 C/F
14 SUP-JL-G-QUART Superbolt Lubricant
Part JL-G-Quart
Graphite Based Jackbolt Lubricant
and General Anti-Seize Compound
Quart Container
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Normally a stock item @ BPI
Dated 9/17
(4LBS) H 6" L 8" W 6" Box
56.25 7
15 SUP-JL-G-TUBE-15ML Superbolt Lubricant
Part JL-G-Tube-15ML
Graphite Based Jackbolt Lubricant
One 15ML Squeeze Tube
Apply between Jackbolt Tips & Washer
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Normally a stock item @ BPI
Dated 1/18
(1LBS) H 4" L 5" W 4" Box
2.50 15

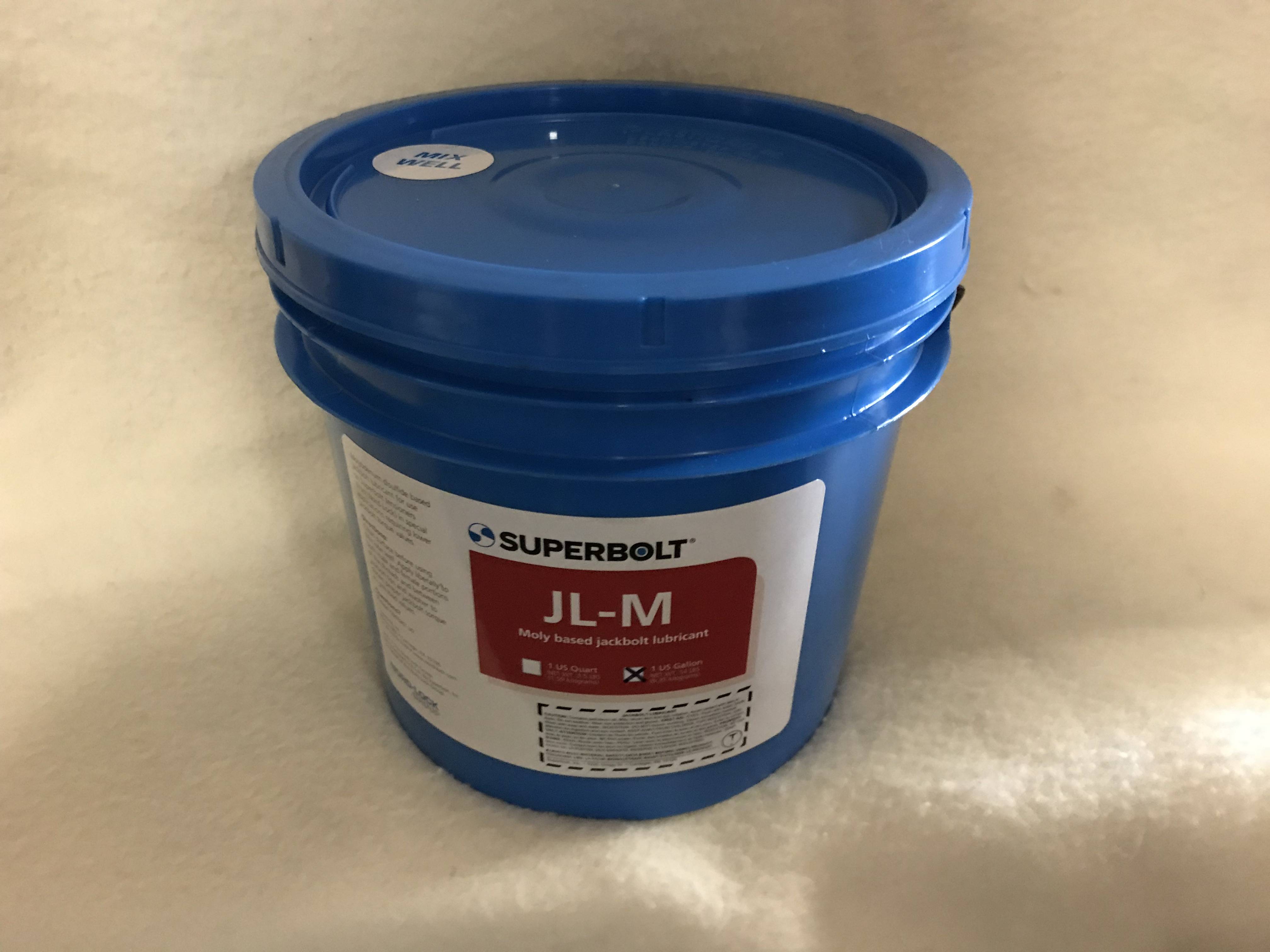

16 SUP-JL-M-GALLON Superbolt Lubricant
Part JL-M-Gallon
Item 2000188427
Moly-Disulphide Based Jackbolt Lubricant
One Gallon Container
With Application Brush
Apply between Jackbolt Tips & Washer
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Dated 6/18
(15LBS) H 6" L 7" W 6" Box
718.88 1
17 SUP-JL-M-PINT Superbolt Lubricant
Part JL-M-Pint
Moly-Disulphide Based Jackbolt Lubricant
One Pint Can with Brush Top
Apply between Jackbolt Tips & Washer
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Normally a stock item @ BPI
Dated 1/18
(2LBS) H 4" L 5" W 4" Box
103.50 3
18 SUP-JL-M-QUART Superbolt Lubricant
Part JL-M-Quart
Moly-Disulphide Based Jackbolt Lubricant
One Quart Can with Brush Top
Apply between Jackbolt Tips & Washer
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Dated 8/15
- 230.63 C/F

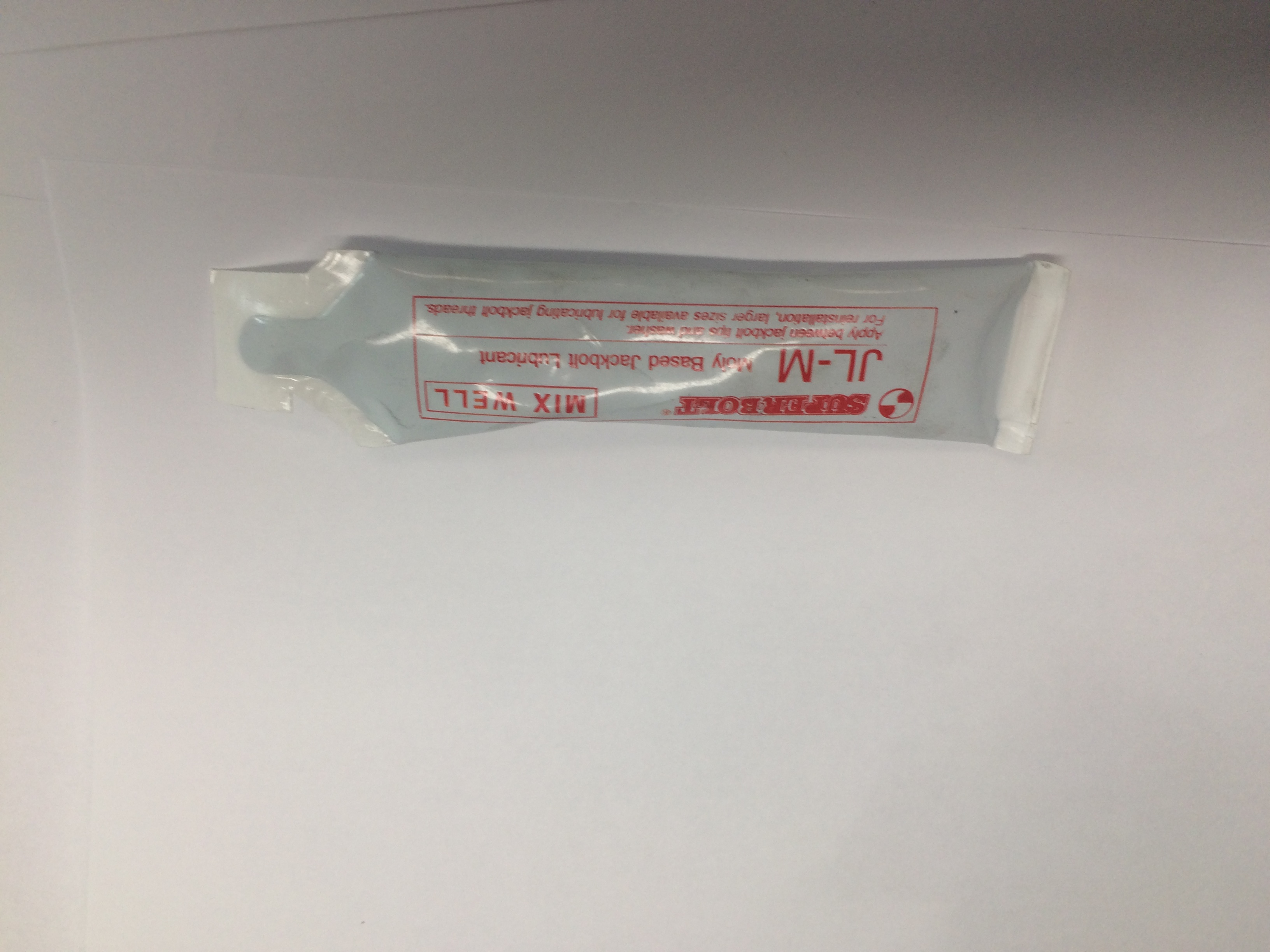

19 SUP-JL-M-TUBE-15ML Superbolt Lubricant
Part JL-M-Tube-15ML
Moly-Disulphide Based Jackbolt Lubricant
One 15ML Squeeze Tube
Apply between Jackbolt Tips & Washer
MSDS, C of C & Shelf Life Statements are on the BPI Web Site
Normally a stock item @ BPI
[Amazon] Dated 1/18
(1LB) H 4" L 5" W 4" Box
4.50 51
20 SUP-MT-100-12-W Superbolt Torquenut Mechanical Tensioner
Part MT-100-12/W
Torquenut / Standard Mechanical Tensioners with Hardened Washer
100 = 1.00 Bolt / Stud Diameter
12 - 12 TPI / Threads Per Inch
With a Hardened Washer & JL-G Jack Bolt Lubricant
1.90 Inch O.D.
Application information is now required
with all Superbolt inquiries & orders
See BPI web site for details
Stock to 3 Weeks Dated 1/18
(1LB) H 4" L 5" W 4" Box
- 57.50 C/F
21 SUP-MT-100-14-W Superbolt Torquenut Mechanical Tensioner
Part MT-100-14/W
Torquenut / Standard Mechanical Tensioners with Hardened Washer
100 = 1.00 Bolt / Stud Diameter
14 - 14 TPI / Threads Per Inch
With a Hardened Washer & JL-G Jack Bolt Lubricant
1.90 Inch O.D.
Application information is now required
with all Superbolt inquiries & orders
See BPI web site for details
Dated 10/17
Ships, Stock to 3 Weeks
(1LBS) H 4" L 5" W 4" Box
48.89 6
22 SUP-MT-100-6-W Superbolt Torquenut Mechanical Tensioner
Part MT-100-6/W
Torquenut / Standard Mechanical Tensioners with Hardened Washer
137 = 1.375 Bolt / Stud Diameter
6 - 6 TPI / Threads Per Inch
With a Hardened Washer & JL-G Jack Bolt 1.90 Inch O.D.
Application information is now required
with all Superbolt inquiries & orders
See BPI web site for details
Ships, Stock to 3 Weeks Dated 10/17
(3LBS) H 4" L 5" W 4" Box
- 57.50 C/F
23 SUP-MT-100-8-W Superbolt Torquenut Mechanical Tensioner
Part MT-100-8/W
Standard Torque Nut
1.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
With a Hardened Washer & JL-G Jack Bolt Lubricant
1.90 Inch O.D.
Application information is now required
with all Superbolt inquiries & orders
See BPI web site for details
[Amazon] Dated 10/17
Ships, Stock to 3 Weeks
(3LBS) H 4" L 5" W 4" Box
57.50 C/F
24 SUP-MT-125-12-W Superbolt Torquenut
Part MT-125-12/W
Torquenut / Standard Mechanical Tensioners
1.25 Inch Bolt / Stud Diameter
12 Threads Per Inch
Includes a Hardened Washer & a Tube of JL-G Graphite Lubricant
2.25 Inch O.D.
Application information is now required
with all Superbolt inquiries & orders
See BPI web site for details
Dated 10/17
Ships, Stock to 3 Weeks
(1LBS) H 4" L 5" W 4" Box
66.94 3
25 SUP-MT-125-7-W Superbolt Torquenut MT
Pat MT-125-7/W
Torquenut / Standard Mechanical Tensioners with Hardened Washer
125 = 1.25 Bolt / Stud Diameter
7 - 7 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
2.25 Inch O.D.
Application information is now required
with all Superbolt inquiries & orders
See BPI web site for details
[Amazon] Dated 6/17
Ships, Stock to 3 Weeks
(1LB) H 4" L 5" W 4" Box
- 66.94 C/F
26 SUP-MT-137-6-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
137 = 1.375 Bolt / Stud Diameter
6 - 6 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
2.46 Inch OD
- 69.00 C/F
27 SUP-MT-150-12-W Superbolt Torquenut MT
Part MT-150-12/W
Torquenut / Standard Mechanical Tensioners
1.5 Inch Nominal Thread Diameter
12 Threads Per Inch
Features Hex-Head Jack Bolts
With a Hardened Washer &
Tube of JL-G Graphite Lubricant
(3LBS) H 5" L 4" W 4" Box
92.50 1

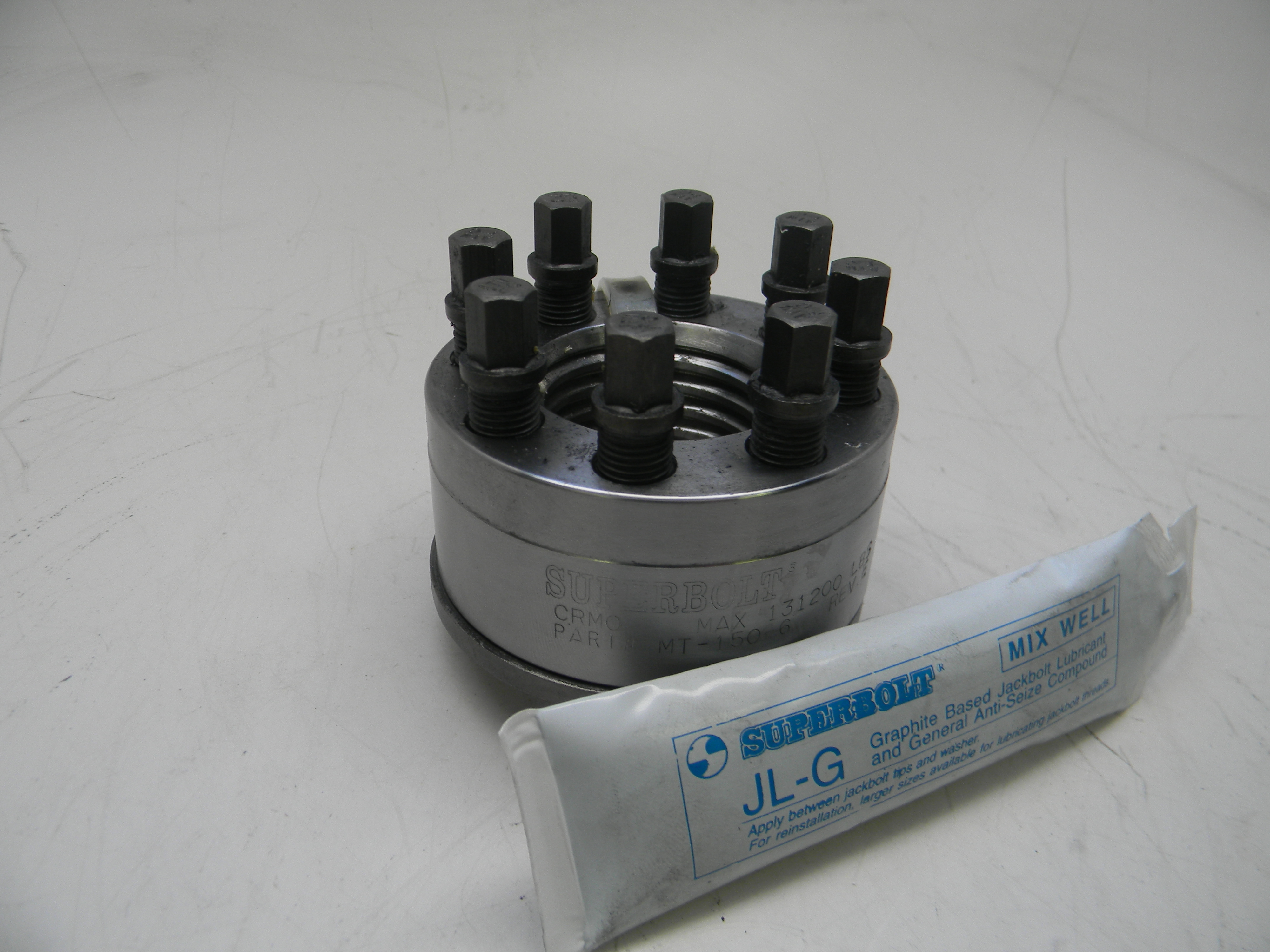

28 SUP-MT-150-6-W Superbolt Torquenut MT
Part MT-150-6/W
Torquenut / Standard Mechanical Tensioners
1.5 Inch Nominal Thread Diameter
6 Threads Per Inch
Features Hex-Head Jack Bolts
With a Hardened Washer &
Tube of JL-G Graphite Lubricant
(3LBS) H 5" L 4" W 4" Box
76.50 4
29 SUP-MT-175-12-W Superbolt Torquenut MT
Part SUP-MT-175-12/W
Torquenut / Standard Mechanical Tensioners
1.75 Inch Bolt / Stud Diameter
12 Threads Per Inch
Includes a Hardened Washer & a Tube of JL-G Graphite Lubricant
12960075 Preload, Nominal
75 FT LB Each Jack Bolt
3.08 Inch O.D.
1.42 Inch Body Height
0.25 Washer Height
2.49 Total Height with Jack Bolts
2.53 LB Dated 10/17
(3LBS) H 6" L 6" W 6" Box
- 151.30 C/F
30 SUP-MT-175-5-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners
1.75 Inch Bolt / Stud Diameter
5 Threads Per Inch
Includes a Hardened Washer & a Tube of JL-G Graphite Lubricant
12960075 Preload, Nominal
75 FT LB Each Jack Bolt
3.08 Inch OD
1.42 Inch Body Height
0.25 Washer Height
2.49 Total Height with Jack Bolts
2.53 LBS H 6" L 6" W 4" Box
[Amazon] Dated 10/17
- 151.30 C/F
31 SUP-MT-175-8-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners
1.75 Inch Bolt / Stud Diameter
8 Threads Per Inch
Includes a Hardened Washer & a Tube of JL-G Graphite Lubricant
12960075 Preload, Nominal
75 FT LB Each Jack Bolt
3.08 Inch OD
1.42 Inch Body Height
0.25 Washer Height
2.49 Total Height with Jack Bolts
2.53 LB
Dated 10/17
- 94.56 C/F
32 SUP-MT-175-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners
175 = 1.75 Bolt / Stud Diameter
/W Includes a Hardened Washer
3.08 Inch OD
2 Weeks (2.3LBS) Dated 10/17
- 151.30 C/F
33 SUP-MT-200-12-W Superbolt Mechanical Tensioner
Part MT-200-12/W
Standard Torque Nut
2.00 Inch Nominal Thread / Stud Diameter
12 Threads Per Inch
Qty 8, 7/16 Inch Hex-Head Jacking Bolts
With a Hardened Washer 0.25 Thick
& JL-G Jack Bolt Lubricant
3.59 Inch Outside Diameter
Dated 1/16
(3LBS) H 4" L 5" W 4" Box
137.06 18
34 SUP-MT-200-4.5-W Superbolt Mechanical Tensioner
Part MT-200-4.5/W
Standard Torque Nut
2.00 Inch Nominal Thread / Stud Diameter
4.5 Threads Per Inch
Qty 8, 7/16 Inch Hex-Head Jacking Bolts
With a Hardened Washer 0.25 Thick
& JL-G Jack Bolt Lubricant
3.59 Inch Outside Diameter
Dated 1/16
(3LBS) H 4" L 5" W 4" Box
137.06 14
35 SUP-MT-225-4.5-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
225 = 2.25 Bolt / Stud Diameter
4.5 - 4.5 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
3.95 Inch OD 9/15
- 175.31 C/F
36 SUP-MT-225-8-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
225 = 2.25 Bolt / Stud Diameter
8 - 8 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
3.95 Inch OD 9/15
- 175.31 C/F
37 SUP-MT-250-4-W Superbolt Torquenut MT
Part MT-250-4-W
Torquenut / Standard Mechanical Tensioners with Hardened Washer
250 = 2.50 Bolt / Stud Diameter
4 = 4 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
4.45 Inch OD
Ships in 2 weeks
Dated 9/16
- 231.63 C/F
38 SUP-MT-250-8-W Superbolt Torquenut MT
SUP-MT-250-8/W
Torquenut / Standard Mechanical Tensioners with Hardened Washer
250 = 2.50 Bolt / Stud Diameter
8 - 8 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
4.45 Inch OD
Dated 10/17
- 231.63 C/F
39 SUP-MT-275-8-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
275 = 2.75 Bolt / Stud Diameter
8 - 8 TPI / Threads Per Inch
/ W = Hardened Washer, JL-G Lubricant & Instructions
4.70 Inch OD
(10LBS) H 6.00" L 6.00" W 6.00"
243.00 4
40 SUP-MT-300-12-W Superbolt Mechanical Tensioner
Part MT-300-12/W
Standard Torque Nut
3.00 Inch Nominal Thread / Stud Diameter
12 Threads Per Inch
Qty 12, 9/16 Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.31 Thick & JL-G Jack Bolt Lubricant
5.2 Inch OD
Ships in 2 weeks
Dated 11/18
(9LBS) H 6" L 6" W 4" Box
- 383.75 C/F
41 SUP-MT-300-4-W Superbolt Mechanical Tensioner
Part MT-300-4/W
Standard Torque Nut
3.00 Inch Nominal Thread / Stud Diameter
4 Threads Per Inch
Qty 12, 9/16 Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.31 Thick & JL-G Jack Bolt Lubricant
5.2 Inch OD
Ships in 2 weeks
Dated 11/18
(9LBS) H 6" L 6" W 4" Box
- 383.75 C/F
42 SUP-MT-300-6-W Superbolt Mechanical Tensioner
Part MT-300-6/W
Standard Torque Nut
3.00 Inch Nominal Thread / Stud Diameter
6 Threads Per Inch
Qty 12, 9/16 Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.31 Thick & JL-G Jack Bolt Lubricant
5.2 Inch OD
Ships in 2 weeks
Dated 11/18
(9LBS) H 6" L 6" W 4" Box
- 383.75 C/F
43 SUP-MT-300-8-W Superbolt Mechanical Tensioner
Part MT-300-8/W
Standard Torque Nut
3.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
Qty 12, 9/16 Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.31 Thick & JL-G Jack Bolt Lubricant
5.2 Inch OD
[Amazon]
Ships in 2 weeks
Dated 11/18
(9LBS) H 6" L 6" W 4" Box
383.75 C/F
44 SUP-MT-340-4-W Superbolt Std MT, 3.400-4
3.400-4 TPI Mechanical Tensioner with a Hardened Washer
- Call C/F
45 SUP-MT-350-12-W Superbolt Mechanical Tensioner
Standard Torque Nut
3.50 Inch Nominal Thread / Stud Diameter
12 Threads Per Inch
Qty X, X/XX Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.XX Thick & JL-G Jack Bolt Lubricant
X.X Inch OD
(XLBS) H 6.00" L 6.00" W 4.00"
- 409.06 C/F
46 SUP-MT-350-4-W Superbolt Mechanical Tensioner
Standard Torque Nut
3.50 Inch Nominal Thread / Stud Diameter
4 Threads Per Inch
Qty X, X/XX Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.XX Thick & JL-G Jack Bolt Lubricant
X.X Inch OD
(13LBS) H 6" L 6" W 4" Box
409.06 4
47 SUP-MT-375-8 Superbolt Mechanical Tensioner
Part SUP-MT-375-8/W
Standard Torque Nut
3.75 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
Qty X, X/XX Inch Hex-Head Jacking Bolts
With a Hardened Washer by 0.XX Thick & JL-G Jack Bolt Lubricant
X.XInch OD Dated 9/14
[Amazon]
(XLBS) H 6" L 6" W 4" Box
- 479.19 C/F
48 SUP-MT-400-4-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
400 = 4.00 Bolt / Stud Diameter
4 - 4 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
6.45 Inch OD
- 575.29 C/F
49 SUP-MT-450-4-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
450 = 4.50 Bolt / Stud Diameter
4 = 4 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
7.20 Inch 9/15
- 641.75 C/F
50 SUP-MT-450-8-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
450 = 4.50 Bolt / Stud Diameter
8 = 8 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
7.20 Inch
- Call C/F
51 SUP-MT-48 MT Standard Torque Nut, Coarse Pitch 5 MM - 128.75 C/F
52 SUP-MT-500-12-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
5.00 = 5.00 Bolt / Stud Diameter
12 -= 12 TPI / Threads Per Inch
/ W = Hardened Washer & JL-G Lubricant
7.70 Inch OD
10 Working days to Ship 7/15
- 1052.94 C/F
53 SUP-MTA-150-6-W Superbolt Armored Mechanical Tensioner with a Hardened Washer and Lubricant 2/15 - 105.19 C/F
54 SUP-MTA-200-8-W Superbolt Armored Mechanical Tensioner with a Hardened Washer and Lubricant 11/14 - 217.50 C/F
55 SUP-MTA-300-8-W Superbolt Armored Mechanical Tensioner with a Hardened Washer and Lubricant 11/14 - 525.00 C/F
56 SUP-MTA-400-8-W Superbolt Armored Mechanical Tensioner with a Hardened Washer and Lubricant 11/14 - 830.00 C/F
57 SUP-MT-M20-2.5-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
20 = 20mm Diameter
2.5 = 2.5 TPI / Threads Per Inch
/ W = Includes a Hardened Washer & JL-G Lubricant
37mm OD
- 41.44 C/F
58 SUP-MT-M72-6-W Superbolt Torquenut MT
Torquenut / Standard Mechanical Tensioners with Hardened Washer
72 = 72mm Diameter
6 - 6 TPI / Threads Per Inch
/ W = Includes a Hardened Washer & JL-G Lubricant
119mm OD
3 Weeks 5/15
- 340.00 C/F
59 SUP-MT-M80-6-W Superbolt Torquenut MT
Part SUP-MT-M80-6/W
Torquenut / Standard Mechanical Tensioner
With a Hardened Washer
80 = 80mm Diameter
6 - 6 TPI / Threads Per Inch
/ W = Includes a Hardened Washer
& JL-G Lubricant
132mm OD
Ships in 3 weeks
(12LBS) H 4" L 5" W 4" Box
330.00 1
60 SUP-MT-M90-6-W Superbolt Mechanical Tensioner with Hardened Washer

- 502.88 C/F
61 SUP-SB8-100-14-0400 Superbolt 1.00-14 UNF x 4.00 Inches Long 8/14 - 162.56 C/F
62 SUP-SC021 Wood packaging charge 5/14 - 58.82 C/F
63 SUP-SJ-200-4.5-W Superbolt SJ-200-4.5 3 Weeks 4/14 - 157.50 C/F
64 SUP-SJ-250-8-W Superbolt Jam Nut
Part SJ-250-8-W
2.5 Inch Thread Diameter
Inch O.D.
8 TPI / Threads Per Inch
SJX are used for applications where limited headroom and/or
limited thread engagement are required
Includes a Tube of JLG Lubricant
On request, Jamnuts are available with
Superbolt's patented captive set screws
Dated 7/18
(6LBS) H 4" L 5" W 4" Box
293.75 C/F
65 SUP-SJ-325-8-W Superbolt Jam Nut
3.25 Inch Thread Diameter
Inch O.D.
8 TPI / Threads Per Inch
SJX are used for applications where limited headroom and/or limited thread engagement are required
On request, Jamnuts are available with
Superbolt's patented captive set screws (13LBS) H 9.00" L 9.00" W 9.00"
576.30 2
66 SUP-SJ-M80-6-W Superbolt Tensioner with Hardened Washer
Part SUP-SJ-M80-6/W
Price Based on Qty 4
Dated 11/17
Ships in 4 Weeks
- 386.75 C/F
67 SUP-SJX-150-6-W Superbolt Jam Nut
Part SJX-150/W
1.5 Inch Thread Diameter
3.2 Inch O.D.
SJX are used for applications where limited headroom and / or limited thread engagement is required
On request, Jamnuts are available with
Superbolt's patented captive set screws
3 LBS
6/16 120
(3 LBS) H 4" L 5" W 4" Box
120.00 2
68 SUP-SJX-200-12-W Superbolt Jam Nut
Part SJX-200/W
2.00 Inch Thread Diameter
4.2 Inch O.D.
SJX are used for applications where limited headroom and / or limited thread engagement is required
On request, Jamnuts are available with
Superbolt's patented captive set screws
10/14
- 206.13 C/F
69 SUP-SMX-0006-00 Superbolt Mill Motor Nut for 2.75" diameter thread, 8TPI, 5/8" diam set screws, 5/16" Allen bit, body OD= 5.97", total thickness = 1.25". - Call C/F
70 SUP-SMX-075-14-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
0.75 Inch Thread / Body Diameter
14 Threads Per Inch
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit Size
Inch Body Diameter
Total Thickness with Washer Inch
Includes a Tube of JL-Moly Lube and the Hardened Washer
Dated 11/17
(3LBS)
- 51.00 C/F
71 SUP-SMX-100-12-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
1.00 Inch Thread / Body Diameter
12 Threads Per Inch
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit Size
Inch Body Diameter
Total Thickness with Washer Inch
Includes a Tube of JL-M Lube and the Hardened Washer
(3LBS) H 4" L 5" W 4" Box
62.50 1
72 SUP-SMX-125-12-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
1.25 Inch Thread / Body Diameter
12 Threads Per Inch
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit Size
Inch Body Diameter
Total Thickness with Washer Inch
Includes a Tube of JL-M Lube and the Hardened Washer (3LBS)
(3LBS) H 4" L 5" W 4" Box
68.00 3
73 SUP-SMX-125-8-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
1.25 Inch Thread / Body Diameter
8 Threads Per Inch
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit Size
Inch Body Diameter
Total Thickness with Washer Inch
Includes a Tube of JL-Moly Lube and the Hardened Washer (3LBS)
- 68.00 C/F
74 SUP-SMX-175-8-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-175-8/W
1.75 Inch Thread / Body Diameter
8 Threads Per Inch
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit Size
3.625 Inch Body Diameter
Total Thickness with Washer 1.0625 Inch
Includes a Tube of JL-M Moly Lube and the Hardened Washer
[Amazon]
(3LBS) H 4" L 5" W 4 Box
121.12 C/F
75 SUP-SMX-200-12-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
2.00 Inch Nominal Thread / Stud Diameter
12 Threads Per Inch
Includes Moly Lubricant and a Hardened Washer 4/15
- 162.56 C/F
76 SUP-SMX-802-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-802/W
1.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Foot
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit
2.34 Inch Body Diameter
Total Thickness with Washer 0.94 Inch
Includes a Tube of JL-M Lube and the Hardened Washer
For 602 & 802 Mill Motors
Dated 1/18
(4LBS) H 6" L 7" W 6" Box
57.38 C/F
77 SUP-SMX-803-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-803/W
1.25 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
3/8 Inch Diameter Set Screws
3/16 Inch Allen Bit
2.72 Inch Body Diameter
Total Thickness with Washer 0.94 Inch
Includes a tube of JL-M Lube and the Hardened Washer
For 603, 604 & 803, 804 Mill Motors
Dated 1/18
(3LBS) H 5" L 5" W 5" Box
71.19 7
78 SUP-SMX-804-W Superbolt Mill Motor Nut Assembly with a Hardened Wash
Part SMX-804/W
1.25 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
3/8" Diameter Set Screws
3/16 Inch Allen Bit
2.72 Inch Body Diameter
Total Thickness with Washer 0.94 Inch
Includes a Tube of JL-M Lube and the Hardened Washer
For 603, 604 & 803, 804 Mill Motors
Dated 1/18
(12LBS) H 4" L 5" W 4" Box
71.19 2
79 SUP-SMX-806-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-806/W
Item 2000197539
1.50 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
Set Screws
1/4 Inch Allen Bit
3.59 Inch Body Diameter
Total Thickness with Washer 1.00 Inch
Includes a Tube of JL-M Lube and the Hardened Washer
For 606, 806 & MD102 Mill Motors
Dated 1/18
(4LBS) H 4" L 5" W 4" Box
110.50 10
80 SUP-SMX-808-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-808/W
2.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
Qty. 8, 1/2" Diameter Set Screws / Jacking Bolts
1/4 Hex Bit Size
3.72 Inch Body Diameter
Total Thickness with Washer 1.00 Inch
Includes a Tube of JL-M Jack Bolt Lube and the Hardened Washer
For 608 808 & MC50 Mill Motors
Dated 8/18
(3LBS) H 6" L 6" W 6" Box
153.92 C/F
81 SUP-SMX-810-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX810/W
Item 20001957546
For 610 & 810 Mill Motors
2.25 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
4.47 Inch Body Diameter
Total Thickness with Washer 1.13 Inches
Includes a Tube of JL-M Lube and the Hardened Washer
Stock to 3 Weeks
(5LBS) Dated 1/18
191.25 C/F
82 SUP-SMX-812-W Superbolt Mill Motor Nut Assembly
Part SMX-812/W
2.50 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
Torque to 58 LB FT Each
4.72 Inch Body Diameter
Total Thickness with Washer 1.13 Inches
Includes a Tube of JL-M Lube and the Hardened Washer G3B37
For 612 & 812 Mill Motors
Dated 1/18
(4LBS) H 6" L 6" W 6" Box
227.38 C/F
83 SUP-SMX-814-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-814/W
3.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
Qty 8, 5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
Body Diameter 5.47 Inches
Total Thickness with Washer 1.25 Inches
Includes a Tube of JL-M Lube and the Hardened Washer
Set Screw Torque 58 LB FT with JL-M Standard Preload 132,000 LBS
For 614 & 814 Mill Motors
Dated 1/18
(9LBS) H 4" L 5" W 4" Box
300.69 4
84 SUP-SMX-816-W Superbolt Mill Motor Nut Assembly
With a Hardened Washer
Part SMX-816/W
3.25 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
5.97 Inch Body Diameter
1.13 Inch Total Thickness with Washer
Includes a Tube of JL-M Lube and the Hardened Washer
For 416, 616 & 816 Mill Motors
Dated 1/18
(9LBS) H 6" L 6" W 6" Box
362.31 1
85 SUP-SMX-818-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-818/W
3.50 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
5/8" Diameter Set Screws
5/16" Allen Bit
Body Diameter 6.47 Inches
Total Thickness with Washer 1.13 Inch
Includes a Tube of JL-M Lube and the Hardened Washer
For 618 & 818 Mill Motors
Dated 1/18
(4LBS) H 4" L 7" W 7" Box
416.50 1
86 SUP-SMX-820-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
Part SMX-820/W
4.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
Body Diameter 7.22 Inches
Total Thickness with Washer 1.38 Inches
Includes a Tube of JL-M Lube and the Hardened Washer
For 620, 622 & 820, 822 Mill Motors
Dated 1/18
(14LBS) H 3" L 8" W 8" Box
440.00 4
87 SUP-SMX-822-W Superbolt Mill Motor Nut Assembly with a Hardened Washer
4.00 Inch Nominal Thread / Stud Diameter
8 Threads Per Inch
5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
Body Diameter 7.22 Inches
Total Thickness with Washer 1.38 Inches
Includes a Tube of JL-M Moly Lube and the Hardened Washer
For 620, 622 & 820, 822 Mill Motors
- 472.81 C/F
88 SUP-SMX-824-W Superbolt Mill Motor Nut Assembly
Part SMX-824/W
4.00 Inch Thread Diameter
8 Threads Per Inch
5/8 Inch Diameter Set Screws
5/16 Inch Allen Bit
Body Diameter 7.72 Inches
Total Thickness with Washer 1.38 Inch
Includes a Tube of JL-M Moly Lube and the Hardened Washer
For 624 & 824 Mill Motors
Dated 3/17
- 496.19 C/F
89 SUP-SMX-M27-W Superbolt Mill Motor Nut Assembly
Part SMX-M27/W
Motor Frame - 1LT3 166
Thread Size - M27-1.5
With Hardened Washer
Dated 3/17
- 52.06 C/F
90 SUP-SMX-M33-W Superbolt Mill Motor Nut Assembly
Part SMX-M33/W
Motor Frame - 1LT2 136/156
Thread Size - M33-1.5
With Hardened Washer
- 104.83 C/F
91 SUP-SMX-M40-W Superbolt Mill Motor Nut Assembly
Part SMX-M40/W
Motor Frame - N/A
Thread Size - M40-1.5
With Hardened Washer
- 65.88 C/F
92 SUP-SMX-M42-W Superbolt Mill Motor Nut Assembly
Part SMX-M42-W
Motor Frame - 1LT2 175/176
Thread Size - M42-1.5
With Hardened Washer
- 81.81 C/F
93 SUP-SMX-M45-W Superbolt Mill Motor Nut Assembly
Part SMX-M45/W
Motor Frame - 1LT2 185/186
Thread Size - M45-1.5
With Hardened Washer
- 90.31 C/F
94 SUP-SMX-M48-W Superbolt Mill Motor Nut Assembly
Part SMX-M45/W
Motor Frame - 1LT2 185/186
Thread Size - M45-1.5
With Hardened Washer
- 103.06 C/F
95 SUP-SMX-M55-W Superbolt Mill Motor Nut Assembly
Part SMX-M55/W
Motor Frame - 1LT2 204/206
Thread Size - M55-2
With Hardened Washer
- 140.25 C/F
96 SUP-SMX-M64-W Superbolt Mill Motor Nut Assembly
Part SMX-M64/W
Motor Frame -
Thread Size - M64
With Hardened Washer
- 248.63 C/F
97 SUP-SMX-M65-W Superbolt Mill Motor Nut Assembly
Part SMX-M65/W
Motor Frame - 1LT2 224/226
Thread Size - M65-2
- 174.25 C/F
98 SUP-SMX-M70-W Superbolt Mill Motor Nut Assembly
Part SMX-M70/W
Motor Frame - 1LT2 244/246
Thread Size - M70-2
With Hardened Washer
- 189.13 C/F
99 SUP-SMX-M72-W Superbolt Mill Motor Nut Assembly
Part SMX-M72/W
Motor Frame - N/A
Thread Size - M72-4
With Hardened Washer
- 189.13 C/F
100 SUP-SMX-M90-2-W Superbolt Mill Motor Nut Assembly
Part SMX-M90-2/W
Motor Frame - 1LT2 264/266
Thread Size - M90-2
With Hardened Washer
- 274.13 C/F
101 SUP-SMX-M90-4-W Superbolt Mill Motor Nut Assembly
Part SMX-M90-4/W
Motor Frame - 1LT2 284/286
Thread Size - M90-4
With Hardened Washer
- 306.00 C/F
102 SUP-STUD Superbolt Stud
2.000 Diameter X 14 Inches Long
4.5 Threads per Inch
14,000, 62
4/16
- 122.35 C/F
103 SUP-SX8-150-12-W Superbolt FlexNut
Part SX8-150-12/W
With Hardened Washer
Dated 8/15
- 78.63 C/F
104 SUP-W-02189 Superbolt Washer
Part W-02189
Hardened Washer
3.590 Inch O.D. 91.1MM
1.520 Inch I.D 38.6MM
0.250 Inch Thick 6.3MM
Ships in 10 work days
Dated 8/18
22.50 1
105 SUP-W-02192 Superbolt Washer
2.520 ID X 4.720 OD X 0.250 Thick Hardened Washer 1/14
27.63 2
106 SUP-W-02194 Superbolt Washer. THK Hardened Washer for a SMX-816/W , 3.270 ID X 5.970 OD X 0.250 Thick 2/14 45.00 2
107 SUP-W-07005 Superbolt Hardened Washer
3.560" ID
5.510" OD
0.310" Thick
- 56.25 C/F
108 SUP-W1194 Superbolt Washer
2.020 ID X 3.500 OD X 0.250 Thick Hardened Washer 9/15
- 23.38 C/F
109 SUP-W-1204 Superbolt Washer
4.020 ID X 6.00 OD X 0.310 Thick Hardened Washer 9/15
- 52.06 C/F
Prices are subject to change without notice. Last updated: 26-Mar-2019 08:53:43 AM (EST)

Secure Online Order


Secure Online Order

62,610 part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)


Product MSDS Information
Web Site Features

Part Number Lookup

Enter at least three characters of a part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
About Brake Products, Inc.

About Brake Products, Inc.

Brake Products, Inc. is more than an authorized distributor, we are real stocking distributor with inventory in excess of 2 million dollars. BPI has thousands of parts in our stock to protect your business with same day shipments till almost 7PM. With over 30 years of experience in the material handling business we are ready to assist you in making the right decisions for efficient motion control.

Brake Products specializes in the machining of Brake Wheels for AC & DC Industrial Brakes. We utilized CAD designed & engineered products with CNC machined tools to produce the "Perfect Brake Wheel" these wheels are not limited in design by a previously designed castings for universal use. BPI is an OEM brake wheel manufacturer for Crane Brake Manufacturers. Though we machine all the brake wheel surfaces for balance both static & dynamic balancing to your specification is available.

Please spend some time at our web site, an abundance of product information and CAD style PDF drawings are available to download & share. Pricing and a shopping cart for automated order entry can be done here. Please call with any questions. We would appreciate the opportunity to speak with you and provide a formal quotation.

Order Status Lookup by Invoice/Web Order Number


BPI Invoice/Web Order #

Invoice number is all-numeric, 5-7 digits, web order is alpha-numeric. Only recent invoices are available. Web orders may take a day or two to have an invoice created.


Ductile Iron Brake Wheels

Ductile Iron Brake Wheels

We manufacture high-quality custom and standard brake wheels from 4-1/2" to 30" diameter, cast from the finest ASTM and ASME specified 80-60-03 Ductile Iron to provide maximum service and a high coefficient of friction. Machining is done on CNC equipment using solid dura bar or iron castings.

Brake wheels for all types of electric and hydraulically actuated brakes. Many wheels available for same day shipment; both pilot bore and finished bored for the 600 and 800 series mill motors.

Replacement Brake Parts

Replacement Brake Parts

Easily locate and purchase hard to find replacement parts for the following most popular brake assemblies:

  •  EC&M
  •  SQUARE-D
  •  WESTINGHOUSE
  •  CUTLER-HAMMER
  •  GEMCO
  •  MONDEL

Brake assembly diagrams and selection tables, backed by our extensive replacement brake parts stock, makes it as easy as "1-2-3".

OEM Products


Brake Products is proud to maintain excellent decades-long distrubutor relationships with industry-leading Original Equipment Manufacturers (OEM). We keep most popular items in stock to improve delivery times. These products are available to quote and purchase 24/7 on our e-commerce web sites, along with a multitude of installation and support information:

  •  Gemco (Ametek)
  •  Gleason Reel
  •  Aero-Motive
  •  Cutler-Hammer (Eaton)
  •  Hubbell
  •  SuperBolt
  •  Telemotive (Magnetek)
  •  Renold
  •  Stearns

For online purchases, shipping is free within continental U.S.
Electrical Contactors Parts

Electrical Contactors Parts

Easily locate and purchase hard to find replacement parts for the following most popular electrical contactors:

  •  Clark Control

Contactors assembly diagrams and selection tables, backed by our extensive replacement contactors parts stock, makes it as easy as "1-2-3".


Non-Asbestos Overhead Crane Linings from Scan-Pac

Non-Asbestos Overhead Crane Linings From Scan-Pac

The industrial marketplace has a variety of brake and clutch requirements for overhead cranes. Scan-Pac's technical and application expertise can recommend and furnish the proper material to meet the specific need your operation demands. Numerous specific parts have been molded or machined to meet the unique requirements of a special application. Let Scan-Pac solve those vexing problems in your day-to-day production.

Scan-Pac's RF38 material has been accepted as a well proven material for these applications and has been in use for several decades.

Scan-Pac Products Available From Stock

Non-OEM Brake Replacement Parts


High quality, aftermarket, non-OEM, brake replacement parts


Non-OEM Brake Replacement Parts Available From Stock


Industrial Brakes and Brake Parts from Reuland

Industrial Brakes and Brake Parts from Reuland

Reuland offers a wide variety of brakes for various applications. Popular MagnaStop brake is a solenoid activated, spring set type brake. The MagnaStop brake is available in standard and dust-tight/waterproof enclosures in standard AC voltages. Torque ratings available range from (1.5-20) lb. Ft. The brake can be ordered as a traditional C-face mount or as a "double C-face" design. The MagnaStop can also be ordered as foot mounted design.

Reuland also offers a wide range of direct acting magnetic disc brakes. These brakes are also available as standard, dust-tight/waterproof, or marine duty enclosures. Torque ratings available vary from 1.5 to 1000 lb. Ft. Reuland brakes are defined as "fail safe". When power is applied to the brake, the brake releases the motor shaft. The load is then free to turn. When power is removed or lost, the brake grabs the motor shaft and stops the load. A brake release knob or flipper is provided to manually release the brake. Reuland offers both adjustable and non-adjustable designs. Reuland brakes are available in both single and three phase designs. Some brakes are available in DC power. Finally, Reuland offers it's "X" series brakes. These brakes are designed to mount to non-Reuland built motors.
Industrial Brakes and Brake Parts from Wagner

Industrial Brakes and Brake Parts from Wagner

Our knowledge is second to none in regard to the old style Wagner brake. It may be worth knowing that Wagner Brake itself has not manufactured this style brake since 1981, yet we have never stopped supplying this brake to our large distributor network.

When it comes to air brake parts, our company roots go way back. We have an extensive library of air brake catalogs which has supplied our customers well over the years. Our knowledge is based mostly on the Bendix (formerly Bendix-Westinghouse), Wagner Air Brake, and the Midland Air Brake line.


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
